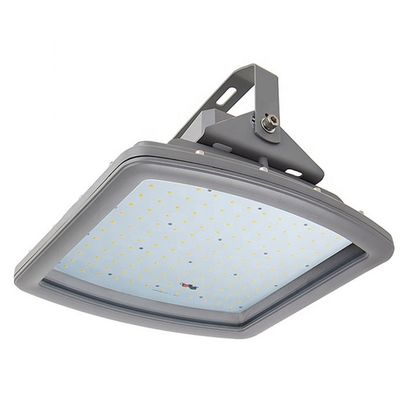

0.98 Led Explosion Proof Light Fixture 100W Meanwell Battery

Product Details:

Place of Origin:	Shaanxi, China
Brand Name:	Razorlux
Certification:	ce, C-tick, PSE, RoHS, Saa
Model Number:	REP-J-100

Payment & Shipping Terms:

Price:	$240.00/Pieces >=1 Pieces
Packaging Details:	Delivery term: FOB Tianjin/Shanghai, EX-Work, CFR, CIF <br>3-5 days for samples after payment
Supply Ability:	1000 Piece/Pieces per Week

Contact Now

All Products

LED Outdoor Flood Light (33)

Marine LED Flood Light (42)

Waterproof LED Flood Light (25)

LED Industrial Flood Light (18)

Dimmable LED Flood Light (22)

LED Stadium Lights (62)

LED Outdoor Sports Lighting (19)

LED Boat Deck Light (11)

LED High Mast Light (17)

LED Crane Light (10)

LED High Bay Lights (28)

LED Explosion Proof Light (28)

Detailed Product Description

Product Name:	100W Explosion Proof LED Lights	Power:	100W
Material:	Die Cast Aluminum	DRIVE CURRENT:	350 MA
Power Factor:	0.98	Warranty:	5 Years
Application:	Gas Station/chemical Industries/airport/warehouse/marine	Port:	TIAN JIN
High Light:	100W Led Explosion Proof Light , 0.98 Led Explosion Proof Light , Meanwell battery explosion proof light fixture

100W Meanwell battery explosion-proof light miners led explosion-proof lights

FEATURES:

1.High Efficacy low decay 700MA LED chip
2.High heat transmit die cast housing ADC12 aluminum, patent design, IP68
3.Shock and vibration resistant tempered glass, super clear 95% light transmit rate
4.Anti-glare.Scientific optical reflector design, making the light more focus,even, comfortable for eyes
5.Original Bridgelux LED source,high luminous efficacy and long lifespan
6.MEANWELL HLG series driver, the highest level of MEANWELL driver
7.Surface treatment-Powder painted, salt resistant and chemical resistant, also hard for dust to accumulate on the surface
8.2.0mm aluminum PCB with heat index 2.5, keep LED working under cool temperature
9.Working temperature: -30ºC to 50ºC.

Application

1. Suitable for gas station, petroleum and chemical industries, coal mine, military, airport, warehouse, marine etc.
2. Zone1 & Zone2 gaseous environment, and Zone21 & Zone22 dust environment.
3. Class I Division 2 Group A, B, C, D

ITEM NO.	RLEP-J40	RLEP-J100	RLEP-J200
TOTAL POWER	30w	100w	185w
Replace HPS	150w	300-350w	700-1000w
Dimension	200200270mm	300300175mm	400400185
Weight	4KG	7.5KG	12KG
Reflector/ wide angle	120	wide angle	wide angle
Nominal lumens	3480lm	11600lm	20880lm
Driver Current	350mA
# OF LEDS	24	84	156
System Efficacy	116 LM/W
Light Color option	5700/4000/2700K
Materia	Die Cast Aluminum
Wide AC input	90-305 VAC
Power Factor	0.98
Total Harmonic Distortion	< 10%
Surge protection	IEC/EN 61000-4-5
Operation temp	-30 ºC to +50 ºC
IP class	68
Rated Life	100,000+ hrs
Warranty	5 years
Certificate	ROHS CE DLC ATEX SAA PSE C-TICK

1. UL TUV CB EMC CE certified MW
HLG series power driver, IP67
protective level, 7 years warranty.

2. The integration of reflective optical
design,install directly in the light body,
make the light more focus and
comfortable for eyes.

3. High pressure die casting alloy aluminum
housing, create through high pressure(1600
ton) in one piece,high explosion proof level
and IP68 waterproof protection.

4. LED chip with 2.0mm thick Aluminum PCB board
installed directly onto Aluminum Shell. As a result,
the whole lamp is integrated as a radiator for the
LED chips. Besides,the distance of LEDS are good
enough for spreading heat, to ensure long lifespan,
and with special circuit design, each LED chip
won’t affect the others when fail to work, so the
lamp will keep working even if some LED chips
stopped.
