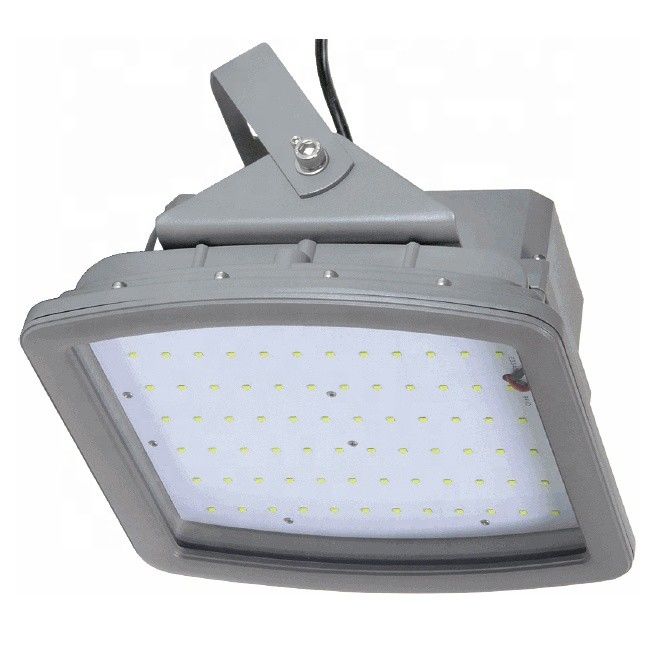

IP68 Led Explosion Proof Light Work 60w 5700K Circuitry Design

Product Details:

Place of Origin:	Shaanxi, China
Brand Name:	Razorlux
Certification:	ce, C-tick, PSE, RoHS, Saa
Model Number:	REP-J-100

Payment & Shipping Terms:

Minimum Order Quantity:	2 Pieces
Price:	$10.00 - $300.00/Pieces
Packaging Details:	Delivery term: FOB Tianjin/Shanghai, EX-Work, CFR, CIF <br>3-5 days for samples after payment
Supply Ability:	3000 Piece/Pieces per Month

Contact Now

All Products

LED Outdoor Flood Light (33)

Marine LED Flood Light (42)

Waterproof LED Flood Light (25)

LED Industrial Flood Light (18)

Dimmable LED Flood Light (22)

LED Stadium Lights (62)

LED Outdoor Sports Lighting (19)

LED Boat Deck Light (11)

LED High Mast Light (17)

LED Crane Light (10)

LED High Bay Lights (28)

LED Explosion Proof Light (28)

Detailed Product Description

Input Voltage(V):	90-305 VAC	Warranty(Year):	5-Year
Lighting Solutions Service:	Lighting And Circuitry Design, DIALux Evo Layout	Lifespan (hours):	50000
Working Time (hours):	50000	CRI (Ra>):	75
Lamp Luminous Flux(lm):	11600lm	IP Rating:	IP67
High Light:	IP68 Led Explosion Proof Light , 60w Led Explosion Proof Light , 5700K explosion proof led work lights

Razorlux High quality 5700K IP68 60w 80w 100w LED Explosion Proof Lighting

Features:

1.High Efficacy low decay 700MA LED chip.
2.High heat transmit die-cast housing ADC12 aluminum, patent design, IP68.
3.Shock and vibration resistant tempered glass, super clear 95% light transmit rate.
4.Anti-glare.Scientific optical reflector design, making the light more focus, even, comfortable for eyes 5.Original Bridgelux LED source, high luminous efficacy and long lifespan.
6.MEANWELL HLG series driver, the highest level of MEANWELL driver.
7.Surface treatment-Powder painted, salt resistant and chemical resistant, also hard for dust to accumulate on the surface.
8.2.0mm aluminum PCB with heat index 2.5, keep LED working under cool temperature.
9.Working temperature: -30ºC to 50ºC.

LED LIGHT ENGINE
High quality LM80 Certify Chip
Efficacy : up to 150lm @ 350mA (per watt)
Rated Life of 100,000+ hrs
Operation temp: -30 ºC to +50 ºC
No toxic chemicals/Rohs compliant
70%-80% saving compare to HPS/MH

ITEM NO.	RLEP-J40	RLEP-J100	RLEP-J200
TOTAL POWER	30w	100w	185w
Replace HPS	150w	300-350w	700-1000w
Dimension	200200270mm	300300175mm	400400185
Weight	4KG	7.5KG	12KG
Reflector/ wide angle	120	wide angle	wide angle
Nominal lumens	3480lm	11600lm	20880lm
Driver Current	350mA
# OF LEDS	24	84	156
System Efficacy	116 LM/W
Light Color option	5700/4000/2700K
Materia	Die Cast Aluminum
Wide AC input	90-305 VAC
Power Factor	0.98
Total Harmonic Distortion	< 10%
Surge protection	IEC/EN 61000-4-5
Operation temp	-30 ºC to +50 ºC
IP class	68
Rated Life	100,000+ hrs
Warranty	5 years
Certificate	ROHS CE DLC ATEX SAA PSE C-TICK

1. UL TUV CB EMC CE certified MW
HLG series power driver, IP67
protective level, 7 years warranty.

2. The integration of reflective optical
design,install directly in the light body,
make the light more focus and
comfortable for eyes.

3. High pressure die casting alloy aluminum
housing, create through high pressure(1600
ton) in one piece,high explosion proof level
and IP68 waterproof protection.

4. LED chip with 2.0mm thick Aluminum PCB board
installed directly onto Aluminum Shell. As a result,
the whole lamp is integrated as a radiator for the
LED chips. Besides,the distance of LEDS are good
enough for spreading heat, to ensure long lifespan,
and with special circuit design, each LED chip
won’t affect the others when fail to work, so the
lamp will keep working even if some LED chips
stopped.
