Home ProductsLED Crane Light

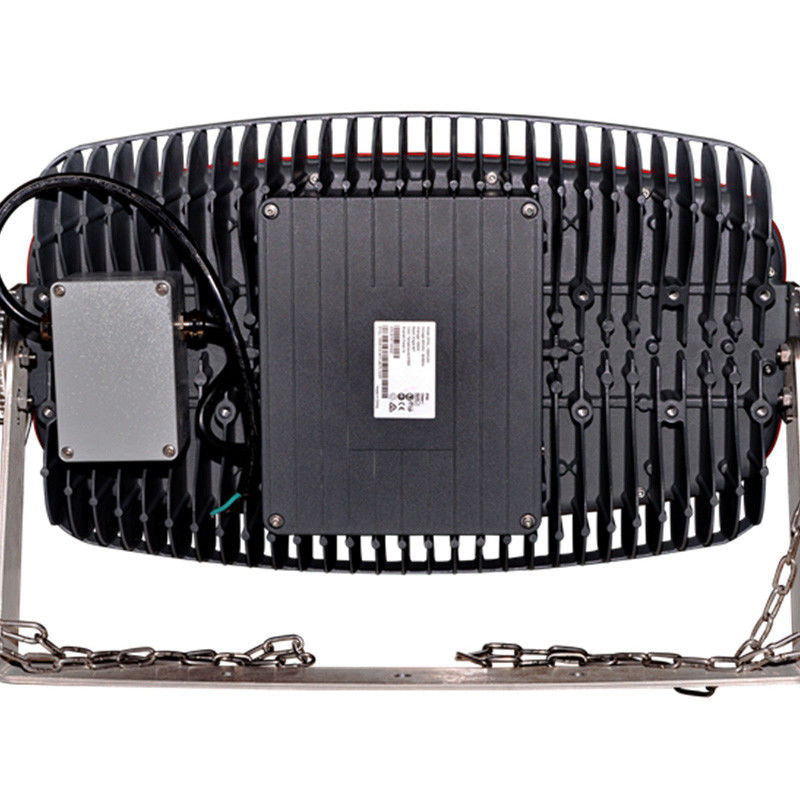

Bridge 500W Led Crane Light 120lm/W Aluminum PC High Pole Light

Bridge 500W Led Crane Light 120lm/W Aluminum PC High Pole Light

  • Bridge 500W Led Crane Light 120lm/W Aluminum PC High Pole Light
Bridge 500W Led Crane Light 120lm/W Aluminum PC High Pole Light
Product Details:
Place of Origin: China
Brand Name: Led Crane Light
Certification: SAA,UL,TUV
Model Number: RGL-500w
Payment & Shipping Terms:
Minimum Order Quantity: 1 UNIT
Price: 800-1000 USD
Packaging Details: 1 unit/carton
Delivery Time: 10-15 WORK DAYS
Payment Terms: L/C, T/T, Western Union
Supply Ability: 5000 pcs per month
Contact Now
Detailed Product Description
Warranty: 5 Years Item Type: Razorlux 500W New Type High Pole Led Tower Crane Light For Bridge 500W Flood Light
Working Lifetime(hour): 50000 Lamp Luminous Efficiency(lm/w): 120
Input Voltage(v): AC100-277V/347V/480V Beam Angle: 120°,20°,60°,15°
Material: Aluminum + PC Color Temperature(cct): Cool White
High Light:

Bridge 500W Led Crane Light

,

120lm/w Led Crane Light

,

Aluminum PC high pole light



Razorlux 500W New Type High Pole Led Tower Crane Light For Bridge 500W flood light



Main Features
— New powerful LED light released, ultra solution for professional applications
— 800W to 1400W double Genius Model with flexible installation
— Flexible and reliable stainless steel mounting system

1: Sample Delivery time: 2-5days
2: Sample Charge: FREE after official order confirmed
3: Sample shipment: Freight collect/prepaid by air/express

Order Service
① Production time: 10-20days
② EXW,FOB,CIF, DDU terms can be offered
③ Payment terms: TT, LC, OA available
④ Warranty: 5 Years
⑤ Exclusive agency service can be provided


Cost and energy savings

Whether it concerns harbor cranes, overhead cranes, gantry cranes, or construction cranes,

all these types of cranes are usually equipped with relatively large and heavy luminaires that consume a lot of electricity.

Mostly 400W High Pressure Sodium (SON/NAV) or Metal Halide (HPI/HQI), but just as often 1000W or in some cases, even 2000W occurs.

With modern LED lighting, huge energy and operational cost savings can be realized.

LED lighting saves 50%-80% of electricity and costs compared to conventional light sources.


Product Description
Model RGL-500w
Beam Angle 60° 120° 140°

Stable Flux

(5700K after 1 hour)

60000lm
Dimension (mm) 671x405x204mm
  LEDs 450W
Power  Driver 50W
Consumption  Total 500W
Replace HID Lamp 1000~2000W
Net Weight 30kg with stainless steel floodlight bracket
Color Temperature 2700-6500K
Color Rendering ≥Ra75
Working Life ≥50000Hrs
Housing Material Aluminum & Powder coating
Power Supply Meanwell
IP Class

IP 65 (Upgradeable to IP 67)

Insulation Class Class I
Working Temperature -40C ~ 60C / -40F ~ 140F
Working Humidity 10% ~ 95%
THD <10%
Power Factor ≥0.98
Warranty LED Module 5 year
Driver 5 year
Housing 10 year



For Different application requirement, Razorlux Genius Series have different types of beam angles options.

at the moment we have 15° 20° 40° 60° 120° 140° beam angle available.



Application Projects

Bridge 500W Led Crane Light 120lm/W Aluminum PC High Pole Light 0

Packaging & Shipping

Razorlux has very strict Quality Control System, from checking and evaluation of incoming materials to

the delivery of products, each item will be checked and tested for several times.



Quality Control-Testing Equipments

For every piece of Razorlux 400 Watt LED Flood Light are tested in different procedures.

No. 1: Extreme temperature testing to make sure the lamps work stably and standardly under extreme temperature environment. (-40 to 60 degree)

No. 2: Anti-Corrosion and IP67 Waterproof Testing, to make sure the products are working well even undern corrosive and Wetting environment.

No. 3 & 4: Dark Room for testing IES files and other Photometric datas.



Quality Control-Aging Department

For every piece of Razorlux Genius™ LED Lights, they will be aged for at least 72 hours before shipment

to make sure of their long term and stable performances within lifetime.

Razorlux Service



FAQ

Q1. Are you a factory?
YES, our factory in Shenzhen established in 2010 with 90 workers and 10 engineers.
Q2. : Color temperature of the outdoor led high mast light?
3000/3500/4000/4500/5000/5700/6000/6500K
Q3: Certificates for the outdoor led high mast light?
CE(EMC + LVD) SAA ROHS CB ENEC
Q4: How long is the lifetime for the outdoor led high mast light?
50,000HOURS
Q5: Lumens of the outdoor led high mast light?
100-180 LM/W Differs with different series
Q6: Warranty for the outdoor led high mast light?
5 years warranty depends on customers requests
Q7: What lamps can be replaced with the outdoor led high mast light?
Halogen,HPSL & compact fluorescent lamps.
Q8: Any intelligent options for the outdoor led high mast light?
0-10V PWM DALI PLC light control
Q9: Any OEM accessories can be provided when the standard one does not work for installation?
Yes, OEM/ODM support for the different application request.
Q10: Can I have our LOGO on the products and packages?
A: Yes. But with MOQ for color box design
Q11: How to deal with the faulty?
Our products are produced in a strict quality control system and the defective rate is less than 0.2%.
If a Quality problem happens, Return/Refund policy according to warranty agreement.
