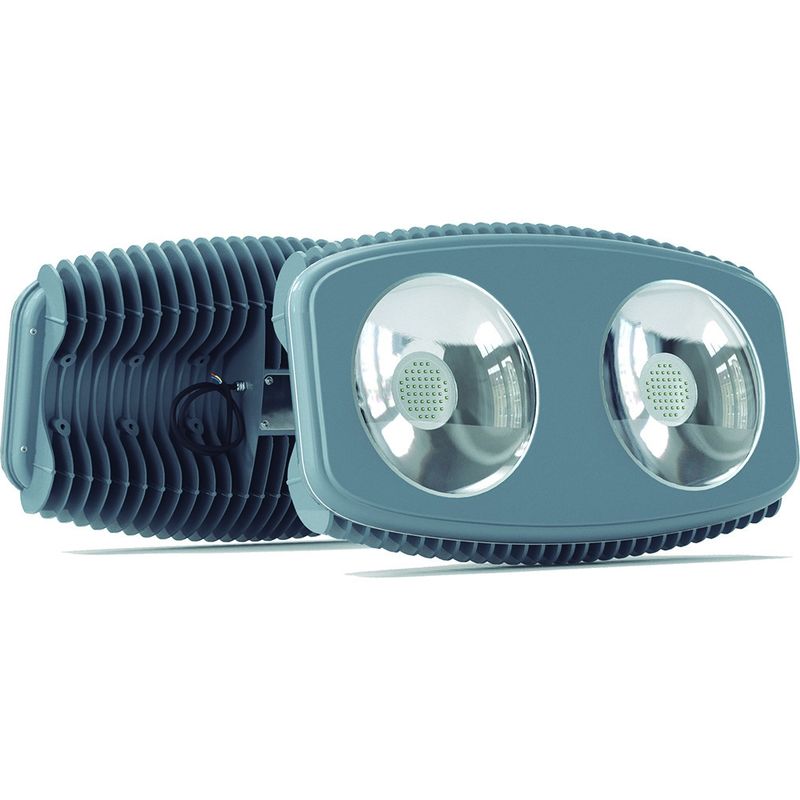

Crane Outdoor Led Flood Lights 480V UL Tennis Court Floodlights

Crane Outdoor Led Flood Lights 480V UL Tennis Court Floodlights

  • Crane Outdoor Led Flood Lights 480V UL Tennis Court Floodlights
Crane Outdoor Led Flood Lights 480V UL Tennis Court Floodlights
Product Details:
Place of Origin: China
Brand Name: Led Crane Light
Certification: SAA,UL,TUV
Model Number: RGL-400w
Payment & Shipping Terms:
Minimum Order Quantity: 1 UNIT
Price: 800-1000 USD
Packaging Details: 1 unit/carton
Delivery Time: 10-15 WORK DAYS
Payment Terms: L/C, T/T, Western Union
Supply Ability: 5000 pcs per month
Contact Now
Detailed Product Description
Warranty: 5 Years Item Type: Popular In The World Stadium Sport Court Tower Crane LED Light Beam Adjustable Bracket Patch LED Light
Working Lifetime(hour): 50000 Lamp Luminous Efficiency(lm/w): 120
Input Voltage(v): AC100-277V/347V/480V Beam Angle: 120°,20°,60°
Material: Aluminum + PC Color Temperature(cct): Cool White
High Light:

480V outdoor led flood lights


Crane outdoor led flood lights


UL tennis court floodlights

Popular In The World Stadium Sport Court Tower Crane LED Light Beam Adjustable Bracket patch LED Light


Main Features
— New powerful LED light released, ultra solution for professional applications
— 800W to 1400W double Genius Model with flexible installation
— Flexible and reliable stainless steel mounting system
1: Sample Delivery time: 2-5days
2: Sample Charge: FREE after official order confirmed
3: Sample shipment: Freight collect/prepaid by air/express
Order Service
① Production time: 10-20days
② EXW,FOB,CIF, DDU terms can be offered
③ Payment terms: TT, LC, OA available
④ Warranty: 5 Years
⑤ Exclusive agency service can be provided

In addition to cost savings, maintenance and reliability are arguably even more important arguments for switching to the high-quality and reliable LED luminaires of Yourlight. When a crane stands idle at night due to the lack of light, it is unproductive and this really costs a lot of money. Due to vibrations of various frequencies during operations, it often happens that vulnerable gas discharge light sources break before they reach the end of their life time. In such cases, these must be replaced which cost money (labor costs) and it is a nuisance. On (harbor) cranes, it is quite a hassle to replace light sources in bad weather and often at high altitudes. On many cranes, the luminaires are hard to reach. Apart from the costs of renting a high rise platform, the labor costs have to be taken into consideration. Luminaires on (harbor) cranes area are often difficult to open for changing a light source. Screws are ofter hard to unlock due to corrosion. This is particularly the case with harbor cranes that are located near the sea and have to deal with salty conditions.

LED luminaires from Yourlight require no maintenance, are extremely robust, vibration-resistant and seaworthy, which saves considerably on maintenance costs and guarantees reliability.

Product Description
Model RGL-400A
Beam Angle 40° 60° 120° 140°
Stable Flux (5700K after 1 hour) 48000lm
Dimension (mm) 670x370x180mm
  LEDs 400W
Power Driver 40W
Consumption Total 360W
Replace HID Lamp 1000~2000W
Net Weight 18kg (39lbs)
Color Temperature 2700-6500K
Color Rendering ≥Ra75 (≥Ra80, ≥Ra90 available on request)
Working Life ≥50000Hrs
Housing Material Aluminum & Powder coating
Power Supply Meanwell
IP Class IP 65 (Upgradeable to IP 67)
IK Class IK 10
Insulation Class Class I
Working Temperature -40C ~ 60C / -40F ~ 140F
Working Humidity 10% ~ 95%
AC Input 110-480Vac input voltage without additional adapter
DC Input 100 ~ 400Vdc, 500Vdc ~ 800Vdc
THD <10%
Power Factor ≥0.98
Warranty LED Module 5 years
Driver 5 years
Housing 10 years

For Different application requirement, Razorlux Genius Series have different types of beam angles options.
at the moment we have 15° 20° 40° 60° 120° 140° beam angle available.

Application Projects

Crane Outdoor Led Flood Lights 480V UL Tennis Court Floodlights 0
Packaging & Shipping

Razorlux has very strict Quality Control System, from checking and evaluation of incoming materials to

the delivery of products, each item will be checked and tested for several times.
Quality Control-Testing Equipments

For every piece of Razorlux 400 Watt LED Flood Light are tested in different procedures.

No. 1: Extreme temperature testing to make sure the lamps work stably and standardly under extreme temperature environment. (-40 to 60 degree)

No. 2: Anti-Corrosion and IP67 Waterproof Testing, to make sure the products are working well even undern corrosive and Wetting environment.

No. 3 & 4: Dark Room for testing IES files and other Photometric datas.

Quality Control-Aging Department
For every piece of Razorlux Genius™ LED Lights, they will be aged for at least 72 hours before shipment
to make sure of their long term and stable performances within lifetime.
Razorlux Service
Q1. Are you a factory?
YES, our factory in Shenzhen established in 2010 with 90 workers and 10 engineers.
Q2. : Color temperature of the outdoor led high mast light?
Q3: Certificates for the outdoor led high mast light?
Q4: How long is the lifetime for the outdoor led high mast light?
Q5: Lumens of the outdoor led high mast light?
100-180 LM/W Differs with different series
Q6: Warranty for the outdoor led high mast light?
5 years warranty depends on customers requests
Q7: What lamps can be replaced with the outdoor led high mast light?
Halogen,HPSL & compact fluorescent lamps.
Q8: Any intelligent options for the outdoor led high mast light?
0-10V PWM DALI PLC light control
Q9: Any OEM accessories can be provided when the standard one does not work for installation?
Yes, OEM/ODM support for the different application request.
Q10: Can I have our LOGO on the products and packages?
A: Yes. But with MOQ for color box design
Q11: How to deal with the faulty?
Our products are produced in a strict quality control system and the defective rate is less than 0.2%.
If a Quality problem happens, Return/Refund policy according to warranty agreement.

Trade Shows

Hong Kong International Lighting Fair (Spring Edition) 2016/2017/2018

Hong Kong International Lighting Fair (Autumn Edition) 2016/2017/2018

2015 LED Expo in Den Bosch, Netherland

2016 Strategies in Light in Las Vegas, U.S.A

2016 IIDEX in Toronto, Canada

Contact Details
Xi'an Razorlux Optoelectronic Technology Co., Ltd.

Contact Person: Jason

Tel: 13991985288

Send your inquiry directly to us (0 / 3000)
