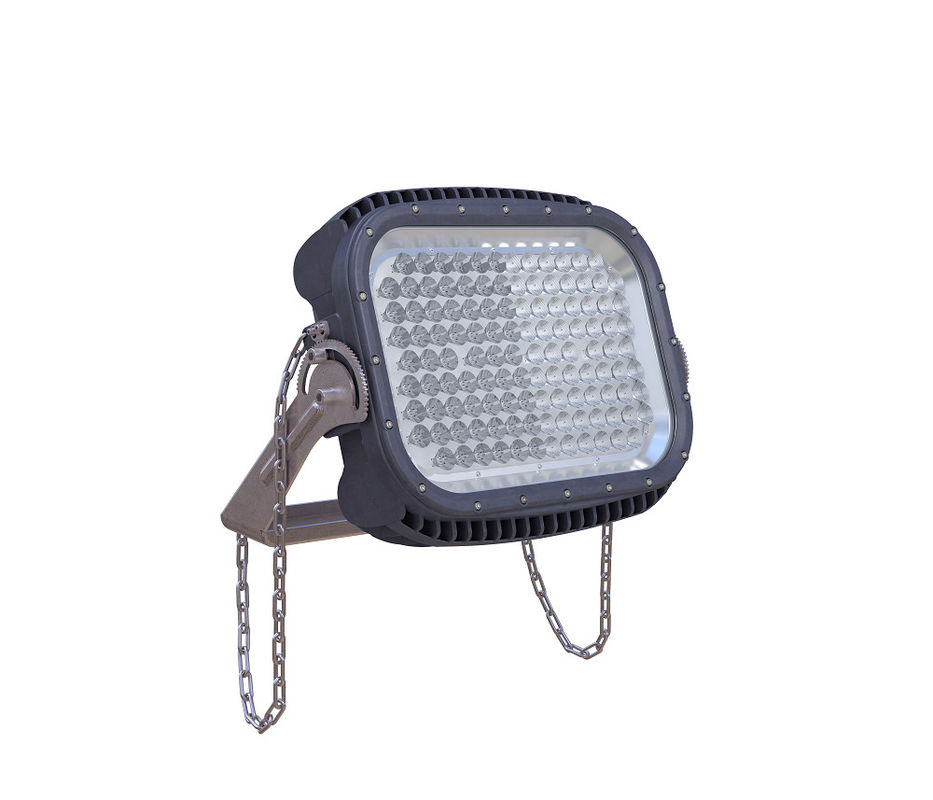

Construction 500w Led Spotlight Tower Spot IP67 Marine Flood Lighting

Construction 500w Led Spotlight Tower Spot IP67 Marine Flood Lighting

  • Construction 500w Led Spotlight Tower Spot IP67 Marine Flood Lighting
Construction 500w Led Spotlight Tower Spot IP67 Marine Flood Lighting
Product Details:
Place of Origin: China
Brand Name: Led Crane Light
Certification: SAA,UL,TUV
Model Number: RGL-500F
Payment & Shipping Terms:
Minimum Order Quantity: 1 UNIT
Price: 800-1000 USD
Packaging Details: 1 unit/carton
Delivery Time: 10-15 WORK DAYS
Payment Terms: L/C, T/T, Western Union
Supply Ability: 5000 pcs per month
Contact Now
Detailed Product Description
Warranty: 5 Years Item Type: Professional LED 500w Led Spotlight IP67 Tower Crane Construction Marine Flood Lighting
Working Lifetime(hour): 50000 Lamp Luminous Efficiency(lm/w): 120
Input Voltage(v): AC100-277V/347V/480V Beam Angle: Spot-5°,Oval-8X48°,Spot-300W+Oval-300W
Material: Aluminum + PC Color Temperature(cct): Cool White
High Light:

Construction 500w Led Spotlight

,

Spot 500w Led Spotlight

,

Tower IP67 marine flood lighting

Professional LED 500w Led Spotlight IP67 Tower Crane Construction Marine Flood Lighting



Main Features

— New powerful LED light released, ultra solution for professional applications

—Three Different beam angle Spot-5°,Oval-8X48°,Spot-300W+Oval-300W

    Mixing Beam angle, Separate control

— 600W system power and 67000 lumen, output ? lux at 100 meters distance


1: Sample Delivery time: 2-5days
2: Sample Charge: FREE after official order confirmed
3: Sample shipment: Freight collect/prepaid by air/express
Order Service
① Production time: 10-20days
② EXW,FOB,CIF, DDU terms can be offered
③ Payment terms: TT, LC, OA available
④ Warranty: 5 Years
⑤ Exclusive agency service can be provided

Immediately at full power

Gas discharge light sources, which are almost always used on cranes, such as High-Pressure Sodium (SON / NAV) or Metal Halide (HPI / HQI),

usually need about 10 minutes to burn at full power. They warm up slowly, so to speak.

This is unpleasant for the crane operator who wants to start immediately.

What is even more annoying with these kind of lamps is that if the current is interrupted briefly,

it often takes less than fifteen minutes before the lights go on again.

And then it also takes a while before they burn again at full power.

In this time, the crane is not productive at night time. Besides frustration for the crane operator, this simply costs money.

The LED luminaires of Yourlight start immediately and are at full strength within a fraction of a second. After a power cut,

they immediately switch back to 100%. Production loss is thus a thing of the past.


Product Description
Model RGL-240F RGL-400F RGL-500F RGL-600F
Size 360X358X192 mm 500X388X187 mm 500X388X187 mm 500X388X187 mm
Rated Power 240W 400W 500W 600W
Working Voltage 90V-305VAC 47-63 Hz
Color Temperature 5700K -2700K
Luminous Flux 26400LM 44000 lm 55000 lm 66000lm
CRI >75
Power Supply Efficiency ≥94%
Beam Angle Spot-5°,Oval-8X48°,Spot-300W+Oval-300W
IP Grade IP65
Net Weight 15kg 23kg 23kg 23kg
Power Factor 0.95
Corrosion Class IEC60068-2-52
Working Tempreture -40℃~+55℃
Environment Humidity 10%~95%
Storing Tempreture -40℃~+80℃
Warranty 5 years



Application Projects

Construction 500w Led Spotlight Tower Spot IP67 Marine Flood Lighting 0
Packaging & Shipping

Razorlux has very strict Quality Control System, from checking and evaluation of incoming materials to

the delivery of products, each item will be checked and tested for several times.

Quality Control-Testing Equipments

For every piece of Razorlux 400 Watt LED Flood Light are tested in different procedures.

No. 1: Extreme temperature testing to make sure the lamps work stably and standardly under extreme temperature environment. (-40 to 60 degree)

No. 2: Anti-Corrosion and IP67 Waterproof Testing, to make sure the products are working well even undern corrosive and Wetting environment.

No. 3 & 4: Dark Room for testing IES files and other Photometric datas.


Quality Control-Aging Department
For every piece of Razorlux Genius™ LED Lights, they will be aged for at least 72 hours before shipment
to make sure of their long term and stable performances within lifetime.
Razorlux Service

FAQ
Q1. Are you a factory?
YES, our factory in Shenzhen established in 2010 with 90 workers and 10 engineers.
Q2. : Color temperature of the outdoor led high mast light?
3000/3500/4000/4500/5000/5700/6000/6500K
Q3: Certificates for the outdoor led high mast light?
CE(EMC + LVD) SAA ROHS CB ENEC
Q4: How long is the lifetime for the outdoor led high mast light?
50,000HOURS
Q5: Lumens of the outdoor led high mast light?
100-180 LM/W Differs with different series
Q6: Warranty for the outdoor led high mast light?
5 years warranty depends on customers requests
Q7: What lamps can be replaced with the outdoor led high mast light?
Halogen,HPSL & compact fluorescent lamps.
Q8: Any intelligent options for the outdoor led high mast light?
0-10V PWM DALI PLC light control
Q9: Any OEM accessories can be provided when the standard one does not work for installation?
Yes, OEM/ODM support for the different application request.
Q10: Can I have our LOGO on the products and packages?
A: Yes. But with MOQ for color box design
Q11: How to deal with the faulty?
Our products are produced in a strict quality control system and the defective rate is less than 0.2%.
If a Quality problem happens, Return/Refund policy according to warranty agreement.
