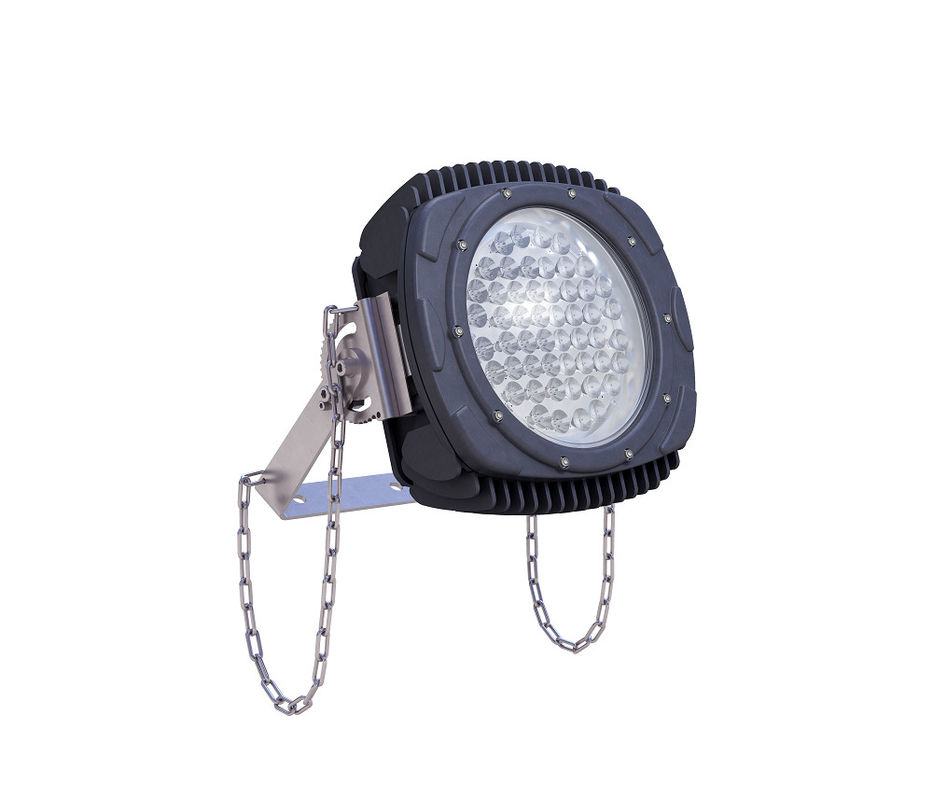

240W 120lm/W Led Tennis Lights 347V Portable Floodlights

240W 120lm/W Led Tennis Lights 347V Portable Floodlights

  • 240W 120lm/W Led Tennis Lights 347V Portable Floodlights
240W 120lm/W Led Tennis Lights 347V Portable Floodlights
Product Details:
Place of Origin: China
Brand Name: Led Crane Light
Certification: SAA,UL,TUV
Model Number: RGL-240F
Payment & Shipping Terms:
Minimum Order Quantity: 1 UNIT
Price: 800-1000 USD
Packaging Details: 1 unit/carton
Delivery Time: 10-15 WORK DAYS
Payment Terms: L/C, T/T, Western Union
Supply Ability: 5000 pcs per month
Contact Now
Detailed Product Description
Warranty: 5 Years Item Type: 240W Tower Light, New Type High-Pole Led Tower Crane Light, Led Tower Crane Light For Bridge
Working Lifetime(hour): 50000 Lamp Luminous Efficiency(lm/w): 120
Input Voltage(v): AC100-277V/347V/480V Beam Angle: Spot-5°,Oval-8X48°,Spot-300W+Oval-300W
Material: Aluminum + PC Color Temperature(cct): Cool White
High Light:

240W led tennis lights


120lm/w PC led tennis lights


347V portable floodlights for tennis courts


240W Tower Light, New Type High-Pole Led Tower Crane Light, Led Tower Crane Light For Bridge


Main Features

— New powerful LED light released, ultra solution for professional applications

—Three Different beam angle Spot-5°,Oval-8X48°,Spot-300W+Oval-300W

    Mixing Beam angle, Separate control

— 600W system power and 67000 lumen, output ? lux at 100 meters distance

1: Sample Delivery time: 2-5days
2: Sample Charge: FREE after official order confirmed
3: Sample shipment: Freight collect/prepaid by air/express
Order Service
① Production time: 10-20days
② EXW,FOB,CIF, DDU terms can be offered
③ Payment terms: TT, LC, OA available
④ Warranty: 5 Years
⑤ Exclusive agency service can be provided
Better light increases labor productivity

In order to determine the quality of light, the Color Rendering Index (CRI) is particularly important.

The correct color temperature (K) also influences light quality and is important in industrial environments.

The luminaires that are part of the industrial lighting solutions of Yourlight all have a CRI of Ra> 80.

Depending on the application and in consultation with the customer, we deliver the optimal color temperature.

Conventional gas discharge light sources, such as High-Pressure Sodium (SON/NAV) or Metal Halide (HPI/HQI), usually need a reflector. The special (harbor) crane fittings of Razorlux are equipped with a (prismatic) lenses.

The big advantage of this is that the light is very accurately projected on the surface that needs to be illuminated.

In the case of lighting on, for example, a container crane (STS/QC), the light, especially in the new Super Panamax cranes,

which often have a girder at a height of more than 60 m, must bridge a distance to the deepest hold of the ship.

Sometimes up to 100m. For this, very narrow beam fixture is required. However, if a ship is fully stacked, the upper containers can come close to the main girder.

In this case the crane operator needs luminaires that have a very wide beam pattern, otherwise his visibility diminishes considerably due to (reflective) light spots on the containers.

Product Description
Model RGL-240F RGL-400F RGL-500F RGL-600F
Size 360X358X192 mm 500X388X187 mm 500X388X187 mm 500X388X187 mm
Rated Power 240W 400W 500W 600W
Working Voltage 90V-305VAC 47-63 Hz
Color Temperature 5700K -2700K
Luminous Flux 26400LM 44000 lm 55000 lm 66000lm
CRI >75
Power Supply Efficiency ≥94%
Beam Angle Spot-5°,Oval-8X48°,Spot-300W+Oval-300W
IP Grade IP65
Net Weight 15kg 23kg 23kg 23kg
Power Factor 0.95
Corrosion Class IEC60068-2-52
Working Tempreture -40℃~+55℃
Environment Humidity 10%~95%
Storing Tempreture -40℃~+80℃
Warranty 5 years


Application Projects

240W 120lm/W Led Tennis Lights 347V Portable Floodlights 0
Packaging & Shipping

Razorlux has very strict Quality Control System, from checking and evaluation of incoming materials to

the delivery of products, each item will be checked and tested for several times.
Quality Control-Testing Equipments

For every piece of Razorlux 400 Watt LED Flood Light are tested in different procedures.

No. 1: Extreme temperature testing to make sure the lamps work stably and standardly under extreme temperature environment. (-40 to 60 degree)

No. 2: Anti-Corrosion and IP67 Waterproof Testing, to make sure the products are working well even undern corrosive and Wetting environment.

No. 3 & 4: Dark Room for testing IES files and other Photometric datas.

Quality Control-Aging Department
For every piece of Razorlux Genius™ LED Lights, they will be aged for at least 72 hours before shipment
to make sure of their long term and stable performances within lifetime.
Razorlux Service
Q1. Are you a factory?
YES, our factory in Shenzhen established in 2010 with 90 workers and 10 engineers.
Q2. : Color temperature of the outdoor led high mast light?
Q3: Certificates for the outdoor led high mast light?
Q4: How long is the lifetime for the outdoor led high mast light?
Q5: Lumens of the outdoor led high mast light?
100-180 LM/W Differs with different series
Q6: Warranty for the outdoor led high mast light?
5 years warranty depends on customers requests
Q7: What lamps can be replaced with the outdoor led high mast light?
Halogen,HPSL & compact fluorescent lamps.
Q8: Any intelligent options for the outdoor led high mast light?
0-10V PWM DALI PLC light control
Q9: Any OEM accessories can be provided when the standard one does not work for installation?
Yes, OEM/ODM support for the different application request.
Q10: Can I have our LOGO on the products and packages?
A: Yes. But with MOQ for color box design
Q11: How to deal with the faulty?
Our products are produced in a strict quality control system and the defective rate is less than 0.2%.
If a Quality problem happens, Return/Refund policy according to warranty agreement.
