Place of Origin: | China |
Brand Name: | Led Crane Light |
Certification: | SAA,UL,TUV |
Model Number: | RGL-240F |
Minimum Order Quantity: | 1 UNIT |
---|---|
Price: | 800-1000 USD |
Packaging Details: | 1 unit/carton |
Delivery Time: | 10-15 WORK DAYS |
Payment Terms: | L/C, T/T, Western Union |
Supply Ability: | 5000 pcs per month |

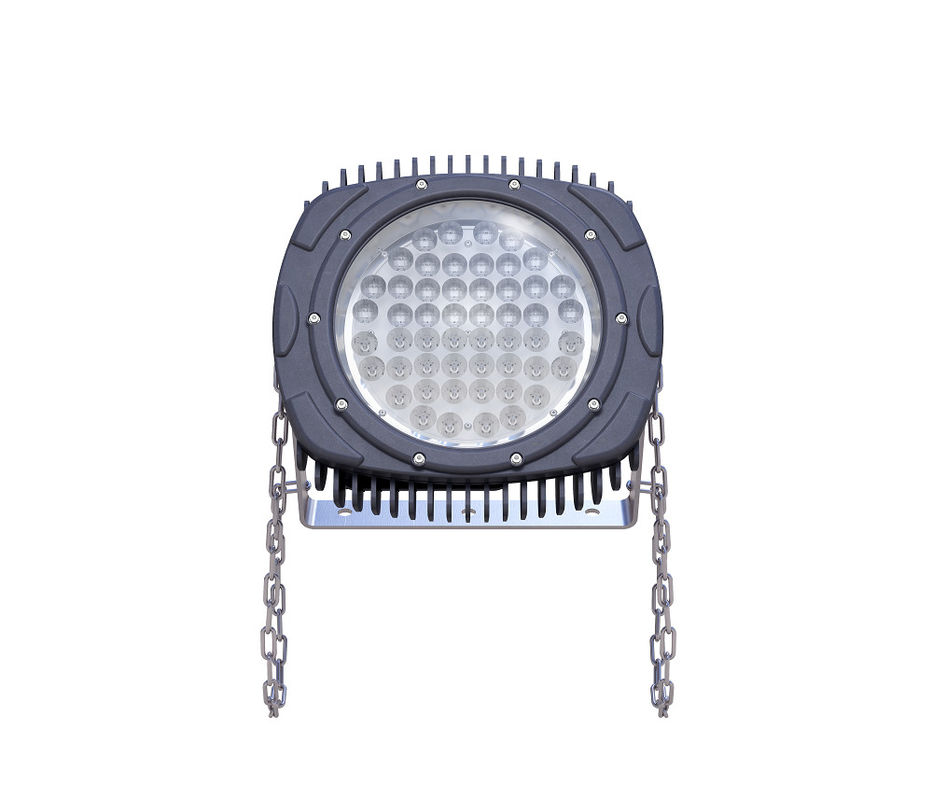

Warranty: | 5 Years | Item Type: | 240W Light Bright Outdoor Werproof Ip67 Energy Saving Floodlight Led Crane Light |
---|---|---|---|
Working Lifetime(hour): | 50000 | Lamp Luminous Efficiency(lm/w): | 120 |
Input Voltage(v): | AC100-277V/347V/480V | Beam Angle: | Spot-5°,Oval-8X48°,Spot-300W+Oval-300W |
Material: | Aluminum + PC | Color Temperature(cct): | Cool White |
High Light: | 240W Led Crane Light,Werproof Ip67 Led Crane Light,SAA energy saving floodlight |
— New powerful LED light released, ultra solution for professional applications
—Three Different beam angle Spot-5°,Oval-8X48°,Spot-300W+Oval-300W
Mixing Beam angle, Separate control
— 600W system power and 67000 lumen, output ? lux at 100 meters distance
On cranes, a good light level and good light quality are very important for safety.
People working on or in the vicinity of cranes always run the risk of being hit by the crane or the load.
Scientific studies show that better light leads to safer working conditions. Especially in those cases where there is interaction between man and machine.
Then it is important that visibility is good. Wearing a safety helmet, shoes and a reflective jacket have been mandatory in the vicinity of cranes and in ports for a long time now.
However, often there is are no safe light conditions.
On many cranes with conventional fixtures, the light level was adequate when these fixtures were newly installed.
However, the light output of the lamps decreases over the years significantly.
In the case of gas discharge lamps such as SON and HPI, depreciation of the light output can decline as much as 50% or more of the original light output.
In addition, luminaires are contaminated by environmental pollution, such as rain, insects and salty air. Dust and dirt will burn into the reflector, which will turn brown and will no longer reflect properly.
Furthermore, the cover glass will get dirty. Reasons that make the efficiency of the fixture decrease significantly.
Model | RGL-240F | RGL-400F | RGL-500F | RGL-600F |
Size | 360X358X192 mm | 500X388X187 mm | 500X388X187 mm | 500X388X187 mm |
Rated Power | 240W | 400W | 500W | 600W |
Working Voltage | 90V-305VAC 47-63 Hz | |||
Color Temperature | 5700K -2700K | |||
Luminous Flux | 26400LM | 44000 lm | 55000 lm | 66000lm |
CRI | >75 | |||
Power Supply Efficiency | ≥94% | |||
Beam Angle | Spot-5°,Oval-8X48°,Spot-300W+Oval-300W | |||
IP Grade | IP65 | |||
Net Weight | 15kg | 23kg | 23kg | 23kg |
Power Factor | 0.95 | |||
Corrosion Class | IEC60068-2-52 | |||
Working Tempreture | -40℃~+55℃ | |||
Environment Humidity | 10%~95% | |||
Storing Tempreture | -40℃~+80℃ | |||
Warranty | 5 years |
Application Projects
Packaging & Shipping
Razorlux has very strict Quality Control System, from checking and evaluation of incoming materials to
the delivery of products, each item will be checked and tested for several times.
Quality Control-Testing Equipments
For every piece of Razorlux 400 Watt LED Flood Light are tested in different procedures. |
No. 1: Extreme temperature testing to make sure the lamps work stably and standardly under extreme temperature environment. (-40 to 60 degree) |
No. 2: Anti-Corrosion and IP67 Waterproof Testing, to make sure the products are working well even undern corrosive and Wetting environment. |
No. 3 & 4: Dark Room for testing IES files and other Photometric datas. |
Quality Control-Aging Department
For every piece of Razorlux Genius™ LED Lights, they will be aged for at least 72 hours before shipment
to make sure of their long term and stable performances within lifetime.
Razorlux Service
FAQ
Q1. Are you a factory?
YES, our factory in Shenzhen established in 2010 with 90 workers and 10 engineers.
Q2. : Color temperature of the outdoor led high mast light?
3000/3500/4000/4500/5000/5700/6000/6500K
Q3: Certificates for the outdoor led high mast light?
CE(EMC + LVD) SAA ROHS CB ENEC
Q4: How long is the lifetime for the outdoor led high mast light?
50,000HOURS
Q5: Lumens of the outdoor led high mast light?
100-180 LM/W Differs with different series
Q6: Warranty for the outdoor led high mast light?
5 years warranty depends on customers requests
Q7: What lamps can be replaced with the outdoor led high mast light?
Halogen,HPSL & compact fluorescent lamps.
Q8: Any intelligent options for the outdoor led high mast light?
0-10V PWM DALI PLC light control
Q9: Any OEM accessories can be provided when the standard one does not work for installation?
Yes, OEM/ODM support for the different application request.
Q10: Can I have our LOGO on the products and packages?
A: Yes. But with MOQ for color box design
Q11: How to deal with the faulty?
Our products are produced in a strict quality control system and the defective rate is less than 0.2%.
If a Quality problem happens, Return/Refund policy according to warranty agreement.
