1000W LED Outdoor Flood Light Waterproof Sport Field Lighting IP67 With Meanwell Driver

1000W LED Outdoor Flood Light Waterproof Sport Field Lighting IP67 With Meanwell Driver

  • 1000W LED Outdoor Flood Light Waterproof Sport Field Lighting IP67 With Meanwell Driver
1000W LED Outdoor Flood Light Waterproof Sport Field Lighting IP67 With Meanwell Driver
Product Details:
Place of Origin: Shaanxi, China
Brand Name: Razorlux
Certification: ce, LVD, RoHS, Saa, UL
Model Number: RGL2-1000A
Payment & Shipping Terms:
Price: $1,600.00/Pieces
Packaging Details: 1.EPS Foam+carton(ONE UNIT PER CARTON) <br>2.Carton Size(mm):550*450*415mm<br>3.One 20'' Container can accept 250 Units
Contact Now
Detailed Product Description
Color Temperature(CCT): 6000K (Daylight Alert), Cool White Lamp Luminous Efficiency(lm/w): 130, 130
Color Rendering Index(Ra): 80 Support Dimmer: Yes
Lighting Solutions Service: DIALux Evo Layout, Agi32 Layout, Auto CAD Layout Product Weight(kg): 30
Input Voltage(V): 80~315Vac Beam Angle(°): 40° 60° 120° 140°
Working Lifetime(Hour): 50000 Lamp Body Material: Aluminum Alloy
Application: Sports Stadiums Lamp Luminous Flux(lm): 130000, 130000lm
Working Temperature(℃): -40 To 60, -40 - 60 Warranty(Year): 5-Year
Product Name: Stadium Lights LED IP Class: IP 65 (Upgradeable To IP 67)
Color Temperature: 2700-6500K
High Light:

IP67 Waterproof Sport Field Lighting

,

1000W Waterproof Outdoor Flood Lights

,

Meanwell Outdoor Flood Light Bulbs

5 Years Warranty Meanwell Driver IP67 1000W led flood lights outdoor

1000W stadium lights are increasingly relying on the use of portable outdoor sports lighting for their lighting needs. Portable lighting is able to work like or mimic the working of the natural sunlight. Through its application, it has become very hard to distinguish whether it is day or night in sports fields. A proper mobile sports lighting system is important for the purpose of safeguarding the safety of fans, players, and coaches and ensuring the best possible sports experience.
Various sport fields, whether they are for playing football, rugby, tennis, golf, volleyball, or badminton, are employing the use of portable field lighting instead of permanent lighting because of its various associated advantages.



Main Features
1. 80% lumen maintenance over 50,000hours
2. Wide Power range: 1000W
3. 110-480Vac input voltage without additional adapter
4. Patent Built-in Serge Protection.
5. Top chips high efficacy 130lm/w±7% with meanwell driver
6. IP67 waterproof, IK10 impact proof
7. Neutral Salt Spray Resistance
8. Anti-Corression power coating surface treatment
9. Stainless steel brackets material.(Upgradable to SS316)
10. 0-10VDC, DALI and wireless control available
11. UL cUL DLC, TUV CE RoHS, CB, SAA, LM79 listed
12. High uniformity & color rendering index

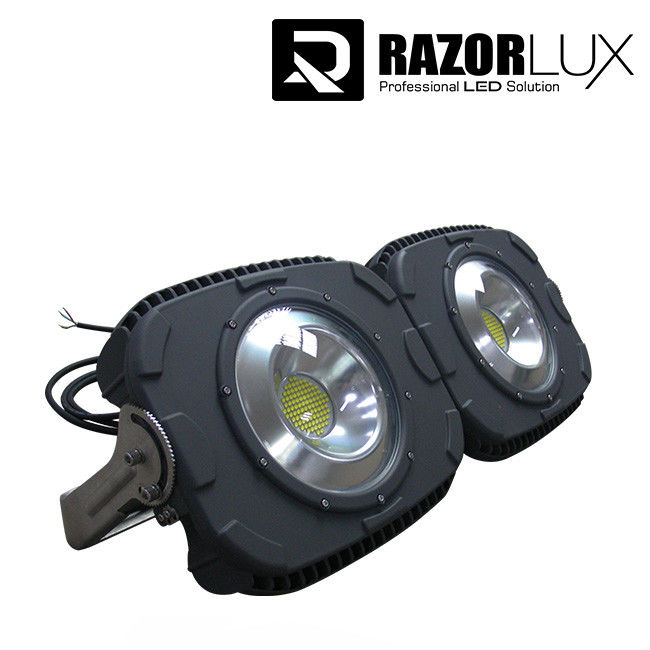

Photos of led flood lights outdoor:



1000W LED Outdoor Flood Light Waterproof Sport Field Lighting IP67 With Meanwell Driver 0


1000W LED Outdoor Flood Light Waterproof Sport Field Lighting IP67 With Meanwell Driver 2

1000W LED Outdoor Flood Light Waterproof Sport Field Lighting IP67 With Meanwell Driver 4

Parameter of Razorlux led flood lights outdoor Stadium Lights:



Model RGL2-1000A
Beam Angle 40° 60° 120° 140°

Stable Flux

(5700K after 1 hour)

130000lm
Dimension (mm) 474*388*982
  LEDs 900W
Power  Driver 100W
Consumption  Total 1000W
Replace HID Lamp 2200~2500W
Net Weight 30kg (66lbs)
Color Temperature 2700-6500K
Color Rendering ≥Ra75 (≥Ra80, ≥Ra90 available on request)
Working Life ≥50000Hrs
Housing Material Aluminum & Powder coating
Power Supply Meanwell
IP Class

IP 65 (Upgradeable to IP 67)

IK Class

IK 10

Insulation Class Class I
Working Temperature -40C ~ 60C / -40F ~ 140F
Working Humidity 10% ~ 95%
AC Input 110-480Vac input voltage without additional adapter
DC Input 100 ~ 400Vdc, 500Vdc ~ 800Vdc
THD <10%
Power Factor ≥0.98
Warranty LED Module 5 years
Driver 5 years
Housing 10 years



Features & Specifications of led flood lights outdoor

  • Patented Multi-function design, suitable for all working environments.
  • Rated Power: 400W-1200W
  • Input Voltage: AC90-305, DC127-431
  • Color Temperature: 2700K-6500K
  • Lamp Efficiency: 130LM/W
  • Beam Angle: 15°, 20°, 30°, 40°, 60°, 120°, 140°x60°.
  • Anti-corrosive power coating housing finish.
  • Marine grade stainless steel bracket.
  • IK10 impact resistance grade.
  • CRI: Ra>75
  • IP Grade: IP65/IP67
  • Bracket: Stainless Steel
  • Net Weight: 15KG
  • Warranty: 5 Years

FAQ:

1. Are you a factory or trading company:

We are a factory located in Xi'an China, established in 2006.



2. What is your product range?

Our wide product range includes floodlight, street light, pendant light, and power from 60W to 1200W.



3. How many days of production will the order take?

Normally 7-15 days, depending on the order quanity.



4. How do you ship goods abroad?

For sample, trial order, or small quantities we will suggest shipping by air, for large quantity and bulk order we recommend shipping by sea.



5. Does your product support smart control like sensor, dimming, DALI, etc.

They support all of these features, please tell our sales during your negotiation when you need such features.



6. How do you deal with failed lights?

During the warranty period, we will send customer free part or lamp after checking the evidence. After warranty, we only charge the component fees, no extra charge for our customer.
