PMMA 10V Dimmable LED Flood Light Spot Beam Angle

PMMA 10V Dimmable LED Flood Light Spot Beam Angle

  • PMMA 10V Dimmable LED Flood Light Spot Beam Angle
PMMA 10V Dimmable LED Flood Light Spot Beam Angle
Product Details:
Place of Origin: Xi'an China
Brand Name: Led Building Light
Certification: SAA,CE,TUV
Model Number: RGL-500F
Payment & Shipping Terms:
Minimum Order Quantity: 1 UNIT
Price: 400-800 USD
Packaging Details: 1 unit/carton
Delivery Time: 10-15 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 5000 pcs per month
Contact Now
Detailed Product Description
Light Source: LED Housing Material: Aluminun
Working Temperature(℃): -40 - 55 Emitting Color: Full Spectrum
Size: 500*388*187 Mm Beam Angle: Spot Beam
Application: Hotel Bracket: Stainless Steel
Finish: Anti-corrosion Powder Coating IP Grade: IP66
Warranty: 5 Years Lens: PMMA+Glass
Working Hours: 50,000 Hours
High Light:

Spot Beam Angle Dimmable LED Floodlight


10V Dimmable Flood Lights


PMMA Dimmable Outdoor LED Flood Lights

2022 Best quality 300w, 400w, 600w Sustainable 1-10V Dimmable Led Flood Light

Features of 1-10V Dimmable Led Flood Light


Many dimmable LED bulbs can burn brightly for up to 100,000 hours. That is more than 4,000 days of operation. Designed to stand up to long-term use, and built to resistant vibrations and impacts, dimmable LED technology provides a solid and reliable source of light you can depend on. When coupled with a constant current driver, you will maintain lighting intensity that is predictable and won’t exceed the maximum current rating for the bulb.



Very few people enjoy climbing high up on a ladderÊto change the lights. Dimmable LED technology makes it possible to minimize the frequency of this chore. Once an LED bulb is installed, it canÊbe a decade or longer before the chore will need to be repeated.



Comfort dimmable

LED technology is designed to be easy on the eyes. Dimmable LED lighting can be adjusted to match the lighting needs within a specific space. The result is a comfortable ambiance that is conducive to the tasks you need to perform. The reduced eye strain and improved lighting conditions will facilitate greater productivity and worker satisfaction.



Dimmable LED lights cut power consumption by up to 80%. They are far more efficient than incandescent bulbs and other lighting options. This means that it takes far less power to generate the same amount of light. This not only helps save money, but it reduces the strain on the environment and the energy production capacity of the area’s power suppliers.



LED technology including dimmer switches and motion sensors will have a significant impact on the overall safety of a space. LED lights generate less heat, which reduces the risk of fire while providing a high degree of physical safety that will keep property and workers safe from accidents and intruder

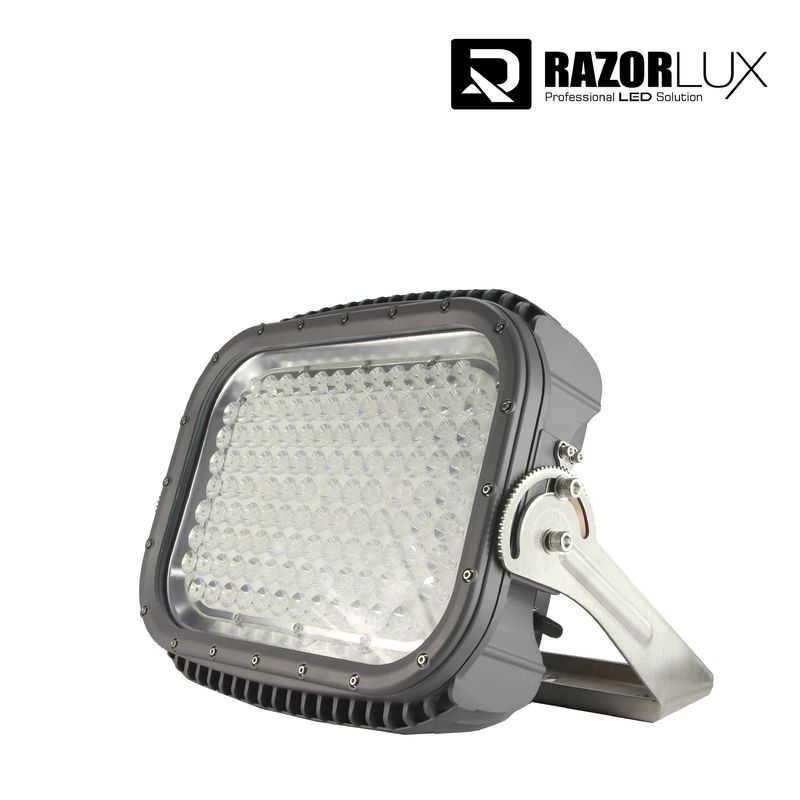

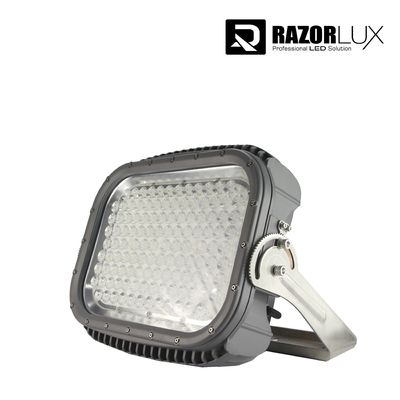

Photos of 1-10V Dimmable Led Flood Light

PMMA 10V Dimmable LED Flood Light Spot Beam Angle 0

Parameters of 1-10V Dimmable Led Flood Light


Model RGL-500F
Beam Angle 5°,10°,8X48°

Stable Flux

(5700K after 1 hour)

55000 lm
Dimension (mm) 500X388X187 mm
  LEDs 450W
Power  Driver 50W
Consumption  Total 500W
Replace HID Lamp 800-1000W
Net Weight 23kg
Color Temperature 2000K - 6000K
Color Rendering ≥Ra75 (≥Ra80, ≥Ra90 available on request)
Working Life ≥50000Hrs
Housing Material Aluminum
Coating Powder Coating
IP Class

IP 65 (Upgradeable to IP 67)

IK Class

IK 10

Insulation Class Class I
Working Temperature -40C ~ 55C
Working Humidity 10% ~ 95%
AC Input 90V-305VAC 47-63 Hz
THD <10%
Power Factor ≥0.98
Warranty LED Module 5 years
Driver 5 years
Housing 10 years


Advantages of 1-10V Dimmable Led Flood Light


  • BETTER DESIGN - Designed for higher installations above 25ft, these lights push more light to the ground.
  • Spot-5°,Oval-8X48°,Spot+Oval degree beam angle pushes more of the light to the ground. Ideal for higher installs and designed to replace a 1500 watt Metal Halide. Photometric studies available. This LED Stadium light or LED Arena Light only uses Premium Grade LED components.
  • SURGE PROTECTION - Separate 10KV surge protection device to avoid early failure due to power surge.
  • BRIGHT LIGHT - 500 Watt LED puts out 66,500 Lumens and can replace a 1500 watt Metal halide MH or HPS/HID light. 400 Watt LED puts out 66,500 Lumens and can replace a 1000 watt Metal halide MH or HPS/HID light. 5000K light color ensures a bright clear light.
  • DIMMABLE - 0-10v Dimmable Top- provides high reliability plus optional dimming.
  • EASY ADJUSTABLE MOUNT - Unit comes with an adjustable mount designed to fit on in multiple ways. The light can be angled up or down depending to focus the action. Optional Slip-Fit Mount makes install a breeze with the use of a wide variety of tenon adapters. Ideal for aiming your light in the right direction or lighting farther away areas. Great light for sports courts such as Basketball, Tennis, Soccer etc, etc. Highly versatile light.
  • BUILT TO LAST - 150,000hr LEDs saves having to replace bulbs. Aluminum Housing with high tech Heat Sink. Better Heat dissipation ensures longer LED life and safety. IP65 Waterproof for all weather conditions. All backed by a 5year warranty and our Customer Support Team.

Service of 1-10V Dimmable Led Flood Light

For every piece of Razorlux 90 Watt LED Flood Light are tested in different procedures.

No. 1: Extreme temperature testing to make sure the lamps work stably and standardly under extreme temperature environment. (-40 to 60 degree)

No. 2: Anti-Corrosion and IP67 Waterproof Testing, to make sure the products are working well even undern corrosive and Wetting environment.

No. 3 & 4: Dark Room for testing IES files and other Photometric datas.




Q1. Can I have a sample order for led light?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.


Q2. What about the lead time?

A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than


Q3. Do you have any MOQ limit for led light order?

A: Low MOQ, 1pc for sample checking is available


Q4. How do you ship the goods and how long does it take to arrive?

A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.


Q5. How to proceed an order for led light?

A: Firstly let us know your requirements or application.

Secondly We quote according to your requirements or our suggestions.

Thirdly customer confirms the samples and places deposit for formal order.

Fourthly We arrange the production.
