Place of Origin: | Shaanxi, China |
Brand Name: | Razorlux |
Certification: | ce, LVD, RoHS, Saa |
Model Number: | RGL-800A |
Price: | $1,250.00/Pieces >=1 Pieces |
---|---|
Packaging Details: | 1.EPS Foam+carton(ONE UNIT PER CARTON) <br>2.Carton Size(mm):550*450*415mm<br>3.One 20'' Container can accept 250 Units |
Supply Ability: | 5000 Piece/Pieces per Month |
Color Temperature(CCT): | 5700K (2700 ~ 6500K Available On Request) | Lamp Luminous Efficiency(lm/w): | 120 |
---|---|---|---|
Support Dimmer: | NO | Lighting Solutions Service: | Lighting And Circuitry Design, DIALux Evo Layout |
Working Time (hours): | 50000 | Input Voltage(V): | 80 ~ 360Vac, 400 ~ 600Vac |
Beam Angle(°): | 15° 20° 60° 120° 140°X60°, 15° 20° 60° 120° 140°X60° | Working Lifetime(Hour): | 50000 |
Lamp Body Material: | Aluminum & Powder Coating | Application: | Sports Stadiums |
Light Source: | LED | Lamp Luminous Flux(lm): | 100,000 Lm, 100,000 Lm |
Working Temperature(℃): | -40C~60C/40F~140F, -40C~60C/40F~140F | Warranty(Year): | 5-Year |

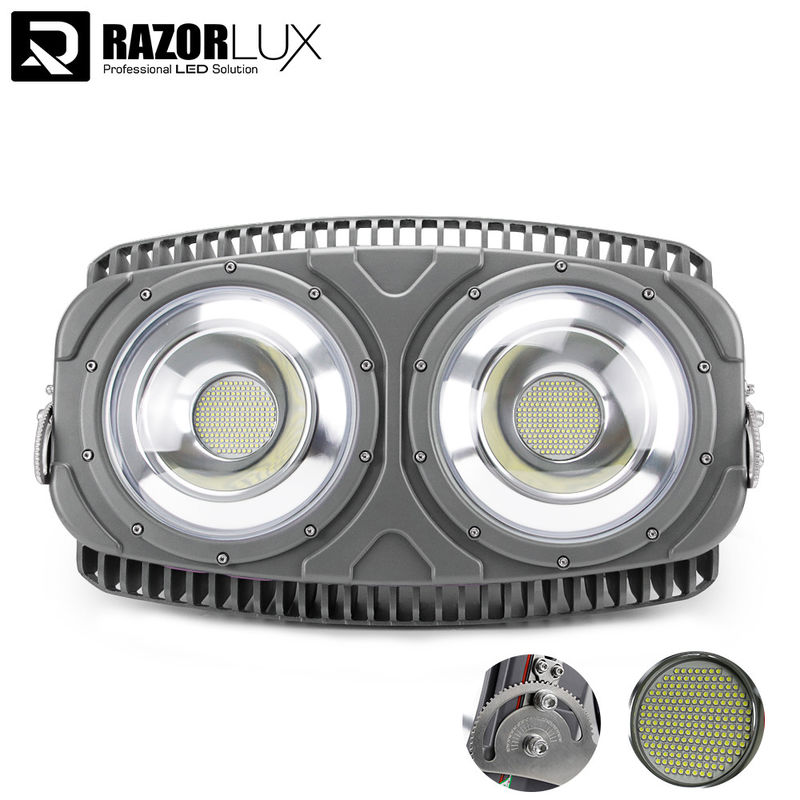

Product Name: | Football Field 1000 Watt Led Flood Light | Power: | 1000w |
Color Temperature: | 5700K (2700 ~ 6500K Available On Request) | Housiong Material: | Aluminum |
IP Class: | IP 67 | Color Rendering: | ≥Ra75 |
Warranty: | 5Years | Port: | Tianjin |
High Light: | 800W Exterior LED Stadium Lights,LED Stadium Floodlights With Bracket,Stadium Lighting Fixtures 800W |
Model
|
|
1000P-L15
|
1000P-L20
|
1000A-L60
|
1000A-L120
|
1000A-L140
|
|||||
Beam Angle
|
|
15°
|
20°
|
60°
|
120°
|
140°x60°
|
|||||
Stable Flux
(5700K after 1 hour)
|
|
100,000 lm
|
105,000 lm
|
110,000 lm
|
120,000 lm
|
102,000 lm
|
|||||
Dimension (mm)
|
|
671x405x374mm 671x405x322mm 671x405x204mm
|
|
|
|
|
|||||
Power Consumption |
LEDs
|
900W
|
|
|
|
|
|||||
|
Driver
|
100W
|
|
|
|
|
|||||
|
Total
|
1,000W
|
|
|
|
|
|||||
Replace HID Lamp
|
|
2000 ~ 3000W
|
|
|
|
|
|||||
Net Weight
|
|
29kg (64lbs) with stainless steel floodlight bracket
|
|
|
|
|
|||||
Color Temperature
|
|
5700K (2700 ~ 6500K available on request)
|
|
|
|
|
|||||
Color Rendering
|
|
≥Ra75 (≥Ra80, ≥Ra90 available on request)
|
|
|
|
|
|||||
Working Life
|
|
≥50000Hrs
|
|
|
|
|
|||||
Housing Material
|
|
Aluminum
|
|
|
|
|
|||||
Coating
|
|
Powder Coating
|
|
|
|
|
|||||
IP Class
|
|
IP 65 (Upgradeable to IP 67)
|
|
|
|
|
|||||
Insulation Class
|
|
Class I
|
|
|
|
|
|||||
Working Temperature
|
|
-40 ~ 60C / -40 ~ 140F
|
|
|
|
|
|||||
Working Humidity
|
|
10% ~ 95%
|
|
|
|
|
|||||
AC Input
|
|
80 ~ 360Vac, 400 ~ 600Vac
|
|
|
|
|
|||||
DC Input
|
|
100 ~ 400Vdc, 500Vdc ~ 800Vdc
|
|
|
|
|
|||||
THD
|
|
<10%
|
|
|
|
|
|||||
Power Factor
|
|
≥0.98
|
|
|
|
|
|||||
|
LED Module
|
5 year
|
|
|
|
|
|||||
|
Driver
|
5 year
|
|
|
|
|
|||||
|
Housing
|
10 year
|
|
|
|
|
Features & Specifications of Heavy duty 1000w outdoor led basketball court lighting
Features & Specifications of 1-10V Dimmable led flood light 400Watt
FAQ:
1. Are you a factory or trading company:
We are a factory located in Xi'an China, established in 2006.
2. What is your product range?
Our wide product range includes floodlight, street light, pendant light, and power from 60W to 1200W.
3. How many days of production will the order take?
Normally 7-15 days, depending on the order quanity.
4. How do you ship goods abroad?
For sample, trial order, or small quantities we will suggest shipping by air, for large quantity and bulk order we recommend shipping by sea.
5. Does your product support smart control like sensor, dimming, DALI, etc.
They support all of these features, please tell our sales during your negotiation when you need such features.
6. How do you deal with failed lights?
During the warranty period, we will send customer free part or lamp after checking the evidence. After warranty, we only charge the component fees, no extra charge for our customer.
