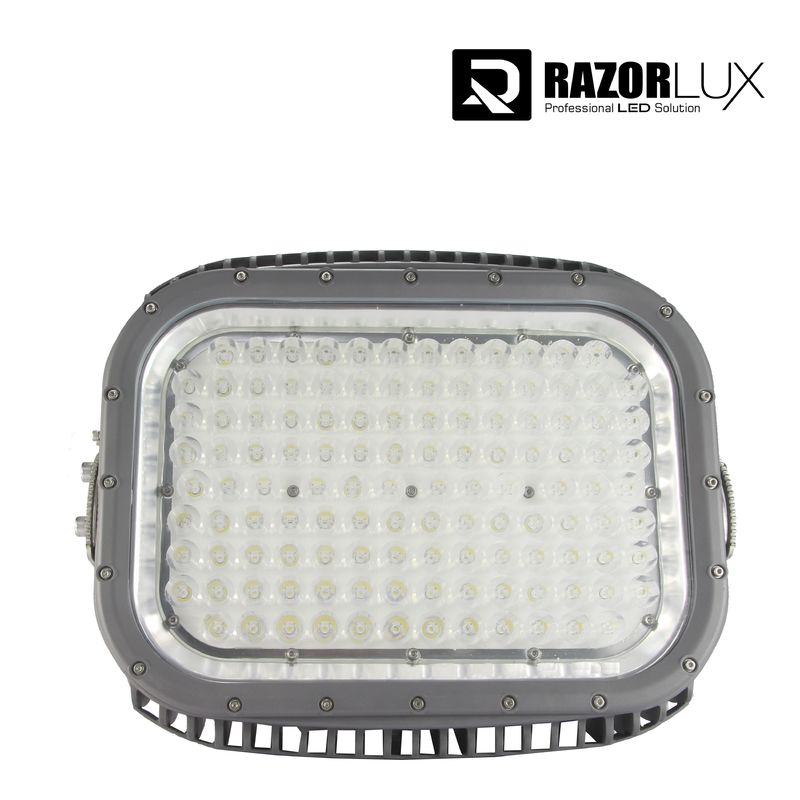

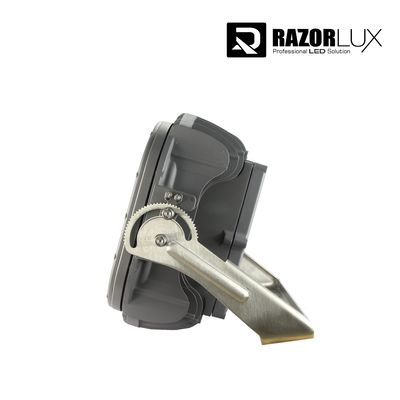

2022 Energy saving 500w 1-10V Dimmable LED Flood Light
Features of Energy saving 500w 1-10V Dimmable LED Flood Light
| 1. Top performance LED chips, 120 lm/w system efficacy |
| 2. Wide Power range: 500W |
| 3. Universal input 90V-305VAC 47-63 Hz |
| 4. Patent Built-in Serge Protection. |
| 5. Patent Built-in Thermal Protection. |
| 6. IP67 waterproof, IK10 impact proof |
| 7. Neutral Salt Spray Resistance |
| 8. Anti-Corression power coating surface treatment |
| 9. Stainless steel brackets material.(Upgradable to SS316) |
| 10. DALI/Photocell/Microwave Motion control available. |
| 11. World Top 500's supplier. |
Parameters of Energy saving 500w 1-10V Dimmable LED Flood Light
| Model |
RGL-500F |
| Beam Angle |
5°,10°,8X48° |
|
Stable Flux
(5700K after 1 hour)
|
55000 lm |
| Dimension (mm) |
500X388X187 mm |
| |
LEDs |
450W |
| Power |
Driver |
50W |
| Consumption |
Total |
500W |
| Replace HID Lamp |
800-1000W |
| Net Weight |
23kg |
| Color Temperature |
2000K - 6000K |
| Color Rendering |
≥Ra75 (≥Ra80, ≥Ra90 available on request) |
| Working Life |
≥50000Hrs |
| Housing Material |
Aluminum |
| Coating |
Powder Coating |
| IP Class |
IP 65 (Upgradeable to IP 67)
|
| IK Class |
IK 10
|
| Insulation Class |
Class I |
| Working Temperature |
-40C ~ 55C |
| Working Humidity |
10% ~ 95% |
| AC Input |
90V-305VAC 47-63 Hz |
| THD |
<10% |
| Power Factor |
≥0.98 |
| Warranty |
LED Module |
5 years |
| Driver |
5 years |
| Housing |
10 years |
Advantages of Energy saving 500w 1-10V Dimmable LED Flood Light
Whether you’re simply looking to save money on energy bills, or want to enhance the atmosphere of your home, there are several advantages to using dimmable LEDs. Here’s what to expect.
1. Longevity with dimming
Using a dimmer to keep your LEDs lit will increase their lifetime hours. An average LED bulb without dimming capabilities will last around 40,000 hours. By dimming the light using either of the above two methods, you’re essentially extending its Average Rated Life (ARL). For example, if your LED has an L70 rating of 50,000 (meaning 70% of its original output will last for up to 50,000) and you decided to keep this dimmed at 50% its entire life, you could receive 70% of this output for up to 75,000 hours (50% on top of the 50,000).
2. Dimming saves energy
By lowering, or cutting on and off the flow of electricity to the light lamps, dimmers reduce the overall amount of power bring used, therefore helping you save on energy.
3. Lighting controls
Typically, when using dimmable LEDs, dimmer switches with a twistable knob or sliding switch can be used to effectively control the dimming effect. But with modern technology, remote controls, smart phones, and even your voice can be used to dim certain LED lamps.
Dimmable LEDS can also be integrated with fully automated lighting control systems and programmed to set scenes. This gives you the ability to create your desired atmosphere at a single press of a button.
FAQ:
Q1. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than
Q3. Do you have any MOQ limit for led light order?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for led light?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
