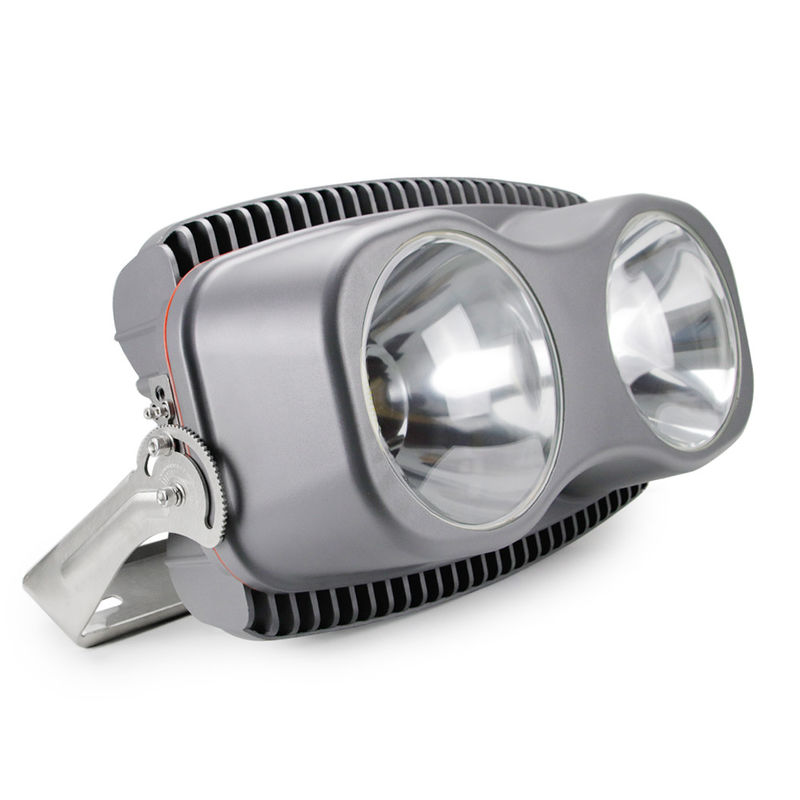

1000W IP66 Waterproof Industrial Security Lights Outdoor For Building Tower Crane

1000W IP66 Waterproof Industrial Security Lights Outdoor For Building Tower Crane

  • 1000W IP66 Waterproof Industrial Security Lights Outdoor For Building Tower Crane
1000W IP66 Waterproof Industrial Security Lights Outdoor For Building Tower Crane
Product Details:
Place of Origin: Shaanxi, China
Brand Name: Razorlux
Certification: ce, LVD, RoHS, Saa, UL
Model Number: RGL2-1000A
Payment & Shipping Terms:
Minimum Order Quantity: 1 UNIT
Price: $1,612.00/Pieces >=1 Pieces
Packaging Details: 1.EPS Foam+carton(ONE UNIT PER CARTON) <br>2.Carton Size(mm):550*450*415mm<br>3.One 20'' Container can accept 250 Units
Contact Now
Detailed Product Description
Color Temperature(CCT): 6000K (Daylight Alert) Color Rendering Index(Ra): 80
Product Weight(kg): 30 Input Voltage(V): 80~305Vac,180-528vac
Beam Angle(°): 20° 15° Working Lifetime(Hour): 50000
Working Temperature(℃): -40 To 60 Housing Material: Die-cast Aluminum Alloy
High Light:

1000W Industrial Security Lights Waterproof

,

Tower Crane Industrial Security Lights

,

Outdoor IP66 Industrial Flood Light

Outdoor Ip66 Waterproof High Bay Construction Building Tower Crane 1000W Industrial Security Lights



Features:



1. 80% lumen maintenance over 50,000hours
2. Wide Power range: 1000W
3. 110-480Vac input voltage without additional adapter
4. Patent Built-in Serge Protection.
5. TOP chips high efficacy 130lm/w±7% with meanwell driver
6. IP67 waterproof, IK10 impact proof
7. Neutral Salt Spray Resistance
8. Anti-Corression power coating surface treatment
9. Stainless steel brackets material.(Upgradable to SS316)
10. 0-10VDC, DALI and wireless control available
11. DLC, TUV CE RoHS, CB, SAA, LM79 listed
12. High uniformity & color rendering index



Parameters:



Model RGL-1000A
Beam Angle 20° 15°

Stable Flux

(5700K after 1 hour)

130000lm
Dimension (mm) 474*388*982
  LEDs 900W
Power  Driver 100W
Consumption  Total 1000W
Replace HID Lamp 2200~2500W
Net Weight 30kg (66lbs)
Color Temperature 2700-6500K
Color Rendering ≥Ra75 (≥Ra80, ≥Ra90 available on request)
Working Life ≥50000Hrs
Housing Material Aluminum & Powder coating
Power Supply Meanwell
IP Class

IP 65 (Upgradeable to IP 67)

IK Class

IK 10

Insulation Class Class I
Working Temperature -40C ~ 60C / -40F ~ 140F
Working Humidity 10% ~ 95%
AC Input 110-480Vac input voltage without additional adapter
DC Input 100 ~ 400Vdc, 500Vdc ~ 800Vdc
THD <10%
Power Factor ≥0.98
Warranty LED Module 5 years
Driver 5 years
Housing 10 years



Application:



1000W IP66 Waterproof Industrial Security Lights Outdoor For Building Tower Crane 0



Outdoor/Indoor, Stadium, Airport, Marine, Ship, Dock, Trawer, Harour, Mining, Industrial lighting, etc.

Designed to provide exceptional lighting in the fiercest environments, Razorlux LED Flood Lights are perfect for use in shipyards, on commercial craft, and in blue or brown water applications.

With a variety of beam angles ranging from 8 to 120 degrees, and available in power sizes ranging from 30 to 1000 watts, Razorlux Flood Lights are specially treated to resist corrosion and are salt spray resistant so you can be assured of rugged dependability and long-life, while enjoying exceptional light output.

What’s the Difference Between a Flood Light and Spot Light?

The real difference between a flood light and a spot light is the spread of the light beam they produce.

Flood lights have wider beam angles meant to “flood” a large area with light
A spot light has a narrowly focused beam pattern meant to throw a large amount of light out to a specific point. Some of our flood lights can do either.

Is There a Difference Between a Commercial LED Flood Light and a Stadium Light?

There is a close resemblance between these two types of fixtures. In some cases, you can use flood lights in place of stadium lights.

Stadium lighting is a powerful flood light and has a series of optional “tight” beam patterns. These include 10, 15, 30, 45 and 60 degree beam patterns. Its light can be pointing from high mounting points to specific areas of a field.

A flood light can also be a high power fixture. Its range of optics is not as narrow and it has wider options available.

We’ve installed powerful commercial grade flood lights in baseball, football and soccer fields. They performed well because the available beam patterns work with their pole heights. We can create proper light levels and balanced lighting with these fixtures.



Description:


1.For Different application requirement, Razorlux Genius Series have different types of beam angles options.at the moment we have 60° 120° 140° beam angle available.

2.Razorlux has very strict Quality Control System, from checking and evaluation of incoming materials to the delivery of products, each item will be checked and tested for several times.



3.For every piece of Razorlux Genius™ LED Lights, they will be aged for at least 72 hours before shipment to make sure of their long term and stable performances within lifetime.





FAQ:



Q1. Can I have a sample order for led light?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.



Q2. What about the lead time?

A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than



Q3. Do you have any MOQ limit for led light order?

A: Low MOQ, 1pc for sample checking is available



Q4. How do you ship the goods and how long does it take to arrive?

A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.



Q5. How to proceed an order for led light?

A: Firstly let us know your requirements or application.

Secondly We quote according to your requirements or our suggestions.

Thirdly customer confirms the samples and places deposit for formal order.

Fourthly We arrange the production.



Q6. Is it OK to print my logo on led light product?

A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
