Home ProductsLED Stadium Lights

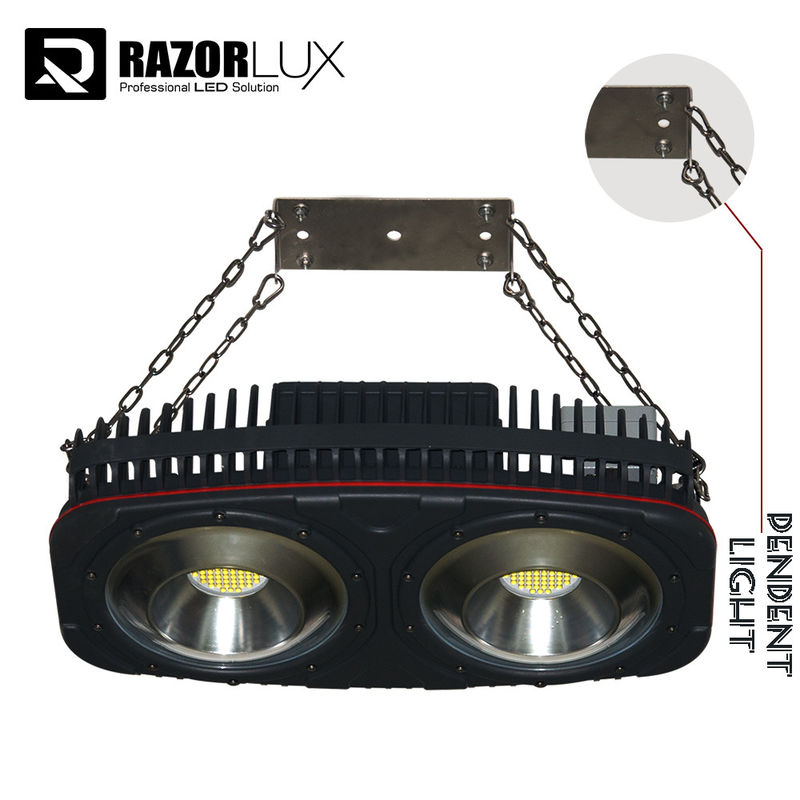

High lumen intensity multiple beam angle LED Stadium Exterior Lighting

High lumen intensity multiple beam angle LED Stadium Exterior Lighting

  • High lumen intensity multiple beam angle LED Stadium Exterior Lighting
High lumen intensity multiple beam angle LED Stadium Exterior Lighting
Product Details:
Place of Origin: Shaanxi, China
Brand Name: Razorlux
Certification: ce, LVD, RoHS, Saa
Model Number: RGL-800A
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: 900USD-1100USD/PCS
Packaging Details: 1.EPS Foam+carton(ONE UNIT PER CARTON) <br>2.Carton Size(mm):550*450*415mm<br>3.One 20'' Container can accept 250 Units
Supply Ability: 5000 Piece/Pieces per Month
Contact Now
Detailed Product Description
Color Temperature(CCT): 5700K (2700 ~ 6500K Available On Request) Lamp Luminous Efficiency(lm/w): 130
Support Dimmer: Yes Lighting Solutions Service: Lighting And Circuitry Design, DIALux Evo Layout
Working Time (hours): 50000 Input Voltage(V): 100 ~ 306Vac, 400 ~ 600Vac
Beam Angle(°): 15° 20° 60° 120° 140°X60°, Lamp Body Material: Aluminum & Powder Coating
Application: Sports Stadiums Light Source: LED
Lamp Luminous Flux(lm): 104,000 Lm Working Temperature(℃): -40C~60C/40F~140F,
Warranty(Year): 5-Year Product Name: Multiple Beam Angle LED Stadium Exterior Lighting
Power: 800W Housiong Material: Aluminum Alloy
IP Class: IP 67 Color Rendering: ≥Ra75

High lumen intensity multiple beam angle LED Stadium Exterior Lighting 0
High lumen intensity multiple beam angle LED Stadium Exterior Lighting
Model

800P-L15
800P-L20
800A-L60
800A-L120
800A-L140
Beam Angle

15°
20°
60°
120°
140°x60°
Stable Flux
 (5700K after 1 hour)

60,000 lm
63,000 lm
66,000 lm
72,000 lm
 72,000 lm
Dimension (mm)

671x405x374mm  671x405x322mm  671x405x204mm





Power Consumption
LEDs
750W





Driver
50W





Total
800W




Replace HID Lamp

2000 ~ 2500W




Net Weight

29kg (64lbs) with stainless steel floodlight bracket




Color Temperature

5700K (2700 ~ 6500K available on request)




Color Rendering

≥Ra75 (≥Ra80, ≥Ra90 available on request)




Working Life

≥50000Hrs




Housing Material

Aluminum




Coating

Powder Coating




IP Class

IP 65 (Upgradeable to IP 67)




Insulation Class

Class I




Working Temperature

-40 ~ 60C / -40 ~ 140F




Working Humidity

10% ~ 95%




AC Input

100 ~ 305Vac, 400 ~ 600Vac




DC Input

100 ~ 400Vdc, 500Vdc ~ 800Vdc




THD

<10%




Power Factor

≥0.98





Warranty
LED Module
5 year





Driver
 5 year





Housing
10 year







High lumen intensity multiple beam angle LED Stadium Exterior Lighting 5
High lumen intensity multiple beam angle LED Stadium Exterior Lighting 6
High lumen intensity multiple beam angle LED Stadium Exterior Lighting 7


Features & Specifications of Heavy duty 600w led stadium light bar

  • Patented Multi-function design, suitable for all working environments.
  • Rated Power: 400W-1200W
  • Input Voltage: AC100-305, DC127-431
  • Color Temperature: 2700K-6500K
  • Lamp Efficiency: 130LM/W
  • Beam Angle: 15°, 20°, 30°, 40°, 60°, 120°, 140°x60°.
  • CRI: Ra>75
  • IP Grade: IP65/IP67
  • Bracket: Stainless Steel
  • Net Weight: 29KG
  • Warranty: 5 Years



FAQ:

1. Are you a factory or trading company:

We are a factory located in Xi'an China, established in 2006.



2. What is your product range?

Our wide product range includes floodlight, street light, pendant light, and power from 60W to 1200W.



3. How many days of production will the order take?

Normally 7-15 days, depending on the order quanity.



4. How do you ship goods abroad?

For sample, trial order, or small quantities we will suggest shipping by air, for large quantity and bulk order we recommend shipping by sea.



5. Does your product support smart control like sensor, dimming, DALI, etc.

They support all of these features, please tell our sales during your negotiation when you need such features.



6. How do you deal with failed lights?

During the warranty period, we will send customer free part or lamp after checking the evidence. After warranty, we only charge the component fees, no extra charge for our customer.
