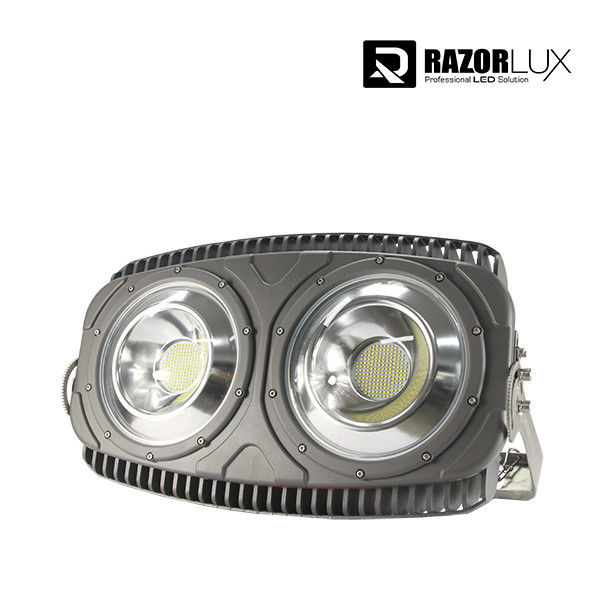

1000w LED Stadium High Mast Flood Light IP67 anti-corrosion housing and high lumen efficiency

1000w LED Stadium High Mast Flood Light IP67 anti-corrosion housing and high lumen efficiency

  • 1000w LED Stadium High Mast Flood Light IP67 anti-corrosion housing and high lumen efficiency
1000w LED Stadium High Mast Flood Light IP67 anti-corrosion housing and high lumen efficiency
Product Details:
Place of Origin: Shaanxi, China
Brand Name: Razorlux
Certification: ce, LVD, RoHS, Saa
Model Number: RGL-1000A
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: 900USD-1300USD/PCS
Packaging Details: 1.EPS Foam+carton(ONE UNIT PER CARTON) <br>2.Carton Size(mm):550*450*415mm<br>3.One 20'' Container can accept 250 Units
Supply Ability: 5000 Piece/Pieces per Month
Contact Now
All Products
LED Outdoor Flood Light (33)
Marine LED Flood Light (42)
Waterproof LED Flood Light (25)
LED Industrial Flood Light (18)
Dimmable LED Flood Light (22)
LED Stadium Lights (62)
LED Outdoor Sports Lighting (19)
LED Boat Deck Light (11)
LED High Mast Light (17)
LED Crane Light (10)
LED High Bay Lights (28)
LED Explosion Proof Light (28)
Detailed Product Description
Color Temperature(CCT): 5700K (2700 ~ 6500K Available On Request) Lamp Luminous Efficiency(lm/w): 130
Support Dimmer: Yes Lighting Solutions Service: Lighting And Circuitry Design, DIALux Evo Layout
Working Time (hours): 50000 Input Voltage(V): 100 ~ 306Vac, 400 ~ 600Vac
Beam Angle(°): 15° 20° 60° 120° 140°X60°, Lamp Body Material: Aluminum & Powder Coating
Application: Sports Stadiums Light Source: LED
Lamp Luminous Flux(lm): 130,000 Lm Working Temperature(℃): -40C~60C/40F~140F,
Warranty(Year): 5-Year Product Name: Multiple Beam Angle LED Stadium Exterior Lighting
Power: 800W Housiong Material: Aluminum Alloy
IP Class: IP 67 Color Rendering: ≥Ra75

1000w LED Stadium High Mast Flood Light IP67 anti-corrosion housing and high lumen efficiency 0
LED Sports light technical parameter:
Model

1000P-L15
1000P-L20
1000A-L60
1000A-L120
1000A-L140
Beam Angle

15°
20°
60°
120°
140°x60°
Stable Flux
 (5700K after 1 hour)

115,000 lm
118,000 lm
130,000 lm
135,000 lm
 130,000 lm
Dimension (mm)

671x405x374mm  671x405x322mm  671x405x204mm





Power Consumption
LEDs
950W





Driver
50W





Total
1000W




Replace HID Lamp

2000 ~ 3000W




Net Weight

29kg (64lbs) with stainless steel floodlight bracket




Color Temperature

5700K (2700 ~ 6500K available on request)




Color Rendering

≥Ra75 (≥Ra80, ≥Ra90 available on request)




Working Life

≥50000Hrs




Housing Material

Aluminum Alloy




Coating

Anti-corrosion Powder Coating




IP Class

IP 65 (Upgradeable to IP 67)




Insulation Class

Class I




Working Temperature

-40 ~ 60C / -40 ~ 140F




Working Humidity

10% ~ 95%




AC Input

100 ~ 305Vac, 400 ~ 600Vac




DC Input

100 ~ 400Vdc, 500Vdc ~ 800Vdc




THD

<10%




Power Factor

≥0.98





Warranty
LED Module
5 year





Driver
 5 year





Housing
10 year







1000w LED Stadium High Mast Flood Light IP67 anti-corrosion housing and high lumen efficiency 5
1000w LED Stadium High Mast Flood Light IP67 anti-corrosion housing and high lumen efficiency 6
1000w LED Stadium High Mast Flood Light IP67 anti-corrosion housing and high lumen efficiency 7


Features & Specifications:

  • Exquisite design with patent.
  • Power Range: 6000W-1000W
  • Input Voltage: AC100-305, DC127-431
  • Color Temperature: 2700K-6500K
  • Lamp Efficiency: 130LM/W
  • Beam Angle: 15°, 20°, 30°, 40°, 60°, 120°, 140°x60°.
  • CRI: Ra>75
  • IP Grade: IP65/IP67
  • Bracket: Stainless Steel
  • Driver: MEANWELL
  • LED Chip: SAMSUNG

FAQ:

1. Are you a factory or trading company:

We are a factory located in Xi'an China, established in 2006.



2. What is your product range?

Our wide product range includes floodlight, street light, pendant light, and power from 60W to 1200W.



3. How many days of production will the order take?

Normally 7-15 days, depending on the order quanity.



4. How do you ship goods abroad?

We ship goods by express, air, by sea, by train. Or by customer's appointed forwarder. This step will be discussed before or after order placed.



5. Does your product support smart control like sensor, dimming, DALI, etc.

Yes, our lights compatible with all mainstrain smart control method.



6. How do you deal with failed lights?

We have 3 years and 5 years warranty options, and we will send customer free parts for replacing if there is a failure.
