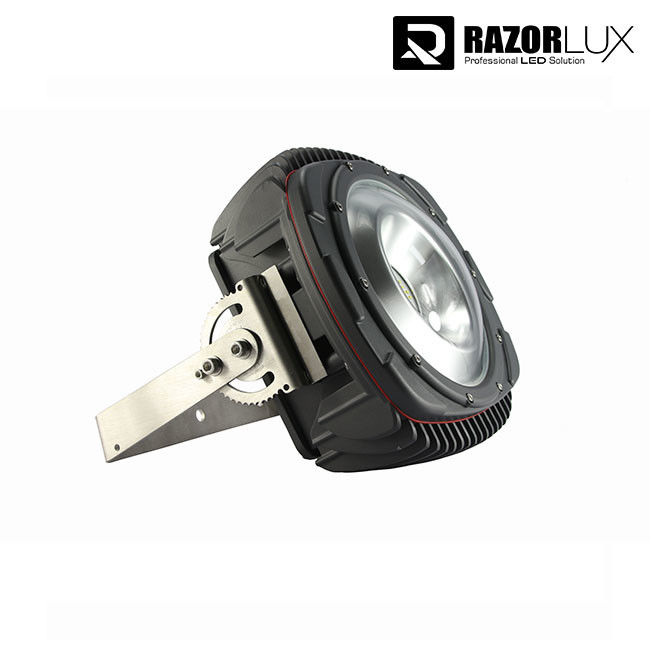

200w led tennis court lighting energy efficiency 5 years warranty sport court lighting

200w led tennis court lighting energy efficiency 5 years warranty sport court lighting

  • 200w led tennis court lighting energy efficiency 5 years warranty sport court lighting
200w led tennis court lighting energy efficiency 5 years warranty sport court lighting
Product Details:
Place of Origin: Shaanxi, China
Brand Name: Razorlux
Certification: ce, LVD, RoHS, Saa
Model Number: RGL-200A
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: $1,250.00/Pieces >=1 Pieces
Packaging Details: 1.EPS Foam+carton(ONE UNIT PER CARTON) <br>2.Carton Size(mm):550*450*415mm<br>3.One 20'' Container can accept 250 Units
Supply Ability: 5000 Piece/Pieces per Month
Contact Now
Detailed Product Description
Color Temperature(CCT): 5700K (2700 ~ 6500K Available On Request) Lamp Luminous Efficiency(lm/w): 140
Support Dimmer: Yes Lighting Solutions Service: Lighting And Circuitry Design, DIALux Evo Layout
Working Time (hours): 50000 Input Voltage(V): 100 ~ 306Vac
Beam Angle(°): 15° 20° 60° 120° 140°X60°, 15° 20° 60° 120° 140°X60° Lamp Body Material: Aluminum & Powder Coating
Light Source: LED Lamp Luminous Flux(lm): 28,000 Lm
Working Temperature(℃): -40C~60C/40F~140F, -40C~60C/40F~140F Warranty(Year): 5-Year
Product Name: Football Field 1000 Watt Led Flood Light Power: 200W
Color Temperature: 5700K (2700 ~ 6500K Available On Request) IP Class: IP 65 And IP67
Color Rendering: ≥Ra75

200w led tennis court lighting energy efficiency 5 years warranty sport court lighting 0

200W led tennis court lighting
Model

200P-L15
200P-L20
200A-L60
200A-L120
200A-L140
Beam Angle

15°
20°
60°
120°
140°x60°
Stable Flux
 (5700K after 1 hour)

23,000 lm
24,000 lm
28,000 lm
28,500 lm
 28,500 lm
Dimension (mm)

671x405x374mm  671x405x322mm  671x405x204mm





Power Consumption
LEDs
185W





Driver
15W





Total
200W




Replace HID Lamp

400 ~ 700W




Net Weight

12kg (26lbs) with stainless steel floodlight bracket




Color Temperature

5700K (2700 ~ 6500K available on request)




Color Rendering

≥Ra75 (≥Ra80, ≥Ra90 available on request)




Working Life

≥50000Hrs




Housing Material

Aluminum Alloy




Coating

Powder Coating




IP Class

IP 65 (Upgradeable to IP 67)




Insulation Class

Class I




Working Temperature

-40 ~ 60C / -40 ~ 140F




Working Humidity

10% ~ 95%




AC Input

100~ 306Vac




DC Input

100 ~ 400Vdc, 500Vdc ~ 800Vdc




THD

<10%




Power Factor

≥0.98





Warranty
LED Module
5 year





Driver
 5 year





Housing
10 year







200w led tennis court lighting energy efficiency 5 years warranty sport court lighting 5




Features & Specifications of Heavy duty 600w led stadium light bar

  • Patented Multi-function design, suitable for all working environments.
  • Rated Power: 400W-1200W
  • Input Voltage: AC90-305, DC127-431
  • Color Temperature: 2700K-6500K
  • Lamp Efficiency: 130LM/W
  • Beam Angle: 15°, 20°, 30°, 40°, 60°, 120°, 140°x60°.
  • CRI: Ra>75
  • IP Grade: IP65/IP67
  • Bracket: Stainless Steel
  • Net Weight: 15KG
  • Warranty: 5 Years

Features & Specifications of 600w led stadium light bar

  • Patented Multi-function design, suitable for all working environments.
  • Rated Power: 400W-1200W
  • Input Voltage: AC90-305, DC127-431
  • Color Temperature: 2700K-6500K
  • Lamp Efficiency: 120LM/W
  • Beam Angle: 15°, 20°, 30°, 40°, 60°, 120°, 140°x60°.
  • CRI: Ra>75
  • IP Grade: IP65/IP67
  • Bracket: Stainless Steel
  • Net Weight: 15KG
  • Warranty: 5 Years

200w led tennis court lighting energy efficiency 5 years warranty sport court lighting 6

FAQ:

1. Are you a factory or trading company:

We are a factory located in Xi'an China, established in 2006.



2. What is your product range?

Our wide product range includes floodlight, street light, pendant light, and power from 60W to 1200W.



3. How many days of production will the order take?

Normally 7-15 days, depending on the order quanity.



4. How do you ship goods abroad?

For sample, trial order, or small quantities we will suggest shipping by air, for large quantity and bulk order we recommend shipping by sea.



5. Does your product support smart control like sensor, dimming, DALI, etc.

They support all of these features, please tell our sales during your negotiation when you need such features.



6. How do you deal with failed lights?

During the warranty period, we will send customer free part or lamp after checking the evidence. After warranty, we only charge the component fees, no extra charge for our customer.
