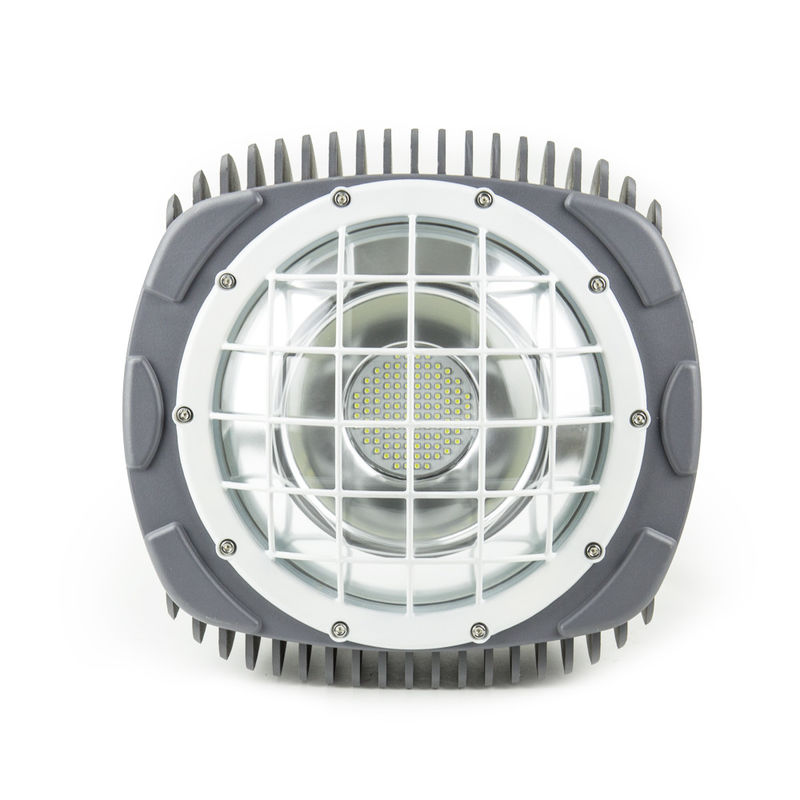

2022 LED softball field lighting high mast flood light systems

2022 LED softball field lighting high mast flood light systems

  • 2022 LED softball field lighting high mast flood light systems
2022 LED softball field lighting high mast flood light systems
Product Details:
Place of Origin: Shaanxi, China
Brand Name: Razorlux
Certification: ce, LVD, RoHS, Saa
Model Number: RGL-250A
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: 200-300USD/Piece
Packaging Details: 1.EPS Foam+carton(ONE UNIT PER CARTON) <br>2.Carton Size(mm):550*450*415mm<br>3.One 20'' Container can accept 250 Units
Delivery Time: 5-8 work days
Supply Ability: 5000 Piece/Pieces per Month
Contact Now
Detailed Product Description
Color Temperature(CCT): 5700K (2700 ~ 6500K Available On Request) Lamp Luminous Efficiency(lm/w): 140
Support Dimmer: Yes Lighting Solutions Service: Lighting And Circuitry Design, DIALux Evo Layout
Working Time (hours): 50000 Input Voltage(V): 100 ~ 306Vac
Beam Angle(°): 15° 20° 60° 120° 140°X60°, 15° 20° 60° 120° 140°X60° Lamp Body Material: Aluminum & Powder Coating
Light Source: LED Lamp Luminous Flux(lm): 35,000 Lm
Working Temperature(℃): -40C~60C/40F~140F, -40C~60C/40F~140F Warranty(Year): 5-Year
Power: 250W Color Temperature: 5700K (2700 ~ 6500K Available On Request)
IP Class: IP 65 And IP67 Color Rendering: ≥Ra75

2022 LED softball field lighting high mast flood light systems 0

270W led baseball field lighting.
Model

250P-L15
250P-L20
250A-L60
250A-L120
250A-L140
Beam Angle

15°
20°
60°
120°
140°x60°
Stable Flux
 (5700K after 1 hour)

28,750 lm
30,000 lm
33,750 lm
35,000 lm
 35,000 lm
Dimension (mm)

671x405x374mm  671x405x322mm  671x405x204mm





Power Consumption
LEDs
240W





Driver
10W





Total
250W




Replace HID Lamp

600 ~ 800W




Net Weight

12kg (26lbs) with stainless steel floodlight bracket




Color Temperature

5700K (2700 ~ 6500K available on request)




Color Rendering

≥Ra75 (≥Ra80, ≥Ra90 available on request)




Working Life

≥50000Hrs




Housing Material

Aluminum Alloy




Coating

Powder Coating




IP Class

IP 65 (Upgradeable to IP 67)




Insulation Class

Class I




Working Temperature

-40 ~ 60C / -40 ~ 140F




Working Humidity

10% ~ 95%




AC Input

100~ 306Vac




DC Input

100 ~ 400Vdc, 500Vdc ~ 800Vdc




THD

<10%




Power Factor

≥0.98





Warranty
LED Module
5 year





Driver
 5 year





Housing
10 year







2022 LED softball field lighting high mast flood light systems 5




Features:

  • Patented, suitable for all working environments.
  • Rated Power: 90W-270W
  • Input Voltage: AC100-305, DC127-431
  • Color Temperature: 2700K-6500K
  • Lamp Efficiency: 140LM/W
  • Beam Angle: 15°, 20°, 30°, 40°, 60°, 120°, 140°x60°.
  • CRI: Ra>75
  • IP Grade: IP65/IP67
  • Bracket: Stainless Steel
  • Net Weight: 12KG
  • Warranty: 3 or 5 Years



2022 LED softball field lighting high mast flood light systems 6

FAQ:

1. Are you a factory or trading company:

We are a factory located in Xi'an China, established in 2006.



2. What is your product range?

Our wide product range includes floodlight, street light, pendant light, and power from 60W to 1200W.



3. How many days of production will the order take?

Normally 7-15 days, depending on the order quanity.



4. How do you ship goods abroad?

For sample, trial order, or small quantities we will suggest shipping by air, for large quantity and bulk order we recommend shipping by sea.



5. Does your product support smart control like sensor, dimming, DALI, etc.

They support all of these features, please tell our sales during your negotiation when you need such features.



6. How do you deal with failed lights?

During the warranty period, we will send customer free part or lamp after checking the evidence. After warranty, we only charge the component fees, no extra charge for our customer.
