Home ProductsLED Outdoor Sports Lighting

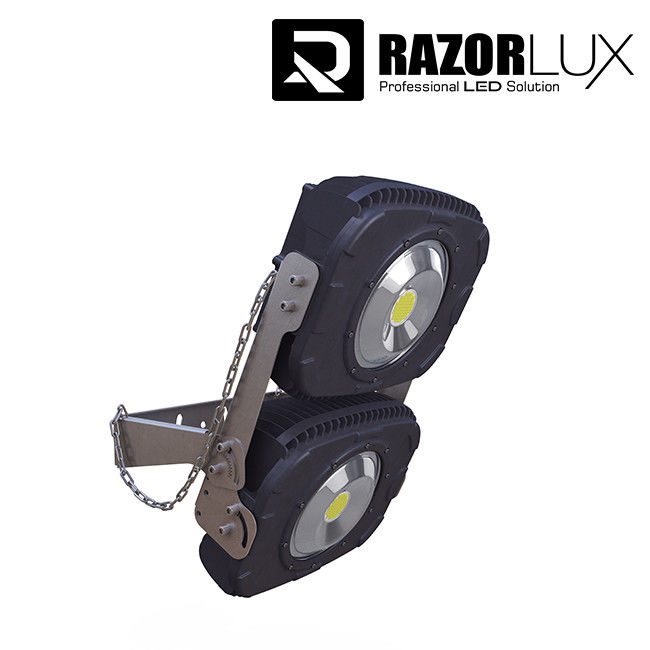

High Safety 1400w Led Sports Ground Floodlights IP67 High Lumen Led Flood Light

High Safety 1400w Led Sports Ground Floodlights IP67 High Lumen Led Flood Light

  • High Safety 1400w Led Sports Ground Floodlights IP67 High Lumen Led Flood Light
High Safety 1400w Led Sports Ground Floodlights IP67 High Lumen Led Flood Light
Product Details:
Place of Origin: Shaanxi, China
Brand Name: Razorlux
Certification: ce, EMC, LVD, RoHS, Saa
Model Number: RGL2-1400A
Payment & Shipping Terms:
Price: $1,400.00 - $1,580.00/Pieces
Packaging Details: 1.EPS Foam+carton(ONE UNIT PER CARTON) <br>2.Carton Size(mm):550*450*415mm<br>3.One 20'' Container can accept 250 Units
Supply Ability: 5000 Piece/Pieces per Month
Contact Now
Detailed Product Description
Color Temperature(CCT): 2700-6500K Lamp Luminous Efficiency(lm/w): 130, 130
Lighting Solutions Service: Lighting And Circuitry Design, DIALux Evo Layout, Agi32 Layout Working Time (hours): 50000
Product Weight(kg): 30 Input Voltage(V): 80~315Vac, (347Vac Available On Request)
Beam Angle(°): 40° 60° 120° 140°, 40° 60° 120° 140° Working Lifetime(Hour): 50000
Lamp Body Material: Aluminum & Powder Coating Application: Sports Stadiums
Lamp Luminous Flux(lm): 182000lm, 182000lm Working Temperature(℃): -40C~60C/40F~140F, -40C~60C/40F~140F
Warranty(Year): 5-Year Product Name: 1400w Professional Led Flood Light Outdoor
Color Temperature: 2700-6500K Housiong Material: Aluminum & Powder Coating
IP Class: IP 67 Color Rendering: ≥Ra75
High Light:

182000lm led sports ground floodlights

,

1400w led sports ground floodlights

,

IP67 high lumen outdoor led flood light

IP67 High safety outdoor lighting 40 60 120 140 Beam Angle 1400w high lumen professional led flood light outdoor


Description of Baseball Lights:

The baseball lights of the baseball field is different from the lighting requirements of other fields. The area of the baseball field is about 1.6 times that of a football field. The shape of the baseball field is fan-shaped. The average illuminance in the external field is about 50%, so the uniformity of the external field illuminance is a difficult point, that is, the illuminance at the interface between the internal field and the external field must be considered.

Lighting should be provided to the athletes and spectators who play the baseball game in a place where the glare phenomenon can be minimized.

The layout of the baseball field lighting is divided into infield and outfield, and the uniformity and illuminance are designed to be in proper condition.


Model

RGL2-1400A
Beam Angle

40° 60° 120° 140°
Stable Flux (5700K after 1 hour)

182000lm
Dimension (mm)

474*388*982

Power Consumption
LEDs
1260W

Driver
140W

Total
1400W
Replace HID Lamp

3000~3500W
Net Weight

30kg (66lbs)
Color Temperature

2700-6500K
Color Rendering

≥Ra75
Working Life

≥50000Hrs
Housing Material

Aluminum & Powder coating
Power Supply

Meanwell
IP Class

IP 67
Working Temperature

-40C ~ 60C / -40F ~ 140F
AC Input

80~315Vac, (347Vac available on request)
Power Factor

≥0.98
Warranty

5 Years

High Safety 1400w Led Sports Ground Floodlights IP67 High Lumen Led Flood Light 1High Safety 1400w Led Sports Ground Floodlights IP67 High Lumen Led Flood Light 2

Features & Specifications of 1-10V Dimmable led flood light 400Watt

  • Patented Multi-function design, suitable for all working environments.
  • Rated Power: 400W-1200W
  • Input Voltage: AC90-305, DC127-431
  • Color Temperature: 2700K-6500K
  • Lamp Efficiency: 130LM/W
  • Beam Angle: 15°, 20°, 30°, 40°, 60°, 120°, 140°x60°.
  • CRI: Ra>75
  • IP Grade: IP65/IP67
  • Bracket: Stainless Steel
  • Net Weight: 15KG
  • Warranty: 5 Years

Advantages of 500 Watt LED Sport Court Lights

  • Top grade CREE/Samsung led chip
  • Meanwell Driver
  • Marine grade powder coating housing finish, and 316 stainless steel bracket
  • 15, 20, 30, 40, 60, 120, and 140 x 60 multil beam angle option
  • Clear tempered glass lens, and reflector make the classical shape lighting
  • IP67 and IK10 grade
  • Protection grid, visor available for optional
  • Anti-glare frosted lens available

FAQ:

1. Are you a factory or trading company:

We are a factory located in Xi'an China, established in 2006.



2. What is your product range?

Our wide product range includes floodlight, street light, pendant light, and power from 60W to 1200W.



3. How many days of production will the order take?

Normally 7-15 days, depending on the order quanity.



4. How do you ship goods abroad?

For sample, trial order, or small quantities we will suggest shipping by air, for large quantity and bulk order we recommend shipping by sea.



5. Does your product support smart control like sensor, dimming, DALI, etc.

They support all of these features, please tell our sales during your negotiation when you need such features.



6. How do you deal with failed lights?

During the warranty period, we will send customer free part or lamp after checking the evidence. After warranty, we only charge the component fees, no extra charge for our customer.
