Home ProductsLED Outdoor Sports Lighting

SMD Led Gymnasium Lighting

China Xi'an Razorlux Optoelectronic Technology Co., Ltd. certification
China Xi'an Razorlux Optoelectronic Technology Co., Ltd. certification
I'm Online Chat Now

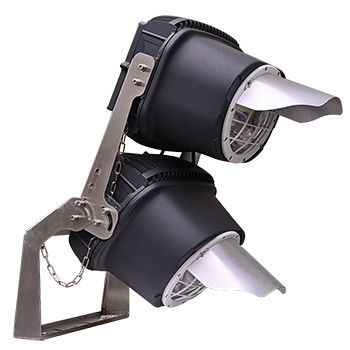

SMD Led Gymnasium Lighting

SMD Led Gymnasium Lighting
SMD Led Gymnasium Lighting SMD Led Gymnasium Lighting

Large Image :  SMD Led Gymnasium Lighting

Product Details:
Place of Origin: Xi'an, China
Brand Name: Led Sport Light
Certification: SAA,TUV,UL
Model Number: RGL2-200W
Payment & Shipping Terms:
Minimum Order Quantity: 1 UNIT
Price: 150-400 USD
Packaging Details: 1 unit/carton
Payment Terms: L/C, T/T, Western Union
Supply Ability: 5000 pcs per month
Detailed Product Description
Item Type: Led Sport Light Warranty(years): 5 Year
Lamp Body Material: Aluminum Working Lifetime(hour): 50000
Led Light Source: SMD Cri (ra>): IP67
Product Name: Outdoor Projector Stadium Led Light Outdoor Led Sport Flood Light For Tennis Court
High Light:

SAA led gymnasium lighting

,

SMD led gymnasium lighting

,

IP67 led sports ground floodlights

Outdoor Projector Stadium Led Light Outdoor Led Sport Flood Light For Tennis Court

Main Features
1. 80% lumen maintenance over 50,000hours
2. Wide Power range: 200W
3. 110-480Vac input voltage without additional adapter
4. Patent Built-in Serge Protection.
5. TOP chips high efficacy 120lm/w with meanwell driver
6. IP67 waterproof, IK10 impact proof
7. Neutral Salt Spray Resistance
8. Anti-Corression power coating surface treatment
9. Stainless steel brackets material.(Upgradable to SS316)
10. 0-10VDC, DALI and wireless control available
11. UL cUL DLC, TUV CE RoHS, CB, SAA, LM79 listed
12. High uniformity & color rendering index



Photos of LED Boat Lights:


200W LED Light Flood.jpg

200W LED Light Flood.jpg



Product Description



Parameter of Razorlux LED Boat Lights:



Model RGL2-200P
Beam Angle 15° 20° 30°

Stable Flux

(5700K after 1 hour)

24000lm
Dimension (mm) 466*388*487
  LEDs 180W
Power  Driver 20W
Consumption  Total 200W
Replace HID Lamp 400~600W
Net Weight 19kg with stainless steel floodlight bracket
Color Temperature 2700-6500K
Color Rendering ≥Ra75 (≥Ra80, ≥Ra90 available on request)
Working Life ≥50000Hrs
Housing Material Aluminum & Powder coating
Power Supply Meanwell
IP Class

IP 65 (Upgradeable to IP 67)

IK Class

IK 10

Insulation Class Class I
Working Temperature -40C ~ 60C / -40F ~ 140F
Working Humidity 10% ~ 95%
AC Input 110-480Vac input voltage without additional adapter
DC Input 100 ~ 400Vdc, 500Vdc ~ 800Vdc
THD <10%
Power Factor ≥0.98
Warranty LED Module 5 year
Driver 5 year
Housing 10 year



Certificates of Razorlux:



Certification





Application Projects
Application of Razorlux LED Boat Lights:



For Different application requirement, Razorlux Genius Series have different types of beam angles options.

at the moment we have 15° 20° 40° 60° 120° 140° beam angle available.

LED Marine Flood Light









Packaging & Shipping

Model

G.W

Genius II Compact 200W P Series

19KGS

 packaging 22.jpg





Razorlux has very strict Quality Control System, from checking and evaluation of incoming materials to

the delivery of products, each item will be checked and tested for several times.



Quality Control - Testing Equipments:



For every piece of Razorlux 200 Watt LED Flood Light are tested in different procedures.

No. 1: Extreme temperature testing to make sure the lamps work stably and standardly under extreme temperature environment. (-40 to 60 degree)

No. 2: Anti-Corrosion and IP67 Waterproof Testing, to make sure the products are working well even undern corrosive and Wetting environment.

No. 3 & 4: Dark Room for testing IES files and other Photometric datas.






Quality Control - Aging Department:



For every piece of Razorlux Genius™ LED Lights, they will be aged for at least 72 hours before shipment

to make sure of their long term and stable performances within lifetime.

Aging test.JPG

Trade Shows
Razorlux at Lighting Fairs:



Hong Kong International Lighting Fair (Spring Edition) 2016/2017/2018

Hong Kong International Lighting Fair (Autumn Edition) 2016/2017/2018

2015 LED Expo in Den Bosch, Netherland

2016 Strategies in Light in Las Vegas, U.S.A

2016 IIDEX in Toronto, Canada
