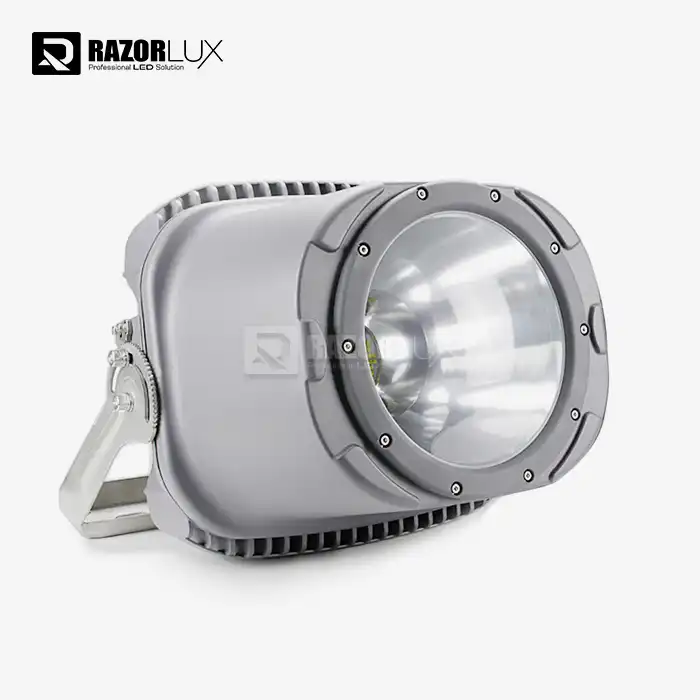

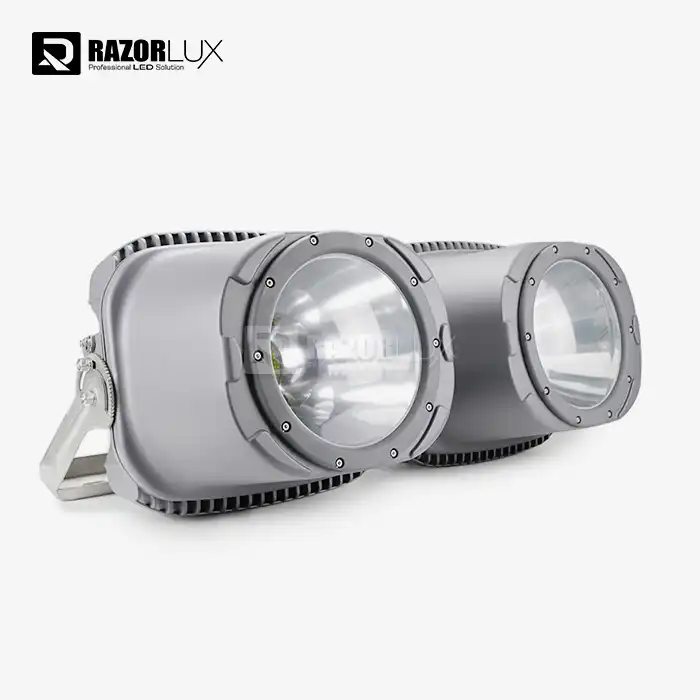

Waterproof Floodlight
Rated Power: 1000W
Input Voltage: AC80-315Vac
Color Temperature: 2700K-6500K
Lamp Efficiency: 130LM/W

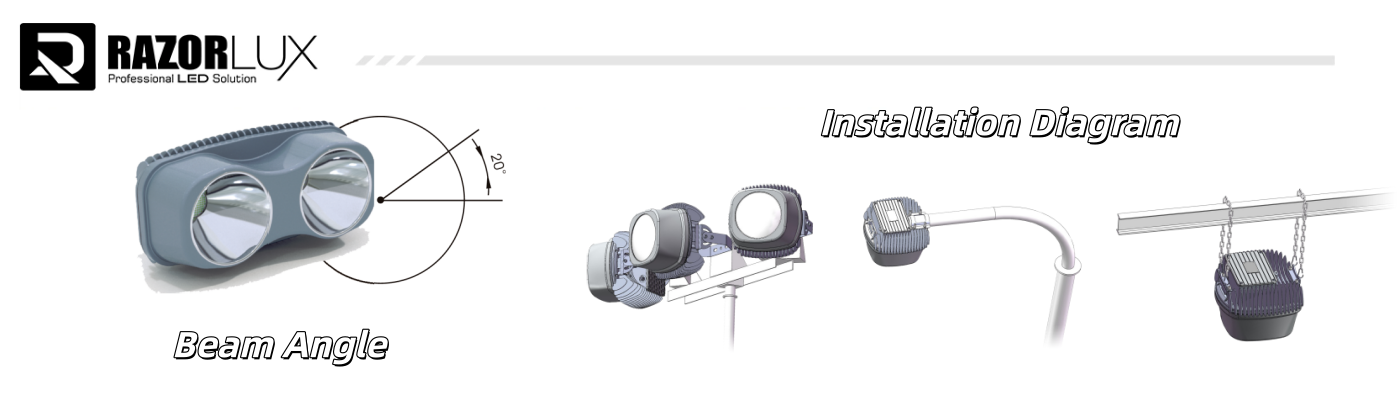

Beam Angle: 15°, 20°, 30°.
CRI: Ra>75
IP Grade: IP65/IP67

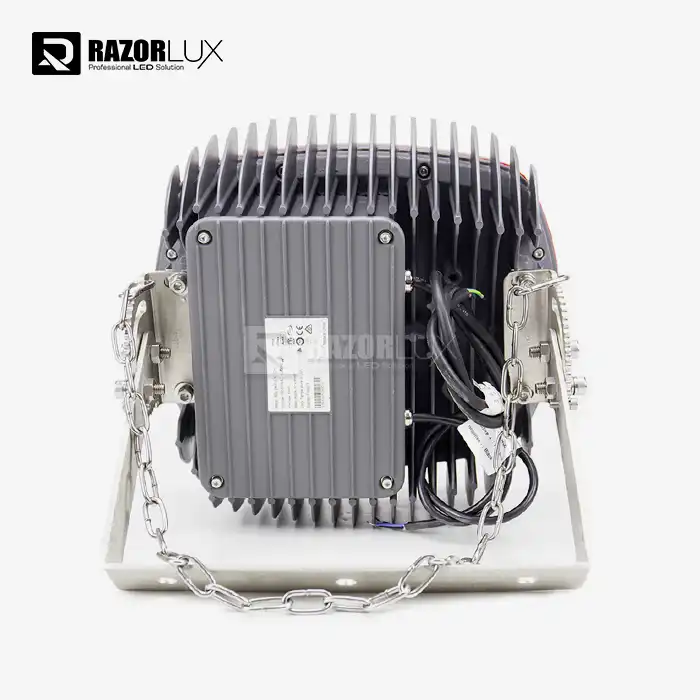

Bracket: Stainless Steel
Net Weight: 38KG
Warranty: 5 Years
Certificate: RMRS, CE, RoHS, SAA, C-Tick, UL, DLC, CB, ISO:9001
- Product Description
Waterproof Floodlight – Built for the Harshest Conditions
When standard outdoor lighting fails, operations stop. Xi'an Razorlux Optoelectronic's 400W waterproof floodlight solves this challenge with military-grade engineering that withstands extreme weather, corrosive environments, and 24/7 industrial use. Backed by 25 years of LED innovation and trusted in ports, refineries, and critical infrastructure worldwide, our IP67-rated solution delivers reliable performance where failure isn't an option.
Waterproof Floodlight Specifications
Model | RGL2-1000P | |
Beam Angle | 15° 20° 30° | |
Stable Flux (5700K after 1 hour) | 120000lm | |
| LEDs | 900W |
Power | Driver | 100W |
Consumption | Total | 1000W |
Replace HID Lamp | 2200~2500W | |
Net Weight | 38kg with stainless steel floodlight bracket | |
Color Temperature | 2700-6500K | |
Color Rendering | ≥Ra75 (≥Ra80, ≥Ra90 available on request) | |
Working Life | ≥50000Hrs | |
Housing Material | Aluminum & Powder coating | |
Power Supply | Meanwell | |
IP Class | IP 67 | |
IK Class | IK 10 | |
Insulation Class | Class I | |
Working Temperature | -40C ~ 60C / -40F ~ 140F | |
Working Humidity | 10% ~ 95% | |
AC Input | 80-315Vac input voltage without additional adapter | |
Power Factor | ≥0.98 | |
Warranty | LED Module | 5 year |
|
|
|
| Driver | 5 year |
| Housing | 10 year |
What Makes Our Floodlight Different
The Condensation Problem—Solved
Most "waterproof" lights fog up from the inside. Heat from LEDs creates pressure changes that suck moisture through tiny gaps. Our hydrophobic breather valve system equalizes pressure while blocking water molecules—eliminating the internal fogging that ruins light output.
Protection Beyond the IP Rating
We go further than standard waterproofing. The LED waterproof floodlight driver sits in thermal-conductive resin potting, creating a second barrier. Even if the outer seal fails, your electronics stay protected. This matters in environments with temperature swings, vibration, or accidental impacts.
Built for Corrosive Environments
Salt spray and chemical exposure destroy ordinary fixtures within months. Our C5M-rated marine coating and 316 stainless steel components resist galvanic corrosion. Ports and refineries report 3-5x longer service life compared to standard alternatives.
Real-World Voltage Stability
Power fluctuations are common in industrial settings. The wide input range (AC90-305V, DC127-431V) keeps lights stable during voltage sags that dim or shut down conventional fixtures.
Where It Works Best

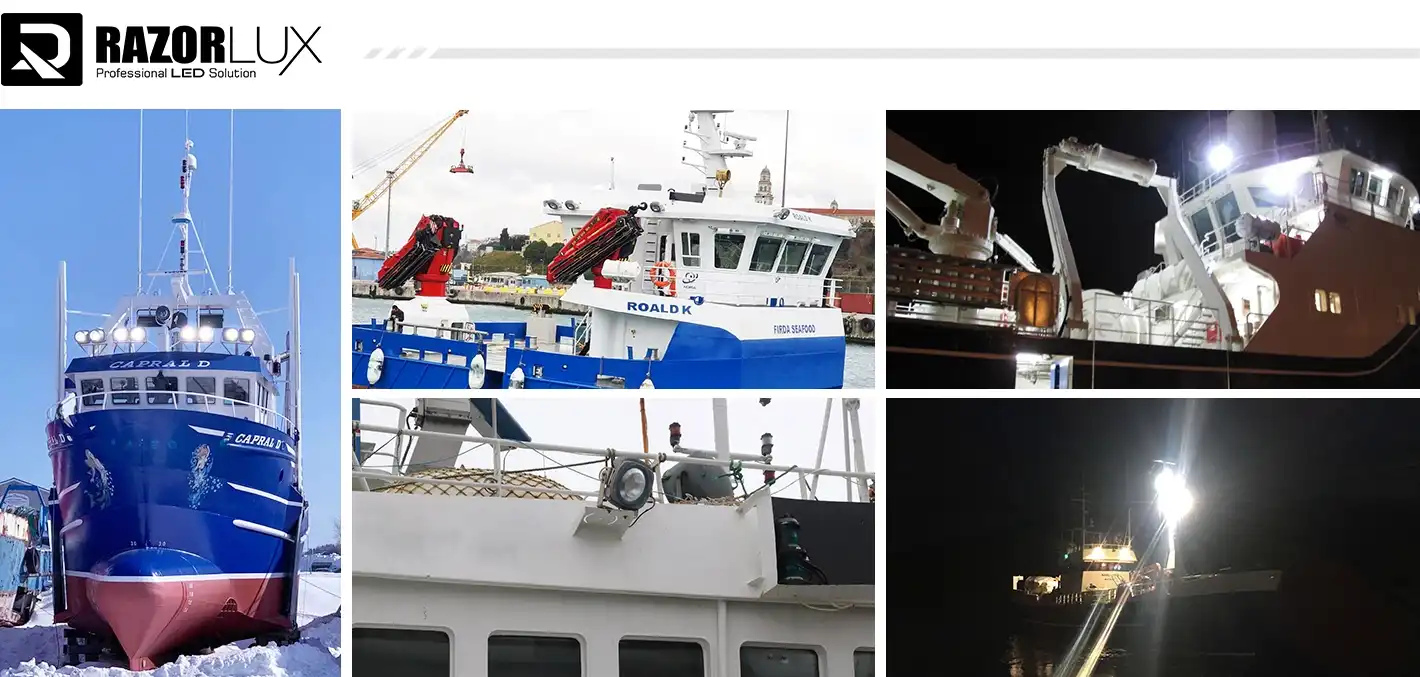

Maritime Operations
Container terminals, offshore platforms, and shipyards—where salt, wind, and pressure washing test every component.
Heavy Industry
Refineries, chemical plants, and mining sites that require explosion-proof reliability and resistance to airborne contaminants.
Infrastructure Projects
Bridges, tunnels, and public works needing decades of maintenance-free operation with minimal access for repairs.
Outdoor Facilities
Stadiums, parking structures, and transport hubs where weather interruptions aren't acceptable.
Common Questions
What's the real difference between IP65 and IP67?
IP65 handles heavy rain and hose spray. IP67 survives temporary submersion up to 1 meter. Choose IP67 for ground-level installs or flood-prone areas.
How long will it actually last in a coastal environment?
With proper installation, expect 10+ years in marine conditions. The 316 stainless steel and C5M coating are the same materials used on naval vessels.
What about the cable connections?
The fixture is waterproof, but standard cable connections are not. Use IP68-rated junction boxes (we provide specs). Water travels inside cable jackets—this is the most common failure point.
Can I dim these lights?
Yes. Specify 0-10V or DALI dimming when ordering. Standard models are non-dimmable.
What happens if the driver fails?
The 5-year warranty covers driver replacement. Potted drivers rarely fail, but when they do, the modular design allows field replacement without changing the entire fixture.
