240W 120lm/W Led Tennis Lights 347V Portable Floodlights

240W 120lm/W Led Tennis Lights 347V Portable Floodlights

Professional Sports Lighting Solution

When compared to traditional metal halide systems, the RGL-240F's 28,800 lumens and 120 lm/W efficiency result in a 70% reduction in energy costs. This 240W 120lm/W Led Tennis Lights 347V Portable Floodlights offers broadcast-quality illumination without the need for a transformer since it is designed for a 347V direct connection. IP66-rated housing can withstand severe weather conditions (-40°C to +50°C) thanks to its 50,000-hour lifespan and full UL/TUV certification.​​​​​​​
​​​​​​​

240W 120lm/W Led Tennis Lights 347V Portable Floodlights Specifications

Core Advantages

The key advantages of the 240W 120lm/W 347V portable LED tennis court floodlights are as follows:

347V Direct Integration

Connects to industrial and Canadian 347V systems without the need for transformers. Allows for longer cable lengths with no voltage loss and a 40% reduction in installation expenses.

Perfect for: Corporate campuses with 347V infrastructure already in place, municipal buildings, and building sites.

Portable Tournament-Grade Performance

During transportation, a heavy-duty U-bracket preserves beam accuracy. IESNA requirements for professional play and transmission are met by UGR<19 glare control and flicker-free operation.

Applications include multi-venue operations, movable light towers, and transient events.

Proven Durability

LED junction temperatures are kept below 85°C by die-cast aluminum fins, while industrial voltage spikes are withstood by 6kV–10kV surge protection. A powder-coated finish is resistant to corrosion caused by salt spray.

Tested for: High humidity areas, hard winters, and coastal settings.

Key Applications

Municipal Tennis Courts (Canada)

Direct 347V connection eliminates rewiring costs. IP66 rating handles freeze-thaw cycles without degradation. Provides 60-70% energy savings versus HID systems.

Temporary Tournament Venues

Portable design integrates with diesel or solar-hybrid towers. Instant-on capability removes HID warm-up delays. Consistent beam quality across multiple setups.

Industrial Recreation Facilities

Leverage existing 347V infrastructure for immediate upgrades. IK10 impact resistance survives construction site conditions. Completes installation within 2 weeks.

Common Questions

How portable are these floodlights?

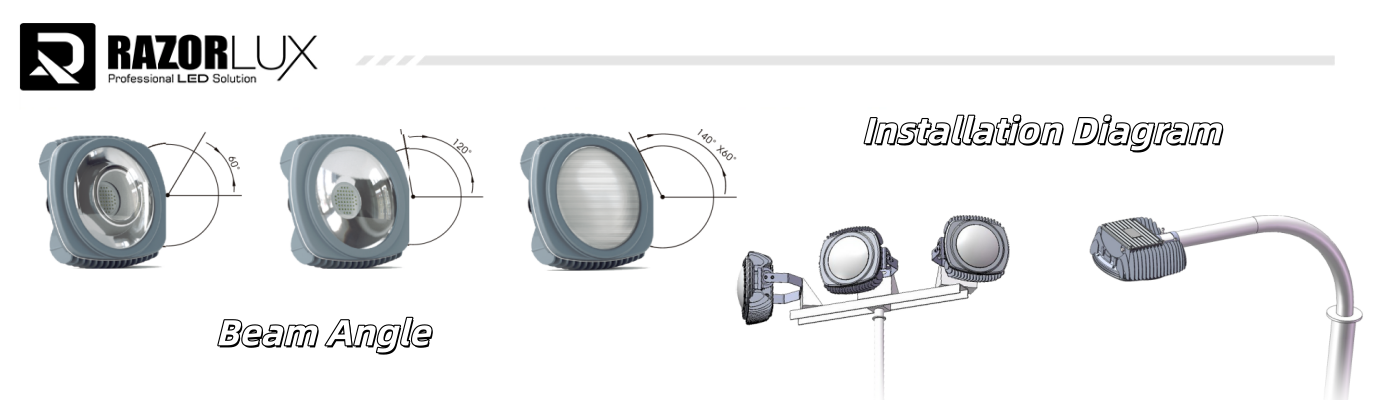

The locking U-bracket maintains ±2° aiming accuracy through transport. IK10 impact rating protects optical alignment. Weighs 15% less than comparable fixtures for easier handling.

Does this work with dimming systems?

Standard models support 0-10V dimming. DALI protocol available through custom order (15-day lead time). Contact our team for control integration details.

What about glare for players?

Asymmetric optics direct light onto the court surface while shielding players' sight lines. UGR<19 rating meets ITF (International Tennis Federation) recommendations.

Why Razorlux

25 Years of Lighting Innovation

Since 1998, we've supplied power systems to China Mobile and Guodian Group before pioneering LED sports lighting. Dual headquarters in USA and China ensure responsive support.

Complete Control Over Quality

In-house LED Packaging, driver design, and thermal engineering. Every fixture tested in our NDRC-authorized laboratory. Joint R&D projects with Xi'an Jiaotong University.

Fast, Flexible Delivery

· 10-15 day production for standard orders

· Air/rail/sea shipping options

· Payment via L/C, T/T, Western Union

· Free lighting layout design service

Engineering Support Included

Our team provides photometric analysis, mounting recommendations, and custom prototypes at no charge. Technical drawings available in AutoCAD or PDF format.

Get Your Custom Lighting Plan

Receive a free photometric layout designed for your facility. Our engineers calculate optimal placement, aiming angles, and expected uniformity.

Contact our key advantages of the 240W 120lm/W 347V portable LED tennis court floodlights specialists:
