Flood Light Explosion Proof
2.High Efficacy low decay 700MA LED chip
3.High heat transmit die cast housing ADC12 aluminum, patent design, IP68
4.Shock and vibration resistant tempered glass, super clear 95% light transmit rate
5.Anti-glare.Scientific optical reflector design, making the light more focus,even, comfortable for
eyes
6.Original Bridgelux LED source,high luminous efficacy and long lifespan
7.MEANWELL HLG series driver, the highest level of MEANWELL driver
8.Surface treatment-Powder painted, salt resistant and chemical resistant, also hard for dust to
accumulate on the surface
9.2.0mm aluminum PCB with heat index 2.5, keep LED working under cool temperature
10.Working temperature: -30ºC to 50ºC.
Certification: ATEX, UL, CUL, DLC, PSE, SAA&C-TICK, CQC, CE, ROHS, IP68
- Product Description
Flood Light Explosion Proof – Safety-Critical Lighting for Hazardous Zones
Operating in explosive atmospheres demands zero-compromise lighting solutions. Razorlux's flood light explosion proof combines military-grade construction with intelligent thermal design to deliver reliable illumination where failure isn't an option. Certified for Zone 1/2 gas and Zone 21/22 dust environments, our fixtures protect your team while cutting maintenance costs by 70% compared to traditional HID systems.
Why specify our explosion-proof floodlights?
✓ Bridgelux LED chips maintain 90% brightness after 50,000 hours
✓ IP68-rated housing withstands high-pressure washdowns and saltwater exposure
✓ ATEX/UL certified for Class I Div 1 & 2 hazardous locations
✓ Advanced heat dissipation keeps surface temps below auto-ignition thresholds
Flood Light Explosion Proof Specifications
| Feature | Description |
|---|---|
| Powder Options | 30w,80w,100w,180w |
| LED Chip | High Efficacy, low decay 700MA |
| Housing | Die-cast ADC12 aluminum, patented design, IP68 |
| Lens | Shock-resistant tempered glass, 95% light transmission |
| Optical Design | Anti-glare, scientific reflector for focused, even light |
| LED Source | Original Bridgelux, high luminous efficacy |
| Driver | MEANWELL HLG series, highest quality |
| Surface Treatment | Powder-coated, salt and chemical resistant |
| PCB | 2.0mm aluminum with heat index 2.5 |
| Operating Temperature | -30ºC to 50ºC |
| Certifications | ATEX, UL, CUL, DLC, PSE, SAA&C-TICK, CQC, CE, ROHS, IP68 |

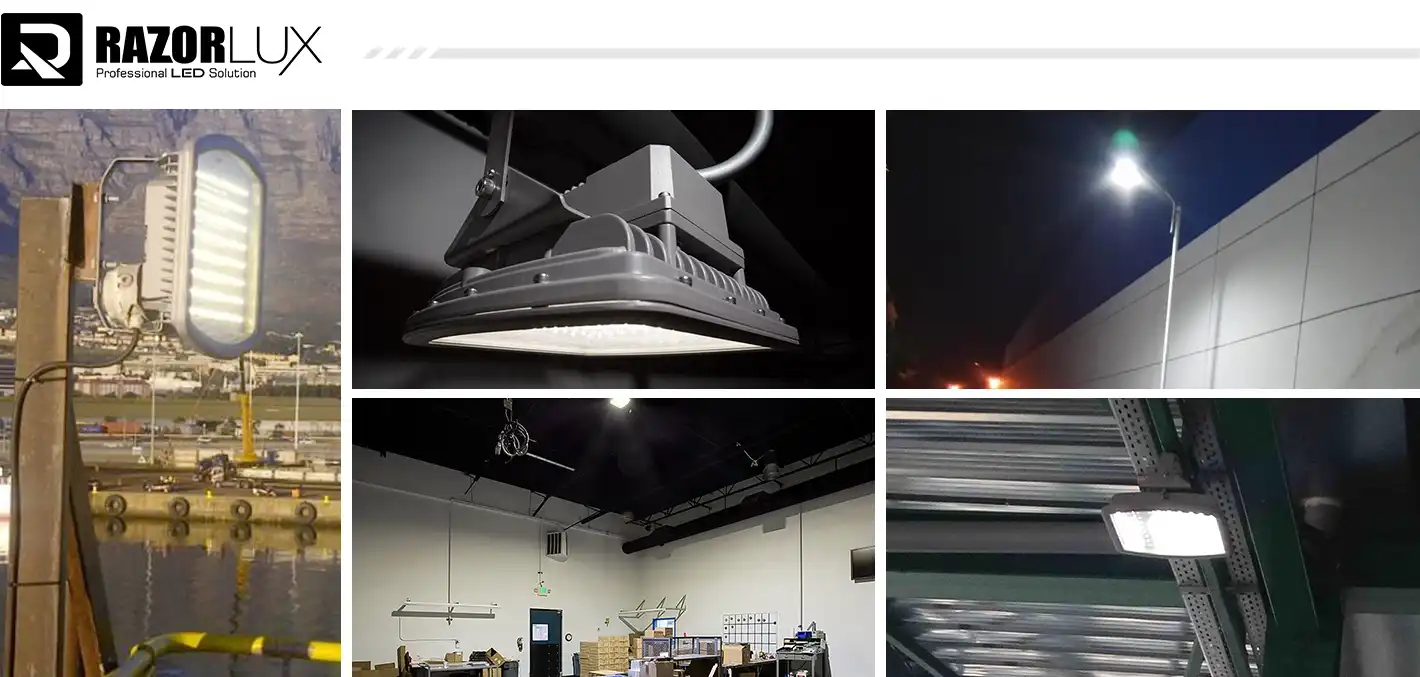

Where Reliability Matters Most
Petrochemical Refineries
Challenge: Zone 1 vapor zones require spark-proof equipment during continuous operations.
Solution: Our flamepath design contains ignition sources while delivering 140 lm/W efficiency. Facilities report 60% energy savings vs. 400W metal halide predecessors. Ideal for pipe racks, loading docks, and process control areas.
Offshore Platforms
Challenge: Corrosive saltwater + explosive gas mixtures + 24/7 operation.
Solution: IP68 rating withstands jet-spray washdowns. Marine-grade powder coating resists rust for 15+ years in C5M environments. Shock-resistant construction absorbs drill rig vibrations without seal failure.
Mining & Grain Processing
Challenge: Combustible dust ignition risks in handling zones.
Solution: Smooth housing design (no dust traps) + T4 temperature rating prevents auto-ignition. One coal preparation plant eliminated 90% of maintenance calls after retrofit from explosion-proof incandescent fixtures.
Maintenance Advantage: 50,000-hour LED lifespan means one installation lasts 11 years at 12-hour daily operation—drastically reducing hazardous-area service entries.
Quality Assurance You Can Verify
ISO 9001 Certified Since 2001
Our quality management system ensures every flood light explosion proof undergoes:
· 100% high-pot electrical safety testing
· Thermal imaging inspection (FLIR certification)
· Photometric validation in our CNAS-accredited laboratory
Independent Testing
The Xi'an LED Lighting Engineering Laboratory (authorized by China's National Development & Reform Commission) provides third-party validation of temperature class ratings and IP ingress protection.
Traceability Documentation
Each unit includes:
· Batch-level certification package
· Test reports for insurance/audit compliance
· 5-year warranty with explosion-proof rating guarantee
Common Questions Answered
Q: How do I choose between Class I Div 1 and Div 2 ratings?
Select Div 1 if flammable gases are normally present during operations (e.g., inside process vessels). Choose Div 2 for areas where vapors appear only during abnormal conditions like leaks or ventilation failures. When uncertain, always specify the more restrictive Div 1 rating.
Q: What does the T-rating mean for my application?
T-ratings indicate maximum surface temperature:
· T1 (450°C): Hydrogen environments
· T4 (135°C): Gasoline, diesel vapors
· T6 (85°C): Carbon disulfide zones
Match your fixture's T-rating to the lowest auto-ignition temperature of gases present. Our technical team provides free hazard classification reviews.
Q: Can these lights be dimmed?
Yes. Optional 0-10V or DALI dimming modules maintain explosion-proof certification. Dimming capability reduces energy costs during low-activity shifts while preserving emergency lighting capability.
Q: What maintenance do explosion-proof fixtures require?
Quarterly inspection recommended:
1. Check gasket seals for compression damage
2. Clean lens to maintain light output
3. Verify mounting bolts remain torqued
LED technology eliminates lamp replacement for 10+ years—our customers report 70% lower maintenance labor vs. HID systems.
Q: Are these suitable for hydrogen refueling stations?
Yes, when specified with Gas Group IIC rating (covers hydrogen and acetylene). Confirm your fixture includes both IIC classification and appropriate T-rating for hydrogen (T1 or T2 depending on concentration).
Get Expert Specification Support
Our hazardous location lighting specialists help you navigate:
· NEC/ATEX classification assessments
· Energy rebate documentation (DLC-qualified products)
· Custom optical configurations for unique mounting conditions
Contact our flood light explosion proof's team: sam@razorlux.com
