IP65 Atex 5000K Flood Light Reflector 75 CRI Explosion Proof Street Light
Place of Origin: Shaanxi, China
Brand Name: Razorlux
Certification: ce, GS
Model Number: R EP-J-100
Packaging Details:
Delivery term: FOB Tianjin/Shanghai, EX-Work, CFR, CIF
3-5 days for samples after payment
Supply Ability: 3000 Piece/Pieces per Month
- Product Description
IP65 Atex 5000K Flood Light Reflector 75 CRI Explosion Proof Street Light Description
Xi'an Razorlux Optoelectronic Technology Co., Ltd. is a leading manufacturer and supplier of the IP65 Atex 5000K Flood Light Reflector 75 CRI Explosion Proof Street Light. Our cutting-edge lighting solution combines robust durability with superior illumination, perfect for harsh industrial environments. Razorlux's Light stands out for its exceptional performance, energy efficiency, and compliance with stringent safety standards.
| Color Temperature(CCT): | 5000K (Daylight) | Input Voltage(V): | 90-305 VAC |
|---|---|---|---|
| Lamp Luminous Efficiency(lm/w): | 116 | Warranty(Year): | 5-Year |
| Color Rendering Index(Ra): | 75 | Support Dimmer: | NO |
| Lighting Solutions Service: | Lighting And Circuitry Design, DIALux Evo Layout | Lifespan (hours): | 50000 |
| Highlight: | IP65 Atex flood light reflector, 5000K flood light reflector, 75 CRI Explosion Proof street Light | ||

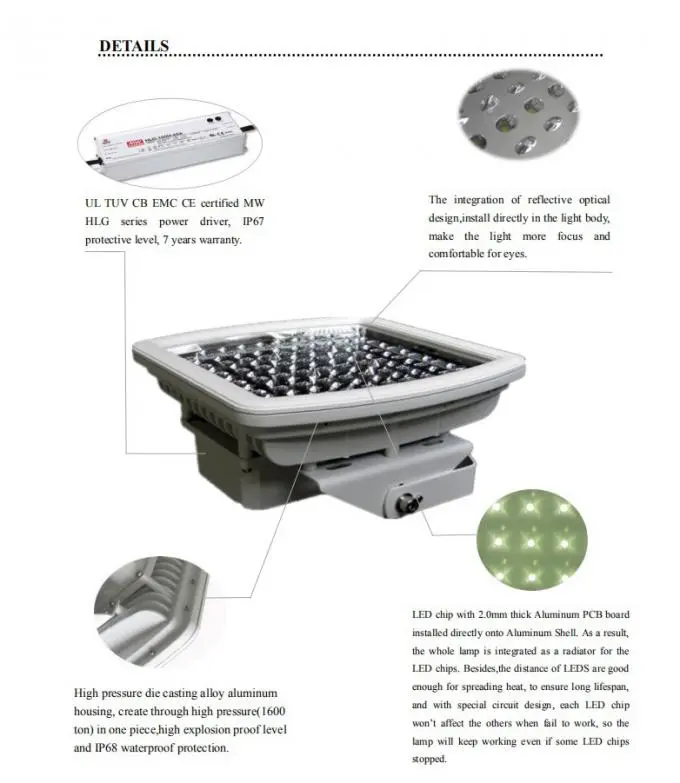

Features:
1.High Efficacy low decay 700MA LED chip.
2.High heat transmit die-cast housing ADC12 aluminum, patent design, IP68.
3.Shock and vibration resistant tempered glass, super clear 95% light transmit rate.
4.Anti-glare.Scientific optical reflector design, making the light more focus, even, comfortable for eyes 5.Original Bridgelux LED source, high luminous efficacy and long lifespan.
6.MEANWELL HLG series driver, the highest level of MEANWELL driver.
7.Surface treatment-Powder painted, salt resistant and chemical resistant, also hard for dust to accumulate on the surface.
8.2.0mm aluminum PCB with heat index 2.5, keep LED working under cool temperature.
9.Working temperature: -30ºC to 50ºC.
Product Specifications
ITEM NO. | RLEP-J40 | RLEP-J100 | RLEP-J200 |
TOTAL POWER | 30w | 100w | 185w |
Replace HPS | 150w | 300-350w | 700-1000w |
Dimension | 200*200*270mm | 300*300*175mm | 400*400*185 |
Weight | 4KG | 7.5KG | 12KG |
Reflector/ wide angle | 120 | wide angle | wide angle |
Nominal lumens | 3480lm | 11600lm | 20880lm |
Driver Current | 350mA | ||
# OF LEDS | 24 | 84 | 156 |
System Efficacy | 116 LM/W | ||
Light Color option | 5700/4000/2700K | ||
Materia | Die Cast Aluminum | ||
Wide AC input | 90-305 VAC | ||
Power Factor | 0.98 | ||
Total Harmonic Distortion | < 10% | ||
Surge protection | IEC/EN 61000-4-5 | ||
Operation temp | -30 ºC to +50 ºC | ||
IP class | 68 | ||
Rated Life | 100,000+ hrs | ||
Warranty | 5 years | ||
Certificate | ROHS CE DLC ATEX SAA PSE C-TICK | ||
Qualification Certification
Our IP65 Atex 5000K Flood Light Reflector 75 CRI Explosion Proof Street Light holds multiple certifications, including:
- ATEX certification for explosive atmospheres
- CE marking for European compliance
- RoHS certification for environmental safety
- IP65 rating for ingress protection
Packaging and Transportation
Our products are carefully packaged to ensure safe transportation. We use sturdy, shock-resistant materials and provide clear handling instructions to prevent damage during transit.
After Sales Service
Razorlux provides comprehensive after-sales support, including technical assistance, warranty service, and replacement parts. Our dedicated team ensures prompt resolution of any issues, minimizing downtime for your operations.
FAQ
What is the lifespan of this explosion-proof street light?
Our lights are designed to last over 50,000 hours under normal operating conditions.
Can the light be dimmed?
Yes, we offer models with 0-10V and DALI dimming options.
Is this light suitable for extremely cold environments?
Absolutely. It's designed to operate in temperatures ranging from -40°C to +55°C.
What warranty do you provide?
We offer a standard 5-year warranty on this product.
Can you provide custom solutions based on this model?
Yes, we can customize various aspects including wattage, beam angle, and mounting options.
Contact Us
For inquiries or to place an order for our IP65 Atex 5000K Flood Light Reflector 75 CRI Explosion Proof Street Light, please email us at sam@razorlux.com.
