Low Mast Light
Rated Power: 120W
Input Voltage: AC80-315Vac, DC80 ~ 400Vdc
Color Temperature: 2700K-6500K
Lamp Efficiency: 130LM/W
Beam Angle: 60°, 120°, 140°x60°.
CRI: Ra>75
IP Grade: IP65/IP67
Bracket: Stainless Steel
Net Weight:8 KG
Warranty: 5 Years
Certificate: CE, RoHS, SAA, C-Tick, UL, DLC, CB, ISO:9001
- Product Description

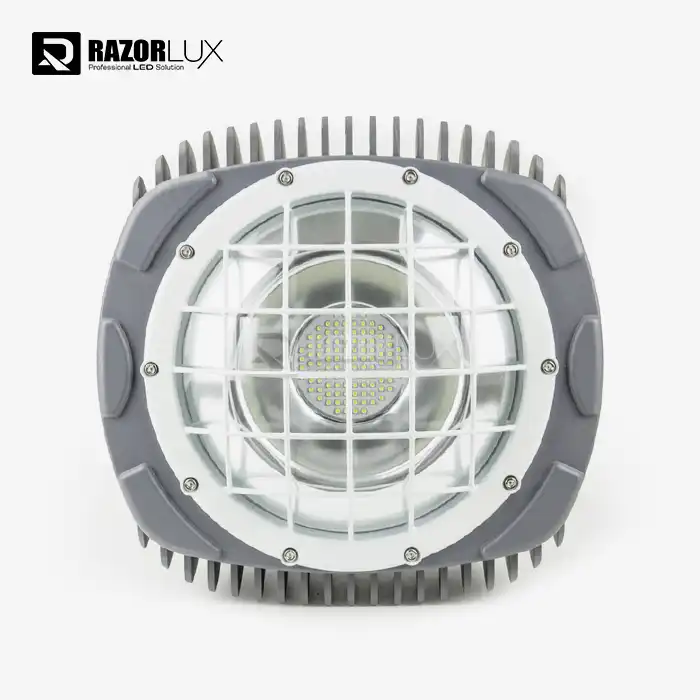

600W Low Mast Light for Industrial & Commercial Applications
Razorlux's 600W Low Mast Light offers a practical solution for facilities requiring reliable area illumination at 8-18 meter mounting heights. This fixture combines 130LM/W efficiency with wide voltage compatibility (AC90-305V, DC127-431V) and seven beam angle options to suit diverse site requirements. Built with marine-grade stainless steel and IP67 protection, it handles demanding environments while remaining serviceable with standard bucket trucks—eliminating the crane access needed for high mast systems. Backed by our 5-year warranty and international certifications including UL, DLC, and CE.
Low Mast Light Specifications
Model | RGL-120A | |
Beam Angle | 60° 120° 140° | |
Stable Flux (5700K after 1 hour) | 14400 lm | |
Dimension (mm) | 360*358*187 | |
| LEDs | 108W |
Power | Driver | 12W |
Consumption | Total | 120W |
Replace HID Lamp | 250~300W | |
Net Weight | 8kg(17.6lbs) | |
Color Temperature | 2000-6000K | |
Color Rendering | ≥Ra75 (≥Ra80, ≥Ra90 available on request) | |
Working Life | ≥50000Hrs | |
Housing Material | Aluminum & Powder coating | |
Power Supply | Meanwell | |
IP Class | IP 67 | |
IK Class | IK 10 | |
Insulation Class | Class I | |
Working Temperature | -40C ~ 60C / -40F ~ 140F | |
Working Humidity | 10% ~ 95% | |
AC Input | 80-315Vac input voltage without additional adapter | |
DC Input | 80 ~ 400Vdc | |
THD | <10% | |
Power Factor | ≥0.98 | |
Warranty | LED Module | 5 year |
Driver | 5 year | |
Housing | 10 year | |
Key Advantages
Practical Installation Height
Operating between 8-18 meters, our Low Mast Light eliminates common issues with taller systems:
· Reduces glare in pedestrian areas
· Minimizes "zebra striping" light patterns
· Allows maintenance with standard equipment (no cranes required)
Energy & Cost Efficiency
· 60% lower energy consumption vs. traditional HPS/Metal Halide systems
· Wide voltage tolerance reduces power conditioning costs
· Instant-on capability (no restrike delays)
· 15KG weight simplifies installation labor
Engineered Durability
Our C5M-rated construction withstands harsh conditions:
· Minimum 85μm galvanization per ISO 1461
· IP67 sealing against moisture and dust
· Integrated surge protection (10kV/20kV per IEC 61643-11)
· Thermal testing validates performance in 45°C environments

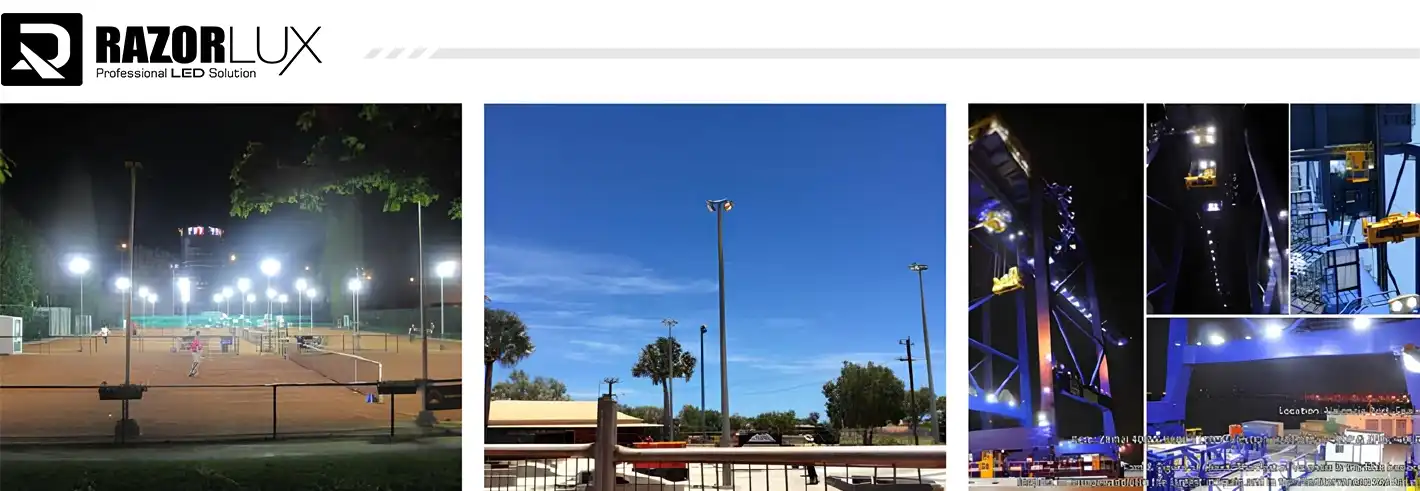

Where This Fixture Works Best
Logistics & Warehouse Facilities
Uniform lighting across loading docks and aisle-ways where forklifts operate. Multiple beam angles adapt to varied ceiling heights and rack configurations.
Traffic Infrastructure
Intersections and roundabouts requiring visibility control. Our cut-off optics meet municipal dark-sky standards while improving driver safety.
Coastal & Port Facilities
Salt spray and humidity demand corrosion resistance. The C5M powder coating and IP67 sealing maintain performance where standard fixtures corrode within months.
Container Yards & Freight Terminals
Stacked cargo creates shadows that compromise safety. Distributed Low Mast Light placement fills blind spots per OSHA visibility requirements.
Parking Structures
Adjustable beam angles (15° spot to 140°×60° flood) customize coverage for ramps, entries, and pedestrian zones despite architectural obstructions.
Common Questions
What makes this suitable for coastal areas?
The marine-grade stainless steel and C5M-rated powder coating resist salt spray corrosion. IP67 sealing prevents moisture ingress during pressure washing or heavy rain.
Can I integrate with existing controls?
Yes. We support 0-10V analog dimming and DALI digital protocols. Our team provides technical drawings and integration support during planning.
How much energy will I save?
Expect 60%+ reduction vs. HPS or Metal Halide equivalents. The wide voltage tolerance (AC90-305V) also cuts power conditioning expenses.
Can I test before ordering bulk quantities?
Yes. We provide prototypes with your specified beam angles and color temperatures for on-site validation.
Get Project Support
For technical specifications, custom configurations, or project quotes, contact our engineering team:
Email: sam@razorlux.com
Our Low Mast Light's team typically responds within 24 hours with tailored solutions for your facility requirements.
