SMD Led Industrial Flood Light 500W 55000 Lm High Power Flood Light

SMD Led Industrial Flood Light 500W 55000 Lm High Power Flood Light

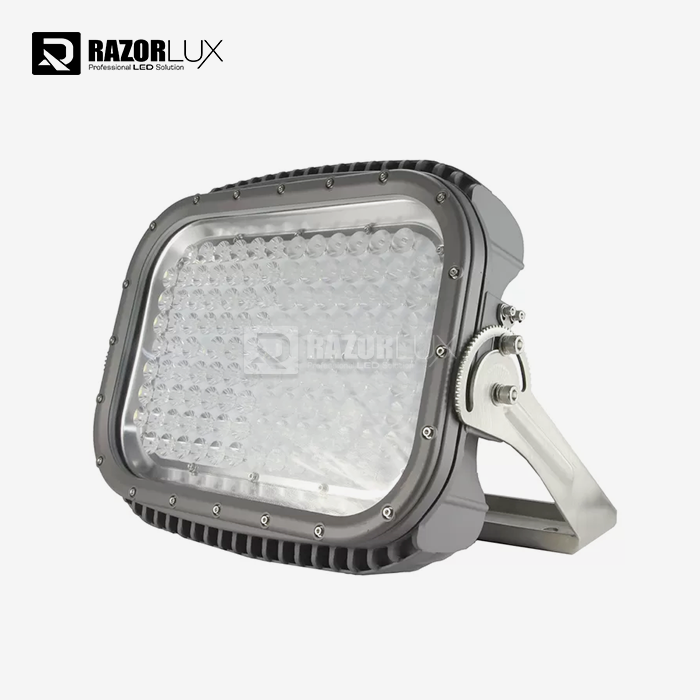

Product Overview

The RGL-500F is a 500W professional LED floodlight for demanding industrial applications. This SMD LED Industrial Flood Light 500W 55000 Lm High Power Flood Light provides 110 lm/W with 55,000 lumens, replacing standard 1000-1500W metal halide systems while decreasing the power usage by as much as 65%. Ideal for ports, warehouses, mining sites and large scale industrial operations needing dependable high output lights.

Key Benefits:

• Lowers energy expenses vs older HID systems

• IP66 water proof for extreme weather situations

• 50,000+ hour lifetime reduces need for maintenance

• Certified to SAA, CE, TUV and C5M

​​​​​​​

Parameters of SMD Led Industrial Flood Light 500W 55000 Lm High Power Flood Light

​​​​​​​Performance Features

Energy Efficiency

This SMD Led Industrial Flood Light 500W 55000 Lm High Power Flood Light is equivalent to 1000-1500W metal halide lights in terms of brightness. A typical facility could anticipate to see lighting energy expenditures reduced by 60-70% with efficiency of 110 lumens per watt and >0.95 power factor. Warm-up time is cut by instant-on design, increasing operational productivity.

Durability & Protection

The die-cast aluminium enclosure is effective for heat dissipation and has an IP66 against dust and high pressure water jets. Impact resistance IK08 The luminaire is resistant to mechanical stress in industrial environment. Anti-corrosive powder coating may extend the life of equipment in coastal and chemical processing industries.

Thermal Management

The fin-type heat sink design guaranties that junction temperatures are always below 75°C by natural convection. Crucial to preventing premature LED degradation and maintaining consistent light output throughout the fixture's specified lifespan, sometimes 50,000+ hours, is good thermal management.

Electrical Reliability

Integrated constant current driver guaranties stable operation across wide voltage range (100-277V AC). Built-in surge protection (6-10KV) guards against the voltage spikes common to the industrial power systems. Universal voltage compatibility for quick installations abroad.

Flexible Light Distribution

Beam angles (30°, 60°, 90°, 120°) are available to customise for particular purposes. Narrow beams are for high mounting applications (15-40m). Lower applications need the consistent coverage of larger angles. High CRI (above 80) for accurate colour rendering for quality control applications.

Application Scenarios

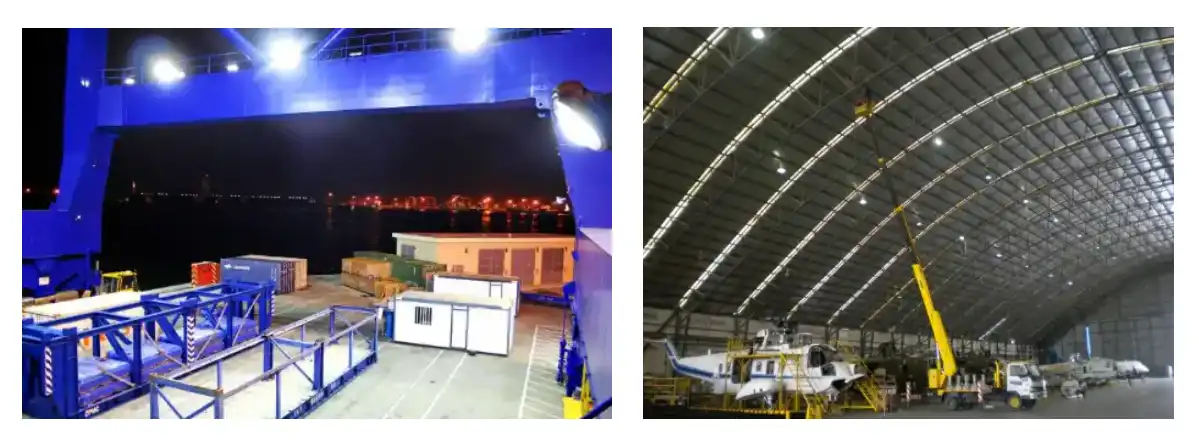

Ports & Logistics Facilities

High lumen output and saltwater-resistant structure is good for large container yards and cargo handling locations. The IP66 certification guaranties stable operation 24/7 in coastal conditions.

Manufacturing & Warehouses

Provides uniform lighting for worker safety and quality control. Wide-beam choices diffuse light evenly throughout factory floors and storage spaces. You get instant-on so no waiting during power disruptions.

Mining & Extraction Sites

SOLID STATE CONSTRUCTION WITHSTANDS THE VIBRATION AND DUST OF OPEN PIT MINES AND QUARRIES. Sealed optics for contamination-free operation in severe mineral processing settings.

Transportation Infrastructure

Suitable for highway toll plazas, railway yards and airport aprons where consistent lighting is required for safety essential activities. It reduces shadows and enhances visibility.

Outdoor Sports Complexes

The high CRI value (>80) guarantees that players and spectators see colour accurately. Fast restart after power outages reduces downtime during events.

Construction Sites

Adjustable mounting enables you to aim beam as projects develop. Energy efficiency cuts generator fuel expenditures for distant locations.

Quality Assurance

Our manufacturing process includes:

· Photometric Testing: Each item is tested for 55,000 lumen output and colour constancy on an integrating sphere

· Electrical Safety Validation: High voltage testing for CE and international safety compliances

· 48-Hour Burn-in: Extended testing using thermal imaging to find any possible problems before delivery

· Environmental Simulation: Salt spray and vibration testing confirms IP66 sealing and long term durability

· Ageing Tests: Continuous operation monitoring; Lumen maintenance prediction over a rated life span

Frequently Asked Questions

What mounting height is recommended?

The fixture is optimized for 15-40 meter mounting heights. Specific recommendations depend on your facility layout and required lux levels. We provide photometric design support to ensure proper coverage.

Can the fixture operate in extreme temperatures?

Yes, the thermal management system functions reliably from -40°C to +50°C. The aluminum housing effectively dissipates heat in hot climates, while LEDs provide instant ignition in cold weather without warm-up delays.

Is dimming available?

Optional 0-10V and DALI dimming protocols are available for integration with building management systems. Dimming further reduces energy costs and extends fixture lifespan.

Do you provide lighting design support?

Yes, we supply IES photometric files compatible with DIALux, AGi32, and other professional design software. Our engineers can assist with layout calculations for your specific facility.

How should the fixture be installed?

Each shipment includes detailed installation guides with mounting templates and wiring diagrams. Proper mounting orientation ensures optimal thermal performance and light distribution. For large projects, remote commissioning support is available.
