High Voltage Flood Lights

High Voltage Flood Lights - 1000W Industrial LED Solution

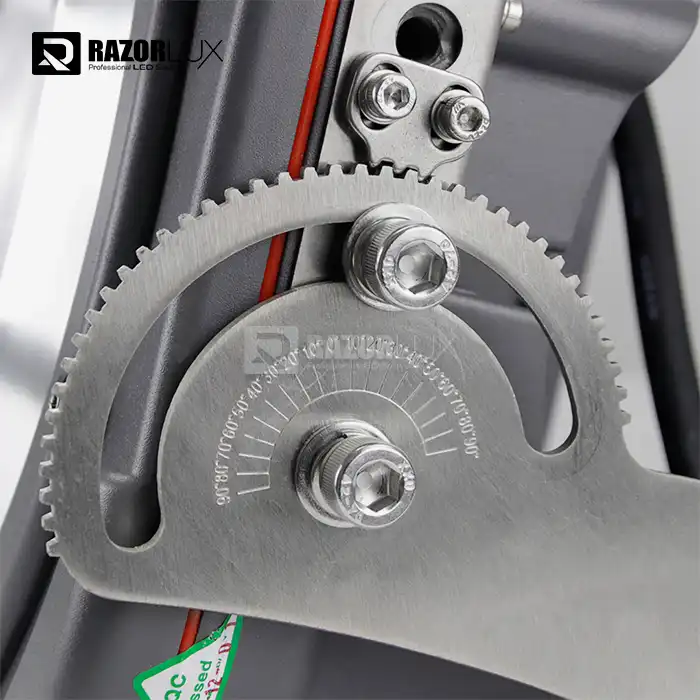

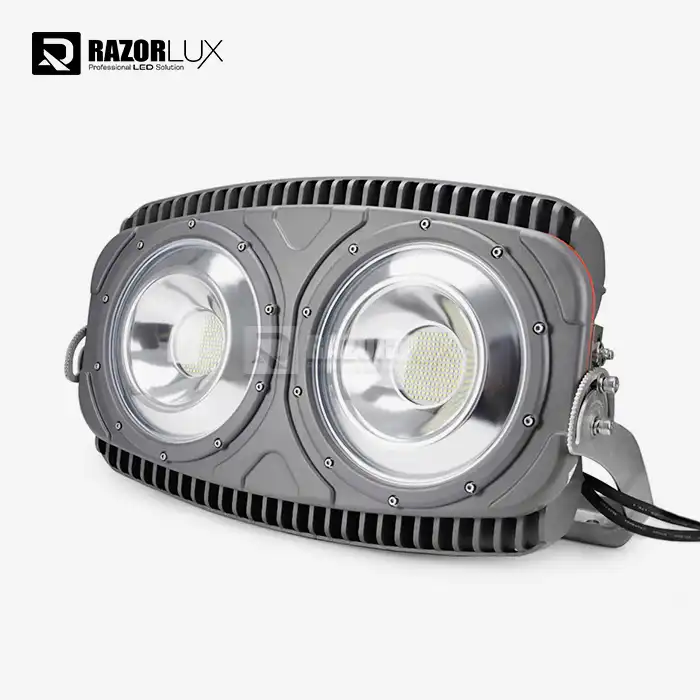

For big installations, Razorlux high voltage flood lights don't need step-down transformers because they can work with both AC90-305V and DC127-431V. The 1000W light has a brightness of 130,000 lumens and is waterproof up to IP67. There are long lines that need to be run through places like ports, mines, and industries. It has seven different beam angles and a set of stainless steel clamps for fixing it.

High Voltage Flood Lights Specifications

Product Advantages

Reduced Installation Costs

Higher operating voltage means lower current draw. This allows:

· Smaller gauge copper cables (30-40% cost reduction)

· More fixtures per circuit breaker

· Longer cable runs without voltage drop issues

Example: A 500m cable run at 220V requires 50% less copper than equivalent 110V systems.

Wide Voltage Compatibility

The AC90-305V / DC127-431V input range handles:

· Generator power fluctuations at remote sites

· Regional grid variations (100-277V nominal)

· Direct DC connection to solar/battery systems

Built-in surge protection (10kV/20kV) guards against grid transients.

Application Scenarios

We recommend upgrading the lighting system to High Voltage Flood Lights.

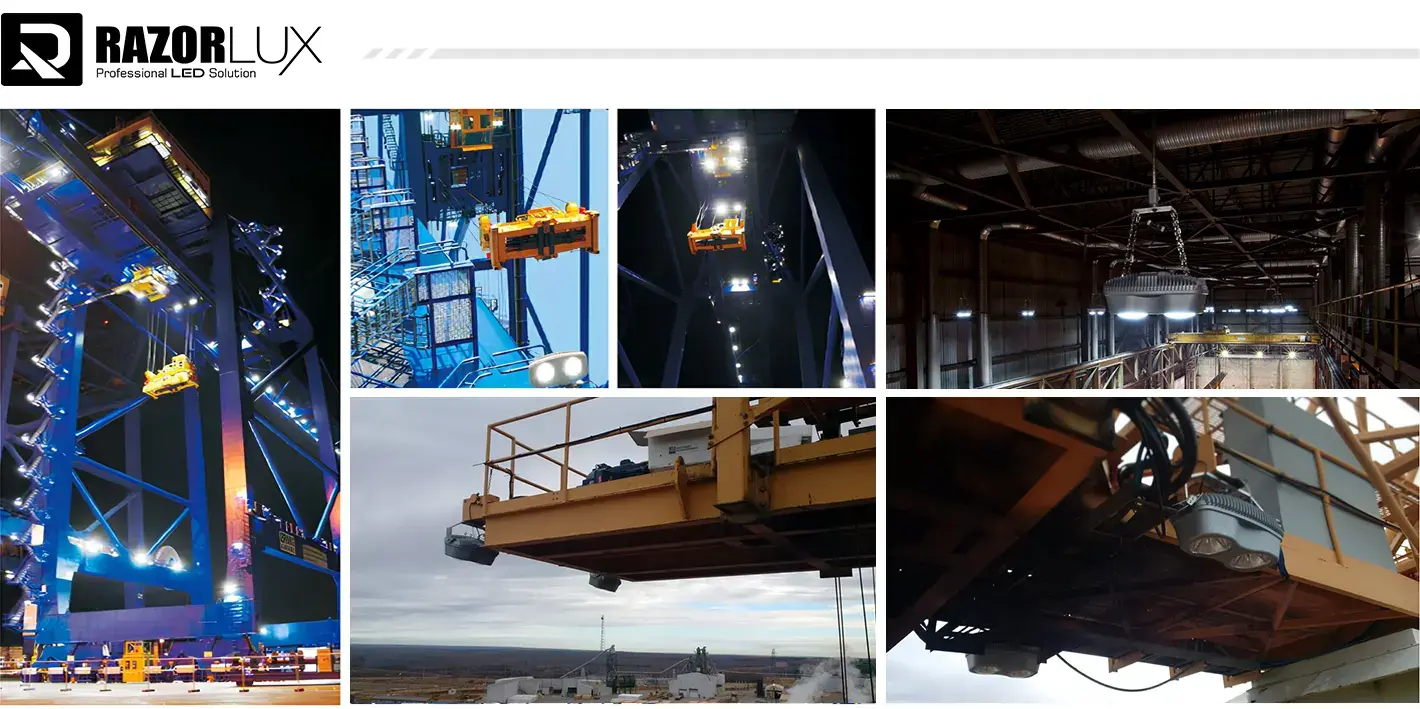

Container Ports & Terminals

·Lighting for the landing yard from 25 to 50 m high poles

· C5M covering that doesn't rust in salt spray settings

·The IP67 sealing can survive upkeep with high-pressure water cleaning.

·Mounting that doesn't shake for big places with cranes or vehicles

Open-Pit Mining & Quarries

·Works reliably with unstable generator power

·IK08+ grade can handle strong noises and rock fragments

·It can be cold (-40°C in the winter) or hot (+55°C in the summer).

· Long wire runs (more than 300m) with no voltage drop protection

Manufacturing Facilities

· High CRI (Ra >75) for checking the quality

·No flickering (less than 5% at 50,000 hours)

·Fast start in cold storage (no wait for equipment to warm up)

·0-10V and DALI (choose at checkout) are the dimming options.

Infrastructure Projects

· Airports: apron lighting, taxiway illumination

· Rail yards: shunting areas, maintenance depots

· Logistics hubs: outdoor storage, loading docks

· Highway toll plazas and service areas

Frequently Asked Questions

What voltage should I specify for my project?

Check your site's electrical system:

· North America: Typically 120-277V AC (specify 200-305V input model)

· Europe/Asia: 220-240V AC (200-305V model works)

· DC solar/battery: Match system voltage (127-431V DC model)

Our team provides free electrical load calculations—send site details to the contact email below.

Can I use these in coastal/marine environments?

Yes, with precautions:

· Specify IP67 rating (vs. standard IP65)

· C5M coating included for salt-mist resistance

· Recommend 304 stainless steel hardware (standard)

· Schedule annual bracket inspection for bolted connections

What's the difference between IP65 and IP67?

· IP65: Dust-tight, withstands water jets (standard for most industrial sites)

· IP67: Dust-tight, withstands temporary immersion up to 1m (for flood-prone areas or washdown zones)

Both ratings handle rain, snow, and pressure washing.

Do you provide photometric layouts?

Yes, free of charge. Send us:

· Site dimensions and mounting height

· Required lux levels

· Obstructions (buildings, poles, equipment)

We'll provide IES files and AGi32/Dialux simulations within 48 hours.

What's the lead time for custom beam angles?

· Standard angles (15°/30°/60°/120°): 2-3 weeks

· Custom angles or CRI >80: 4-5 weeks

Is dimming available?

Yes, specify at order time (driver configuration required):

· 0-10V analog dimming (10-100% range)

· DALI digital dimming (requires DALI controller)

Cannot retrofit dimming after manufacturing.
