Sports Flood Lights Outdoor
Rated Power: 1000W
Input Voltage: AC90-305, DC127-431
Color Temperature: 2700K-6500K
Lamp Efficiency: 130LM/W
Beam Angle: 15°, 20°, 30°, 40°, 60°, 120°, 140°x60°.
CRI: Ra>75
IP Grade: IP65/IP67
Bracket: Stainless Steel
Net Weight: 32KG
Warranty: 5 Years
Certificate: CE, RoHS, SAA, C-Tick, UL, DLC, CB, ISO:9001
- Product Description

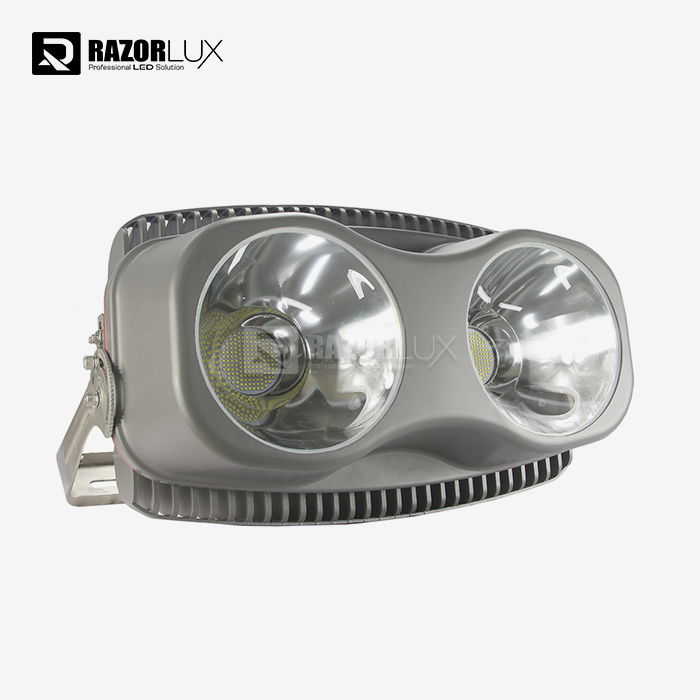

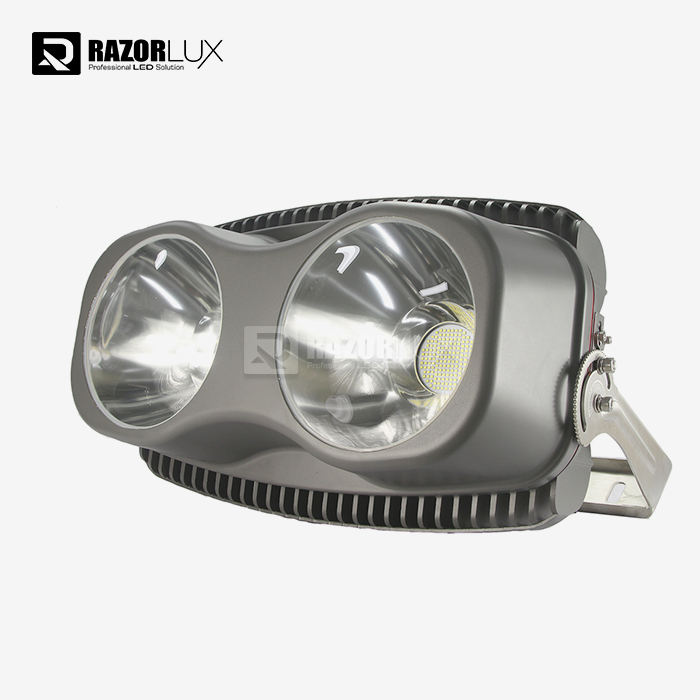

Sports Flood Lights Outdoor – Industrial 1000W LED System
Professional Stadium Lighting for Demanding Applications
Xi'an Razorlux delivers industrial-grade Sports Flood Lights Outdoor engineered for professional venues. Our 1000W LED system achieves 130LM/W efficiency with IP67 waterproof protection, supporting voltage ranges from AC90-305V to DC127-431V for global installations.
Sports Flood Lights Outdoor Specifications
| Feature | Specification |
| Model Number | RGL-800P |
| Rated Power | 800W |
| Input Voltage | AC100-305, DC127-431 |
| Color Temperature | 2700K-6500K |
| Lamp Efficiency | 130LM/W |
| Lumen Output | 104000LM |
| Beam Angle | 15°, 20°, 30°, 40°, 60°, 120°, 140°x60° |
| Lens | Tempered Glass |
| Working Temperature | -40° - 60°/ 40F - 140F |
| CRI | Ra>75 |
| IP Grade | IP67 |
| IK Rating | IK10 |
| LED Chip | Samsung/Phillip |
| LED Driver | Meanwell |
| Housing | Aluminum Alloy |

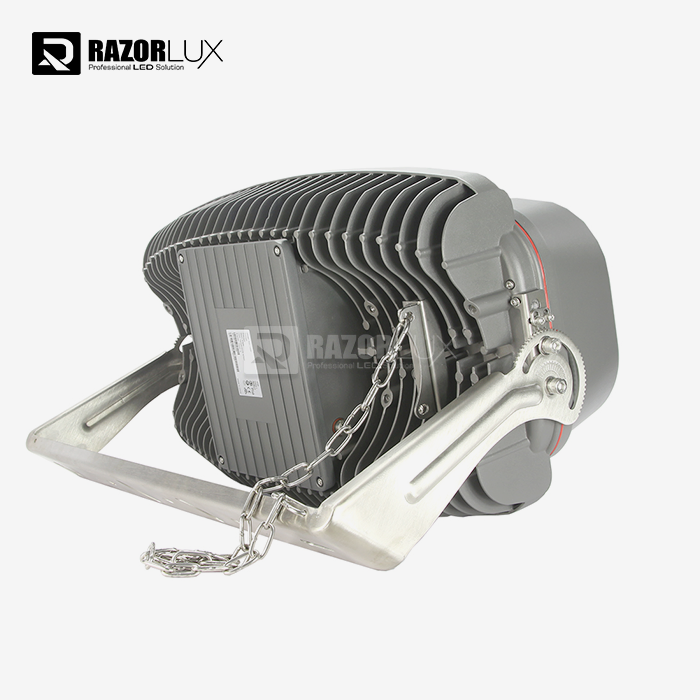

| Bracket | Stainless Steel |
| Net Weight | 32KG |
| Warranty | 5 Years |
| Certificates | RMRS,CE, RoHS, SAA, C-Tick, UL, DLC, CB, ISO:9001 |

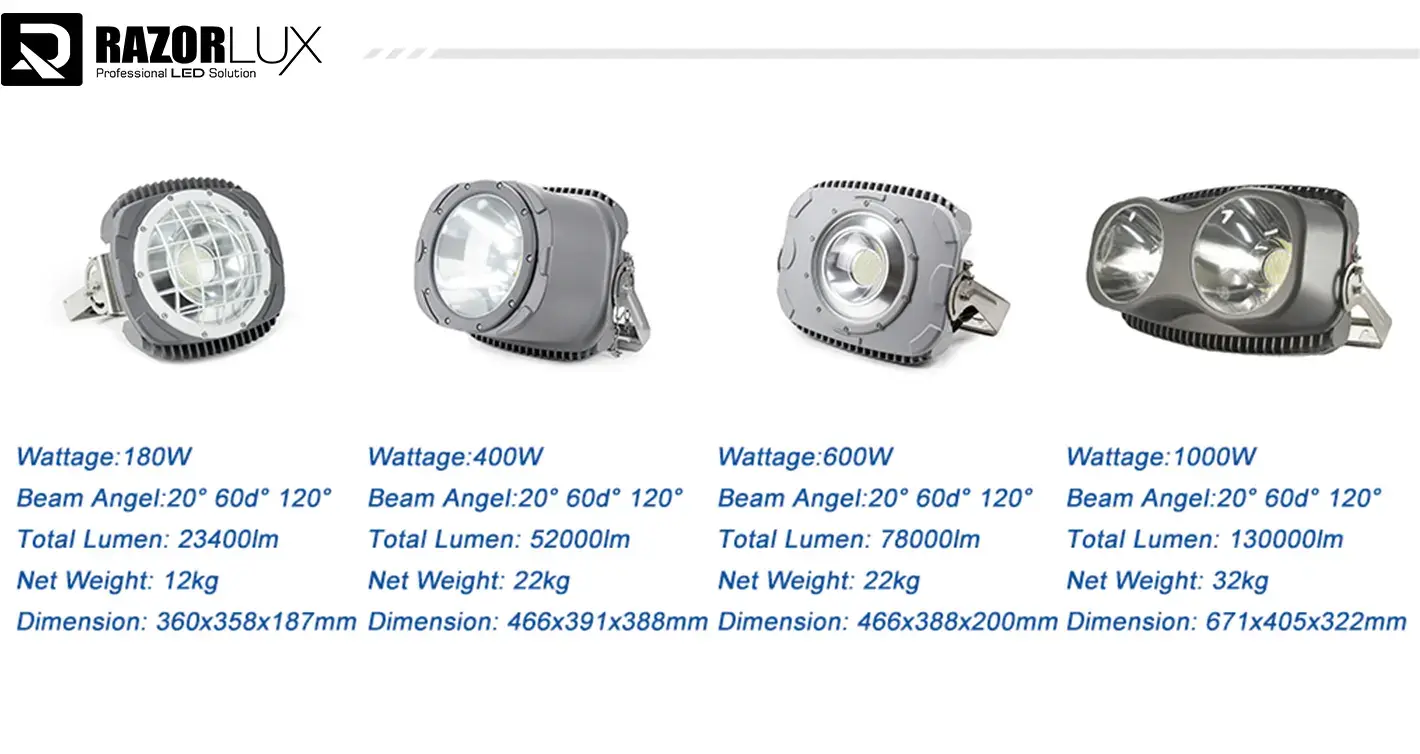

| More Available Powers | 90W,120W, 150W, 180W, 210W, 270W, 200W, 300W, 400W, 500W, 600W, 800W, 1000W, 1200W |
Core Performance Features
Precision Optical System
Our TIR lens technology delivers uniform light distribution across playing surfaces. Seven beam angle configurations (15°-140°) allow custom illumination design for different field zones.
Asymmetrical optics with integrated visors reduce glare at player eye level while maintaining vertical illumination above 300 lux for broadcast requirements. Light spill beyond field boundaries drops by 60% compared to traditional reflector systems.
Technical detail: Optical efficiency reaches 92%, with uniformity ratios meeting FIFA Class II standards (≥0.7 for professional matches).
Industrial-Grade Construction
Die-cast aluminum housing with AKZO NOBEL powder coating provides C5M corrosion resistance—the highest marine environment rating. Suitable for coastal stadiums within 500m of saltwater.
Thermal management system maintains LED junction temperature below 85°C during continuous operation at 45°C ambient temperature. Heat dissipation design extends component lifespan under extreme conditions.
IP67 rating ensures complete dust protection and temporary submersion resistance up to 1 meter depth. Field-tested in tropical monsoon and desert climates.

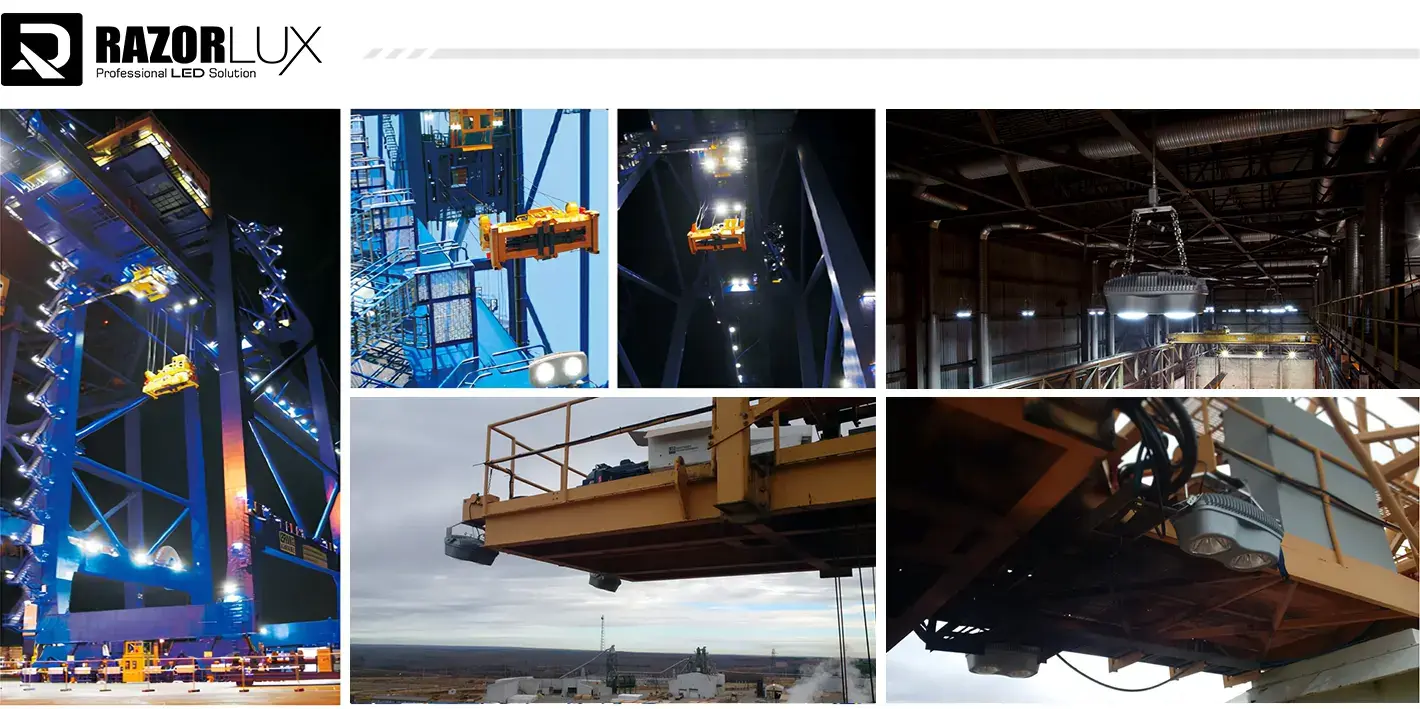

Application Scenarios
Sports Flood Lights Outdoor is suitable for the following applications:
Professional Sports Stadiums
Lights up football, soccer, rugby, and baseball fields to Class I or II standards. Flicker-free operation (<1% at 1000Hz) lets you stream in 4K and play back high-speed camera footage at 1000+ frames per second.
Multiple installations provide 500 to 750 lux of horizontal lighting with vertical to horizontal ratios higher than 0.6 for events that are being shown on TV.
Municipal Training Facilities
The color temperature can be changed from 2700K to 6500K, which lets places set the right lighting for different activities. For example, warmer tones are better for leisure activities, while cooler temperatures are better for competitive training.
Wide voltage range (AC90-305V) keeps operation stable even when the power grid changes, which can happen in growing areas or in remote areas.
Industrial & Mining Sites
The higher DC voltage range (127–431V) makes it compatible with mining power systems. Vibration-resistant construction can handle working with big machines and dangerous settings (as long as it is properly protected).
Chemicals can't hurt stainless steel 304 bolts and C5M-rated parts in pipelines, processing plants, and offshore platforms.
Commercial Outdoor Areas
Logistics centers, trade ports, and big parking lots can benefit from a lifespan of 100,000 hours or more (based on L70 decline at 25°C atmospheric). Lowers the cost of upkeep in high-mounting situations where special tools are needed to get to the area.
Frequently Asked Questions
Q: How do these lights handle glare control for players?
Asymmetrical optics with external visors cut off high-angle rays above 75° that cause temporary vision impairment. Light distribution concentrates on the playing surface rather than dispersing into player sight lines.
Q: What's the actual lifespan under real-world conditions?
L70 lifespan (70% lumen maintenance) exceeds 100,000 hours when operated below 85°C junction temperature. At 10 hours daily use, this equals 27+ years. Actual lifespan varies with ambient temperature and voltage stability.
Q: Can I dim these fixtures?
Yes. Standard units support 0-10V dimming and PWM control. DMX512 and DALI protocols available for projects requiring centralized lighting management systems.
Get Custom Lighting Design
Our engineering team provides complimentary photometric analysis for professional installations. Submit your field dimensions and mounting specifications for a detailed lighting layout.
