tennis court flood lights
Rated Power: 180W
Input Voltage: AC90-305, DC127-431
Color Temperature: 2700K-6500K
Lamp Efficiency: 130LM/W
Beam Angle: 15°, 20°, 30°, 40°, 60°, 120°, 140°x60°.
CRI: Ra>75
IP Grade: IP67
Bracket: Stainless Steel
Net Weight: 15KG
Warranty: 5 Years
Certificate:RMRS CE, RoHS, SAA, C-Tick, UL, DLC, CB, ISO:9001
- Product Description
Professional Tennis Court Flood Lights
Traditional metal halide systems waste energy, require constant bulb replacements, and create distracting glare that affects player performance. Whether you're running a competitive club or a community court, you need tennis court flood lights that:
✓ Eliminates shadows and hotspots that impact play quality
✓ Cuts energy bills by 60-70% compared to legacy systems
✓ Works flawlessly for 15+ years without maintenance headaches
✓ Meets broadcast standards for tournaments and livestreaming
That's exactly what Razorlux tennis court lighting delivers.
Tennis Court Flood Lights Specification
Model | RGL-180P | |
Beam Angle | 20° | |
Stable Flux (5700K after 1 hour) | 19800 lm | |
Dimension (mm) | 360*358*306mm | |
| LEDs | 162W |
Power | Driver | 18W |
Consumption | Total | 180W |
Replace HID Lamp | 400~ 500W | |
Net Weight | 10kg | |
Color Temperature | 2000-6000K | |
Color Rendering | ≥Ra75 (≥Ra80, ≥Ra90 available on request) | |
Working Life | ≥50000Hrs | |

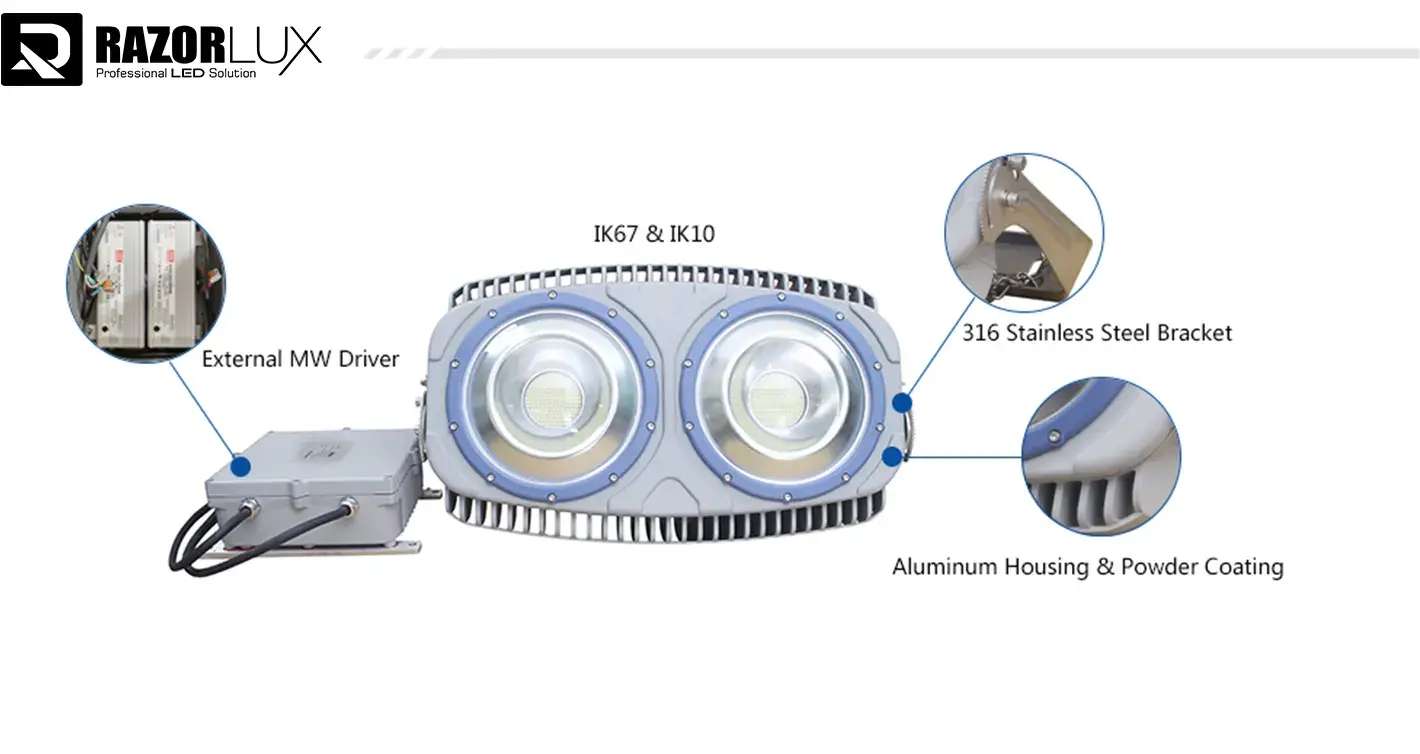

Housing Material | Aluminum & Powder coating | |
Power Supply | Meanwell | |
IP Class | IP 67 | |
IK Class | IK 10 | |
Insulation Class | Class I | |
Working Temperature | -40C ~ 60C / -40F ~ 140F | |
Working Humidity | 10% ~ 95% | |
AC Input | 80-315Vac input voltage without additional adapter | |
DC Input | 80 ~ 400Vdc | |
THD | <10% | |
Power Factor | ≥0.98 | |
Warranty | LED Module | 5 year |
| Driver | 5 year |
| Housing | 10 year |
Why 500+ Facilities Chose Razorlux
Precision Optics That Actually Work
Our asymmetric lens design solves the #1 complaint about LED sports lighting: blinding glare when players look up.
The difference:
· Traditional symmetric lightsblast light in all directions, forcing harsh downward angles
· Razorlux asymmetric opticsdirect light forward and down from flat-mounted positions
Result? Players track lobs comfortably while you maintain uniform 500-750 lux across the entire court.
Built for Decades, Not Years
Here's what makes our fixtures last:
Component | Standard LED Lights | Razorlux Advantage |
Heat Management | Basic aluminum heatsink | Hybrid thermal system from 20+ years in power supply engineering |
Driver Lifespan | 30,000-50,000 hours | 100,000+ hours (L70 rated) |
Weather Protection | IP65 (vulnerable to humidity) | IP67 marine-grade + 1000hr salt spray tested |
Impact Resistance | Plastic housings crack from ball hits | IK08 stainless steel (15kg) construction |
Broadcast & High-Speed Camera Ready
Hosting tournaments or streaming matches? Standard LED lights create flickering bands on slow-motion footage.
Our solution:
High-frequency drivers with <1% current ripple support filming up to 1000fps without visual artifacts. Your venue is ready for:
· HD and 4K broadcasting
· Slow-motion replay analysis
· Professional photography
· Social media content creation
This is the same flicker-free technology required by Olympic venues and ATP tour stadiums.It is recommended to upgrade the lighting system to tennis court floodlights.
Lighting Design for Every Court Type
Tournament & Broadcast Venues (Class I)
Requirements:750-1000+ lux, Emin/Eave >0.7 uniformity
Recommended Setup:
· 400W fixtures with 40° beam angles
· 6-8 poles at 12m height
· Vertical illuminance optimization for cameras
· DALI dimming for non-event energy savings
Result:Meets ITF/USTA competition standards, HD broadcast-ready
Commercial Clubs & Academies (Class II)
Requirements:500 lux for member play & coaching
Recommended Setup:
· 300W fixtures with 60° beams
· 4-6 poles at 10m height
· Zigbee smart controls for scheduling
· Zone dimming for unused courts
Result:Premium playing experience + 65% energy reduction vs. metal halide
Schools & Community Courts (Class III/IV)
Requirements:200-300 lux for recreational play
Recommended Setup:
· 180W fixtures with 120° wide beams
· 4 poles at 8m height
· Simple on/off or timer controls
Result:Safe, comfortable lighting at the lowest operating cost
Who We Are
Razorlux combines 22 years of power supply engineering expertise with LED innovation. What started as an industrial power control manufacturer in 2001 evolved into a specialized sports lighting company serving:
· 500+ tennis facilitiesacross 40 countries
· Asia's top infrastructure projects(China Mobile, Guodian, CommScope)
· Educational institutionsfrom high schools to universities
· Professional venueshosting ATP/WTA qualifying events
Locations:
· R&D & North America: Razorlux Technology Inc, USA
· Manufacturing: Xi'an & Zhuhai, China
· Global support network for installation & service
Common Questions Answered
Q: Can I retrofit my existing poles?

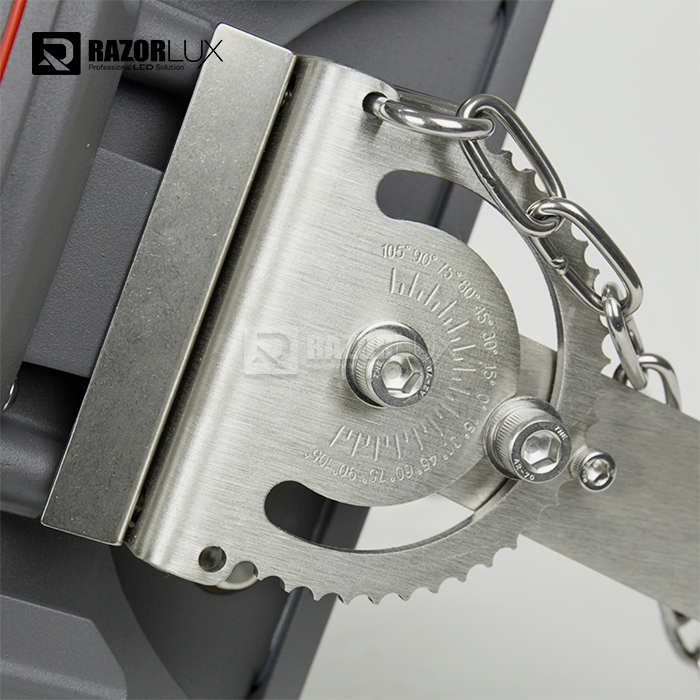

A: Absolutely. Our adjustable U-brackets fit 60-180mm diameter poles. We'll calculate wind load (EPA) to ensure your existing infrastructure is safe, or recommend reinforcement if needed.
Q: What if a fixture fails after 3 years?
A: We ship a replacement within 48 hours (5-year warranty). But here's the reality: our return rate is <0.3%. These fixtures are over-engineered for sports environments.
Q: Do I need an electrician for installation?
A: Yes, for safety and code compliance. However, our plug-and-play wiring harnesses reduce installation time by 40% compared to traditional systems. Most 4-court projects complete in 1-2 days.
Q: Can these integrate with our existing court booking system?
A: Yes, via DALI or Zigbee protocols. We've successfully integrated with CourtReserve, Jonas Club Software, and custom booking platforms. Our team handles the technical coordination.
