5700K Outdoor Garden Led Light Ip67 100000lm Flood Lights For Volleyball Court
Place of Origin:Shaanxi, China
Brand Name:Razorlux
Certification:ce, LVD, RoHS, Saa
Model Number:RGL-1000P-L15
Packaging Details:
1.EPS Foam+carton(ONE UNIT PER CARTON)
2.Carton Size(mm):550*450*415mm
3.One 20'' Container can accept 250 Units
Supply Ability: 5000 Piece/Pieces per Month
- Product Description

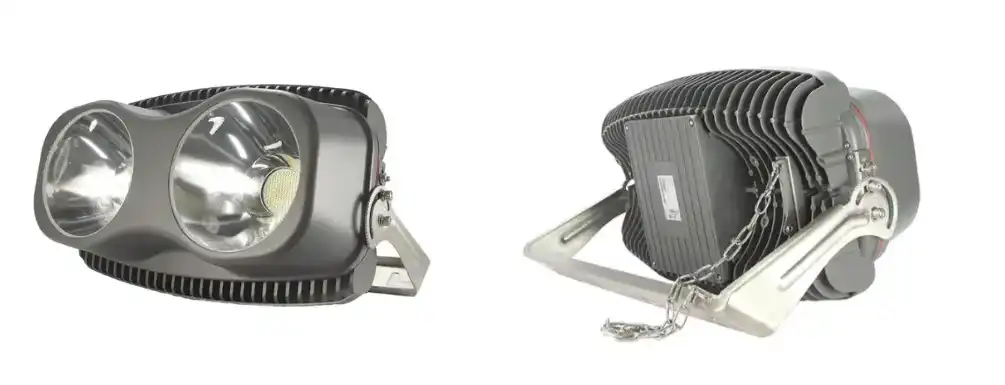

5700K Outdoor Garden Led Light Ip67 100000lm Flood Lights For Volleyball Court | 100,000 Lumens IP67 Outdoor Sports LightingProduct Overview
Volleyball court illumination and lighting for outdoor sports facilities. Competition grade. Our 5700K Outdoor Garden Led Light Ip67 100000lm Flood Lights For Volleyball Court offers daylight-white (5700K) lighting, helping players track fast-moving balls with accuracy. Die-cast aluminium housing and IP67 waterproof protection provide reliable operation in rain and humidity with a temperature range of -40°C to +50°C.
5700K Outdoor Garden Led Light Ip67 100000lm Flood Lights For Volleyball Court Specifications
Model | 1000P-L15 | 1000P-L20 | 1000A-L60 | 1000A-L120 | 1000A-L140 | |

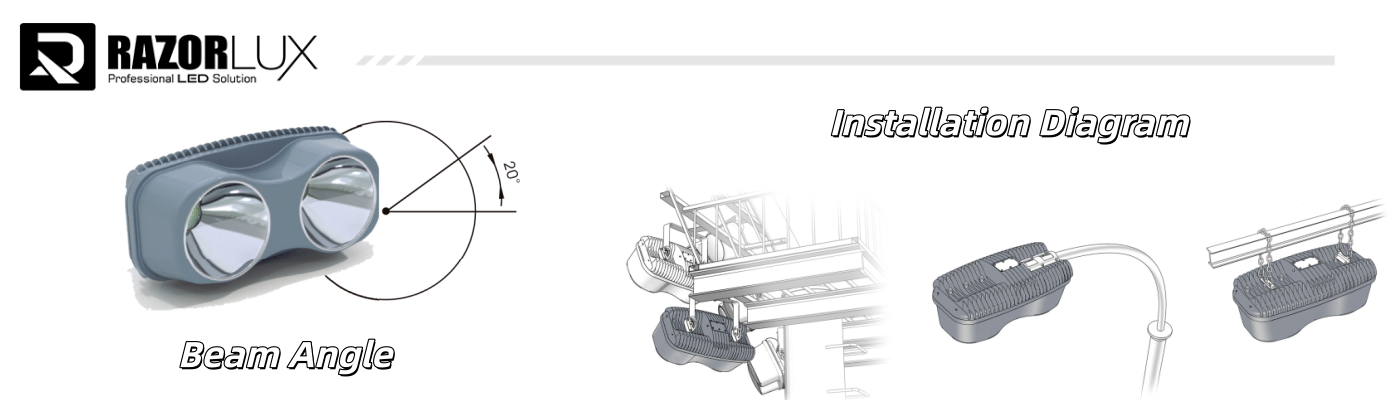

Beam Angle | 15° | 20° | 60° | 120° | 140°x60° | |
Stable Flux (5700K after 1 hour)
| 100,000 lm | 105,000 lm | 110,000 lm | 120,000 lm | 102,000 lm | |
Dimension (mm) | 671x405x374mm 671x405x322mm 671x405x204mm | |||||
Power Consumption | LEDs | 900W | ||||
Driver | 100W | |||||
Total | 1,000W | |||||
Replace HID Lamp | 2000 ~ 3000W | |||||
Net Weight | 29kg (64lbs) with stainless steel floodlight bracket | |||||
Color Temperature | 5700K (2700 ~ 6500K available on request) | |||||
Color Rendering | ≥Ra75 (≥Ra80, ≥Ra90 available on request) | |||||
Working Life | ≥50000Hrs | |||||
Housing Material | Aluminum | |||||
Coating | Zinc Rich Paint | |||||
IP Class | IP 65 (Upgradeable to IP 67) | |||||
Insulation Class | Class I | |||||
Working Temperature | -40 ~ 60C / -40 ~ 140F | |||||
Working Humidity | 10% ~ 95% | |||||
AC Input | 80 ~ 360Vac, 400 ~ 600Vac | |||||
DC Input | 100 ~ 400Vdc, 500Vdc ~ 800Vdc | |||||
THD | <10% | |||||
Power Factor | ≥0.98 | |||||
Warranty | LED Module | 5 year | ||||
Driver | 5 year | |||||
Housing | 10 year | |||||
Key Features
Powerful Performance
· 100,000 lumens output covers entire courts with fewer poles
· 5700K color temperature mimics natural daylight for better visibility
· ≥150 lm/W efficiency reduces energy costs by up to 60% vs. Metal Halide
Built for Outdoor Conditions
· IP67 rating: dust-tight and submersion-proof to 1 meter
· IK08-IK10 impact resistance withstands ball strikes
· Operates in -40°C to +50°C without performance loss
Long-Lasting Design
· 50,000+ hour lifespan (L70 standard)
· Die-cast A380 aluminum with advanced heat dissipation
· Instant-on with no warm-up delay
Certified Quality
· CE, RoHS, LVD, SAA certified
· ISO9001 manufacturing since 2001
· 3-5 year warranty options available
Where to Use
We recommend upgrading the lighting system to 5700K Outdoor Garden Led Light Ip67 100000lm Flood Lights For Volleyball Court.
Volleyball Courts
Provides 200-500 lux for recreational to semi-professional activity. The asymmetric beam design minimises the glare during overhead plays. No dark patches with uniform covering.
Multi-Sport Facilities
One lamp may light numerous courts from one pole. Suitable for basketball, tennis and leisure field. Flexible scheduling is supported by instant-on capabilities.
Large Gardens & Estates
Powerful lighting for large outdoor spaces. Corrosion resistant coating for sprinkler systems and coastal settings. Security lights and landscape beauty in one.
Beachside Installations
Hermetically sealed against salt spray and moisture. Prevents fogging of lenses in humid environments.
Common Questions
Q: How many fixtures do I need for a standard volleyball court?
A: Typically 4-6 units depending on pole height and court dimensions. We offer free lighting layout design to optimize your specific installation.
Q: What maintenance is required?
A: Minimal. Periodic lens cleaning maintains optimal brightness. LED system lasts 13-17 years under normal use (8-10 hours daily).
Q: Does it work in extreme cold or heat?
A: Yes. Rated for -40°C to +50°C. Advanced thermal management maintains performance in both extremes.
Q: Can it be dimmed or controlled?
A: Available with 0-10V or DALI dimming options. contact us for customization details.
Contact Us
Get a custom lighting plan for your project:
Email our 5700K Outdoor Garden Led Light Ip67 100000lm Flood Lights For Volleyball Court's team: sam@razorlux.com
