Why Choose Industrial LED Flood Lights Outdoor for Security?

When securing large outdoor industrial sites — from shipyards and port terminals to steel mills and offshore platform perimeters — lighting is not optional. It is infrastructure. Industrial Led Flood Lights Outdoor use deliver the lumen density, weather resistance, and operational reliability that traditional metal halide or high-pressure sodium fixtures simply cannot match. At Razorlux, our 1000W RGL-1000A model produces 130,000 lumens at 130 lm/W, operates across -40°C to +60°C, and carries IP65/IP67, IK10, CE, UL, and DLC certifications — making it a verified security asset, not just a light source.

Understanding Industrial LED Flood Lights Outdoor: Features and Benefits

Before you compare brands or goods, it's helpful to know what makes an outdoor flood light unique and a general-purpose bulb not. The difference is big, and it has a direct effect on how well security works.

What Defines an Industrial-Grade Flood Light

Industrial LED flood lights outdoor are high-intensity, wide-beam luminaires designed for 24/7 use in harsh outdoor conditions. Unlike home or business lighting, they produce brightness outputs that are usually between 10,000 and 130,000 lumens or more, and they come with optical systems that direct light exactly where it's needed for security coverage. For instance, the Razorlux RGL-1000A has four adjustable beam angles: 40°, 60°, 120°, and 140°×60°. This lets engineers change the shape of the coverage area without having to add more lights.

Key Performance Benefits for Security Applications

Security lighting has two jobs: to scare people away and to find people who are breaking in. Both need constant lighting with a high CRI that CCTV cameras can handle well. When it comes to performance, these are the main reasons why security managers choose LED flood lighting:

• High luminous efficacy at 130 lm/W means the RGL-1000A replaces 2,200–2,500W HID systems while drawing only 1,000W, cutting energy costs by 55–60% without reducing light output.
• Ra>75 color rendering index (CRI) — with Ra>80 and Ra>90 available on request — ensures accurate color reproduction, which directly improves CCTV image quality during nighttime surveillance.
• Instant-on capability eliminates the 5–15 minute warm-up period inherent in metal halide lamps, restoring full perimeter illumination immediately after a power interruption or motion trigger.
• IK10 impact resistance rating protects the fixture against physical vandalism, a real consideration for unmanned perimeter zones at ports and industrial yards.

These benefits directly lead to fewer weak spots, fewer false alarms from security systems, and fewer breaks for repair. When a buying manager looks at the total cost of ownership, that mix is hard to miss.

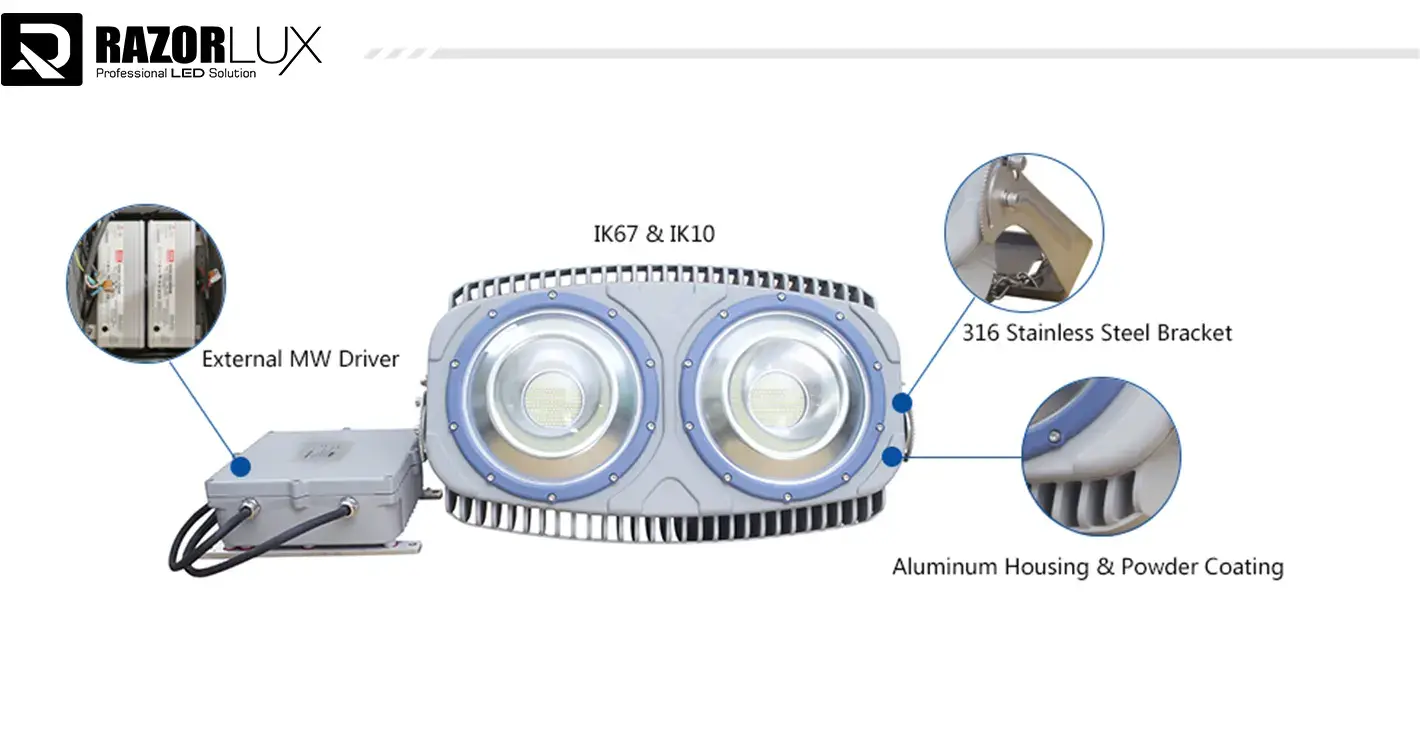

Structural Durability That Matches the Environment

The RGL-1000A's housing is made of die-cast aluminum that has been electrostatically powder coated, and it comes with a stainless steel bracket for mounting it. The fixture can work in temperatures ranging from -40°C to +60°C and humidity levels between 10% and 95%. This means it can be used in places with salt spray, like factories in the Norwegian fjords, Singapore's humid ports, or the wind-blown sand of UAE offshore sites. The IP65/IP67 rating—which can be upgraded upon request—confirms that dust can't get in and that it's safe from water jets or short-term immersion for industrial LED flood lights outdoor applications.

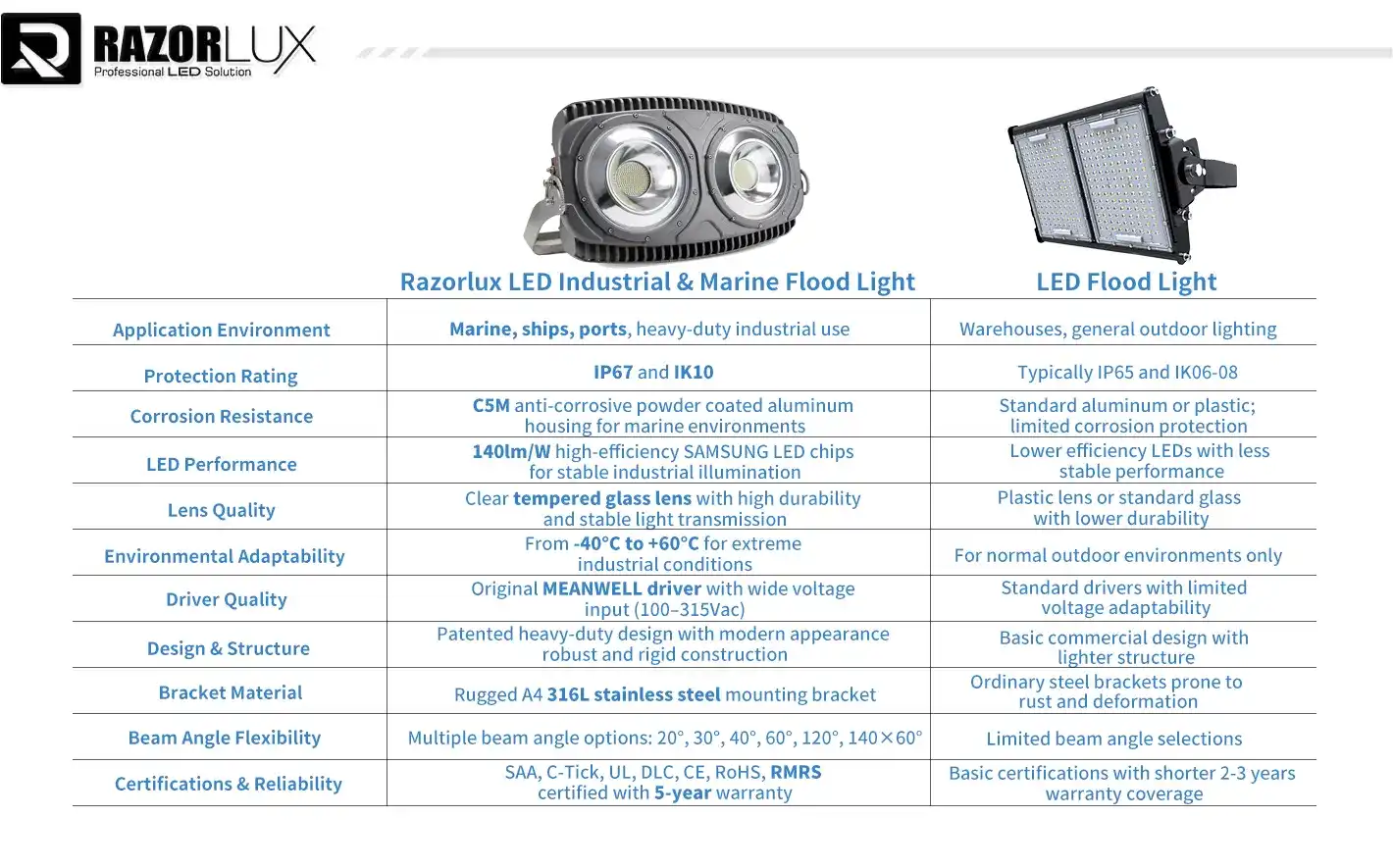

Comparing Industrial LED Flood Lights with Traditional and Alternative Solutions

"Why not stick with what we have?" Asks the buying team a lot of the time. Measurable data hold the key.

LED vs. Metal Halide and High-Pressure Sodium

Metal halide and HPS lamps have been used in factories for decades, but their flaws are well known. A normal 2,500W metal halide system that draws full power has about the same light output as the 1,000W RGL-1000A, but its lamps only last 10,000–20,000 hours, while LED lamps last 50,000+ hours. If the LEDs last longer, they won't need to be replaced as often, and the maintenance and repair costs will be much lower over a five-year period. The Razorlux RGL-1000A (LED) is the equivalent HID system. It has a rated power of 1,000W and a rated lifespan of 10,000–20,000 hours. It has an instant warm-up time of 5–15 minutes and a rated CRI of >75 (Ra>90 is available) and a rating of IP65/IP67. It usually has an IP54 rating. It saves 55–60% on energy compared to HID.

The facts make a strong case. If a port runs for 12 hours a nite, 365 days a year, moving a single 2,500W HID fixture to an RGL-1000A would save enough energy to pay for itself in 12 to 24 months at standard US industrial power rates.

LED vs. Solar Flood Lights

In theory, solar alternatives sound good, but they can't always be used for industrial security reasons. Over time, battery capacity decreases, output drops when it's cloudy, and wattage is usually set well below the lumen levels needed to light up big open yards or high-mast installations more than 20 meters high. For mission-critical perimeter security, where even lighting is a must, grid-powered industrial LED flood lights are still the gold standard.

Dimming and Motion Sensor Integration

The RGL-1000A works with 0–10V and DALI dimming control systems, which lets it connect to motion and occupancy sensors. This lets buildings keep their brightness low when they're not being used and turn on full-intensity lighting when entry sensors are triggered. This is a tried-and-true way to cut down on energy use without slowing down security reaction times.

Procurement Guide: Selecting and Buying Industrial LED Flood Lights Outdoor

A well-specified procurement decision requires more than a price comparison. Engineering teams, purchasing supervisors, and project managers each bring different criteria to the table.

Certifications and Compliance Verification

The first filter in any B2B evaluation should be certification completeness. For industrial LED flood lights outdoor, the following credentials confirm that a product meets international safety and performance standards:

• CE and RoHS — mandatory for European market projects, confirming electromagnetic compatibility and restriction of hazardous substances.
• UL and DLC — required for US-based facilities and utility rebate programs; DLC listing is often a condition for energy rebate eligibility.
• SAA and C-Tick — necessary for Australian and New Zealand project deployments.
• ISO 9001 — confirms the manufacturer's quality management system meets international process standards.
• CB certification — facilitates acceptance in multiple countries under the IECEE mutual recognition framework.

The Razorlux RGL-1000A carries all of the above certifications, along with a Mean Well power supply — a driver brand that procurement teams in heavy industry recognize and trust for its reliability record.

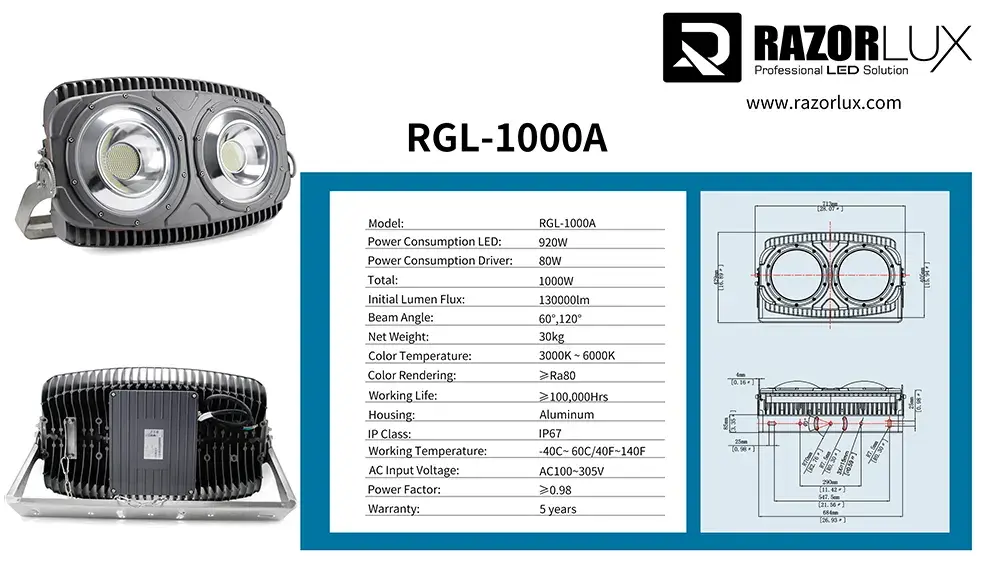

Evaluating Product Specifications for Security Use

Not every 1,000W fixture performs the same. When comparing suppliers, request the following documented specifications:

Requesting third-party test reports, not just product datasheets, is standard practice in rigorous procurement cycles. Razorlux provides full technical documentation including DFMEA analysis, IES photometric files, and certification copies upon inquiry.

OEM, Customization, and Bulk Order Support

For large-scale deployments — new shipyard construction, port infrastructure upgrades, or offshore platform refits — customization matters. Razorlux supports OEM and ODM projects, with options covering wattage adjustment, color temperature selection across 2,700K–6,500K, alternative beam angle configurations, and housing finish modifications for specific corrosion environments. Bulk order pricing and framework purchase agreements are available for clients with recurring procurement cycles.

Installation and Maintenance Best Practices for Security Efficiency

How well outdoor security lighting works over its lifetime is directly related to how well it was installed.

Site Assessment and Mounting Height

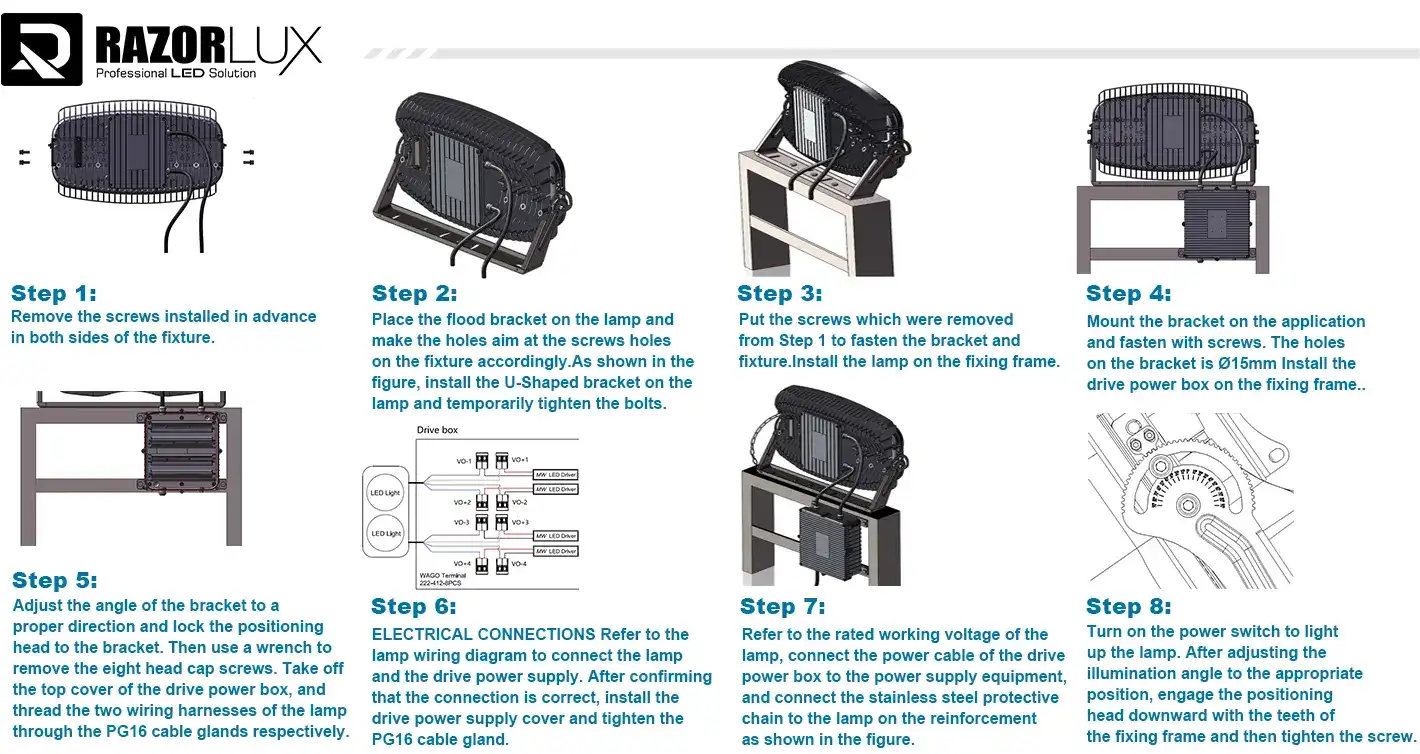

Before deciding how many fixtures to order, you should use IES files from the manufacturer to do a photometric layout. A 40° beam angle works for the RGL-1000A on high masts above 20 meters, while 120° or 140°×60° angles cover large surrounding areas when mounted at mid-height. If you mount the light at the right height, it won't over-illuminate nearby areas and won't shine on neighboring properties or marine traffic zones.

Integration with Security Infrastructure

Flood lighting works best when it's part of a well-thought-out security system. When you place industrial LED flood lights outdoor fixtures so that they line up with the fields of view of CCTV cameras, you get rid of shadowy areas that the cameras can't see. When motion-activated lighting is used, making sure the sensor activation radius matches the fixture's beam covering area stops partial illumination reactions. The RGL-1000A's DALI and 0–10V dimming features allow this integration to happen without the need for extra relay hardware.

Maintenance Scheduling and Warranty Management

The RGL-1000A is supposed to last ≥50,000 hours, which is about 11 years if you use it for 12 hours a nite. But every 6–12 months, the lenses should be cleaned, the torque on the brackets should be checked, and the voltage on the driver should be checked. Keeping records of maintenance helps with warranty claims and gives information for planning when to replace things. Razorlux backs both the LED module and driver with a 5-year warranty, and the housing is backed by a 10-year warranty. This is a clear coverage period that fits with most infrastructure project lifecycles.

Future Trends and Innovations Impacting Industrial Outdoor Security Lighting

IoT-Connected Lighting Systems

Adding Internet of Things (IoT) sensors to outdoor flood lighting lets building managers check on fixture health, energy use, and fault reports from afar. Instead of finding a broken light during a security check, systems that are connected will immediately report it. This change from reacting to proactive care makes security better by fixing lighting problems before they become a problem.

AI-Driven Adaptive Illumination

New AI-based systems look at trends of movement and data about the surroundings to change the direction and strength of lighting on the fly. For perimeter security at ports or industrial yards, this means focusing high-intensity lighting on areas where activity has been spotted while keeping lower output in areas that aren't being used. This saves energy without lowering total security.

Regulatory and Sustainability Alignment

The US Department of Energy and its counterparts around the world are continuing to make it harder for business and industrial lights to use less energy. Products on the DLC list, like the RGL-1000A, already meet the current requirements and set up facilities that make them eligible for utility rebates. As carbon reporting requirements grow across supply chains, switching from HID to LED Outdoor Flood Lighting can help reduce emissions in a way that can be measured and documented. This is important for ISO 14001-certified facilities.

Conclusion

Outdoor workplace safety is directly related to the quality of the lights. Real operational risk is created when fixtures fail early, don't produce enough lumens, or don't have the certifications needed for project compliance. All of those problems are solved by the Razorlux RGL-1000A, which has 130,000 lumens at 130 lm/W, IP65/IP67 and IK10 security, a full certification package, and a 5-year guarantee backed by more than 20 years of manufacturing experience. The standard is clear and all the paperwork is there for procurement teams to look at when they are looking at industrial led flood lights outdoor for security.

FAQ

How long do industrial outdoor LED flood lights typically last?

The RGL-1000A carries a rated lifespan of ≥50,000 hours. Operating at 12 hours per night, that equals approximately 11 years before reaching the L70 lumen maintenance threshold. Both the LED module and the Mean Well driver carry a 5-year warranty; the housing carries a 10-year warranty.

What surge protection level do outdoor industrial flood lights require?

For standard outdoor industrial installations, a minimum 10kV SPD is acceptable. High-mast installations in lightning-prone areas or grid-unstable regions should specify 20kV surge protection. The RGL-1000A's Mean Well driver includes integrated surge protection within the specified input voltage range of AC 80–305V and DC 100–800V.

Can the beam angle be customized for specific security layouts?

Yes. The RGL-1000A offers four standard beam angles: 40°, 60°, 120°, and 140°×60°. Narrow angles suit high-mast perimeter poles, while wide asymmetric configurations cover loading docks and open yard areas. Custom optical configurations are available for OEM orders.

Which certifications should I verify before purchasing?

For US projects, confirm UL listing and DLC certification for rebate eligibility. For European deployments, CE and RoHS are mandatory. Australian projects require SAA and C-Tick. ISO 9001 confirms the manufacturer's production quality system. The RGL-1000A holds all of these certifications.

What is the ROI timeframe for replacing HID fixtures with LED flood lights?

Based on replacing a 2,500W HID system with the 1,000W RGL-1000A at a 12-hour daily operation cycle, the energy savings typically recover the fixture cost within 12–24 months at current US industrial electricity rates, in addition to eliminating ballast and lamp replacement costs.

Contact Razorlux — Request a Quote for Industrial LED Flood Lights Outdoor

Since 1998, Razorlux has provided industrial led flood lights outdoor to ships, port terminals, and large manufacturing plants in over 30 countries. You can get a sample of the RGL-1000A to try out before placing a large order. Our technical sales team gets back to you within one business day whether you need a single specification sheet, a photometric layout, or a framework supply agreement. To get a product datasheet, certification package, or special quote from a trusted industrial LED flood light provider, email sam@razorlux.com or go to razorlux.com.

References

1. U.S. Department of Energy — Energy Savings Forecast of Solid-State Lighting in General Illumination Applications, 2023.

2. Illuminating Engineering Society — IES Lighting Handbook, 11th Edition, 2022.

3. DesignLights Consortium — DLC Technical Requirements for Solid-State Lighting, Version 5.1, 2023.

4. International Electrotechnical Commission — IEC 60598-1: Luminaires — General Requirements and Tests, 2020.

5. U.S. Department of Energy, Office of Energy Efficiency & Renewable Energy — LED Lighting Technology Fact Sheet, 2022.

6. Navigant Research (now Guidehouse Insights) — LED Adoption in Commercial and Industrial Markets, 2021.
