Marine Dock Lights Led:Industrial Waterproof Solutions Built for Saltwater Environments

For harbour administrators, shipyard directors, and marine office engineers

Saltwater annihilates standard lighting. Our marine dock lights led are purpose-engineered for commercial harbors, seaward stages, and aquaculture offices where erosion, dampness, and 24/7 operation are standard conditions.

Key capabilities:

• 1000W high-output show: 130,000 lumens real output

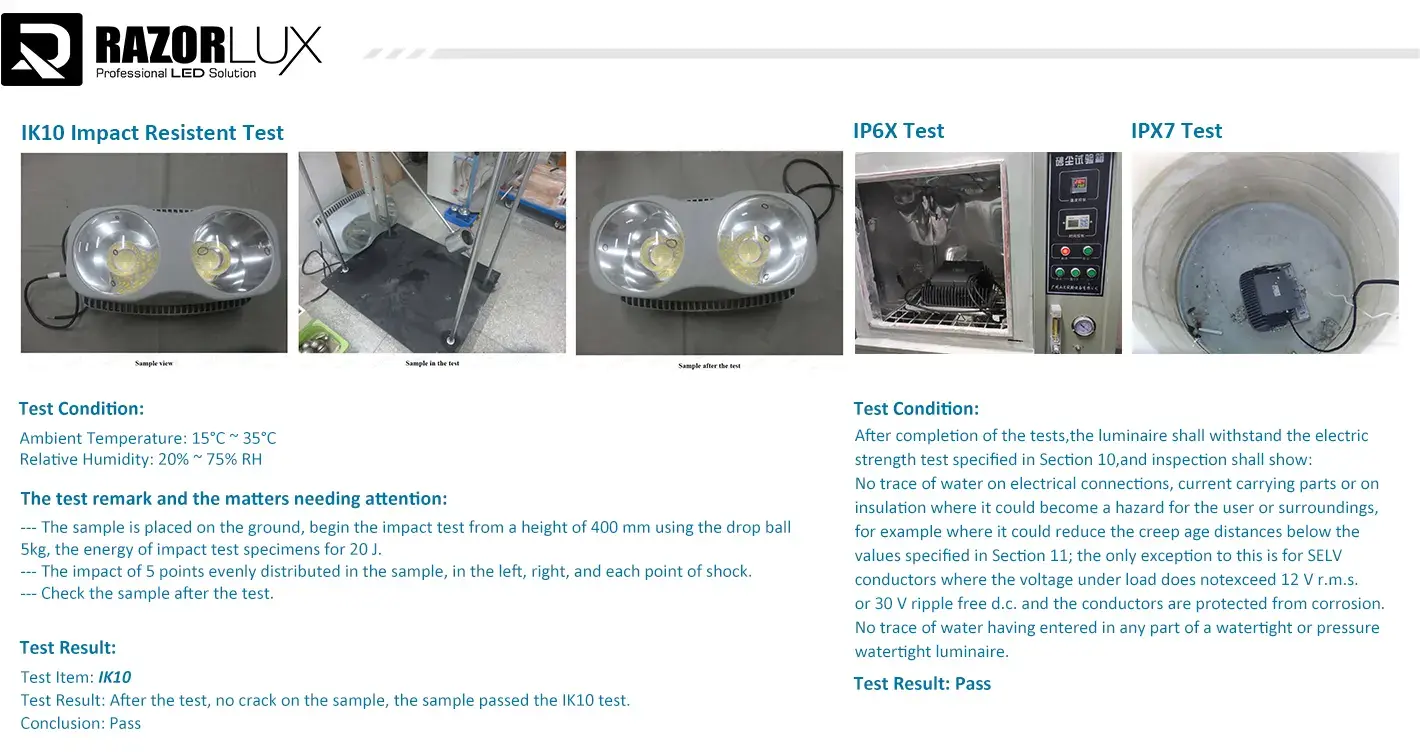

• IP67 waterproof rating (submersible to 1m for 30 minutes)
• 316 marine-grade stainless steel or aluminum bronze construction
• -40°C to +55°C working range
• 5-year commercial warranty

Operating since 2006, Razorlux supplies Led frameworks for sea foundation over 47 nations. Our installations carry RMRS sea certification and comply with UL, CE, and SAA security standards.

Marine Dock Lights Led Parameters

Why Maritime Facilities Choose These Fixtures

1. Corrosion Resistance Beyond Standard Stainless Steel

The issue with normal 316 stainless steel:
Even marine-grade stainless creates tea-staining (surface rust discoloration) in high-chloride situations. This happens when:

• Improper passivation amid manufacturing
• Iron defilement from adjoining steel structures
• Inadequate support in saltwater splash zones

Our solution:

Marine dock lights led aluminum bronze housing option eliminates staining entirely. This copper-aluminum alloy forms a protective patina layer that self-renews when damaged—ideal for tropical ports and desalination plants.

Alternative:Standard 316SS fixtures include enhanced passivation treatment and maintenance guidelines.

2. Wide Voltage Compatibility for Global Infrastructure

Input range: AC 90-305V / DC 127-431V

This matters for:

· Developing ports with unstable grid power

· Offshore platforms using generator systems

· Facilities transitioning between voltage standards

· Reducing need for voltage regulation equipment

No external transformers required for installations across North America (120/277V), Europe (230V), and Asia-Pacific (240V) power systems.

3. Flexible Beam Control for Different Applications

Seven beam angle options:

· 15°-40° spot beams: High-mast installations (20-40m pole height)

· 60° flood beams: Container yards, vessel loading areas

· 120° wide floods: Pedestrian terminals, security perimeters

· 140°x60° asymmetric: Pier walkways (reduces light spill into water)

Application Guides

Container Terminals & Cargo Handling

Typical layout:

· Pole height: 25-35 meters

· Spacing: 40-50 meters

· Beam angle: 30°-40°

· Recommended quantity: 8-12 fixtures per hectare

Special considerations:

Wide voltage range accommodates fluctuating power during crane operations. Vibration-resistant mounting withstands heavy equipment movement.

Shipyards & Dry Docks

Environmental challenges:

· Welding spatter

· Sandblasting dust

· Chemical cleaning agents

· 24/7 operation cycles

Solution features:

· Sealed construction (no cooling fans to clog)

· Tempered glass lens resists thermal shock

· Corrosion-resistant housing maintains performance in steel fabrication zones

Passenger Ferry Terminals

Requirements:

· Glare control for pedestrian safety

· Color rendering for security cameras (CRI >80 recommended)

· Dark-sky compliance for coastal regulations

Configuration:

· Color temp: 4000K (neutral white reduces glare vs. 5700K)

· Beam angle: 60° or 140°x60° asymmetric

· Mounting height: 6-10 meters

Aquaculture & Fish Processing

Critical factors:

· High-pressure washdown capability

· Food-safe materials (salt fog resistant)

· Color options for species attraction

Special offerings:

· Green (520nm) for baitfish attraction in hatcheries

· Blue (480nm) for clear water visibility

· IP68 potted electronics for submersible installations

Offshore Platforms (Oil & Gas)

Available certifications:

· ATEX Zone 2 (explosive atmosphere)

· C5M corrosion rating (extreme marine)

· IECEx for international compliance

Lead time:8-12 weeks for hazardous location variants

Common Questions from Facility Managers

Q: How do I prevent voltage drop on long pier runs?

For cable runs exceeding 50 meters:

· Use 10 AWG (6mm²) minimum for AC installations

· Calculate specific voltage drop

· Consider DC systems for very long runs (lower current = less resistive loss)

We provide complimentary voltage drop analysis with your project quote.

Q: What maintenance is required?

Every 6 months:

· Freshwater rinse to remove salt buildup

· Check mounting bolts for corrosion

· Verify gasket seals

Annually:

· Inspect cable entry points

· Test emergency operation (if applicable)

Expected service life: 50,000 hours (approx. 11 years at 12 hrs/day operation). LED drivers are sealed—no field replacement.

Q: What color temperature should I choose?

General guidance:

· 2700K (warm white): Minimal impact on wildlife, dark-sky friendly

· 4000K (neutral): Best for human visibility and camera systems

· 5700K (daylight): Maximum brightness perception, higher glare

For underwater applications: Green (520nm) penetrates turbid water best. Blue (480nm) works in clear tropical conditions.
