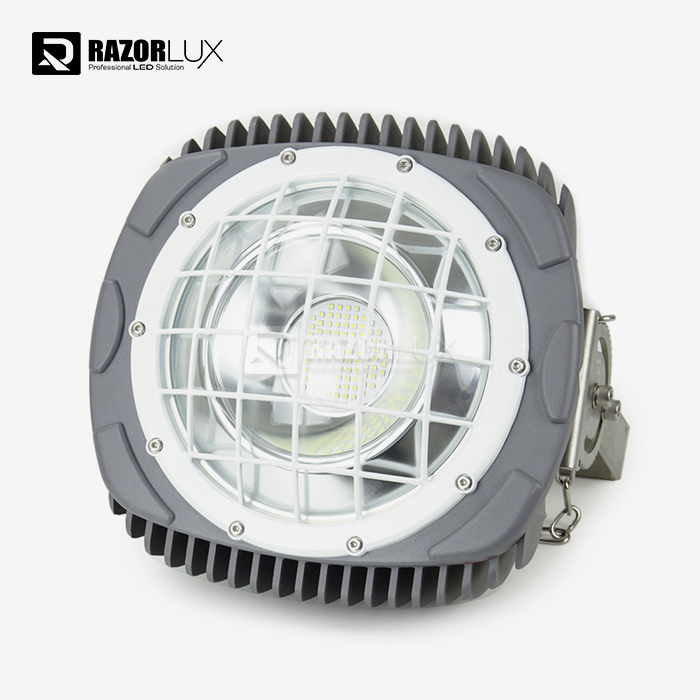

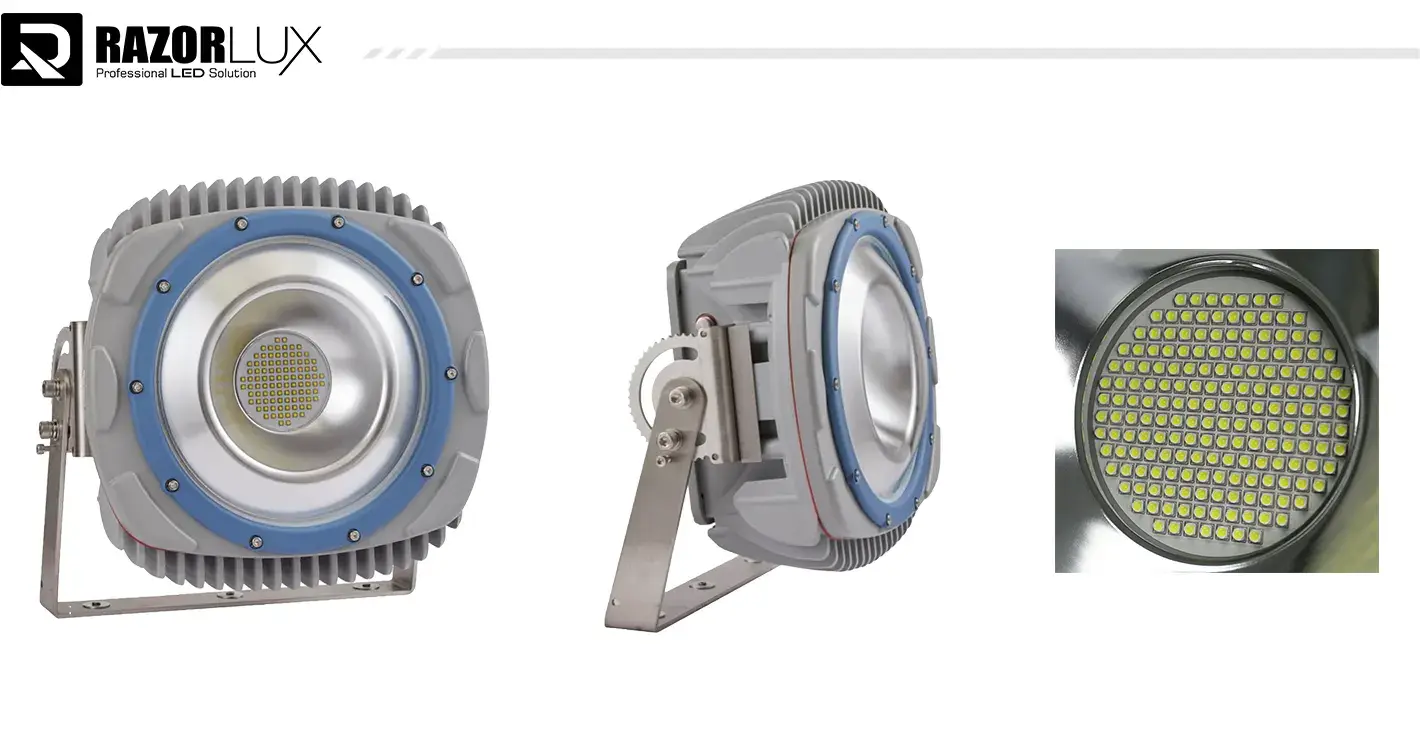

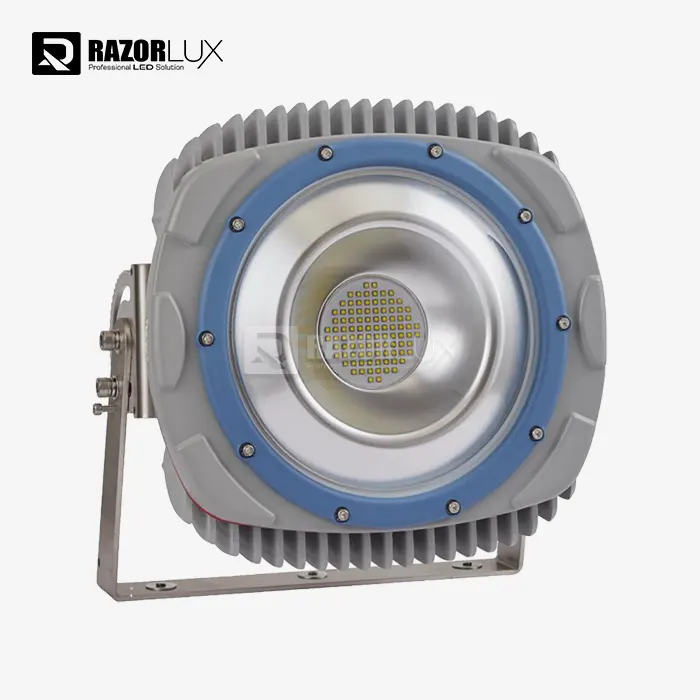

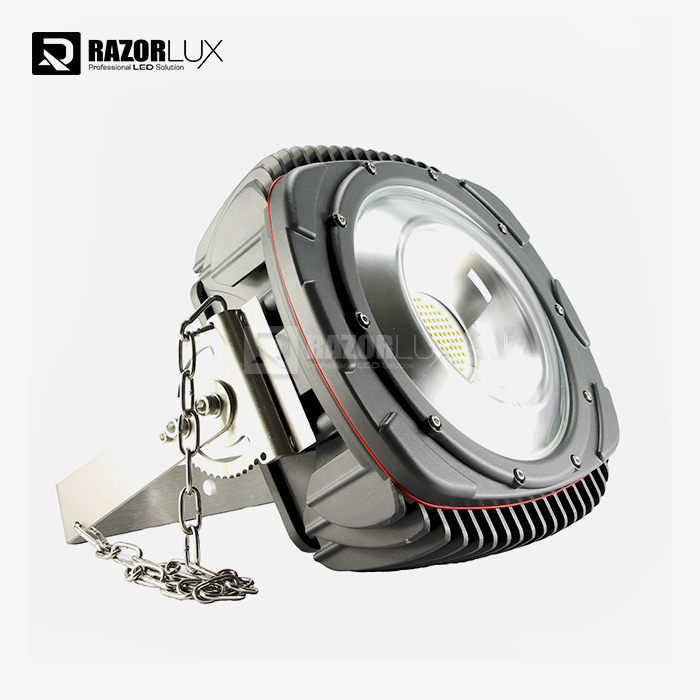

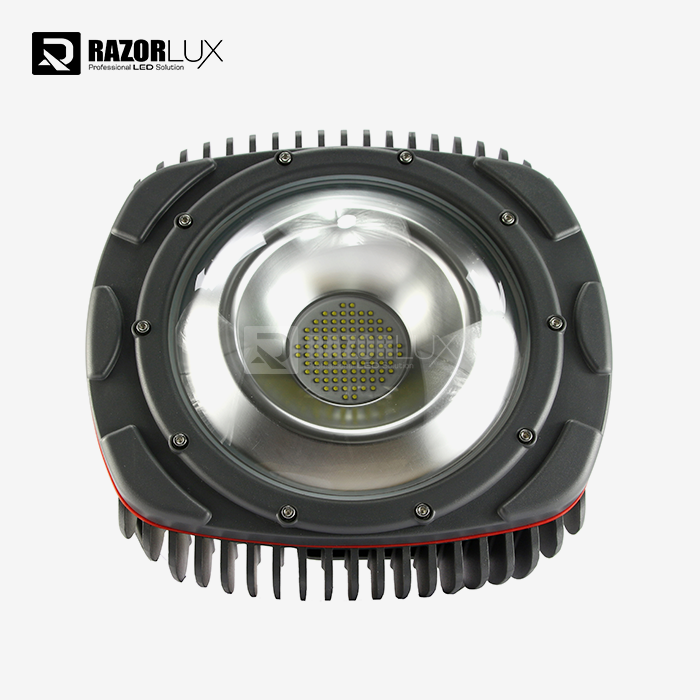

crane safety lights
Rated Power: 180W
Input Voltage: AC90-305, DC127-431
Color Temperature: 2700K-6500K
Lamp Efficiency: 130LM/W
Beam Angle: 15°, 20°, 30°, 40°, 60°, 120°, 140°x60°.
CRI: Ra>75
IP Grade: IP67

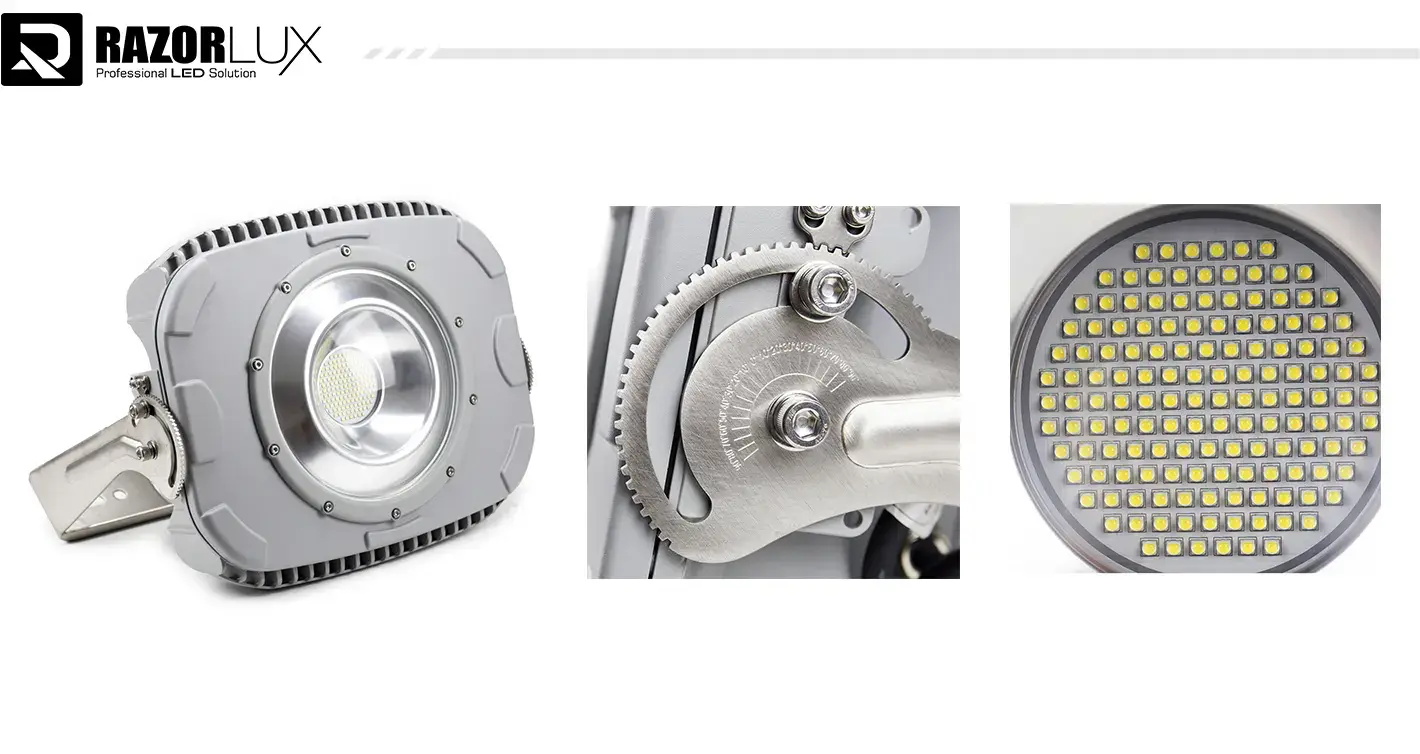

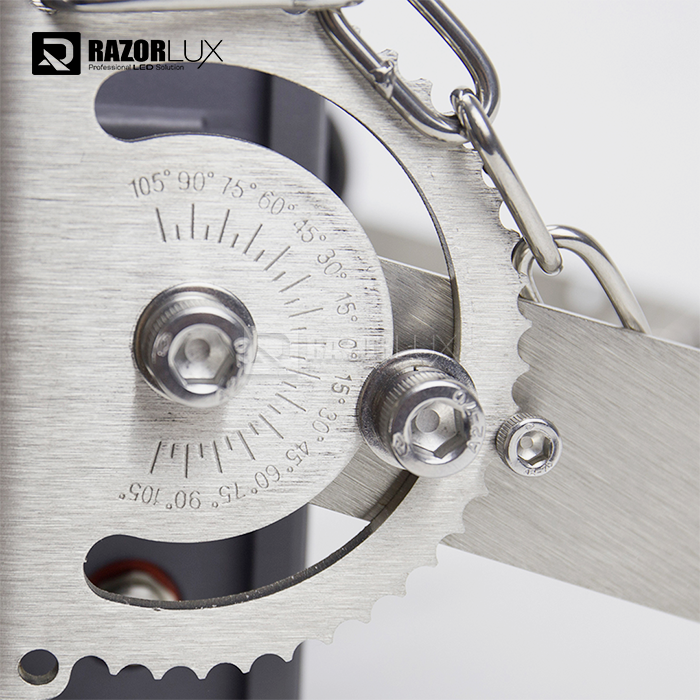

Bracket: Stainless Steel
Net Weight: 15KG
Warranty: 5 Years
Certificate:RMRS CE, RoHS, SAA, C-Tick, UL, DLC, CB, ISO:9001
- Product Description
Crane Safety Lights - Professional LED Lighting Solutions for Heavy-Duty Operations
Product Introduction
Our crane safety lights convey uncommon execution and unwavering quality for your heavy-duty lifting operations. These lights are particularly designed to guarantee greatest perceivability and security in mechanical situations. With protected multi-function plan, our product adjust consistently to all working conditions, giving administrators with the basic brightening required for secure and proficient operations. You can believe these lights to perform reliably in the most requesting situations.
Specification

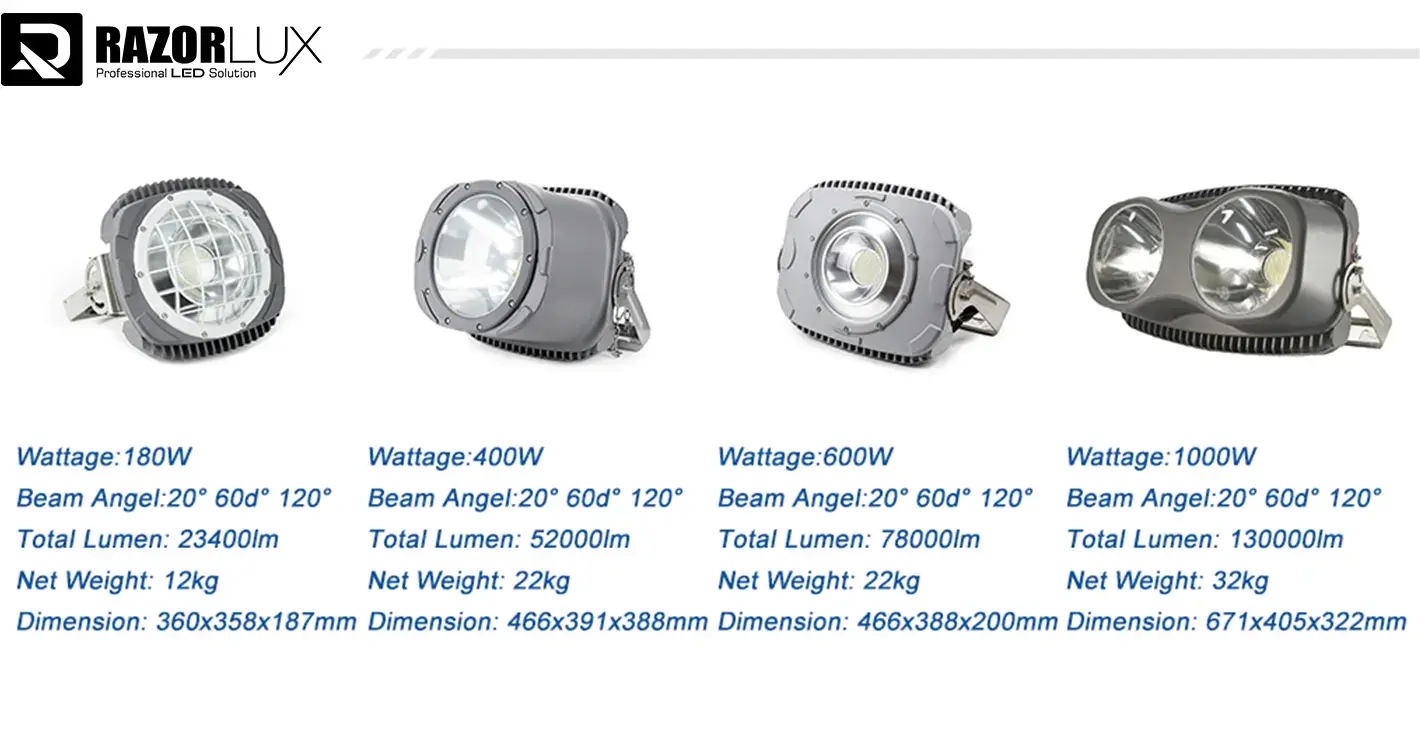

Model | RGL-180A | |
Beam Angle | 60° 120° 140°*60° | |
Stable Flux (5700K after 1 hour) | 21600 lm | |
Dimension (mm) | 360*358*306mm | |
| LEDs | 162W |
Power | Driver | 18W |
Consumption | Total | 180W |
Replace HID Lamp | 400 ~ 500W | |
Net Weight | 10kg | |
Color Temperature | 2000-6000K | |
Color Rendering | ≥Ra75 (≥Ra80, ≥Ra90 available on request) | |
Working Life | ≥50000Hrs | |
Housing Material | Aluminum & Powder coating | |
Power Supply | Meanwell | |
IP Class | IP 67 | |
IK Class | IK 10 | |
Insulation Class | Class I | |
Working Temperature | -40C ~ 60C / -40F ~ 140F | |
Working Humidity | 10% ~ 95% | |
AC Input | 80-315Vac input voltage without additional adapter | |
DC Input | 80 ~ 400Vdc | |
THD | <10% | |
Power Factor | ≥0.98 | |
Warranty | LED Module | 5 year |
Driver | 5 year | |
Housing | 10 year | |
Why Choose Our Crane Safety Lights?
Your security is our need. Our lights include protected innovation with over 200 advancement licenses covering Driven chip bundling, control supply control, and lodging plan. We've been culminating Driven innovation since 2006, making us pioneers in mechanical lighting solutions.
Built for extraordinary conditions, these lights meet IP67 assurance guidelines and work dependably in temperatures from -40°C to +85°C. The strong stainless steel brackets withstand overwhelming vibrations and cruel environments.
Our crane safety lights provide steady execution with 130LM/W effectiveness and numerous pillar point choices. This adaptability permits you to customize lighting for particular crane operations and work areas.

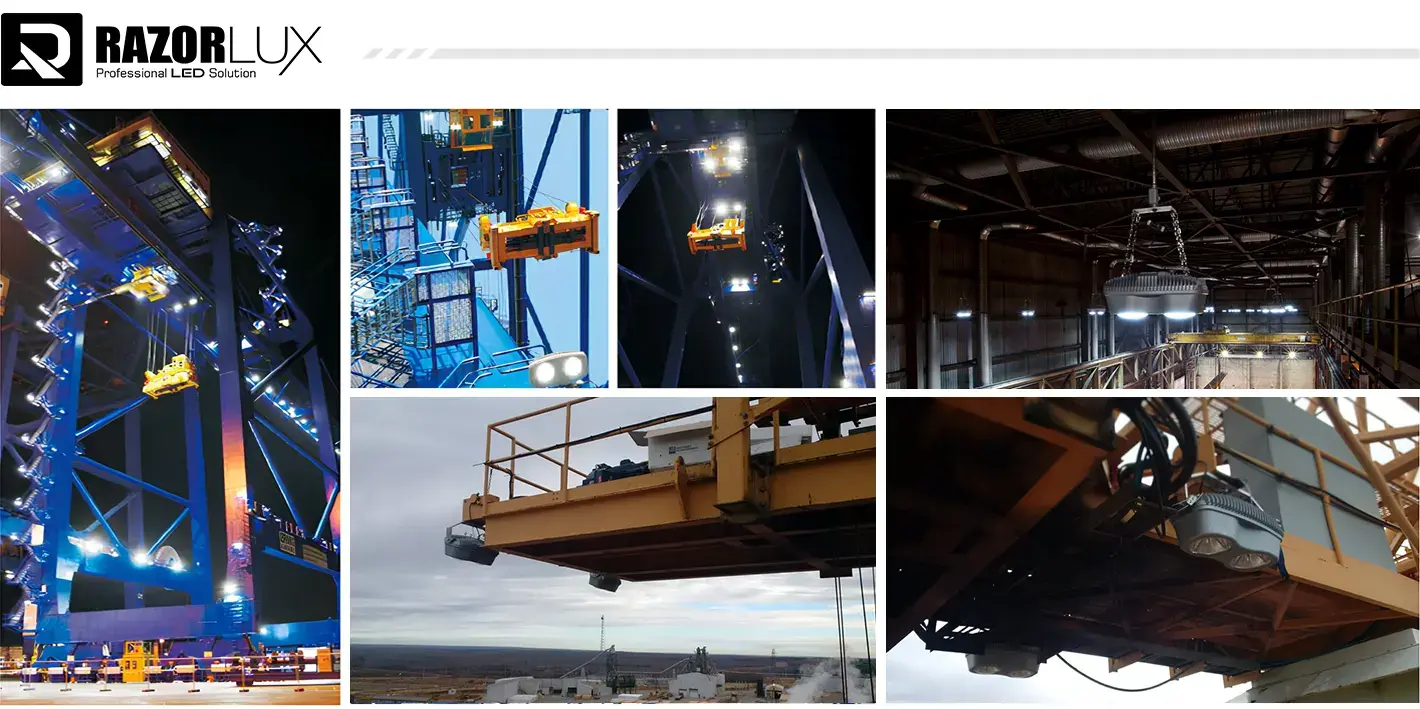

Application
• Holder Terminals: Light up stacking and emptying operations for 24/7 harbour exercises with exact pillar control for administrator safety
• Development Destinations: Give basic perceivability for tower cranes amid night shifts and low-light conditions
• Steel Plants: Withstand tall temperatures and clean whereas conveying solid lighting for overhead crane operations
• Shipyards: Marine-grade assurance guarantees persistent operation in saltwater situations and extraordinary weather
• Mining Operations: Underground and surface mining cranes advantage from explosion-proof plan and vibration resistance
• Fabricating Plants: Get together line overhead cranes require reliable lighting for accuracy work and quality control
• Stockrooms: Dissemination center cranes require effective lighting for precise stock dealing with and security compliance
• Control Plants: Basic foundation lighting underpins support cranes in requesting mechanical environments
• Refineries: Dangerous area appraisals make these lights appropriate for petrochemical crane operations
• Railroad Yards: Prepare support offices utilize these lights for train and cargo dealing with crane visibility
Quality Control
We keep up ISO9001 certification for 22 continuous a long time since 2001. Each light experiences thorough testing in our authorized Xi'an Driven Lighting Building Research facility. Our quality framework incorporates DFMEA disappointment mode investigation and military-grade standards.
Each item passes natural testing, vibration resistance checks, and photometric confirmation some time recently shipment. Our R&D group incorporates over 10 teachers and specialists guaranteeing cutting-edge quality.
Shipment Samples
We give customized tests for assessment some time recently bulk orders. Test conveyance takes 5-7 commerce days by means of express shipping. This permits you to test execution in your particular environment and confirm compatibility with existing crane frameworks.
Packaging and Transportation
Items are pressed in shock-resistant froth inside fortified cartons. Each crane safety light gets person assurance with anti-static materials. We offer adaptable shipping choices counting discuss cargo, ocean cargo, and rail transport based on your timeline and budget requirements.
| Transportation Time | Shipping Option Details | Recommend Weight |
| 3-7 days | International Express(DHL, FedEx, UPS, TNT, etc.) | 0.5KG-300KG(optimal for cost efficiency under our contarated express rates) |
| 5-10 days | By Air (Airport-to-port or Airport-to-door) | 300KG+(Significantly more economical than express shipping for heavy cargo) |
| 18-22 days | By Rail(China-Europe Railway Express) | 2CBM/500KG+(More economical than air freight for large shipment with flexible timelines) |
| 15-50 days | By Sea(FLC/LCL) | 2CBM/500KG+(Much more economical than rail,suit for non-urgent cargo, also the most cost-effective shipping method) |
Transaction Feedback
Customer fulfillment drives our nonstop enhancement. We esteem your input and utilize it to upgrade item improvement and benefit quality. Our responsive back group addresses any concerns expeditiously to keep up long-term associations.
After Sales Service
Our 5-year warranty covers manufacturing defects and performance issues. Technical support is available throughout the product lifecycle. We provide replacement parts, maintenance guidance, and troubleshooting assistance to minimize downtime.
Qualification Certification
Products hold multiple international certifications including RMRS for marine applications, UL for North American markets, CE for European compliance, and SAA for Australian standards. These certifications ensure global compatibility and regulatory compliance.
FAQ
Q: What makes these product different from standard LED lights?
A: Our lights feature patented multi-function design specifically engineered for heavy-duty crane operations with enhanced vibration resistance and extreme temperature performance.
Q: Can these lights operate in marine environments?
A: Yes, with IP67 protection and RMRS marine certification, these lights perform reliably in saltwater conditions and extreme weather.
Q: What beam angle should I choose for my crane application?
A: Narrow beams (15°-30°) work best for precise spotlighting, while wide beams (120°-140°) provide area illumination. We offer consultation to determine optimal configuration.
Q: How long do these lights last in continuous operation?
A: With 130LM/W efficiency and quality components, expect over 50,000 hours of operation under normal conditions, backed by our 5-year warranty.
Q: Do you provide dimming control options?
A: Yes, we offer 0-10V and DALI dimming systems for automated light control and energy management in crane operations.
