Industrial-Grade High-Power Lighting for Large-Scale Applications

Our 600W outdoor pole mounted flood lights are designed for ports, sports facilities, industrial perimeters, and commercial parking lots. Featuring wide voltage compatibility (AC90-305V), adjustable beam angles (15°-140°), and IP67 weatherproof protection, these fixtures deliver reliable performance in demanding outdoor environments. Backed by CE, UL, DLC, and SAA certifications with a 5-year warranty.

Outdoor Pole Mounted Flood Lights Specifications

​​​​​​​​​​​​​​

Key Features

Flexible Voltage Design

Wide input range (AC90-305V) handles voltage fluctuations common in industrial settings and developing regions. Integrated 20kV surge protection guards against lightning damage in exposed pole installations.

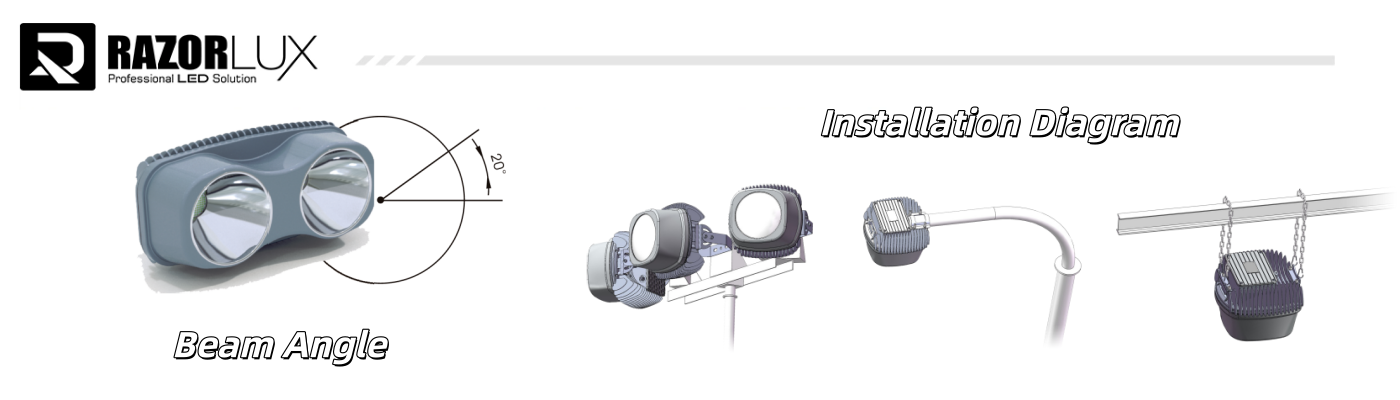

Customizable Light Distribution

Seven beam angle options allow precise light targeting:

· Narrow beams (15°-30°): High-mast installations above 15m

· Medium beams (40°-60°): General area lighting at 8-15m heights

· Wide beams (120°-140°): Low-height parking and perimeter applications

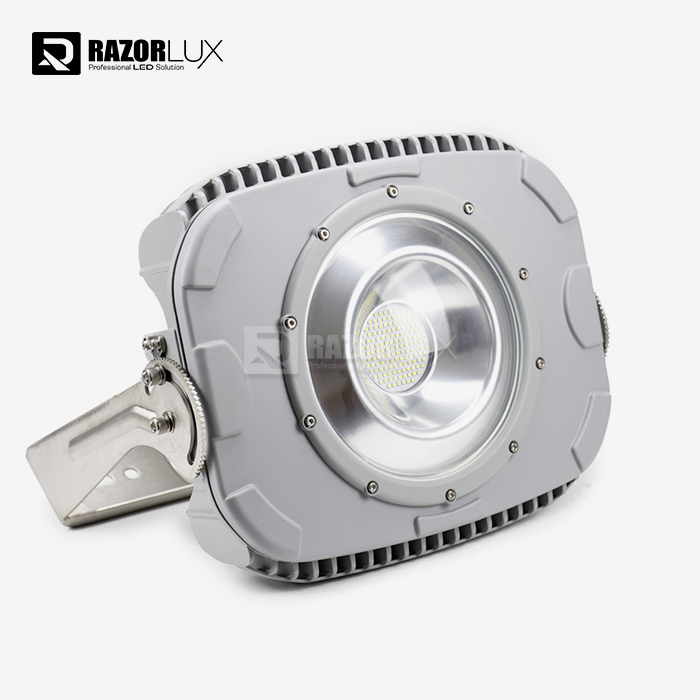

Rugged Construction

· Housing: Die-cast aluminum with UV-stabilized powder coating

· Lens: Tempered glass maintaining 92%+ light transmission

· Sealing: IP67-rated protection against water jets and dust ingress

· Impact Resistance: IK08-IK10 rating for vandal-prone areas

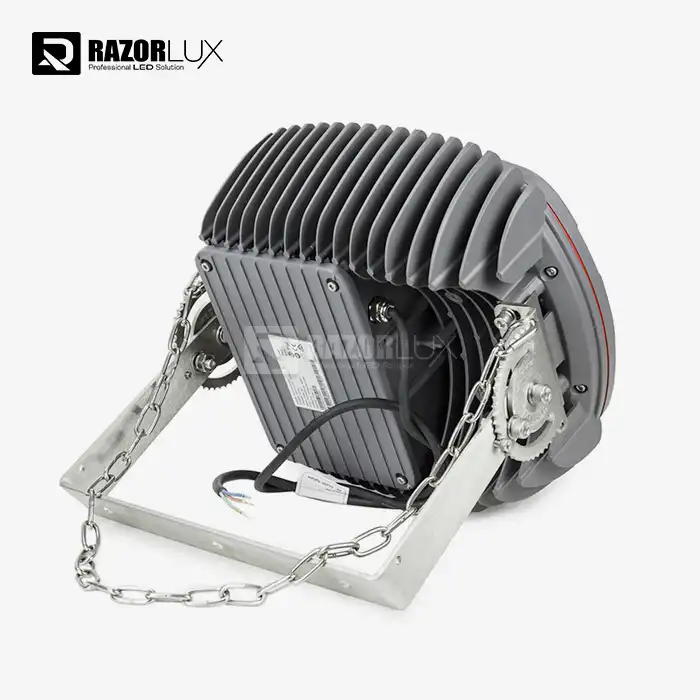

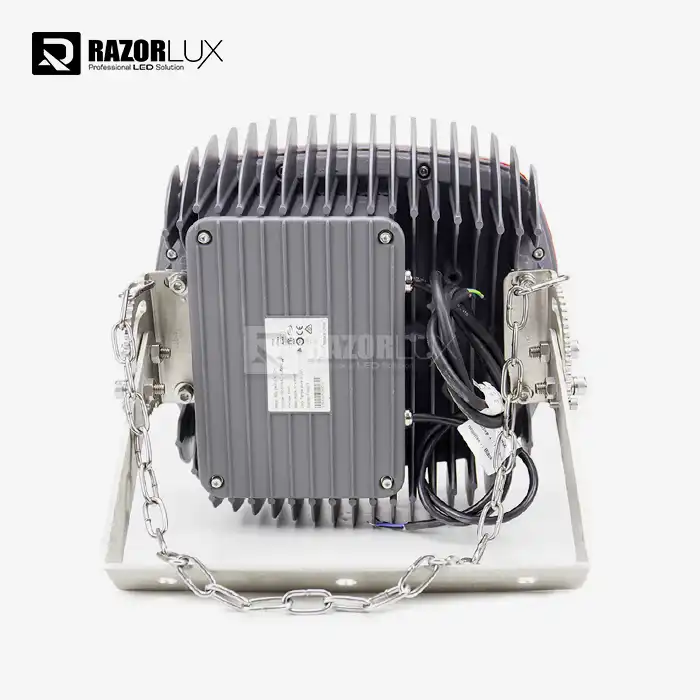

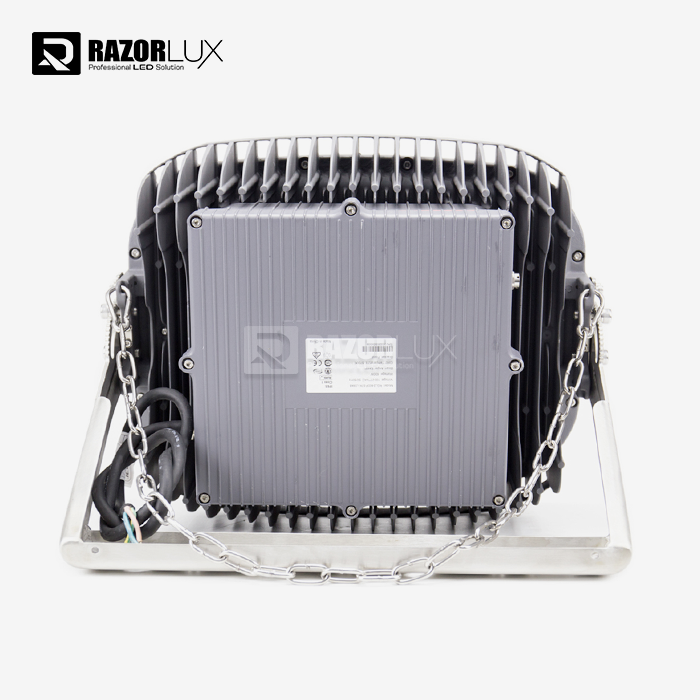

Thermal Management

By maintaining LED junction temperatures within the ideal range, the fin-style heat sink design prolongs its operating life beyond 100,000 hours (L70). There is no need for mechanical fans, which lowers maintenance requirements.

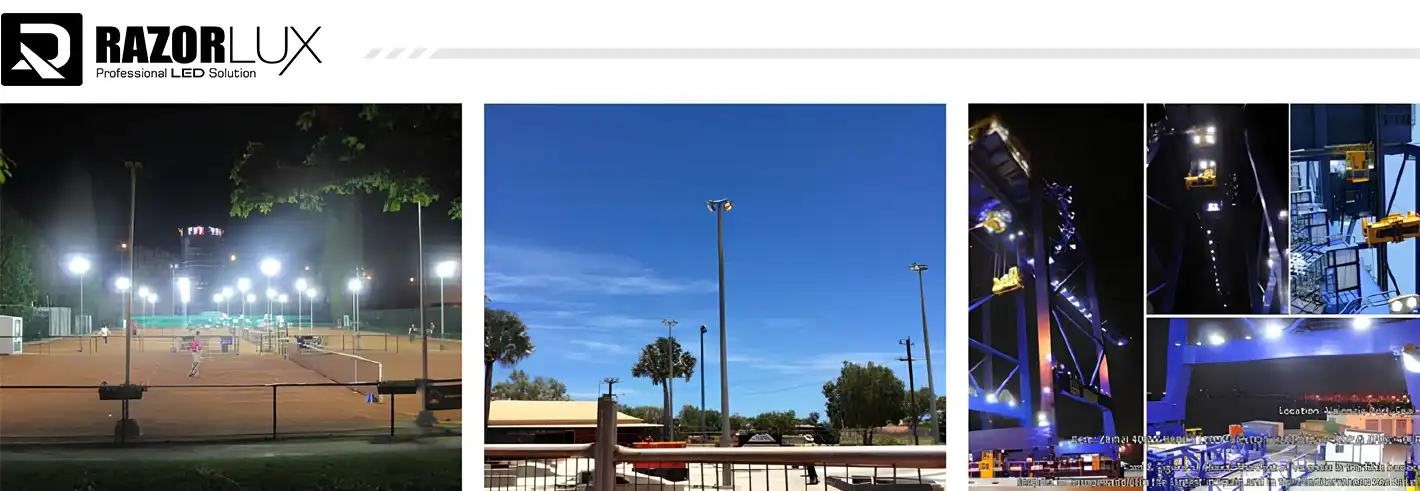

Applications

Port and Container Terminals

High wind loads, corrosive salt air, and the need for round-the-clock operation present challenges.

Solution: Shadows around crane operations are eliminated using narrow beam optics (15°–30°) for 20m+ pole installation. Coastal circumstances are tolerated with IP67 sealing and C5M corrosion rating.

Sports Facilities

The challenge for sports facilities is to control player glare and provide broadcast-quality illumination.

Solution: Sharp cut-offs are maintained when light is directed onto playing surfaces via asymmetric beam patterns. HDTV transmission requirements are met via flicker-free operation.

​​​​​​​

Industrial Perimeter Security

Challenge: Energy-efficient, uniform coverage across wide areas

Solution: Adaptive dimming is made possible by 20–40-foot pole installations that are compatible with NEMA photocells. Save up to 40% on energy while still adhering to security lighting regulations.

Commercial Parking Lots

The difficulty is in removing gloomy areas and ensuring pedestrian safety.

Solution: Overlapping coverage patterns are provided by wide beam choices (120°–140°x60°). Wireless monitoring at several locations is supported by IoT-ready architecture.

About Razorlux

Since 2006, Xi'an Razorlux Optoelectronic Technology Co., Ltd. has produced LED lighting solutions. With more than 200 patents in heat management, driver design, and optical systems, our facility functions as a nationally recognized LED Engineering Laboratory.

Industry Experience:

· Supplied lighting projects for China Mobile infrastructure rollout

· Partner for State Grid Corporation outdoor lighting upgrades

· 22 years of power supply manufacturing expertise (since 1998)

Engineering Support:

Our outdoor pole mounted flood lights' team provides light simulation calculations and project-specific layout design. We work with project managers to optimize fixture selection based on pole height, spacing, and illumination requirements.

Frequently Asked Questions

Q: How do I select the right beam angle for my pole height?

A: Use narrow beams (15°-30°) for poles above 15m to achieve long-distance throw. Medium beams (40°-60°) suit 8-15m heights. Wide beams (120°-140°) work for poles below 8m needing broad coverage.

Q: Will these fixtures withstand coastal environments?

A: Yes. IP67 sealing and C5M corrosion classification are tested per ASTM B117 salt spray standards. Stainless steel brackets and marine-grade coatings provide additional protection.

Q: Can I integrate these with smart lighting controls?

A: Our fixtures include NEMA receptacles compatible with photocells and occupancy sensors. They support 0-10V and DALI dimming protocols for wireless mesh network integration.

Q: How is heat dissipation managed at 600W output?

A: Modular aluminum heat sinks create passive convection cooling—no fans required. This design keeps LED junction temperatures within manufacturer specifications throughout the fixture's lifespan.
