120 Volt Outdoor Spotlight
Rated Power: 90W-1200W
Input Voltage: AC90-305, DC127-431
Color Temperature: 2700K-6500K
Lamp Efficiency: 130LM/W
Beam Angle: 15°, 20°, 30°, 40°, 60°, 120°, 140°x60°.
CRI: Ra>75
IP Grade: IP65/IP67
Bracket: Stainless Steel
Net Weight: 15KG
Warranty: 5 Years
Certificate: CE, RoHS, SAA, C-Tick, UL, DLC, CB, ISO:9001
- Product Description

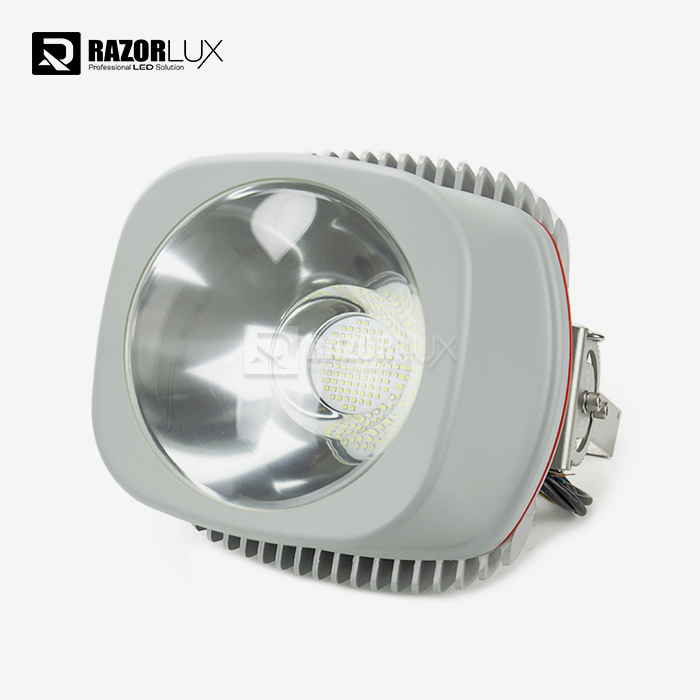

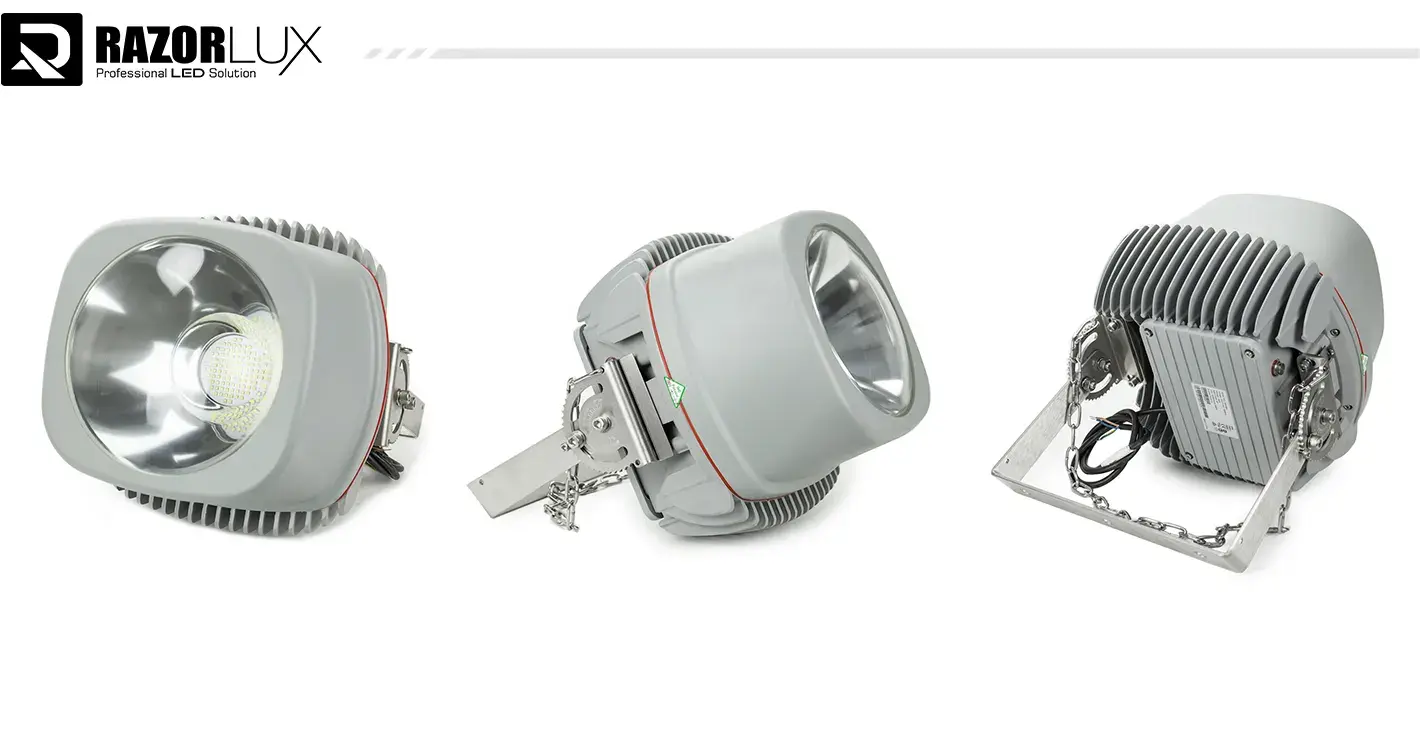

120 Volt Outdoor Spotlight – Professional Line-Voltage Lighting
Our 120 Volt Outdoor Spotlight avoids the voltage drop and fading problems of low voltage systems. Designed for business facades, security perimeters and landscape design, this 150W fixture has an efficiency of 130LM/W and is IP67 waterproof. Choose from 7 beam angles (15°-140°) and customizable color temperatures (2700K-6500K) for your project requirements. 5 Year Warranty, UL, DLC, and CE certified.
Why Line Voltage Beats Low-Voltage Systems
No More Dimming Over Distance
With standard 12V systems the light has no power over 50 feet and you have to install additional transformers. With our 120V direct power you’ll get full intensity, across 200+ foot runs (one circuit powers the complete perimeter).
Simpler Installation, Lower Maintenance
Connect straight to existing mains power, no bulky transformers needed. Electricians love the simple wiring, and facility managers save money by not having to replace transformers that routinely burn out every 3-5 years.

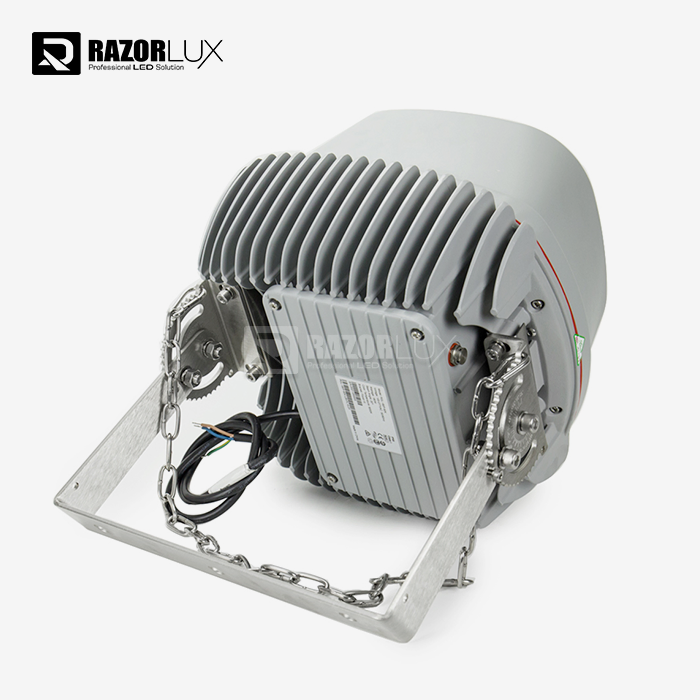

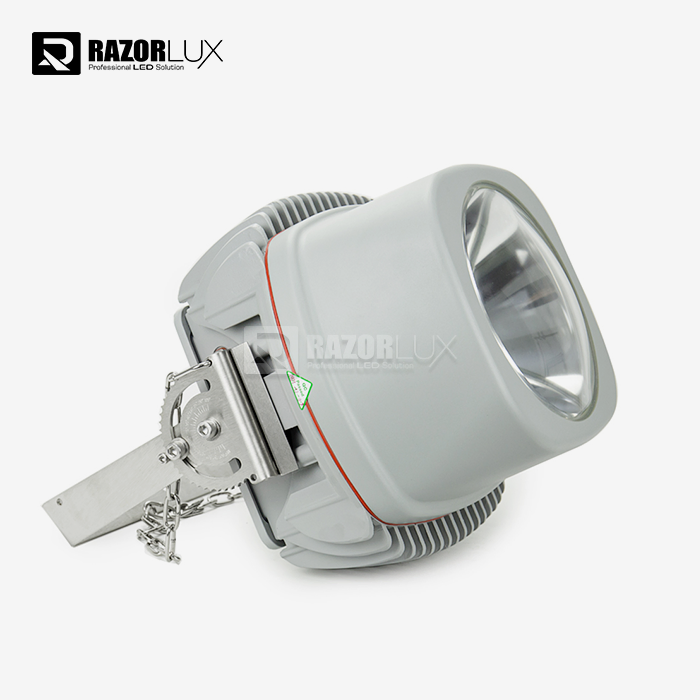

Heavy-Duty Construction That Lasts
This is not a low weight consumer product, it weighs 15 KG and has marine grade stainless steel brackets. The IP67 classification ensures it is dust-proof and water-resistant, making it great for ground level installation in rainy regions.
120 Volt Outdoor Spotlight Specifications
| Feature | Specification |
| Model Number | RGL-180P |
| Rated Power | 180W |
| Input Voltage | AC100-305, DC127-431 |
| Color Temperature | 2700K-6500K |
| Lamp Efficiency | 130LM/W |
| Lumen Output | 23400LM |
| Beam Angle | 15°, 20°, 30°, 40°, 60°, 120°, 140°x60° |
| Lens | Tempered Glass |
| Working Temperature | -40° - 60°/ 40F - 140F |
| CRI | Ra>75 |
| IP Grade | IP67 |
| IK Rating | IK10 |
| LED Chip | Samsung/Phillip |
| LED Driver | Meanwell |
| Housing | Aluminum Alloy |
| Bracket | Stainless Steel |
| Net Weight | 15KG |
| Warranty | 5 Years |
| Certificates | RMRS,CE, RoHS, SAA, C-Tick, UL, DLC, CB, ISO:9001 |

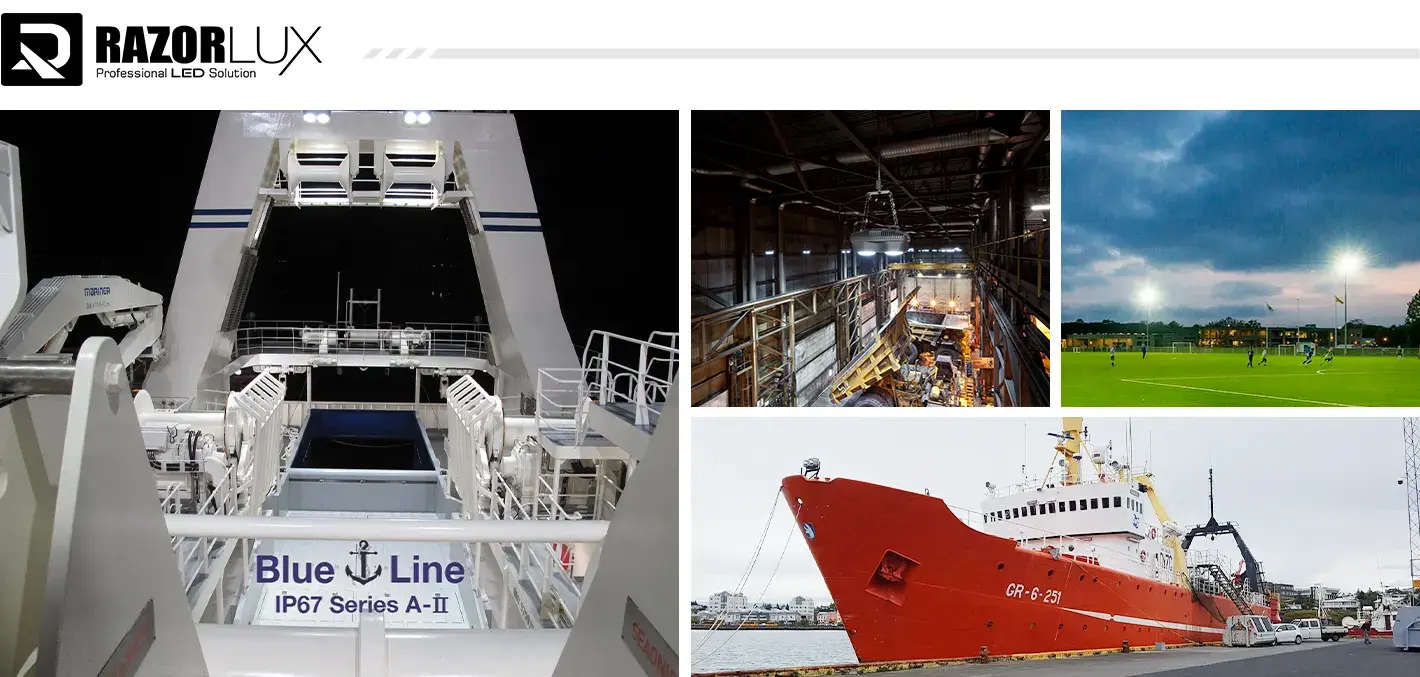

Where It Works Best
Commercial Buildings
3-5 storey facades with choices for thin beams (15°-30°). High candlepower gives spectacular wall washing effects, viewable from street level.
Public Monuments & Parks
Run cables over 200 feet from power sources with no loss of brightness. Daisy chain many lights on one 15A circuit to save on installation expenses.
Industrial Security
Integration with current photocell controllers and high voltage circuitry. Works dependably in coastal salt-air conditions and in high temperature extremes.
Large Perimeters
Uniform illumination is needed across large areas for distribution hubs and corporate campuses. Remove the brightness variation caused by voltage drop in the transformer.
Quality Testing You Can Trust
Every 120 Volt Outdoor Spotlight undergoes third-party verification before shipping:
· Electrical Safety: Dielectric withstand testing at 1000V+ per UL 1598 standards
· Water Resistance: Sustained jet spray testing to confirm IP67 rating
· Corrosion Protection: 500-1000 hour salt spray testing (ASTM B117) for coastal applications
· Thermal Performance: UL 8750 heat rise testing prevents premature driver failure
Our Xi'an facility has maintained ISO 9001 certification since 2001. Products carry regional approvals for North America (UL/DLC), Europe (CE/RoHS), and Asia-Pacific (SAA/C-Tick).
Who We Are
We have been supplying LED solutions to large infrastructure projects throughout Asia and North America since 2006. With 200+ patents in LED driver technology and thermal management, the most crucial elements for fixture life span, our technical team is on the cutting edge of innovation.
Our testing laboratories are certified by the National Development and Reform Commission of China and we work with universities on solid state lighting research. 30% of our people possess advanced technical degrees.
Common Questions
What cable size do I need for long runs?
For 150W at 200 feet, use 12 AWG UF-B rated cable to keep voltage drop under 3%. Your electrician can connect multiple fixtures to a single 15A circuit.
Will this work with international voltages?
Yes. The 90-305V input range covers both North American (120V) and European (230V) systems without modifications.
How do I choose the right beam angle?
· Narrow (15°-30°): Tall trees, building facades, uplighting
· Medium (40°-60°): Signage, pathways, general area lighting
· Wide (120°-140°): Ground-level wall washing, broad coverage
Can I dim these fixtures?
Optional 0-10V and DALI dimming is available. Specify during ordering if you need programmable control integration.
What about wind and vibration?
The 15KG stainless steel construction and locking knuckle joints maintain aim in high-wind coastal environments. Ground stakes included for soft soil installations.
Contact Us
Technical specifications and project consultation:
Contact our 120 Volt Outdoor Spotlight 's team at:sam@razorlux.com
