Large Outdoor Flood Lights

Patented Multi-function design, suitable for all working environments.
Rated Power: 1000W
Input Voltage: AC80-305, DC100 ~ 400Vdc, 500Vdc ~ 800Vdc
Color Temperature: 2700K-6500K
Lamp Efficiency: 130LM/W
Beam Angle: 15°, 20°, 30°, 40°, 60°, 120°, 140°x60°.
CRI: Ra>75
IP Grade: IP67
Bracket: Stainless Steel
Net Weight: 30KG
Warranty: 5 Years
Certificate: CE, RoHS, SAA, C-Tick, UL, DLC, CB, ISO:9001

Send Inquiry Download

Product Description

Large Outdoor Flood Lights Manufacturer and Supplier

Large outdoor flood lights for ports, mining destinations, and mechanical facilities
Our RZX-1000 surge light conveys 130,000 lumens of industrial-grade illumination—enough to light a football field or holder terminal. Built for 24/7 operation in extraordinary conditions.

Large Outdoor Flood Lights

Choose Your Configuration

Beam Angles Available:

· Narrow (15°-30°) → Cranes, excavators, targeted lighting

· Medium (40°-60°) → Warehouses, building facades

· Wide (120°) → Parking lots, perimeter security

· Asymmetric (140°x60°) → Roadways, container yards

Color Temperature:

· 2700K (Warm) - Hospitality areas

· 4000K (Neutral) - General work zones

· 6500K (Cool) - Precision tasks, security

Large Outdoor Flood Lights Specifications

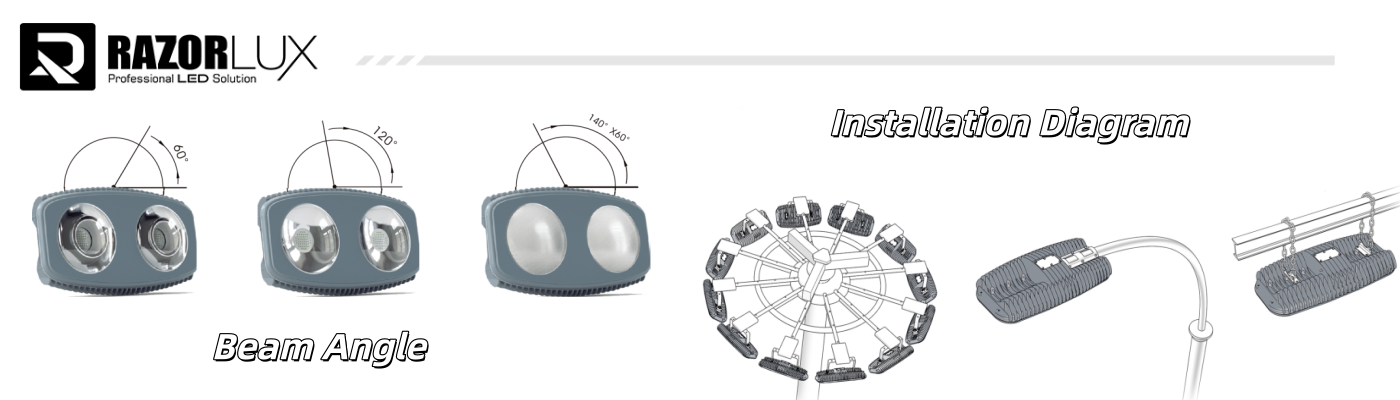

Beam Angle & Installation Diagram

Model		RGL-1000A
Beam Angle		40° 60° 120° 140°
Stable Flux (5700K after 1 hour)		130000lm
Dimension (mm)		671405379
Power Consumption	LEDs	900W
	Driver	100W
	Total	1000W
Replace HID Lamp		2200~2500W
Net Weight		30kg (66lbs)
Color Temperature		2700-6500K
Color Rendering		≥Ra75 (≥Ra80, ≥Ra90 available on request)
Working Life		≥50000Hrs
Housing Material		Aluminum & Powder coating
Power Supply		Meanwell
IP Class		IP 67
IK Class		IK 10
Insulation Class		Class I
Working Temperature		-40C ~ 60C / -40F ~ 140F
Working Humidity		10% ~ 95%
AC Input		80~305Vac
DC Input		100 ~ 400Vdc, 500Vdc ~ 800Vdc
THD		<10%
Power Factor		≥0.98
Warranty	LED Module	5 years
	Driver	5 years
	Housing	10 years

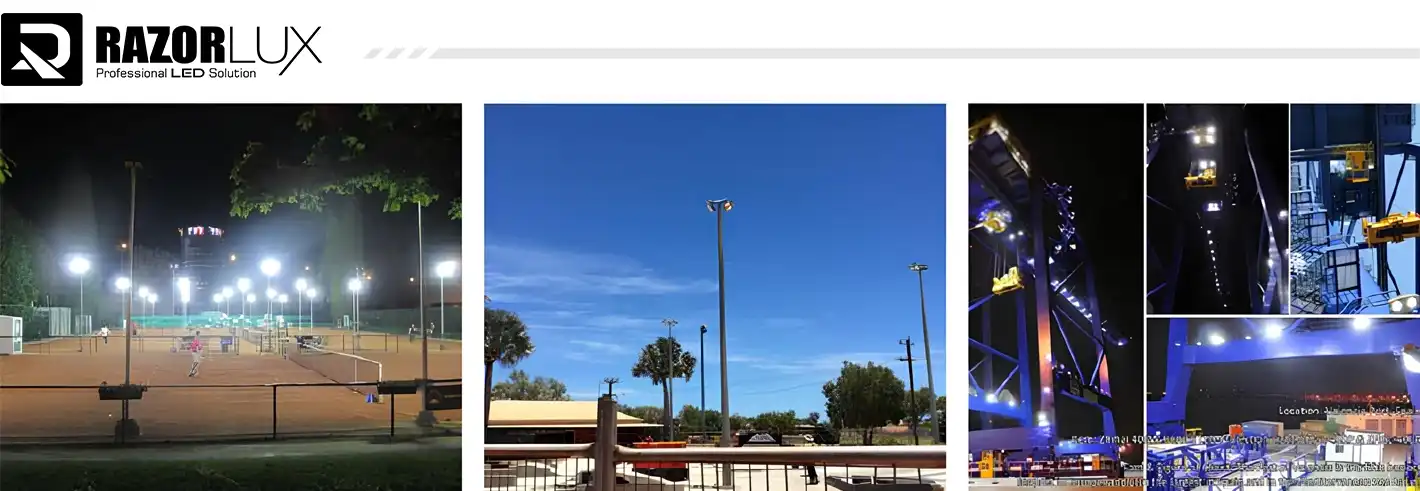

Applications

Where It's Used

Ports & Shipping Terminals

Challenge: 24/7 operations, saltwater corrosion, unstable power

Solution: IP67 sealing + C5M marine-grade coating + wide voltage tolerance

Case Study: Qingdao Port - 200 units installed 2019, zero failures logged

Mining Operations

Challenge: Dust, vibration, DC power systems

Solution: DC127-431V compatibility + reinforced housing

Certified for underground use. Narrow beam models available for face lighting.

Manufacturing Plants

Challenge: Continuous operation, chemical exposure

Solution: 50,000hr lifespan + chemical-resistant powder coating

Energy Savings: Replaces 1500W metal halide fixtures (save 33% on power bills)

Sports Stadiums

Challenge: Broadcast lighting, no flicker

Solution: Ra>75 color rendering + flicker-free drivers

Large outdoor flood lights meets FIA standards for televised events.

Large Outdoor Flood Lights

Why Buyers Choose Razorlux

19 Years Manufacturing LED Industrial Lights

· Est. 2006 in Xi'an, China

· 200+ lighting patents held

In-House Quality Control

· ISO9001 certified since 2001

· Every unit tested before shipping

· Automotive-grade failure analysis (DFMEA protocol)

Global Certifications

✓ UL (US/Canada) | ✓ CE (Europe) | ✓ DLC Premium (energy rebates)

✓ SAA (Australia) | ✓ CB (International) | ✓ RMRS (Marine)
Packaging and Transportation

Qualification Certification

Common Questions

Q: What's the actual lifespan in real-world use?

A: 50,000 hours to L70 (maintaining 70% brightness). In practice:

· 12hrs/day = 11+ years

· 24hrs/day = 5+ years

Q: Can I use this in coastal areas?

A: Yes. The C5M corrosion rating is the highest available—designed for offshore platforms and chemical plants. We've had units operating in saltwater spray zones for 8+ years.

Q: How does the warranty work if something fails?

A: Email us the serial number. We ship a replacement immediately (usually 3-5 days). No need to return the faulty unit first.

Q: Do you provide installation support?

A: We supply:

· CAD mounting drawings

· Free lighting calculations

· Phone/email tech support

For large projects (50+ units), we can arrange on-site commissioning.

Q: What's the lead time?

· Stock configurations: 7-10 days

· Custom specs: 3-4 weeks

· Bulk orders (100+ units): Contact for scheduling
