500W Halogen Floodlight Led Equivalent

Patented Multi-function design, suitable for all working environments.
Rated Power: 270W
Input Voltage:110-480Vac DC100 ~ 400Vdc, 500Vdc ~ 800Vdc
Color Temperature: 2700K-6500K
Lamp Efficiency: 130LM/W
Beam Angle: 40°, 60°, 120°, 140°x60°.
CRI: Ra>75
IP Grade: IP67
Bracket: Stainless Steel
Net Weight: 15KG
Warranty: 5 Years
Certificate: CE, RoHS, SAA, C-Tick, UL, DLC, CB, ISO:9001

Send Inquiry Download

Product Description

500W Halogen Floodlight LED Equivalent Manufacturer and Supplier

Outdated 500W halogen floodlight led equivalent, require consistent support, and come up short when you require them most.
Our mechanical Led arrangement delivers:

65,000 lumens (equivalent to 1000W+ halogen brightness)
50,000-hour life expectancy (25x longer than halogen bulbs)
Zero warm-up time • Instant full brightness

Trusted by 2,000+ offices around the world counting mining operations, holder ports, and fabricating plants in 47 countries.

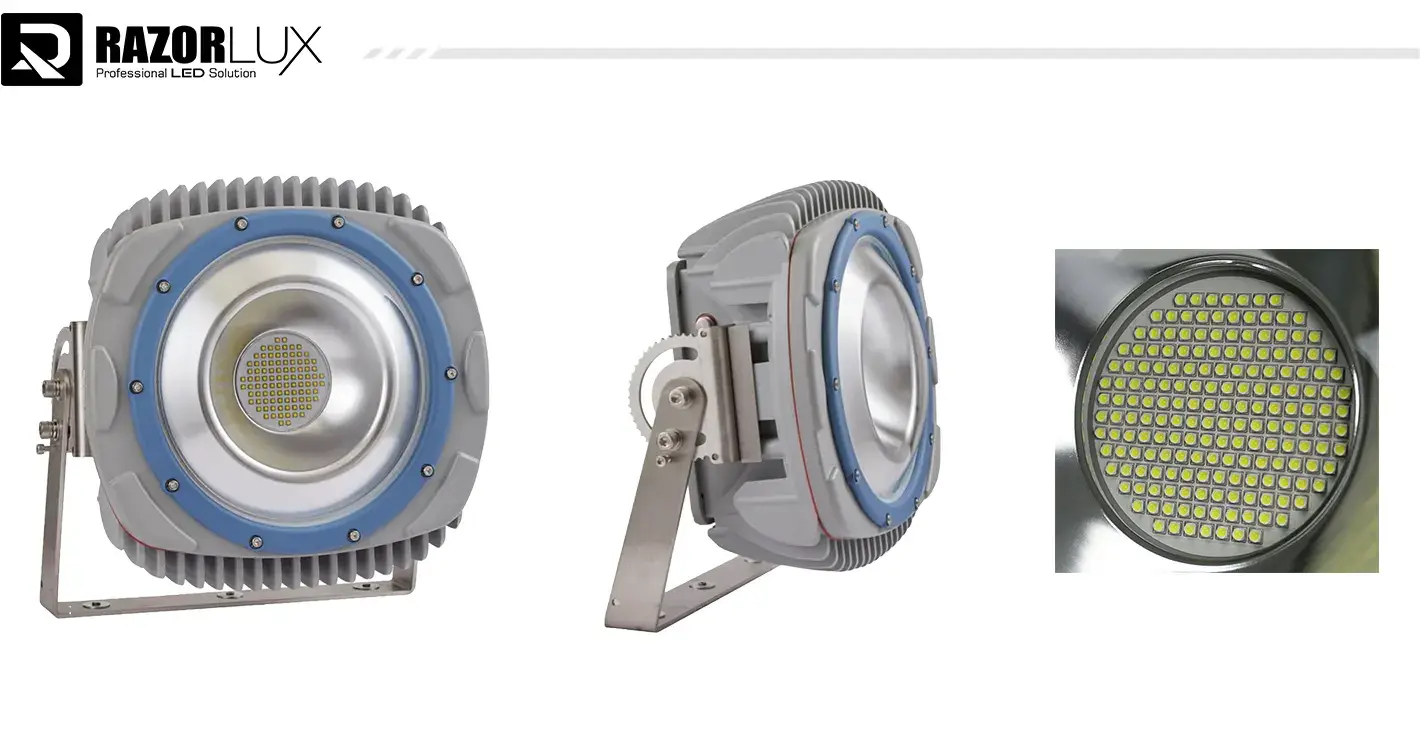

500W Halogen Floodlight Led Equivalent

Why Choose Our Product?

Our 500W halogen floodlight led equivalent offers numerous advantages over traditional halogen options:

Energy Efficiency: Consume up to 80% less power while maintaining brilliant illumination.
Long Lifespan: Enjoy up to 50,000 hours of operation, reducing replacement costs.
Robust Design: Built to withstand harsh environments with IP65/IP67 protection.
Versatile Applications: Perfect for construction sites, sports facilities, and outdoor events.
Customizable Options: Choose from various beam angles and color temperatures to suit your needs.

500W Halogen Floodlight LED Equivalent Specifications

Beam Angle & Installation Diagram

Model		RGL2-500A
Beam Angle		40° 60° 120° 140°
Stable Flux (5700K after 1 hour)		65000lm
Dimension (mm)		468388367
	LEDs	450W
Power	Driver	50W
Consumption	Total	500W
Replace HID Lamp		1000~1200W
Net Weight		15kg with stainless steel floodlight bracket
Color Temperature		2700-6500K
Color Rendering		≥Ra75 (≥Ra80, ≥Ra90 available on request)
Working Life		≥50000Hrs
Housing Material		Aluminum & Powder coating
Power Supply		Meanwell
IP Class		IP 67
IK Class		IK 10
Insulation Class		Class I
Working Temperature		-40C ~ 60C / -40F ~ 140F
Working Humidity		10% ~ 95%
AC Input		110-480Vac input voltage without additional adapter
DC Input		100 ~ 400Vdc, 500Vdc ~ 800Vdc
THD		<10%
Power Factor		≥0.98
Warranty	LED Module	5 years
	Driver	5 years
	Housing	10 years

Choose the right pillar for your application:

15°/20°: Long-distance spotlighting (100m+)
30°/40°: Centered work areas
60°: Common range lighting
120°: Wide border coverage
140°x60°: Asymmetric (stopping parts, facades)

Certifications & Compliance

✓ UL/DLC Listed (North America)
✓ CE/RoHS (Europe)
✓ SAA/C-Tick (Australia/NZ)
✓ ATEX Zone 2 (unstable environments - optional)
✓ ISO 9001:2015 Certified Factory
✓ IES LM-80 Tested (lumen maintenance)

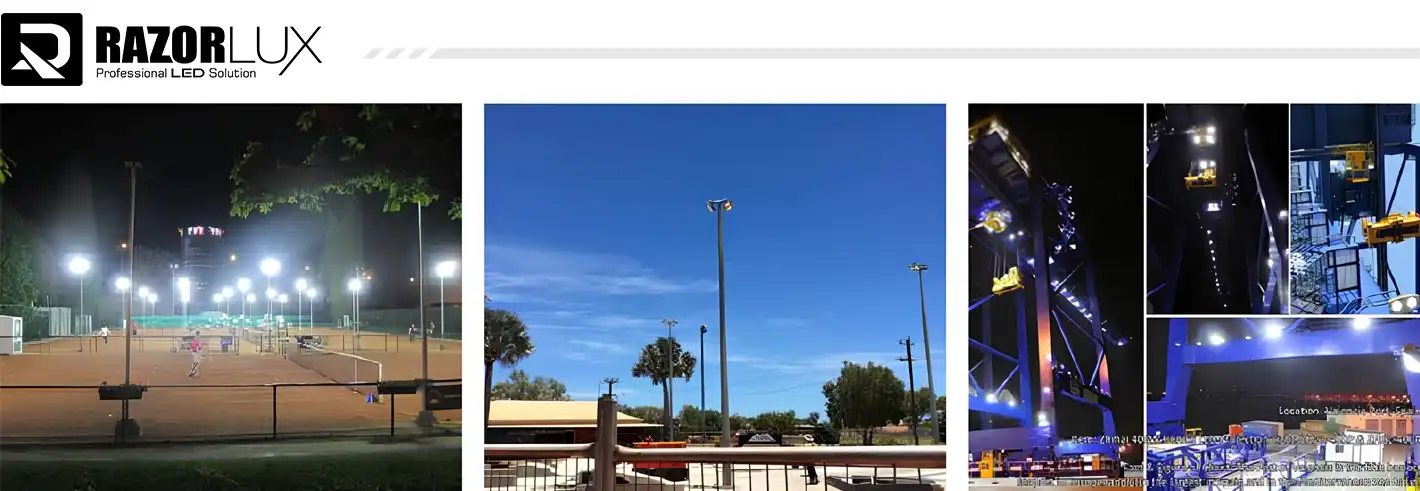

Built for Your Industry

Mining & Overwhelming Industry

·Challenge: Dust, vibration, corrosive atmospheres

·Solution: IP67 fixed lodging + strengthened stun mounts

·Proof: 500+ units working in Australian coal mines since 2019

Ports & Marine Facilities

·Challenge: Saltwater corrosion + 24/7 operation

·Solution: 316 marine-grade stainless steel + 5-year coastal guarantee

Construction Sites

· Challenge: Temporary power + rough handling

· Solution: 90-305V input + military-grade connectors

· Proof: Survived 3-year infrastructure project in Mongolia (-35°C winters)

Sports & Entertainment

· Challenge: Broadcast-quality color + instant-on

· Solution: CRI >80 option + zero flicker at 5000fps

· Proof: Used in 12 professional cricket stadiums across India

Warehouses & Logistics

· Challenge: High ceilings + energy costs

· Solution: 140°x60° asymmetric beam + smart dimming

· Proof: Cut lighting costs 73% for 250,000 sq ft Amazon facility

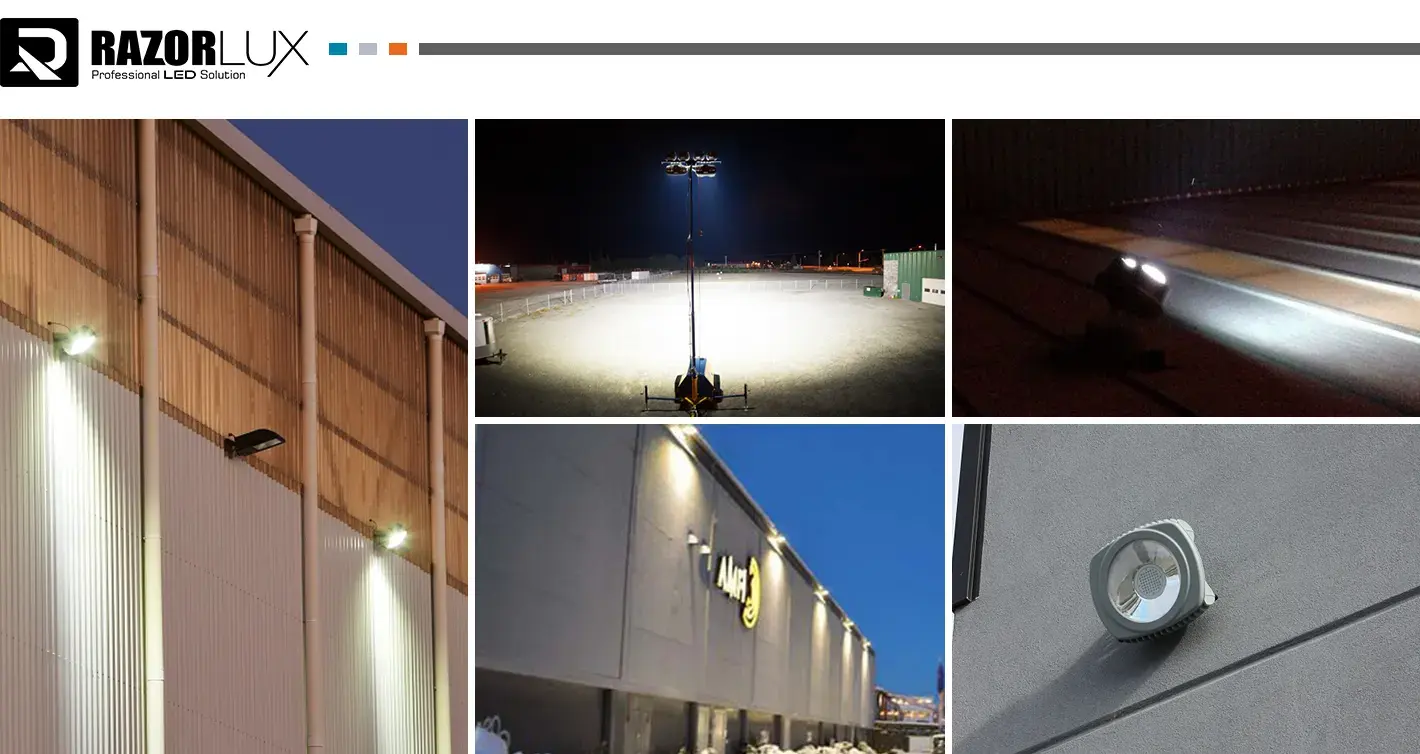

product-1-1

Installation & Customization

Flexible Mounting Options

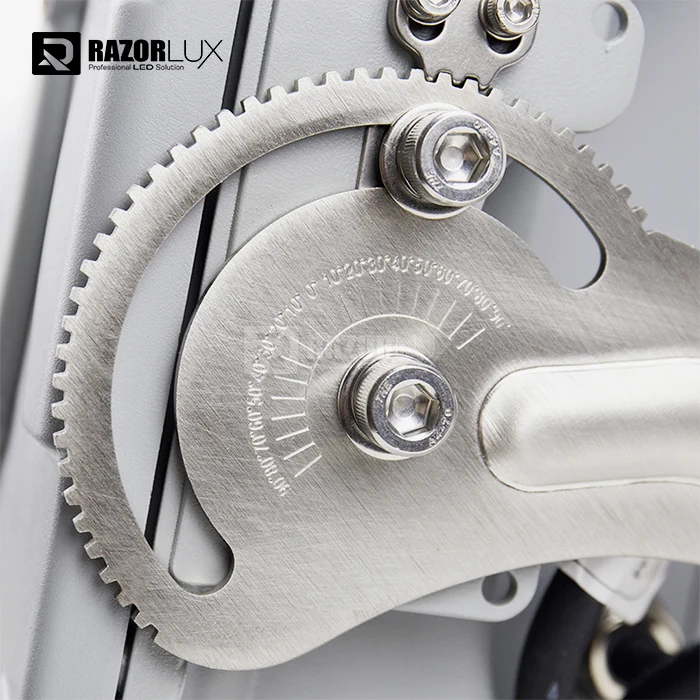

· Trunnion mount: Adjustable 0-180° (standard)

· Yoke mount: High-bay applications

· Pole mount: Parking lots & perimeters

· Explosion-proof: ATEX/IECEx zones

Professional Installation Support:

· Free CAD drawings with every order

· Remote video consultation during install

· On-site commissioning available (50+ unit orders)

product-1-1

Warranty & Support (We Stand Behind Our Products)

5-Year Worry-Free Warranty

Comprehensive Coverage:

· LED chips & driver electronics

· Housing & optics

· All mounting hardware

· Advanced replacement option (no downtime)

Failure Rate: <0.3% in first 5 years (industry avg: 2.1%)

Lifetime Technical Support

· 24/7 emergency hotline

· Live chat with lighting engineers

· Video troubleshooting within 2 hours

· Replacement parts available for 10+ years

Frequently Asked Questions

How bright is this compared to my current 500W halogen?

Most 500W incandescent lamp create 8,000-10,000 lumens. Our 500W Led outputs 65,000 lumens—that's 6-8x brighter. You'll likely require less installations to accomplish superior light.

Will this work in explosive/hazardous locations?

Our standard demonstrate is appraised for common mechanical utilize (Class I Div 2 compatible). For ATEX Zone 1/2 or NEC Course I Div 1, we offer certified explosion-proof lodgings.

Can I control these with my building administration framework?

Yes. We support:

· 0-10V dimming (most common BMS)

· DALI-2 protocol

· Modbus RTU/TCP

· DMX512 (entertainment venues)

· Custom API integration for IoT platforms

What if I need a different voltage (e.g., 48VDC for solar)?

The standard model accepts DC 127-431V. For low-voltage DC systems (12V/24V/48V), we manufacture specialized drivers.
