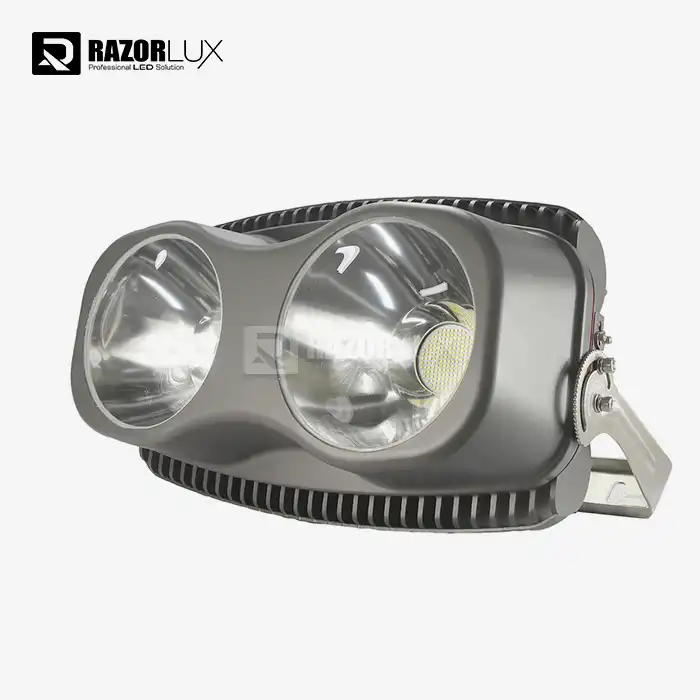

800W Led Flood Light

800W Led Flood Light | Razorlux High-Power Lighting Systems

Replace your 2000W metal halide fixtures with Razorlux's 800W Led Flood Light and cut energy costs by 65%. Engineered for ports, stadiums, and mining sites operating 24/7, this high-output fixture delivers 104,000 lumens with IP67 waterproofing and -40°C to +55°C temperature tolerance. Available with UL, DLC, and C5M marine certifications for compliance in demanding North American and coastal projects.

800W Led Flood Light Specifications

​​​​​​​

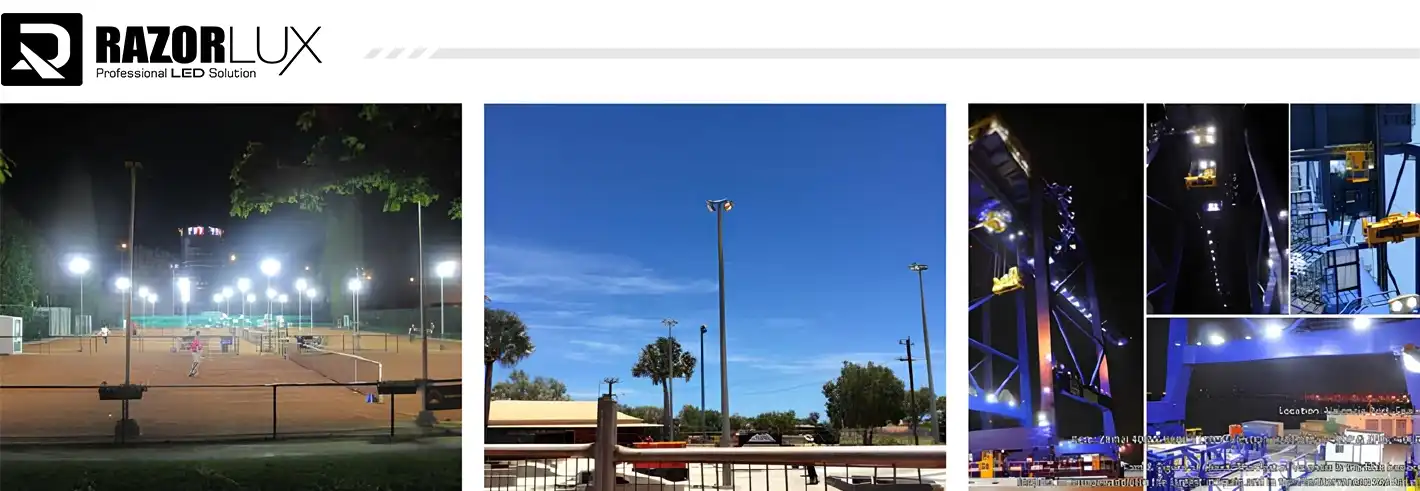

Where This Fixture Excels

Port & Marine Terminals

We are used at container ports in Los Angeles and Vancouver on 40m high masts. Our 800W Led Flood Light. The C5M coating withstands continuous salt spray and a broad voltage input (90-305V AC) accommodates power fluctuations during crane operations. Dockworkers claim 40% improved visibility than prior 1500W metal halide systems.

Beam Recommendation: 15° or 20° at heights above 30m

Sports Stadiums & Arenas

This fixture is designed to meet 4K broadcast needs with flicker-free performance at 120/240fps. Whereas metal halide systems need a 15-minute wait before restart, LED technology allows for rapid re-ignition after power loss. For most minor league baseball stadiums, 60-80 units will provide you with 150 foot candles on the field.

Broadcast Upgrade: CRI>90 option for premium setups

Mining & Heavy Industrial Sites

At open-pit mines in Arizona and quarries in Ontario, the fixture’s IP67 classification means it can stand up to pressure-washing and dust storms. Reliable ignition in winter operations is assured by the -40°C cold-start capability. Brackets are vibration resistant to hold beams in place despite blasting and heavy machine traffic nearby.

Configuration Note: DC voltage models (127-431V) for off-grid solar systems available

Infrastructure & Transportation

Highway interchanges, airport aprons and rail yards attain 30-50 lux consistency with careful placement. The DLC Premium certification is valued by utility rebates (check your local program) for DOT projects. The decrease in energy consumption by 70% greatly reduces the operating expenses of 24/7 systems.

What Distinguishes Razorlux Engineering

Manufacturing Credentials

Since 2001, our Xi’an plant has been ISO 9001 certified. All fixtures are subject to 72-hour burn-in, 10kV surge protection verification, and salt spray chamber testing to ASTM B117 requirements. We have TüV-certified testing facilities and are working on thermal management research with Xi’an Jiaotong University.

Quality Control Process

· LED Binning: <3 MacAdam steps between fixtures for color consistency

· Thermal Testing: Junction temperature monitoring at 55°C ambient temperature of 85°C

· Surge Protection: 10kV/20kV transient voltage testing (exceeds UL standard)

· Photometric Validation: Sphere testing according to IES LM-79 requirements

​​​​​​​

​​​​​​​

Common Technical Questions

Q: What is the real life in hours?

A: L70 rated life is 60,000 hours (approx. 10 years of 16 hours/day operation). This is the moment when the output drops to 70% of the starting lumens. Driver components have a lifespan of over 100,000 hours in regulated temperature settings.

Q: How do I figure out how many fixtures I need?

A: Depending on the mounting height, needed lux levels and area size. For general area lighting a reference is 4x800W on 30 m poles lighting up around 10,000 m2 (15-20 lux).

Q: Will this withstand the voltage surges of backup generators?

A: Yeah. The broad input range (90-305V AC) has built-in surge suppression suitable for 10kV transients. For facilities with frequent generator switching or poor grid connections, whole-facility surge protection is recommended.

Q: How much may the dimming range be?

A: Standard models include 0-10v dimming (10-100% range). DALI and DMX512 protocols for theatrical or architectural applications needing scene management. Dimming decreases energy consumption in proportion and increases the lifetime of LEDs.

Q: What's the lead time for custom voltage or beam angles?

A: Standard configurations (120-277V, common beam angles) ship within 3-5 business days. Custom specifications require 4-6 weeks for production with minimum order quantities of 10-20 units depending on modification scope.
