110 Volt LED Flood Lights

Xi'an Razorlux offers high-quality 110 volt led flood lights made for tough work environments.The 120W light is very efficient, giving 130 lumens per watt, and works with a wide range of voltages from 90V to 305V.It's made from strong marine-grade stainless steel and has IP67 water resistance, making it tough in harsh conditions.The light lets you choose different color temperatures and has seven options for how the light spreads.It comes with certifications from UL, DLC, and CE, and has a 5-year warranty.These lights are used in places like ports, chemical plants, mining areas, and other heavy industries in 54 countries.

​​​​​​​

110 Volt LED Flood Lights Specifications

Core Advantages

Universal Voltage Compatibility

Operates seamlessly across AC90-305V without voltage stabilizers. Handles power fluctuations in industrial grids caused by heavy machinery startups. Also supports DC127-431V input for solar systems and backup generators—ideal for off-grid mining sites and remote infrastructure projects.

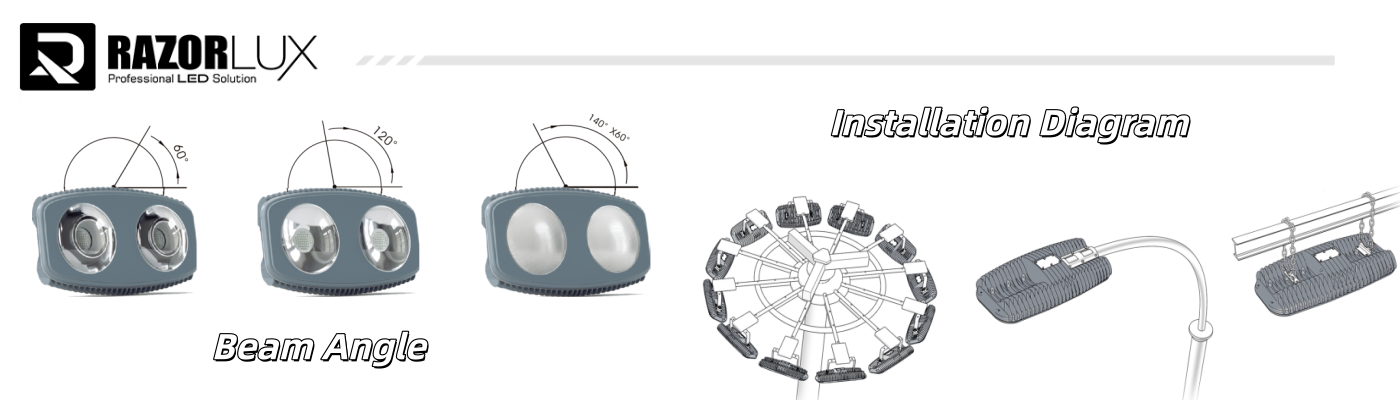

Seven Precision Beam Angles

Match lighting to specific tasks:

· 15°-40° Narrow Beams: Long-range perimeter security (50m+ throw distance)

· 60°-120° Wide Flood: Loading docks, warehouses, parking lots

· 140°×60° Asymmetric: Pathway illumination with zero light trespass

This eliminates overlighting and reduces energy waste by 30-40% compared to fixed-beam fixtures.

Marine-Grade Corrosion Resistance

C5M-rated stainless steel brackets and housing withstand:

· Salt fog exposure in coastal ports

· Chemical vapors in processing plants

· High-pressure washdowns (IP67 submersion protection)

Our 110 volt led flood lights maintain structural integrity in Category 5 hurricane conditions. Customers in Gulf Coast refineries report zero corrosion after five years of continuous outdoor operation.

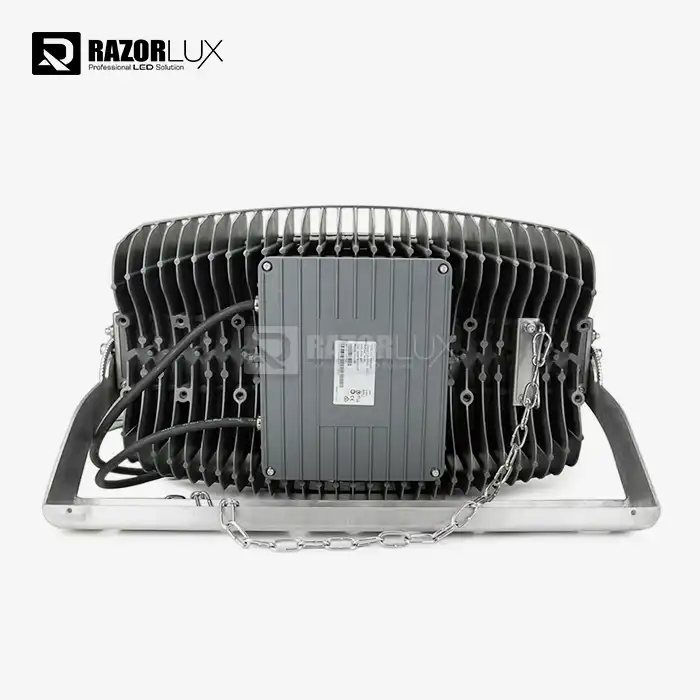

Advanced Thermal Management

Patented fin architecture keeps LED junction temperature below 85°C in 50°C ambient conditions. This prevents the lumen degradation common in poorly cooled fixtures:

· Standard LEDs: 40% brightness loss at 20,000 hours

· Razorlux LEDs: Maintain 70% output at 50,000 hours (L70 standard)

Lower operating temperatures extend driver lifespan, reducing maintenance costs by 60% over five years.

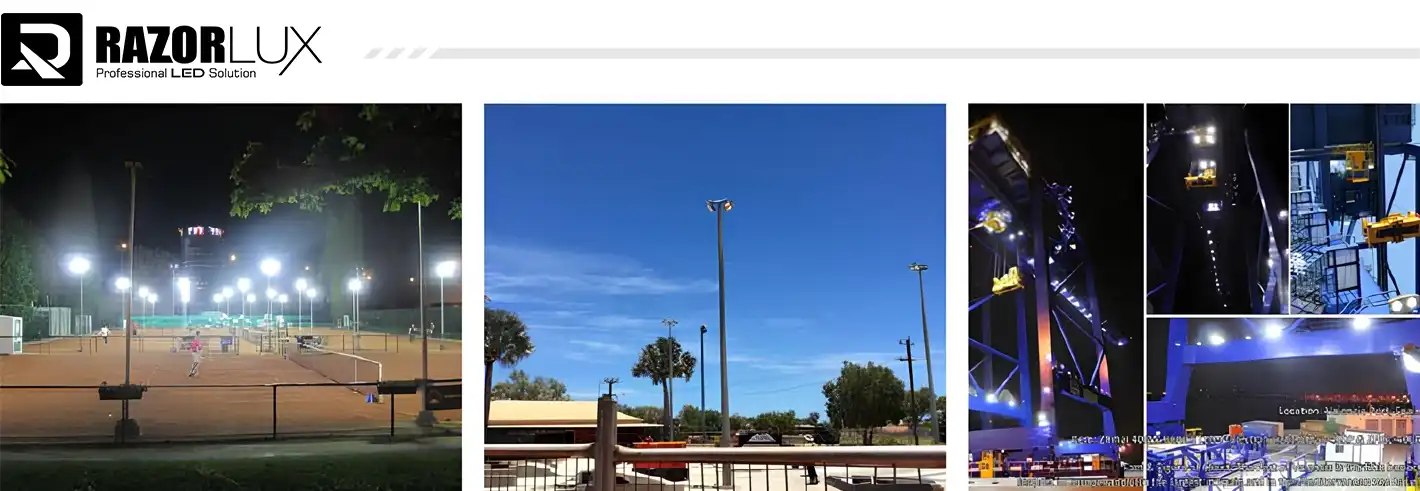

Applications

Ports & Cargo Terminals

Container terminals need constant visibility for crane operators.
Our lights have special beam shapes that light up stacked containers without causing bright reflections.They also have 6KV protection that helps during lightning strikes in areas near the sea.These lights can handle changes in power levels that happen when cranes are working.

Chemical & Petrochemical Plants

Our lights are safe to use in places where there are dangers, like areas with flammable vapors.
The metal bodies are made of stainless steel, which helps stop acid vapors from causing damage.The lights produce a high color rendering index, so labels and warning signs can be seen clearly.They are also waterproof and dustproof, which helps during emergency cleaning.

Mining & Extraction Sites

In underground mines, lights must work in tough conditions like vibrations, dust, and unstable power from portable generators.
The strong metal housing can take hits from falling rocks.The lights can be mounted in different ways to fit in tight spaces or on uneven ground.

Heavy Manufacturing

In steel mills and foundries, the temperature is often very high and there's metal dust in the air.
Our lights are designed to keep working even in these tough conditions, where regular lights stop working after 8 to 12 months.They also handle power changes that happen with the big machines used in melting metal.
​​​​​​​

Infrastructure & Transportation

Highway changes benefit from lights that last for 50,000 hours, which means less time is needed for maintenance and lane closures.
In tunnels, lights can work on both AC and DC power, which is useful for backup systems.In rail yards, narrow light beams help make signals more visible.

Commercial Outdoor Spaces

In parking lots, our lights use efficient technology that saves 40% of energy.
They give 130 lumens per watt.For building exteriors, the lights can adjust their color temperature from warm to cool white, matching the look of the building.The strong construction also helps prevent damage from people breaking things in public areas.

Frequently Asked Questions

Q1: Can these fixtures operate on both 110V and 277V commercial voltage?

Yes. The AC90-305V input range covers 110V, 220V, 240V, and 277V systems without modification. Always verify the voltage label on the driver before installation. For specialized voltage requirements, consult our technical team.

Q3: Are these lights dimmable with standard wall switches?

Dimming requires specific drivers. Options include:

· 0-10V Dimming: Commercial building automation systems

· DALI Protocol: Advanced lighting controls

· TRIAC Dimming: Residential-style wall dimmers (requires compatible driver)

Specify dimming requirements during order. Non-dimmable drivers cannot be retrofitted.

Q4: What causes LED flood lights to flicker?

Flickering typically results from:

· Incompatible dimmer switches (use LED-rated dimmers)

· Voltage instability in the electrical supply

· Low-quality drivers with inadequate filtering

Razorlux drivers include high-capacity capacitors to smooth DC current and eliminate flicker at 60Hz line frequency.

Q5: How do I select the correct beam angle?

Consider mounting height and coverage area:

· 15°-30°: High-mast lighting (20m+ mounting height)

· 40°-60°: General area lighting (8-15m mounting height)

· 120°: Low-bay applications (5-8m mounting height)

· 140°×60°: Asymmetric wall packs and pathway lighting
