floodlight led 400w
Rated Power: 400W
Input Voltage: AC90-305, DC127-431
Color Temperature: 2700K-6500K
Lamp Efficiency: 130LM/W
Beam Angle: 15°, 20°, 30°, 40°, 60°, 120°, 140°x60°.
CRI: Ra>75
IP Grade: IP67
Bracket: Stainless Steel
Net Weight: 15KG
Warranty: 5 Years
Certificate:RMRS CE, RoHS, SAA, C-Tick, UL, DLC, CB, ISO:9001
- Product Description

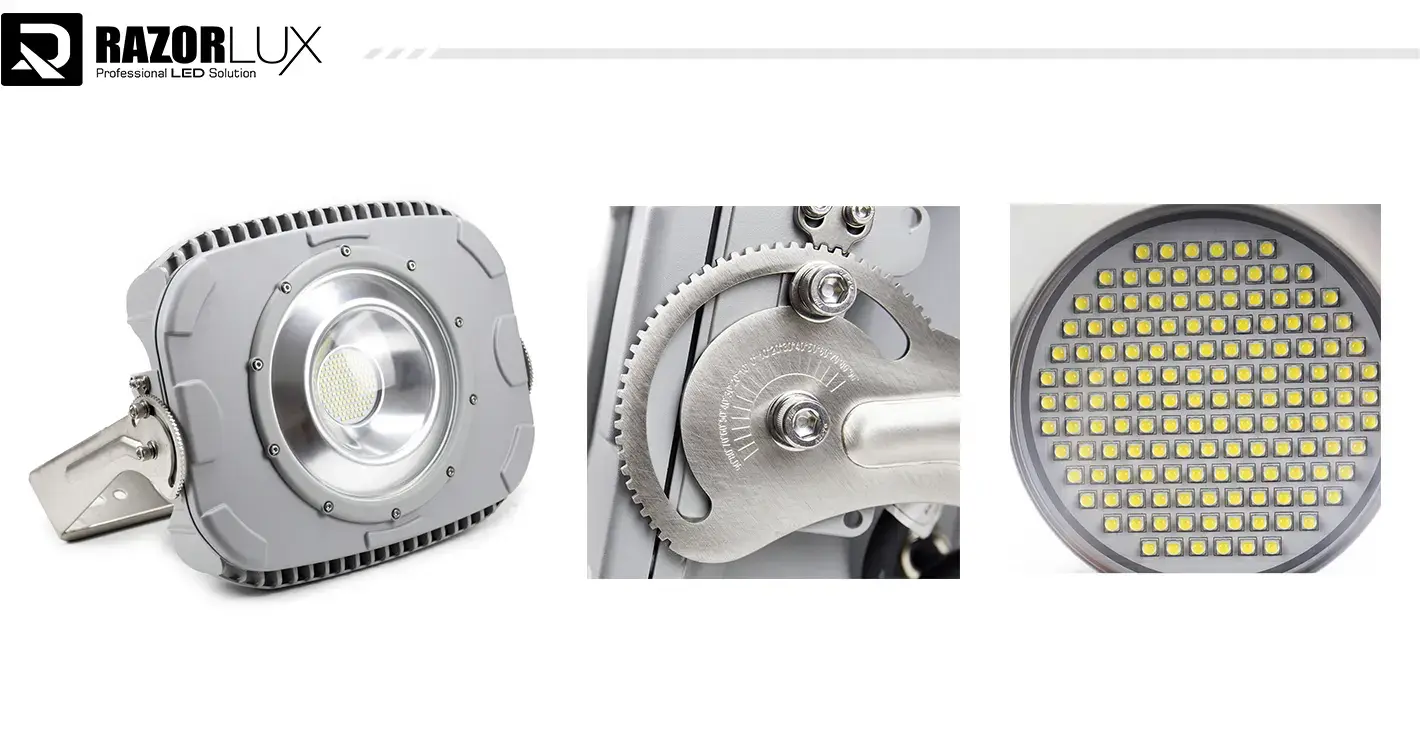

Professional Floodlight LED 400W - High-Efficiency Industrial Lighting Solution
Product Introduction
Looking for effective, dependable mechanical lighting? Our floodlight led 400w conveys remarkable execution for your most requesting applications. This professional-grade lighting arrangement combines cutting-edge innovation with strong development to give extraordinary light for marine, mechanical, and open air situations. With 130LM/W proficiency and protected multi-function plan, this 400W Driven floodlight guarantees ideal lighting execution whereas minimizing vitality utilization. Built to withstand cruel conditions, it highlights IP67 assurance and works over wide voltage ranges.
Specification
Model | RGL2-400A | |
Beam Angle | 40° 60° 120° 140° | |
Stable Flux (5700K after 1 hour) | 52000lm | |
| LEDs | 360W |
Power | Driver | 40W |
Consumption | Total | 400W |
Replace HID Lamp | 800~1000W | |
Net Weight | 15kg with stainless steel floodlight bracket | |
Color Temperature | 2700-6500K | |
Color Rendering | ≥Ra75 (≥Ra80, ≥Ra90 available on request) | |
Working Life | ≥50000Hrs | |
Housing Material | Aluminum & Powder coating | |
Power Supply | Meanwell | |
IP Class | IP 67 | |
IK Class | IK 10 | |
Insulation Class | Class I | |
Working Temperature | -40C ~ 60C / -40F ~ 140F | |
Working Humidity | 10% ~ 95% | |
AC Input | 110-480Vac input voltage without additional adapter | |
DC Input | 100 ~ 400Vdc, 500Vdc ~ 800Vdc | |
THD | <10% | |
Power Factor | ≥0.98 | |
Warranty | LED Module | 5 years |
| Driver | 5 years |
| Housing | 10 years |

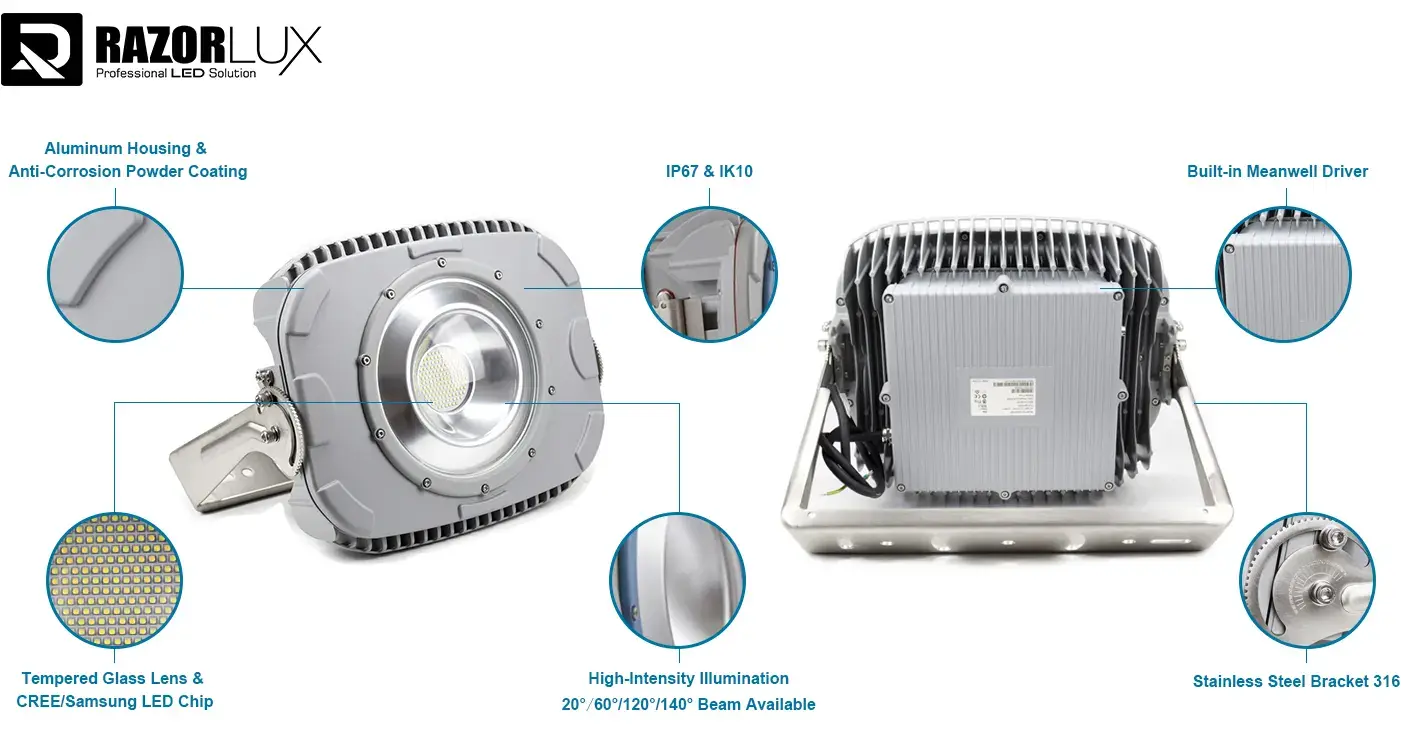

Why Choose Our Floodlight LED 400W?
Our 400W Driven floodlight stands out through prevalent building and demonstrated unwavering quality. With licensed multi-function plan, it adjusts to different working situations consistently. The remarkable 130LM/W effectiveness decreases working costs whereas conveying brilliant light. Numerous pillar point choices guarantee exact light conveyance for your particular needs.
The vigorous stainless steel bracket withstands destructive situations. Wide voltage compatibility (AC90-305V, DC127-431V) gives establishment adaptability. IP67 assurance ensures solid operation in cruel climate conditions. Our 22-year ISO9001 certification illustrates steady quality commitment.
Application
Our floodlight Driven 400W serves different mechanical and commercial applications:

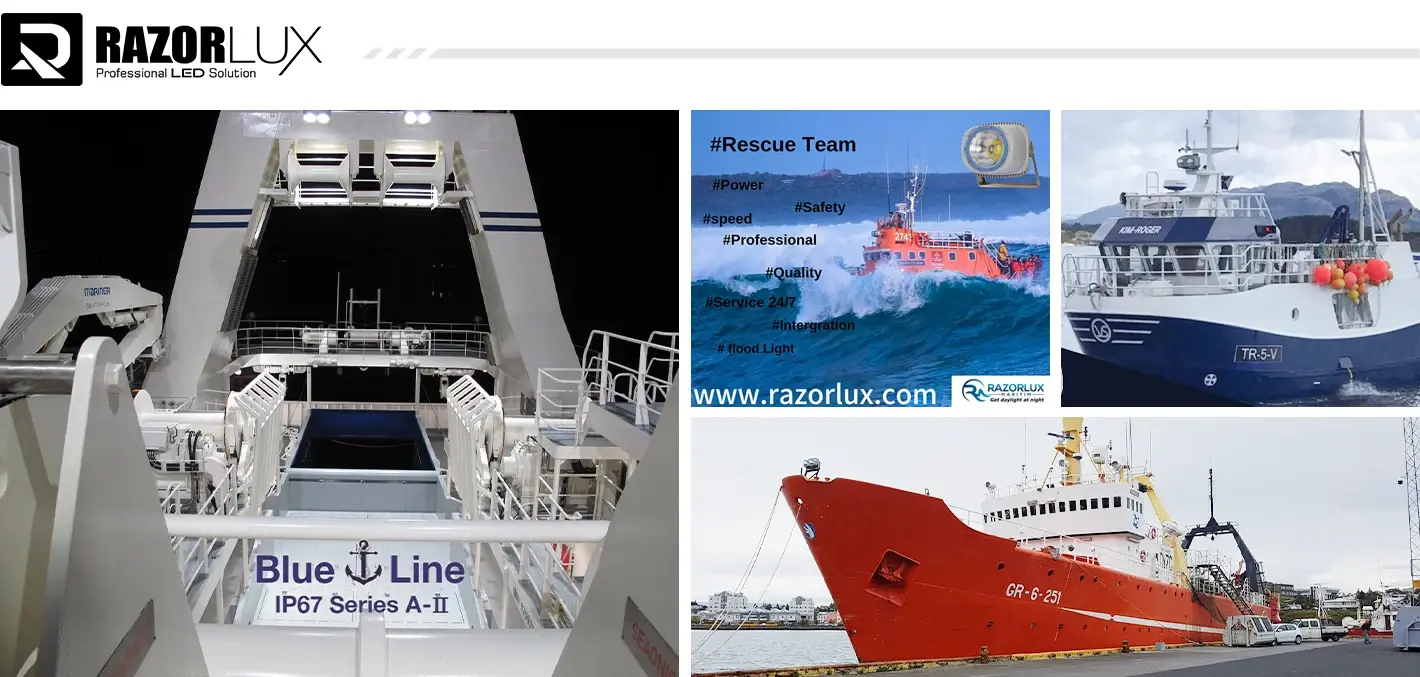

• Marine Situations: Dispatch decks, ports, seaward stages, and dock offices requiring corrosion-resistant lighting
• Mechanical Offices: Stockrooms, fabricating plants, stacking regions, and hardware yards requiring high-intensity illumination
• Sports Offices: Tennis courts, ball courts, football areas, and open air recreational areas
• Development Locales: Building ventures, street development, and framework improvement requiring transitory or lasting lighting
• Mining Operations: Open-pit mines, preparing offices, and gear regions requesting tough, solid lighting solutions
• Air terminal Ground Bolster: Airplane support zones, cargo dealing with zones, and ground benefit gear operations
• Railroad Stations: Stage lighting, support yards, and cargo terminals requiring uniform light distribution
• Stopping Regions: Expansive commercial stopping parcels, truck stops, and vehicle capacity facilities
• Crisis Administrations: Fire stations, emergency vehicle warehouses, and protect operation centers requiring moment, shinning illumination
• Agrarian Applications: Animals offices, preparing plants, and capacity zones requiring reliable lighting performance
Quality Control
We keep up strict quality guidelines through comprehensive testing methods. Each unit experiences thorough execution approval some time recently shipment. Our quality control framework incorporates warm testing, electrical parameter confirmation, and weathering resistance evaluation.
Our Xi'an Driven Lighting Building Research facility guarantees reliable item brilliance. Each floodlight led 400w meets universal certification prerequisites. We perform 100% manufacturing plant review to ensure unwavering quality and execution standards.

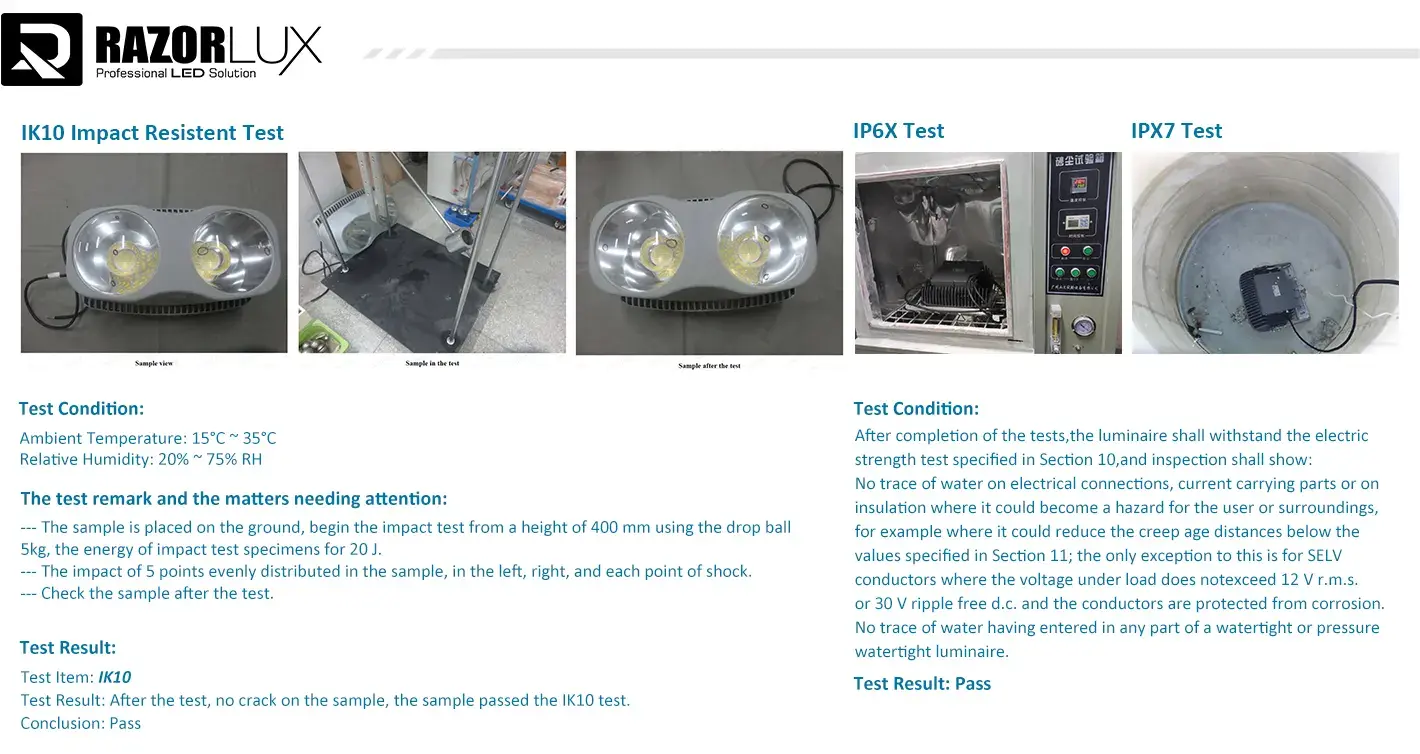

IP67 & IK10 Testing
Our products have passed the IP67 test, according to Clause 9.2 of IEC 60598-1:2020) and the IK10 impact resistance test,in accordance with IEC 62262:2002.

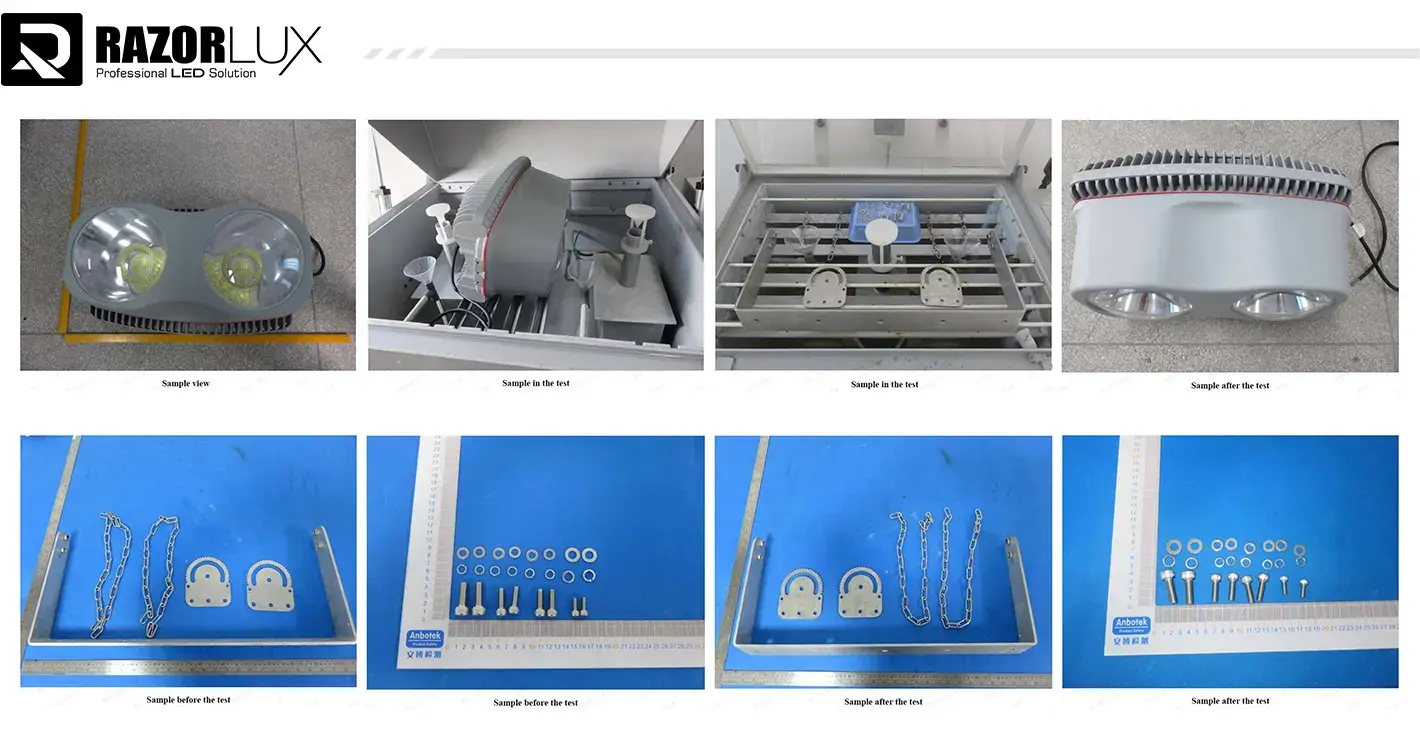

Salt Spray Testing
Shipment Samples
We give customized tests for extend assessment. Test orders regularly transport inside 3-5 trade days. This permits you to confirm execution details some time recently bulk requesting. Test expenses are refundable with consequent orders assembly least quantities.
Packaging and Transportation
Professional bundling guarantees secure conveyance. Each unit incorporates defensive froth cushioning and dampness boundaries. We offer numerous shipping alternatives counting discuss cargo, ocean cargo, and express conveyance. Following data is given for all shipments.
| Transportation Time | Shipping Option Details | Recommend Weight |
| 3-7 days | International Express(DHL, FedEx, UPS, TNT, etc.) | 0.5KG-300KG(optimal for cost efficiency under our contarated express rates) |
| 5-10 days | By Air (Airport-to-port or Airport-to-door) | 300KG+(Significantly more economical than express shipping for heavy cargo) |
| 18-22 days | By Rail(China-Europe Railway Express) | 2CBM/500KG+(More economical than air freight for large shipment with flexible timelines) |
| 15-50 days | By Sea(FLC/LCL) | 2CBM/500KG+(Much more economical than rail,suit for non-urgent cargo, also the most cost-effective shipping method) |

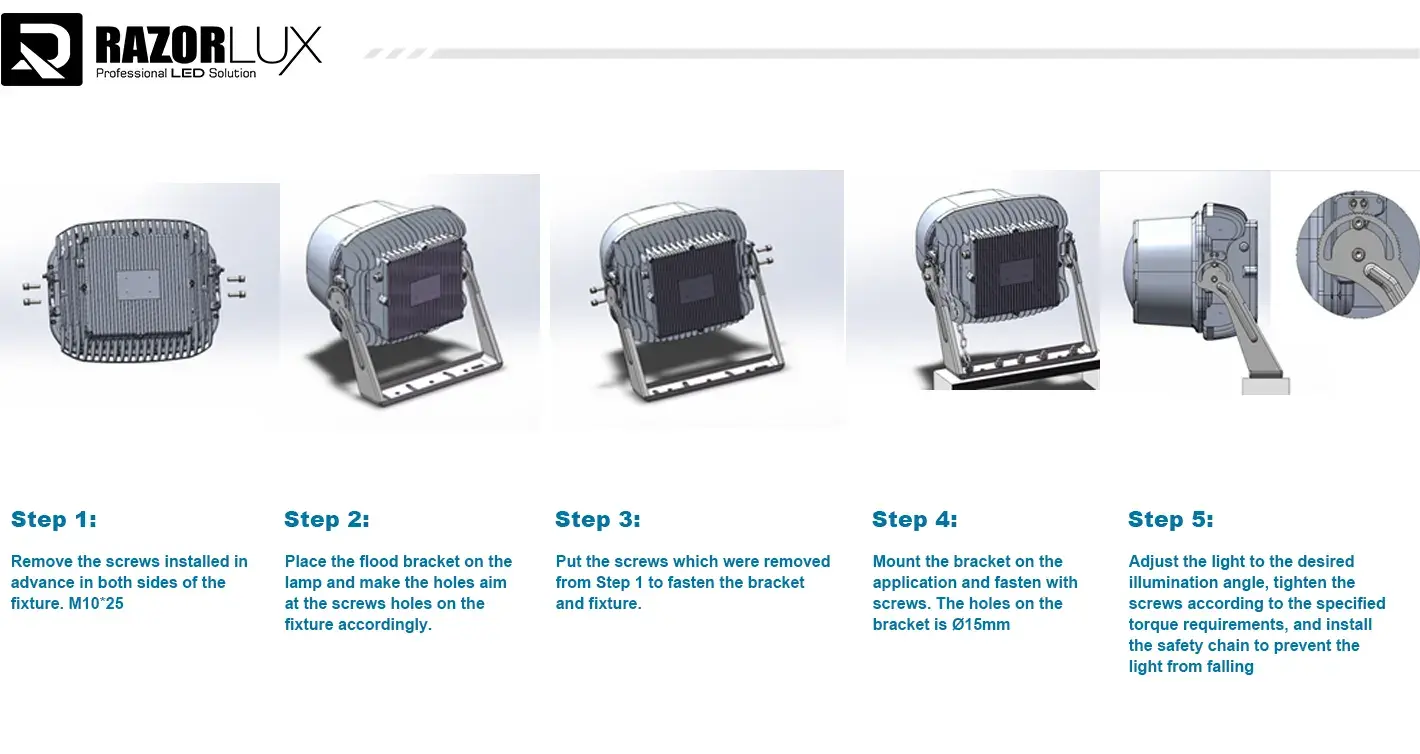

Installation Guide
Our lights have 3 differenet installation ways, there are flood light U-bracket, street light slip-fitter, and pendant lighting chain mounting accessory. Below our flood light installation guide for your reference.

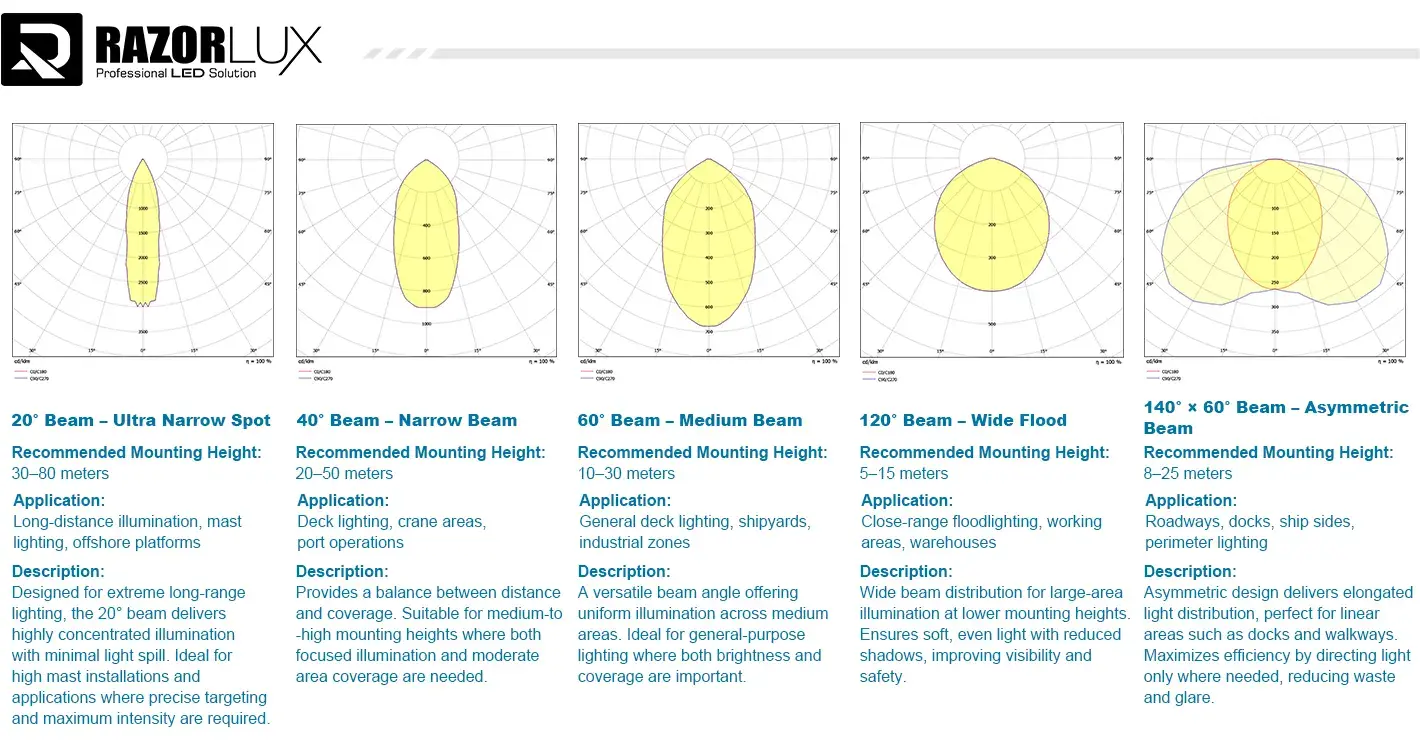

Beam Angle Options
We provide multiple beam angle options for all our models 90w-1200w, they are 20 degree, 40 degree, 60 degree, 120 degree and asymmetrical 140x60 degree. suit for different mounting height and applications.
Transaction Feedback
Customer fulfillment drives our nonstop change. We esteem your venture input and execution assessments. Normal communication guarantees your lighting needs are reliably met all through the partnership.
After Sales Service
Comprehensive bolster proceeds past conveyance. Our specialized group gives establishment direction and investigating help. The 5-year guarantee covers fabricating absconds and execution issues. Substitution parts are promptly accessible when needed.
Qualification Certification
Our certifications incorporate RMRS, CE, RoHS, SAA, C-Tick, UL, DLC, and CB compliance. ISO9001 quality administration framework has been kept up since 2001. These certifications guarantee worldwide showcase acknowledgment and administrative compliance.
FAQ
Q: What is the lifespan of this product?
A: Our 400W LED floodlight offers 50,000+ hours of operation with minimal light degradation.
Q: Can the beam angle be customized for specific applications?
A: Yes, we offer multiple beam angles (15°, 20°, 30°, 40°, 60°, 120°, 140°x60°) and can customize based on requirements.
Q: Is dimming functionality available?
A: We provide 0-10V and DALI dimming options for flexible lighting control systems.
Q: What mounting options are included?
A: Standard stainless steel bracket is included. Custom mounting solutions are available upon request.
Q: How does the wide voltage range benefit installation?
A: AC90-305V and DC127-431V compatibility eliminates voltage regulation requirements in most applications.
Q: What warranty coverage is provided?
A: We offer comprehensive 5-year warranty covering manufacturing defects and performance degradation.
Contact Us
Ready to upgrade your lighting system? Contact our floodlight led 400w specialists for personalized consultation and competitive pricing.
