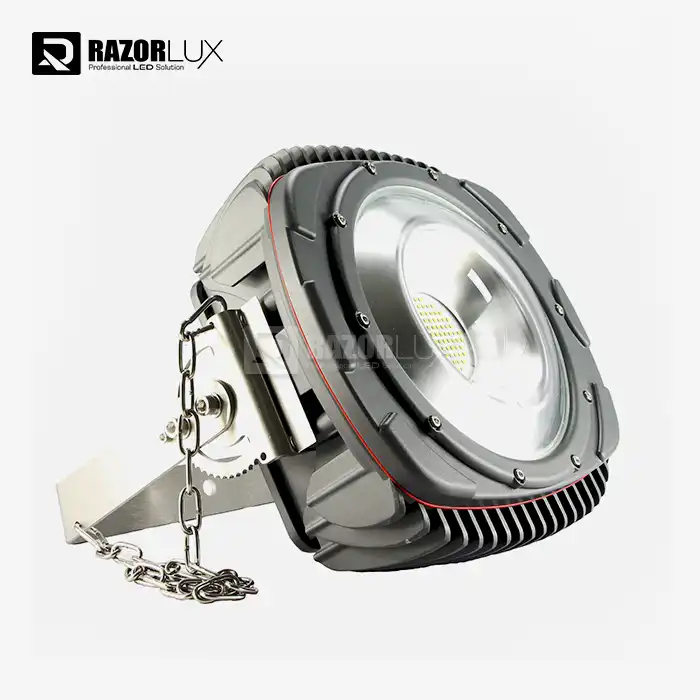

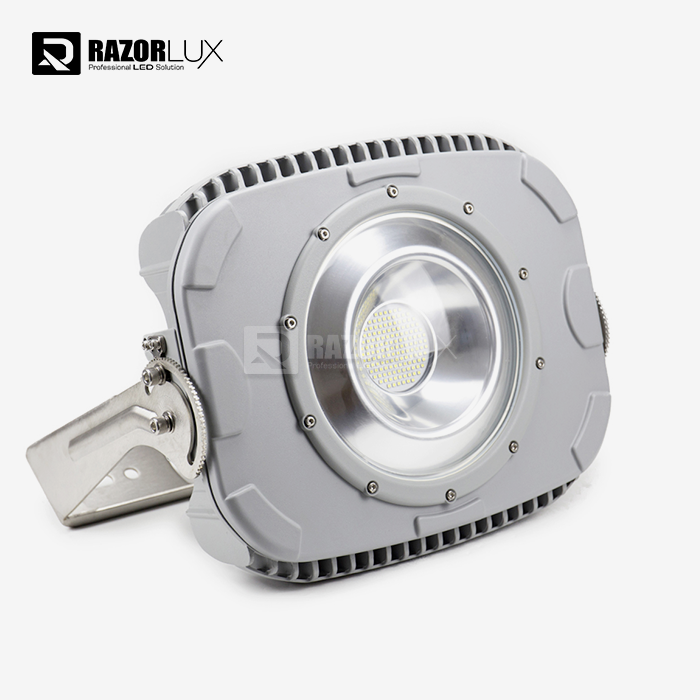

Outdoor Ground Flood Lights

Patented Multi-function design, suitable for all working environments.
Rated Power: 400W
Input Voltage: AC110-480Vac, DC100 ~ 400Vdc, 500Vdc ~ 800Vdc
Color Temperature: 2700K-6500K
Lamp Efficiency: 130LM/W
Beam Angle: 40°, 60°, 120°, 140°x60°.
CRI: Ra>75
IP Grade: IP65/IP67
Bracket: Stainless Steel
Net Weight: 15KG
Warranty: 5 Years
Certificate: CE, RoHS, SAA, C-Tick, UL, DLC, CB, ISO:9001

Send Inquiry Download

Product Description

Outdoor Ground Flood Lights - Industrial Grade Lighting Solution

Product Overview

The 400W outdoor ground flood lights from Razorlux provide strong lighting for commercial and industrial settings. With an IP67 waterproof rating and broad voltage compatibility (AC90-305V), it is ideal for harsh settings. With a 5-year guarantee and international certifications including UL, DLC, and CE, the beam angles range from 15° to 140°x60°.

Outdoor Ground Flood Lights

Outdoor Ground Flood Lights Specifications

Beam Angle & Installation Diagram

Model		RGL2-400A
Beam Angle		40° 60° 120° 140°
Stable Flux (5700K after 1 hour)		52000lm
	LEDs	360W
Power	Driver	40W
Consumption	Total	400W
Replace HID Lamp		800~1000W
Net Weight		15kg with stainless steel floodlight bracket
Color Temperature		2700-6500K
Color Rendering		≥Ra75 (≥Ra80, ≥Ra90 available on request)
Working Life		≥50000Hrs
Housing Material		Aluminum & Powder coating
Power Supply		Meanwell
IP Class		IP 67
IK Class		IK 10
Insulation Class		Class I
Working Temperature		-40C ~ 60C / -40F ~ 140F
Working Humidity		10% ~ 95%
AC Input		110-480Vac input voltage without additional adapter
DC Input		100 ~ 400Vdc, 500Vdc ~ 800Vdc
THD		<10%
Power Factor		≥0.98
Warranty	LED Module	5 years
	Driver	5 years
	Housing	10 years

Applications

Key Features

Extreme Weather Protection

The IP67-rated casing is resistant to dust, severe rain, and brief submersion in water. Suitable for challenging industrial settings, it functions dependably in temperatures ranging from -40°C to +55°C.

Wide Voltage Compatibility

Voltage variations between AC90-305V and DC127-431V are handled by integrated surge protection. protects against voltage spikes up to 10KV, making it perfect for locations with generator power or unreliable power systems.

Flexible Lighting Control

To suit your particular application, select from seven beam angle choices. DALI protocol, wireless control integration, and 0–10V dimming are all available for smart building systems.

Outdoor Ground Flood Lights

Superior Thermal Management

Consistent performance over more than 50,000 running hours is guaranteed by an advanced heat dissipation design. keeps the LED junction at the ideal temperature for a longer lifespan and consistent light output.

Global Safety Compliance

Crtified to satisfy performance and safety requirements in maritime settings (C5M corrosion resistance), North America (UL), Europe (CE), and Australia (SAA).

Outdoor Ground Flood Lights

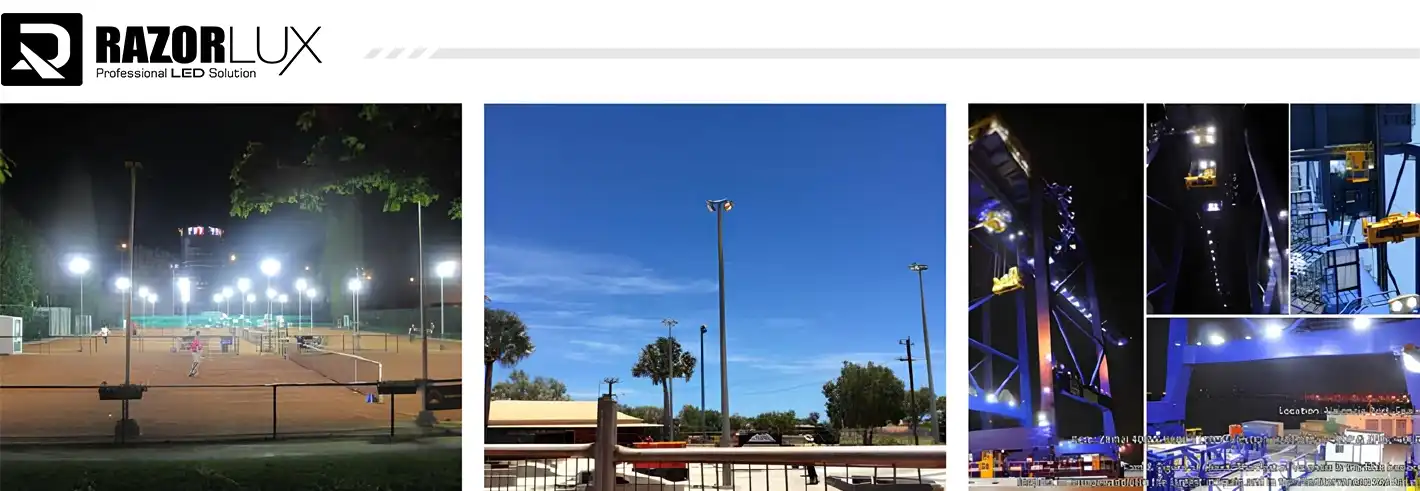

Common Applications

Industrial Facilities

· Warehouse perimeters and loading docks

· Manufacturing plant security lighting

· Logistics center outdoor areas

Commercial Properties

· Building facade illumination

· Hotel and resort exteriors

· Shopping center parking areas

Infrastructure Projects

· Port terminals and shipyards

· Railway yards and depots

· Airport aprons and taxiways

Landscape & Architectural

· Monument and statue uplighting

· Plaza and public space accent lighting

· Park pathways and pedestrian areas

About Razorlux

Xi'an Razorlux Optoelectronic Technology Co., Ltd. specializes in professional LED lighting solutions since 2006. Our manufacturing heritage dates to 1998, starting with industrial power supply systems.

Our Credentials:

· 200+ lighting technology patents

· ISO:9001 certified for 22 consecutive years

· National-level LED Lighting Engineering Laboratory

· R&D team includes 10+ PhD-level experts

· Trusted supplier for Fortune 500 infrastructure projects

Quality Assurance:

Every outdoor ground flood light undergoes rigorous testing including thermal shock cycles, vibration simulation, and accelerated aging tests to ensure long-term reliability in demanding applications.

Qualification Certification

Frequently Asked Questions

What distinguishes IP65 ratings from IP67 ratings?

A: IP65 is appropriate for the majority of outdoor installations and provides protection against water jets. IP67 is better suited for flood-prone areas or places that need frequent pressure washing since it can tolerate brief submersion up to one meter.

What is the estimated lifespan of these lights?

A: After 50,000 operational hours, our fixtures retain 70% brightness (L70 rating). That is around 11 years before discernible fading happens with 12 hours of daily usage.

Can these 400W flood lights be dimmed?

A: Yes. DALI digital protocol and 0–10V analog dimming are common choices. Additionally, we provide specialized systems that include wireless control or PWM dimming.

Will the lights be harmed by variations in voltage?

A: No. The broad input range (AC90-305V) and 10KV surge protection manage power fluctuations that are typical in industrial environments or places with erratic electrical systems.

What is included with every fixture?

A stainless steel mounting bracket with a ±90° tilt range is included with every device. In-ground installation boxes, color filters, and anti-glare louvers are optional extras.

Are they appropriate for coastal settings?

A: Yes. They are perfect for ports, coastal facilities, and offshore projects because of their C5M marine-grade certification, which attests to their resistance to seawater corrosion.

Do you offer assistance with installation?

A: We provide mounting templates and comprehensive installation drawings. For your particular project, our technical staff can provide help with photometric calculations and lighting scheme design.
