5700K IP67 Super Bright Led Lights

Product Details:
Place of Origin:Shaanxi, China
Brand Name:Razorlux
Certification:ce, LVD, RoHS, Saa
Model Number:RGL2-1000P
Payment & Shipping Terms:
Price:$1,652.00/Pieces
Packaging Details:
1.EPS Foam+carton(ONE UNIT PER CARTON)
2.Carton Size(mm):550*450*560mm
3.One 20'' Container can accept 250 Units

Send Inquiry Download

Product Description

Detailed Product Description

Color Temperature(CCT):	6000K (Daylight Alert), Cool White	Lamp Luminous Efficiency(lm/w):	125, 120
Color Rendering Index(Ra):	80	Lighting Solutions Service:	DIALux Evo Layout, Agi32 Layout, Auto CAD Layout
Lifespan (hours):	50000	Working Time (hours):	50000
Product Weight（kg）:	30	Input Voltage(V):	80~315Vac
CRI (Ra>):	75	Beam Angle(°):	15° 20° 30°
Working Lifetime(Hour):	50000	Lamp Body Material:	Aluminum Alloy
IP Rating:	IP67	Application:	Sports Stadiums
Light Source:	LED	Lamp Luminous Flux(lm):	156000, 120000lm
Working Temperature(℃):	-40 To 60, -40 - 60	Warranty(Year):	5-Year
Product Name:	Super Bright Led Lights	Warranty:	5Years
Housiong Material:	Aluminum	Working Life:	50000
IP Class:	IP 65 (Upgradeable To IP 67)	LED Driver:	Meanwell
Highlight:	5700K IP67 Super Bright Led Lights, 1200W Super Bright Led Lights, RoHS high output led lamps

Parameter of Razorlux Super Bright LED Lights

Model		RGL2-1000P
Beam Angle		15° 20° 30°
Stable Flux(5700K after 1 hour)		120000lm
Dimension (mm)		474388982
	LEDs	900W
Power	Driver	100W
Consumption	Total	800W
Replace HID Lamp		2200~2500W
Net Weight		38kg with stainless steel floodlight bracket
Color Temperature		2700-6500K
Color Rendering		≥Ra75 (≥Ra80, ≥Ra90 available on request)
Working Life		≥50000Hrs
Housing Material		Aluminum & Powder coating
Power Supply		Meanwell
IP Class		IP 65 (Upgradeable to IP 67)
IK Class		IK 10
Insulation Class		Class I
Working Temperature		-40C ~ 60C / -40F ~ 140F
Working Humidity		10% ~ 95%
AC Input		110-480Vac input voltage without additional adapter
DC Input		100 ~ 400Vdc, 500Vdc ~ 800Vdc
THD		<10%
Power Factor		≥0.98
Warranty	LED Module	5 year
	Driver	5 year
	Housing	10 year

Main Features

1. 80% lumen maintenance over 50,000hours
2. Wide Power range: 1000W
3. 110-480Vac input voltage without additional adapter
4. Patent Built-in Serge Protection.
5. Top chips high efficacy 120lm/w with meanwell driver
6. IP67 waterproof, IK10 impact proof
7. Neutral Salt Spray Resistance
8. Anti-Corression power coating surface treatment
9. Stainless steel brackets material.(Upgradable to SS316)
10. 0-10VDC, DALI and wireless control available
11. UL cUL DLC, TUV CE RoHS, CB, SAA, LM79 listed
12. High uniformity & color rendering index

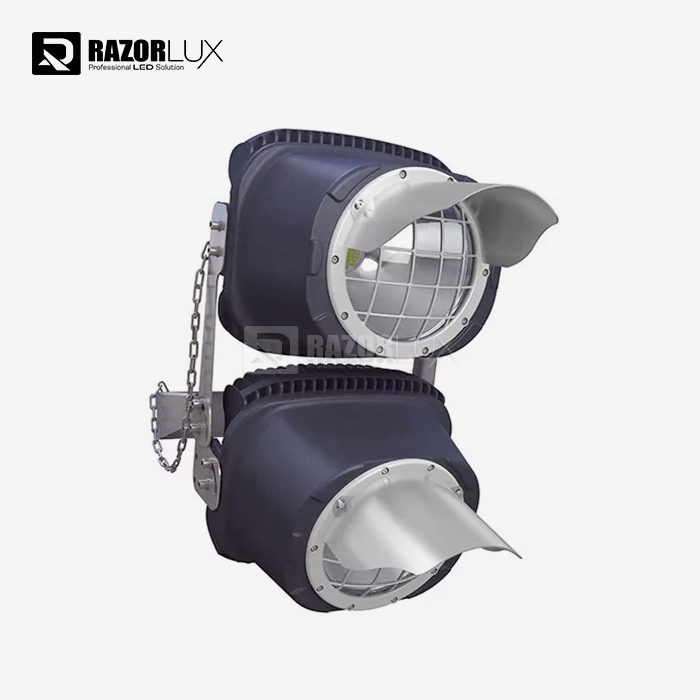

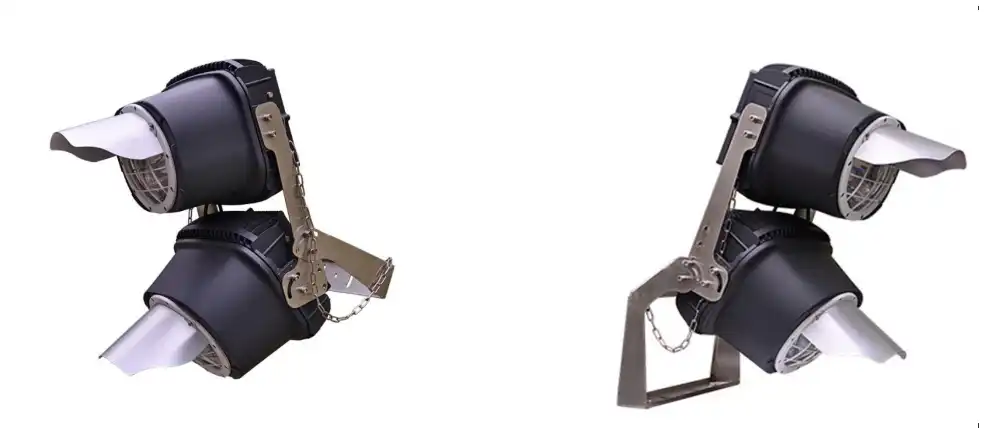

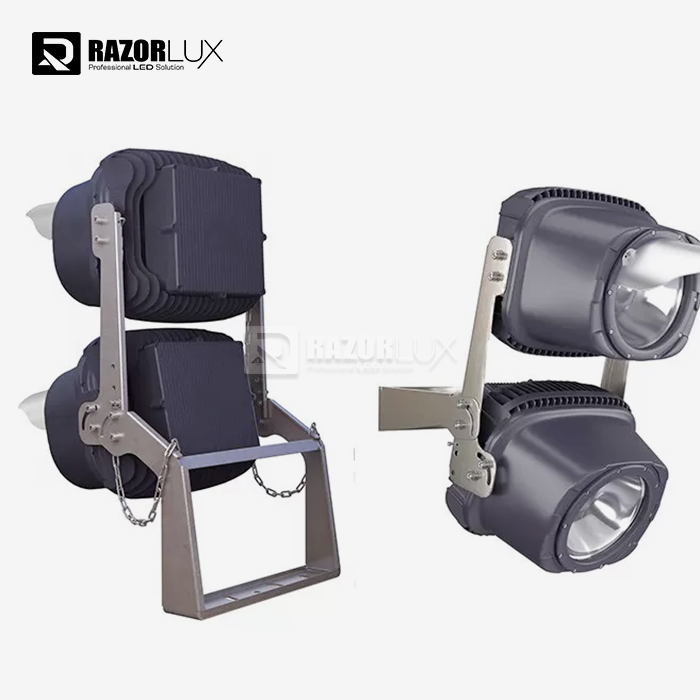

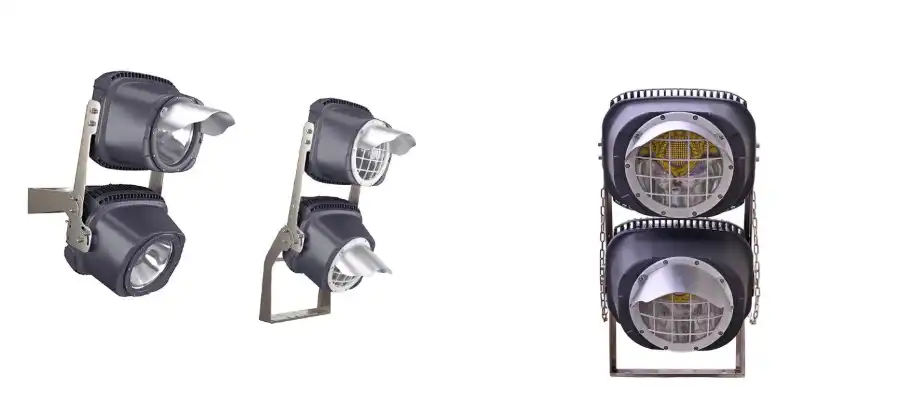

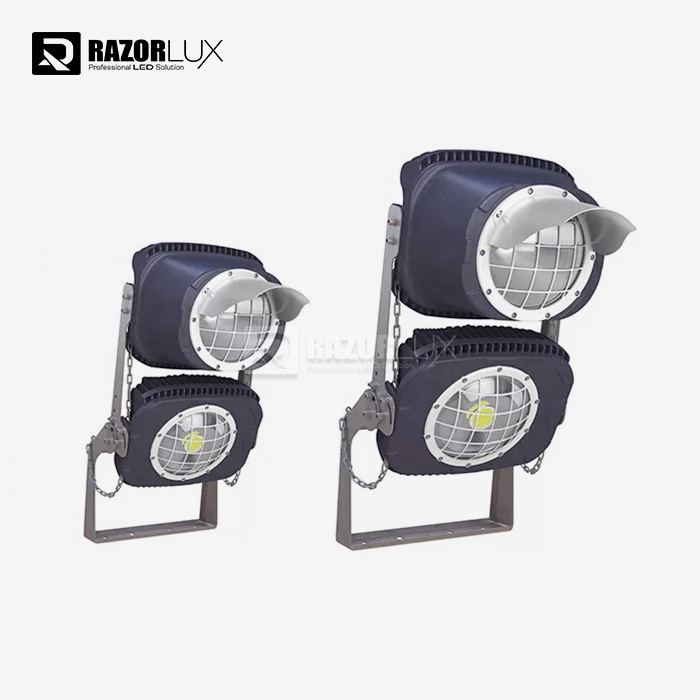

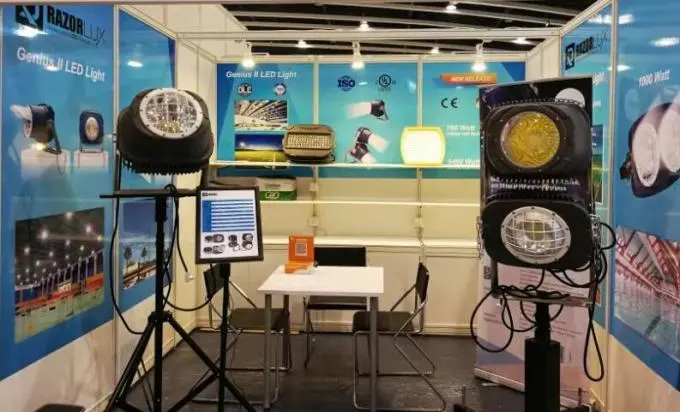

Photos of Super Bright LED Lights

product-910-409

product-1001-436

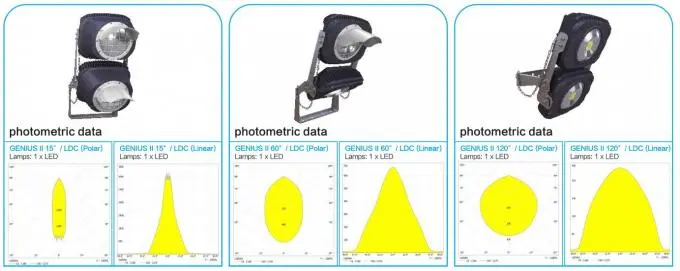

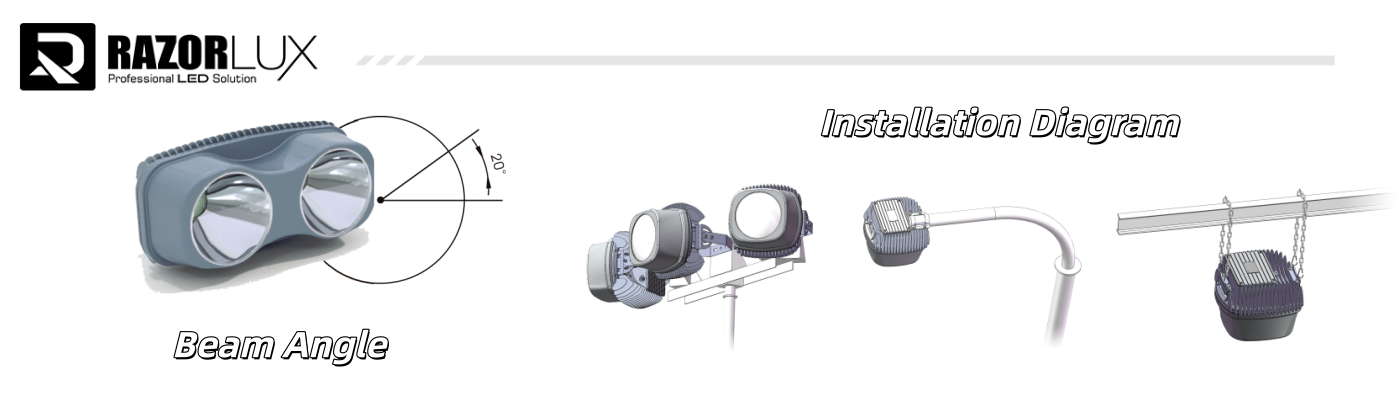

Lighting Distribution of Razorlux Super Bright LED Lights:

product-1-1

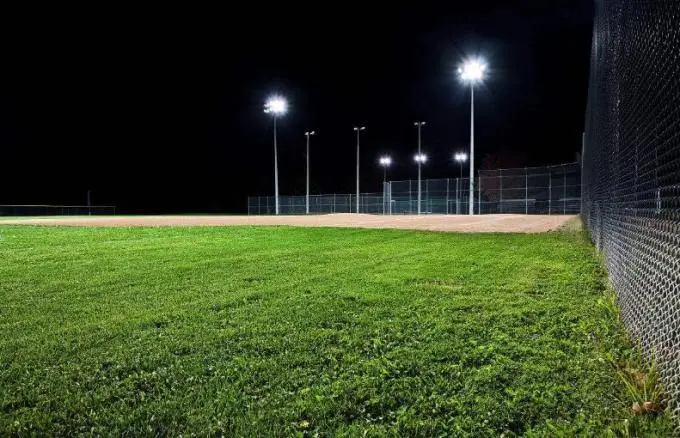

Application of Razorlux Super Bright LED Lights:

product-1-1

Packaging & Shipping

Model	G.W
Genius II 1000W P Series	38KGS

Razorlux has very strict Quality Control System, from checking and evaluation of incoming materials to the delivery of products, each item will be checked and tested for several times.

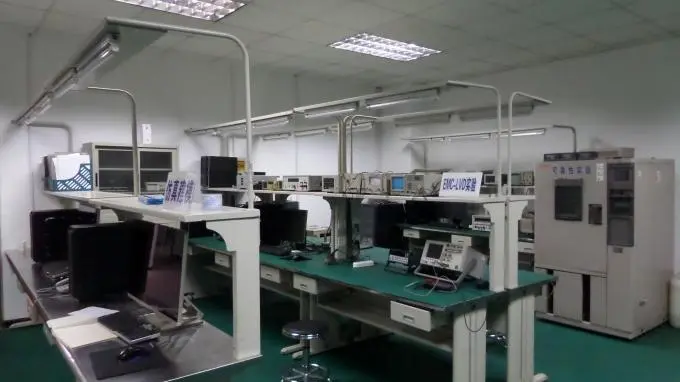

Quality Control - Testing Equipments:

For every piece of Razorlux 1000 Watt LED Flood Light are tested in different procedures.

No. 1: Extreme temperature testing to make sure the lamps work stably and standardly under extreme temperature environment. (-40 to 60 degree)

No. 2: Anti-Corrosion and IP67 Waterproof Testing, to make sure the products are working well even undern corrosive and Wetting environment.

No. 3 & 4: Dark Room for testing IES files and other Photometric datas.

product-1-1

Quality Control - Aging Department:

For every piece of Razorlux Genius™ LED Lights, they will be aged for at least 72 hours before shipment to make sure of their long term and stable performances within lifetime.
