Led Sports Lighting Fixtures

Led Sports Lighting Fixtures – Professional Sports Venue SolutionsIndustrial-Strength Illumination for Demanding Environments

When your stadium needs reliable lighting that performs night after night, our Led Sports Lighting Fixtures deliver. Built on Xi'an Razorlux's quarter-century of power engineering experience, these lights produce 104,000 lumens at 130LM/W efficiency—bright enough for professional broadcasts while cutting energy costs by up to 70% compared to metal halide systems.

Led Sports Lighting Fixtures Specifications

Key Features

Universal Voltage Compatibility

Works with AC 90-305V and DC 127-431V power system without further regulators. Whether you are lighting a stadium in a developing country with inconsistent grids or a coastal facility that uses DC power, these fixtures are flexible to fit your infrastructure.

This flexibility eliminates the need for expensive voltage conversion equipment and makes installation simpler.

Precision Light Control

Select from seven beam angle variations to suit your mounting height and coverage requirements:

· Narrow beams (15°-30°): High mast installations >30 m in major stadiums

· Medium Beams (40°-60°) - Medium height poles for training fields and community sports facilities

· wide beams (120°-140°): indoor arenas and courts demanding uniform coverage

The asymmetric choice of 140°x60° limits light flow into residential areas and helps you achieve Dark Sky compliance.

Built for Harsh Conditions

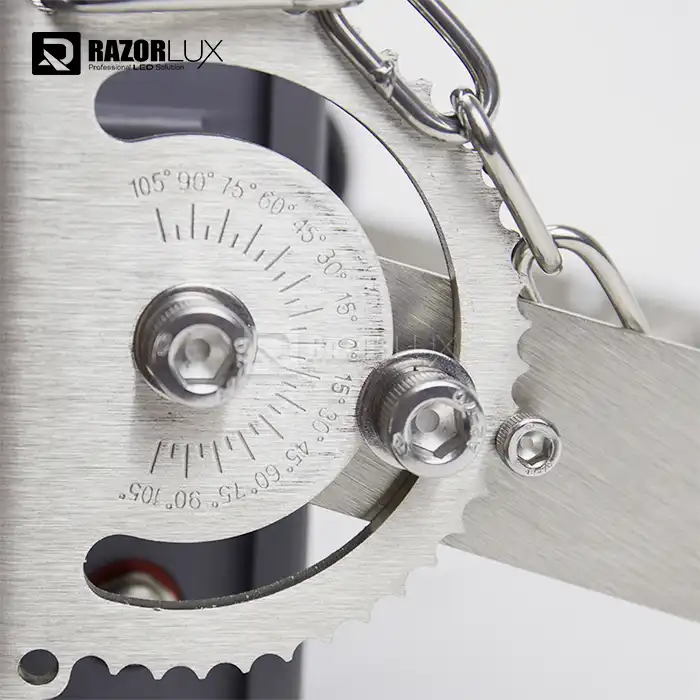

IP67 waterproofing protects interior components from excessive rain, humidity and dust ingress. The bracket is made from marine-grade stainless steel, which is resistant to corrosion from salt spray, which quickly degrades standard fixtures in coastal environments.

Our thermal management technology keeps the LED junction temperatures at an ideal level, prolonging life to more than 50,000 hours. This results in fewer replacements and less maintenance expenses during the life of the fixture.

Broadcast-Ready Performance

The CRI rating is over 75 and the lights are flicker-free at any frame rate, providing HD cameras with accurate colour rendering. Athletes appear natural on screen, and slow-motion replays show crisp detail without banding artefacts.

With instant-on, there's no need to wait for the light to warm up—it's full brightness the moment you flick the switch.

Engineered Reliability

We have more than 200 patents on our LED package, driver circuits and thermal designs. This intellectual property portfolio is the result of decades of problem solving in demanding lighting applications.

Since 2001, we have been ISO 9001 certified, providing constant manufacturing quality and backing every fixture we ship with a 5-year guarantee.

​​​​​​​Common Applications

Professional Stadiums

Our 800W Led Sports Lighting Fixtures are used on high masts to light playing grounds from 30+ meters in football, baseball and soccer arenas. The vertical illuminance levels required for broadcast requirements are achieved with narrow beam angles while still being efficient.

Municipal stadiums in Singapore and Australia are saving more than 60% annually on lighting expenditures after they replaced their metal halide lighting with our LED systems.

Indoor Sports Halls

Our adjustable beam angle choices are used to optimise layouts in municipal complexes with mixed use activities. The same fixture that lights up a soccer pitch at 60 degrees can be rotated to fit a tennis court. No replacements required.

IP67 weatherproof means you can depend on it in all kinds of seasonal weather, from hot summers to freeze-thaw cycles in winter.

Community Multi-Sport Fields

Municipal complexes serving diverse activities use our flexible beam angle options to optimize layouts. The same fixture that lights a soccer field at 60° can be reoriented for tennis courts without replacements.

IP67 weatherproofing means reliable operation through seasonal weather extremes, from summer heat to winter freeze-thaw cycles.

Coastal and Industrial Facilities

Ports, airports, and marine facilities face accelerated corrosion from salt fog and industrial pollutants. Our C5M-certified fixtures (highest marine corrosion resistance classification) maintain structural integrity and light output in these harsh environments.

The 10kV surge protection guards against voltage spikes common in industrial power systems.

Training Centers

Private academies and university athletic programs upgrading from legacy HID systems see immediate operational benefits:

· 70% energy reduction lowers utility bills

· Eliminated relamping reduces maintenance labor

· Instant-on access maximizes facility utilization

· Better light quality improves athlete performance and safety

Frequently Asked Questions

How do I choose the right beam angle?

Consider your mounting height:

· Above 30m: Use 15°-30° narrow beams

· 15-30m: Choose 40°-60° medium beams

· Below 15m: Select 60°-120° wide beams

Our team can perform photometric calculations for your specific venue layout. contact us with your field dimensions and mounting positions.

Will these work with my existing poles and wiring?

The universal voltage input (AC 90-305V) works with most power systems worldwide. The stainless steel bracket adapts to standard mounting patterns. Send us photos of your current setup—we'll confirm compatibility or recommend simple adapters.

Can these lights handle extreme temperatures?

Operating range is -40°C to +50°C (-40°F to 122°F). The thermal management system automatically adjusts driver output to protect components in sustained extreme heat, though this may slightly reduce maximum brightness.

Do you provide lighting design services?

Yes. Share your venue plans, mounting heights, and illuminance requirements. We'll provide photometric layouts showing predicted light levels, uniformity ratios, and glare control—typically within 2-3 business days.

How long does shipping take?

Standard lead time is 15-20 business days for quantities under 50 units. Large projects (500+ fixtures) may require 30-45 days. Express manufacturing is available for urgent installations—contact us for expedited scheduling.

What maintenance do these require?

Minimal. Clean lenses annually to maintain light output. Inspect mounting hardware for tightness after storms. The sealed IP67 design requires no internal servicing. With proper thermal management, expect 50,000+ hours before considering replacements (that's 11+ years at 12 hours daily use).

Get Expert Guidance for Your Project

Whether you're upgrading an existing stadium or designing a new sports complex, our Led Sports Lighting Fixtures's team can help you specify the right configuration. We'll review your site plans, calculate required light levels, and provide detailed photometric simulations.
