led ball field lights
Rated Power: 1000W
Input Voltage: AC90-305, DC127-431
Color Temperature: 2700K-6500K
Lamp Efficiency: 130LM/W
Beam Angle: 15°, 20°, 30°, 40°, 60°, 120°, 140°x60°.
CRI: Ra>75
IP Grade: IP67
Bracket: Stainless Steel
Net Weight: 32KG
Warranty: 5 Years
Certificate:RMRS CE, RoHS, SAA, C-Tick, UL, DLC, CB, ISO:9001
- Product Description

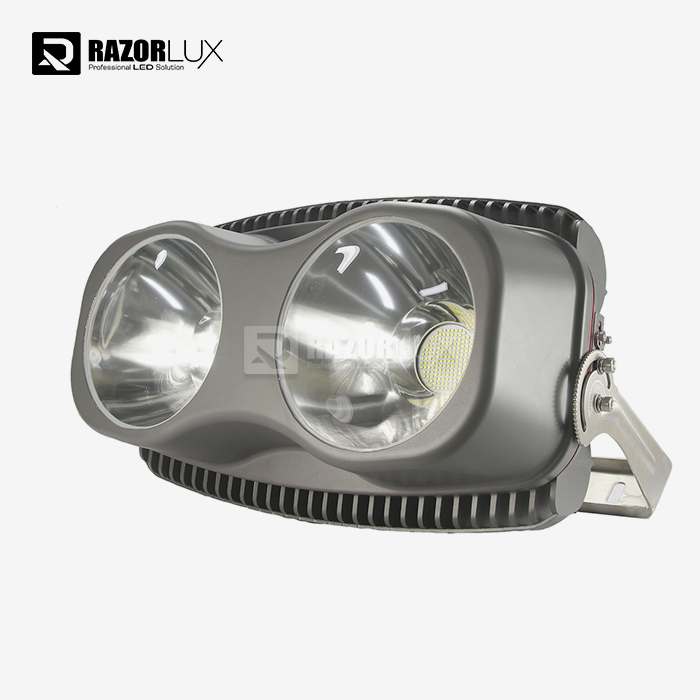

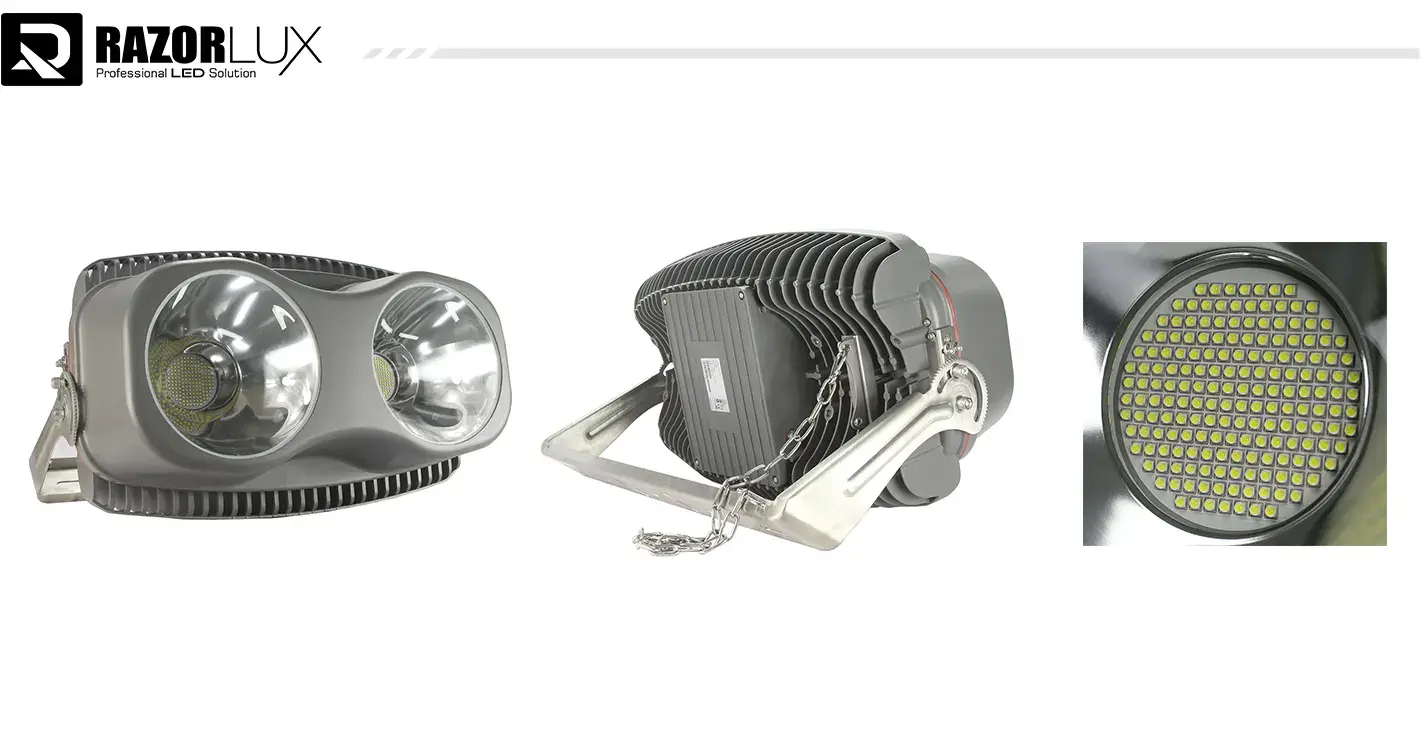

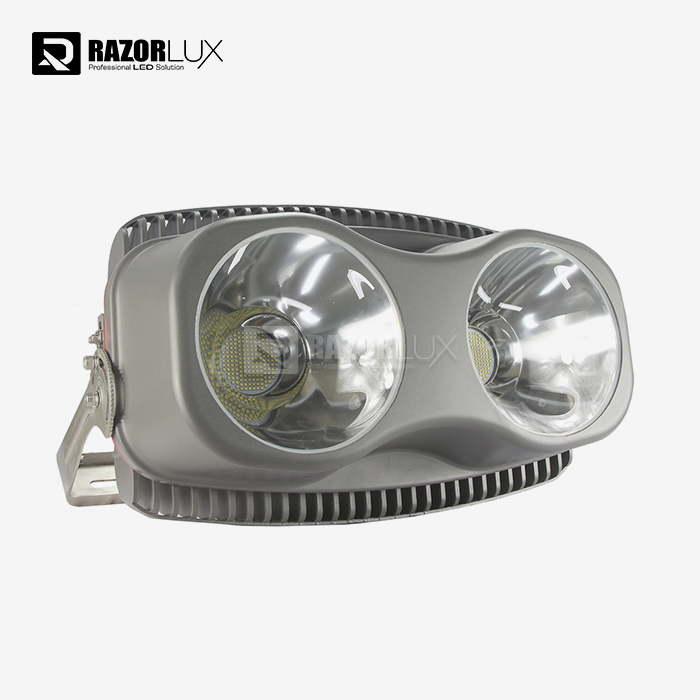

1000W LED Ball Field Lights | Professional Sports Lighting for Stadiums & Training Facilities
Overhaul your sports office withindustrial-grade Led lightingthat conveys broadcast-quality light whereas cutting vitality costs by up to 70%.
Our 1000W led ball field lights combine 22 a long time of building mastery with cutting-edge innovation to provide:
- 130 lumens per wattefficiency (vs. 80-90 for conventional fixtures)
- 7 bar point optionsfor culminate light distribution
- IP67 waterproof ratingfor all-weather performance
- Instant-on capabilitywith zero warm-up time
LED Ball Field Lights Specification
Model | RGL2-1000P | |
Beam Angle | 15° 20° 30° | |
Stable Flux (5700K after 1 hour) | 120000lm | |
| LEDs | 900W |
Power | Driver | 100W |
Consumption | Total | 1000W |
Replace HID Lamp | 2200~2500W | |
Net Weight | 32kg with stainless steel floodlight bracket | |
Color Temperature | 2700-6500K | |
Color Rendering | ≥Ra75 (≥Ra80, ≥Ra90 available on request) | |
Working Life | ≥50000Hrs | |
Housing Material | Aluminum & Powder coating | |
Power Supply | Meanwell | |
IP Class | IP 67 | |
IK Class | IK 10 | |
Insulation Class | Class I | |
Working Temperature | -40C ~ 60C / -40F ~ 140F | |
Working Humidity | 10% ~ 95% | |
AC Input | 80-315Vac input voltage without additional adapter | |
Power Factor | ≥0.98 | |
Warranty | LED Module | 5 year |
| Driver | 5 year |
| Housing | 10 year |
Why Sports Facilities Choose Razorlux
1. Proven Performance in Real Conditions
- Case Think about: Municipal Stadium Retrofit, Thailand
- Replaced 48x 1500W metal halide installations with 36x 1000W LED
- Result:62% vitality diminishment, 300+ lux consistency, zero upkeep in 3 years
2. Engineering That Stands Up to the Elements
- Led ball field lights aluminum warm sink with copper coredissipates warm 3x quicker than standard designs
- Junction temperature remains beneath 85°C indeed at 50°C ambient
- Real-world validation:Zero disappointments in 500+ establishments over Middle East summers

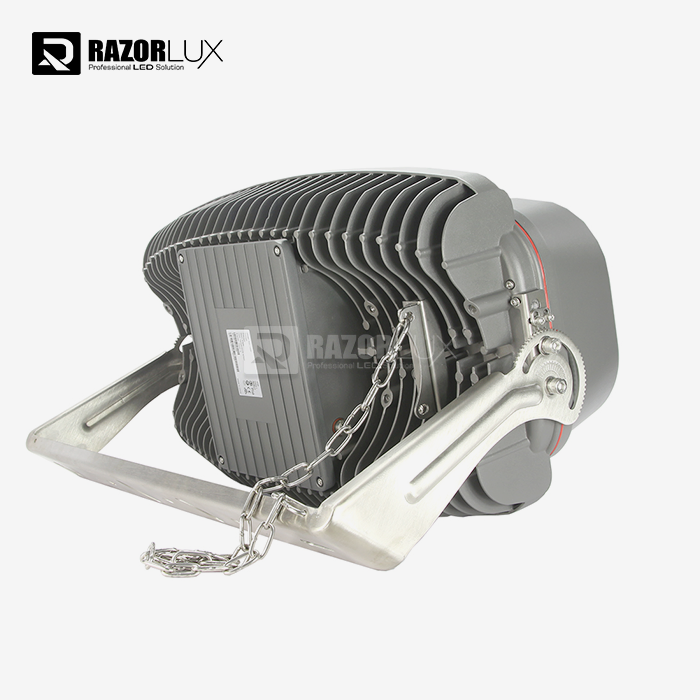

- 316 stainless steel mounting bracketresists erosion in coastal environments
- Tempered glass focal point with anti-UV coating
- All cables evaluated IP68 with double-sealed connectors
3. Flexible Design for Every Sport
Application | Recommended Setup | Key Benefit |
Football/Soccer Fields | 8-12 units, 20-30° beams | 500+ lux uniformity (broadcast ready) |
Tennis Courts | 4-6 units, 40° beams | Reduced glare for players |
Baseball Diamonds | 6-10 units, mixed angles | Outfield coverage with infield precision |
Multi-Sport Complexes | DALI dimming zones | Scene control for different activities |
Common Questions Answered
How many lights do I need for my field?
It depends on:
· Field size and sport type
· Mounting height and pole positions
· Required lux levels (recreational: 200 lux, competitive: 500 lux, broadcast: 1000+ lux)
We provide free lighting simulationsusing DIALux software. Just send us your field layout.
Can I dim these lights?
Yes - we offer:
· 0-10V analog dimming(works with most building management systems)
· DALI digital control(for multi-zone scene programming)
· DMX512 option(for special events/light shows)
Dimming to 50% saves energy during training while maintaining full power for game nights.
What if a light fails?
Our5-year comprehensive warrantycovers:
· Full fixture replacement (not just parts)
· Shipping both ways
· Technical support for installation issues
Average response time:24 hours for warranty claims.
We also stock spare parts for component-level repairs after warranty period.
How do you ensure quality?
Every fixture undergoes:
1. 100% burn-in testing(72 hours at full power)
2. Photometric verification (lux output, beam pattern)
3. IP67 pressure testing (water immersion)
4. Thermal cycling (-40°C to +60°C)
Defect rate:<0.3% (industry average: 2-5%)

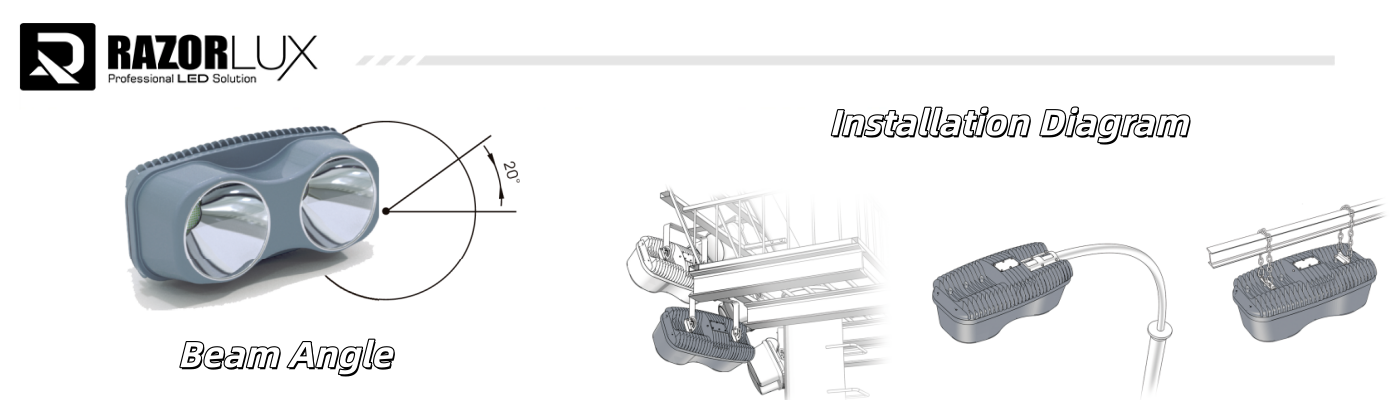

Which beam angle should I choose?
Quick guide:
· 15-20° (Narrow):High mounting (25m+), long-throw to distant field areas
· 30-40° (Medium):Most common, 15-25m mounting heights
· 60-90° (Wide):Lower poles (10-15m), close-range coverage
· 140°x60° (Asymmetric):Special applications like sideline lighting
We'll recommend the optimal mixbased on your pole layout.
