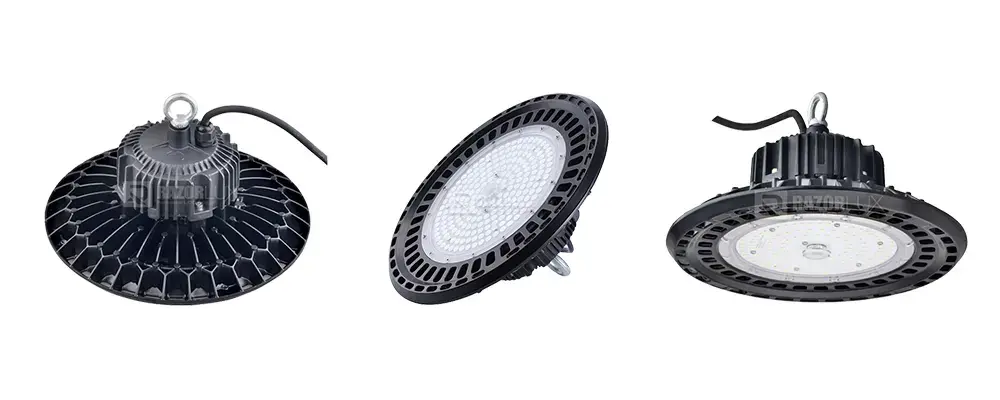

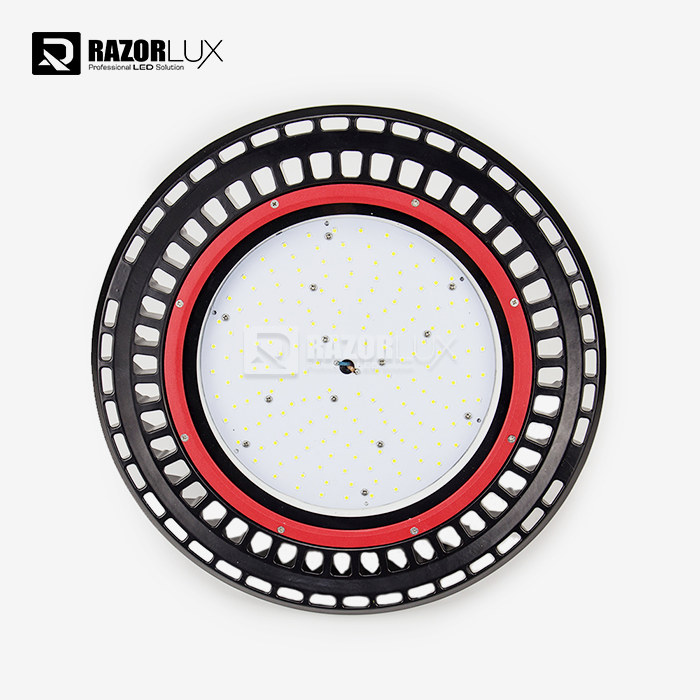

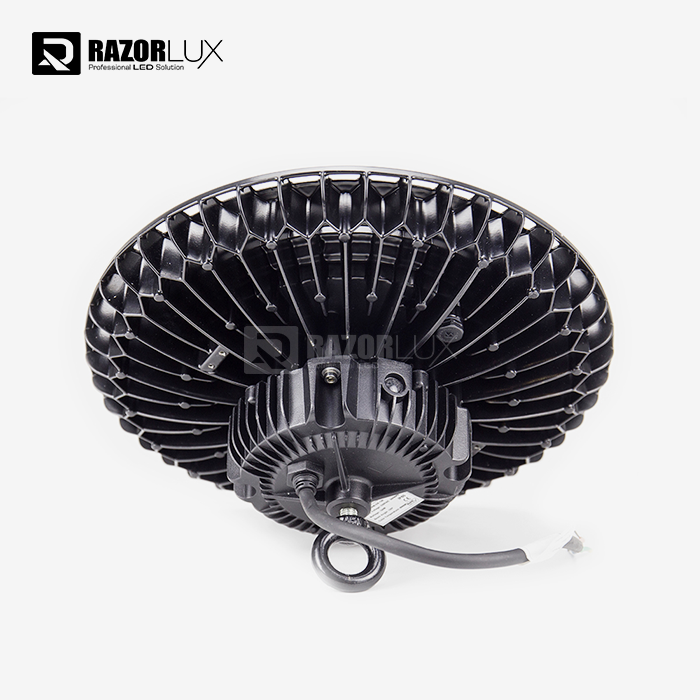

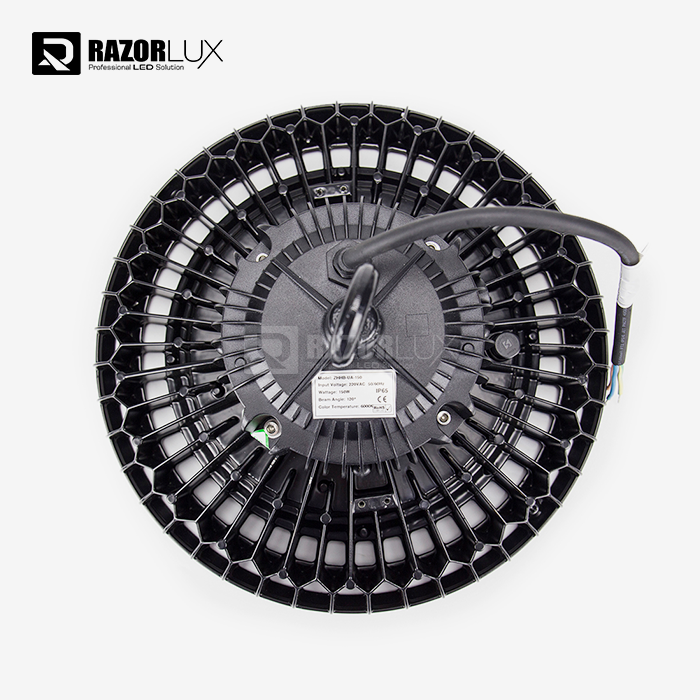

Industrial LED High Bay Lighting RHB-UA-240 | Workshop Light Fixtures

Designed by Xi'an Razorlux Led Lab | Upgraded March 2024

Workshop light fixtures best for: Fabricating floors 16-30ft ceiling height

Power fetched investment funds: 60% vs. conventional lighting

Payback period: Ordinarily 14-18 months

Installation time: 15 minutes per installation

Workshop Light Fixtures Introduction

Real Problems This Solves

Current Lighting Issues in Workshops

Sound familiar?

· CNC operators squinting to read measurements

· Paint matching errors costing rework time

· Flickering lights causing headaches by shift end

· Forklift operators hitting obstacles in shadowy corners

Why Our Numbers Actually Matter

135 lm/W system efficiency means:

· A 180W fixture produces 24,300 lumens

· Equivalent to a 400W metal halide (at only 45% power consumption)

120° beam angle translates to:

· At 20ft mounting height: 35ft diameter coverage

· Fewer fixtures needed = lower installation cost

· Uniform distribution without dark spots between fixtures

Application Guide: Which Fixture Where?

Precision Machining Centers

Challenge: Operators need to see 0.001" tolerances

Solution Setup:

· Model: RHB-UA-240-180W with 60° beam

· Color temp: 5000K (neutral white)

· Mounting: 20-24ft high, directly above workstations

· Quantity: 1 fixture per machine tool

Why workshop light fixtures works: Zero flicker eliminates stroboscopic effect on rotating parts. Lumileds chips maintain 96% lumen output after 30,000 hours (verified by our lab testing).

Auto Body & Paint Shops

Challenge: Color matching requires consistent lighting

Solution Setup:

· Model: RHB-UA-240-150W with 120° beam

· Color temp: 5000K (matches daylight for color work)

· CRI: Ra>80 (specify when ordering)

· Layout: Grid pattern, 15ft spacing

Protected against: Paint overspray, chemical vapors (IP65 sealed housing)

Pro tip: Install dimming controls (0-10V option) to adjust brightness during different work stages.

General Manufacturing Floors

Challenge: Large open spaces need even light without dark zones

Solution Setup:

· Model: Mix of 150W and 180W based on ceiling height

· Color temp: 4000K (comfortable for all-day work)

· Pattern: Overlapping 120° beams

· Spacing: 1.2× mounting height between fixtures

What's Actually Covered in the 5-Year Warranty

Included (No Questions Asked):

· LED chip lumen depreciation below 85% of initial output

· Meanwell driver component failure

· Housing corrosion or seal failure

· Shipping costs for replacement units (within continental regions)

How Claims Work:

1. Email photo + serial number to warranty@razorlux.com

2. Receive response within 24 business hours

3. Replacement ships within 3 business days

4. Return failed unit using prepaid label (for analysis)

Average claim processing time: 4.2 days (2023 data)

Claim rate: 1.7% across all installations (industry average: 4-6%)

Honest Answers to Your Questions

"Can I install these myself, or do I need an electrician?"

Electrical work requires licensed professionals in most jurisdictions. However, the installation process is straightforward:

1. Mount bracket to ceiling joist (4 bolts included)

2. Hang fixture on bracket hook

3. Wire connection: Line/Neutral/Ground (same as standard fixture)

4. Secure external driver to bracket clip

Time per fixture: 15-20 minutes for experienced electricians

Pro tip: Order our mounting kit (SKU: RHB-MK-001) if you have concrete ceilings. Includes expansion anchors and extended cables.

"How do these perform in cold warehouses?"

Temperature range: -20°C to +50°C (-4°F to 122°F)

Unlike fluorescent tubes that need "warm-up" time and dim in cold:

· Instant full brightness at power-on

· No lumen reduction in cold temperatures

· Driver components rated for extreme conditions

Tested in: Frozen food warehouses in Minnesota, outdoor loading docks in Alberta

"What if my ceiling height is 35 feet?"

The 180W model starts losing optimal foot-candles above 30ft. Two options:

Option A: Use our higher-output RHB-UA-300 series (300W, 40,500 lumens)

Option B: Reduce spacing between RHB-UA-240 fixtures to increase overlap

Free service: Our lighting engineers will create a photometric plan showing predicted lux levels for your exact space. Send us:

· Ceiling height

· Floor plan dimensions

· Any obstructions (cranes, ductwork)

About Xi'an Razorlux

Founded: 1998 (26 years in LED technology)

Headquarters: Xi'an, Shaanxi, China

Manufacturing: 45,000 sq m facility, ISO 9001 certified

Team: 180 employees, including 34 engineers

Notable projects:

· 12,000+ fixtures installed in Fortune 500 facilities

· Lighting supplier for China Railway construction projects (2019-2023)

· Export to 47 countries across 6 continents

Research achievements:

· 200+ LED-related patents

· Shaanxi Province LED Research Center (licensed by Ministry of Science)

· Collaboration with Xi'an Jiaotong University optics department
