volleyball lighting
Rated Power: 120W
Input Voltage: AC90-305, DC127-431
Color Temperature: 2700K-6500K
Lamp Efficiency: 130LM/W
Beam Angle: 15°, 20°, 30°, 40°, 60°, 120°, 140°x60°.
CRI: Ra>75
IP Grade: IP67
Bracket: Stainless Steel
Net Weight: 15KG
Warranty: 5 Years
Certificate:RMRS CE, RoHS, SAA, C-Tick, UL, DLC, CB, ISO:9001
- Product Description
Complete Guide to Volleyball Lighting (2024)
Choosing the right volleyball lighting isn't just about brightness. After working with 200+ facilities across 15 countries, here's what actually matters:
The 3 Critical Requirements
1. Uniform illumination- No shadows under the net (500 lux minimum per FIVB standards)
2. Zero flicker- Essential for high-speed play and video analysis
3. Weather resistance- Especially for outdoor courts (IP67 minimum)

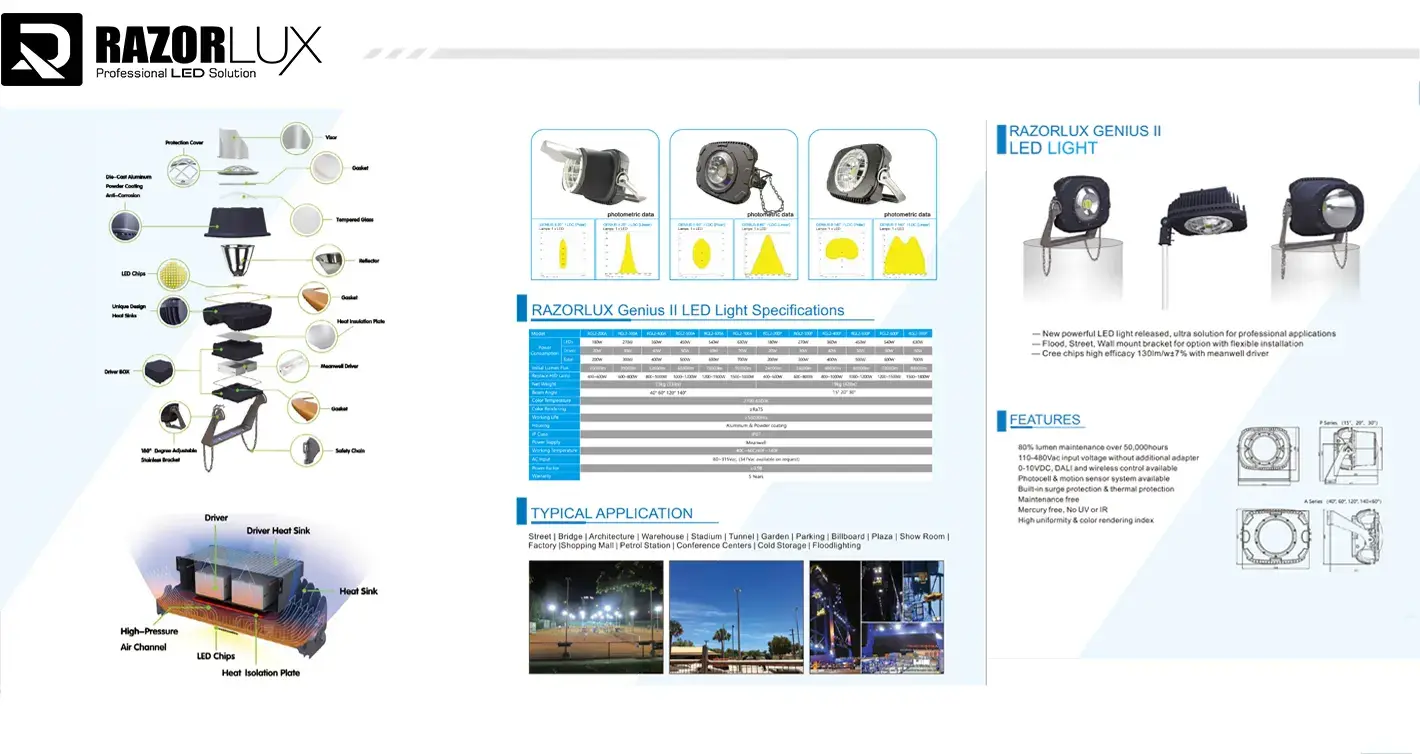

Specification
Model | RGL-120A | |
Beam Angle | 60° 120° 140° | |
Stable Flux (5700K after 1 hour) | 14400 lm | |
Dimension (mm) | 360*358*187 | |
| LEDs | 108W |
Power | Driver | 12W |
Consumption | Total | 120W |
Replace HID Lamp | 250~300W | |
Net Weight | 8kg(17.6lbs) | |
Color Temperature | 2000-6000K | |
Color Rendering | ≥Ra75 (≥Ra80, ≥Ra90 available on request) | |
Working Life | ≥50000Hrs | |
Housing Material | Aluminum & Powder coating | |
Power Supply | Meanwell | |
IP Class | IP 67 | |
IK Class | IK 10 | |
Insulation Class | Class I | |
Working Temperature | -40C ~ 60C / -40F ~ 140F | |
Working Humidity | 10% ~ 95% | |
AC Input | 80-315Vac input voltage without additional adapter | |
DC Input | 80 ~ 400Vdc | |
THD | <10% | |
Power Factor | ≥0.98 | |
Warranty | LED Module | 5 year |
| Driver | 5 year |
| Housing | 10 year |

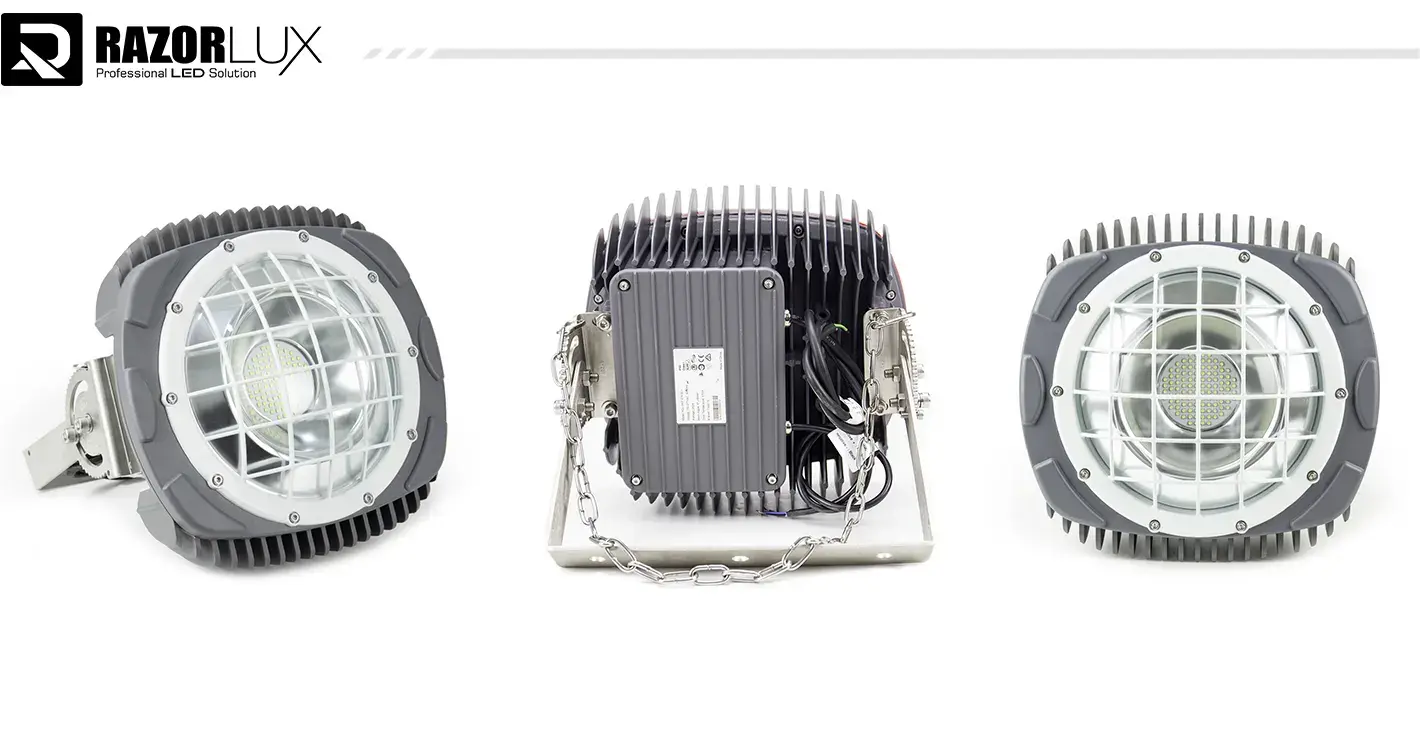

Our Volleyball Lighting System: Specs That Matter

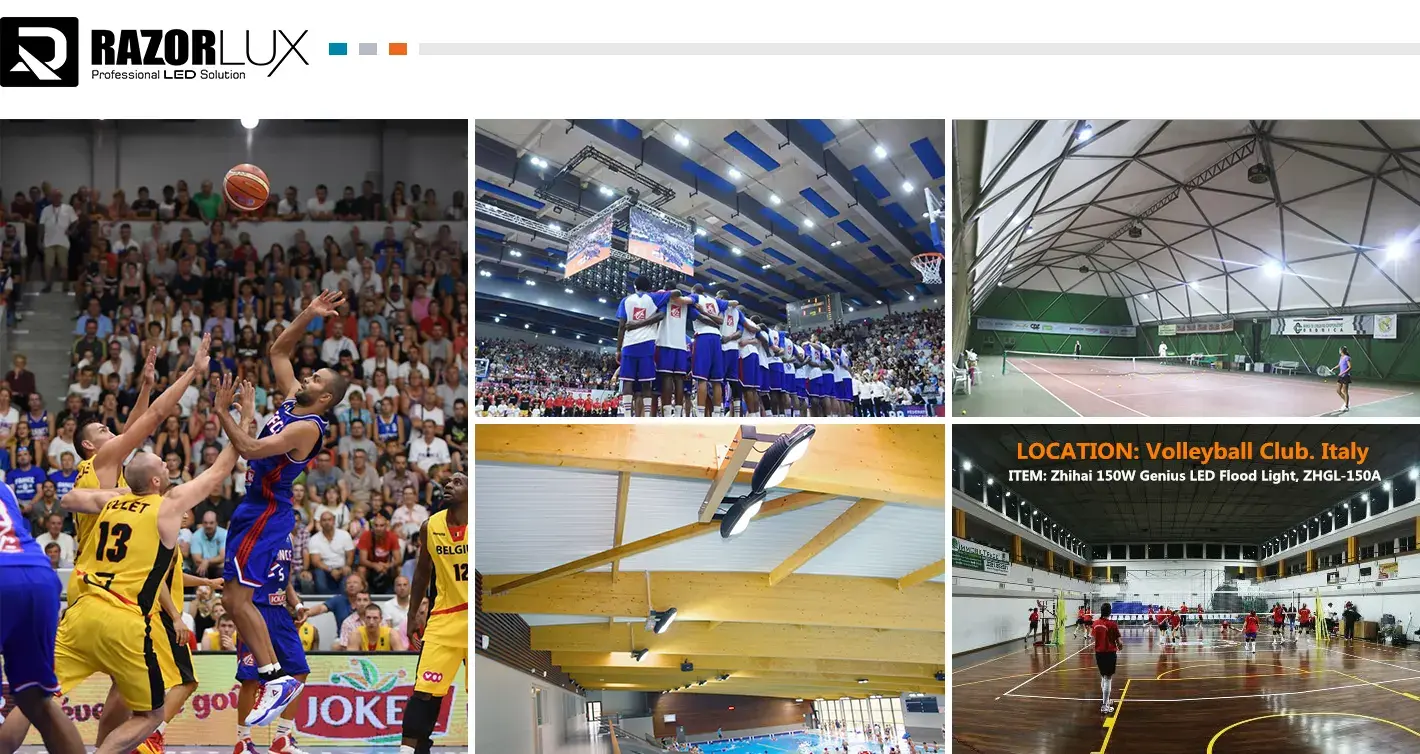

Indoor Volleyball Courts: What Works
Volleyball lighting layout for 18m × 9m Court
Option A: Competition-Grade (FIVB Level 3)
· 6 × RZX-V120 units with 60° beam
· Average illumination: 750 lux
· Uniformity: 0.7+
Option B: Training/Recreation
· 4 × RZX-V120 units with 120° beam
· Average illumination: 500 lux
· Uniformity: 0.6+

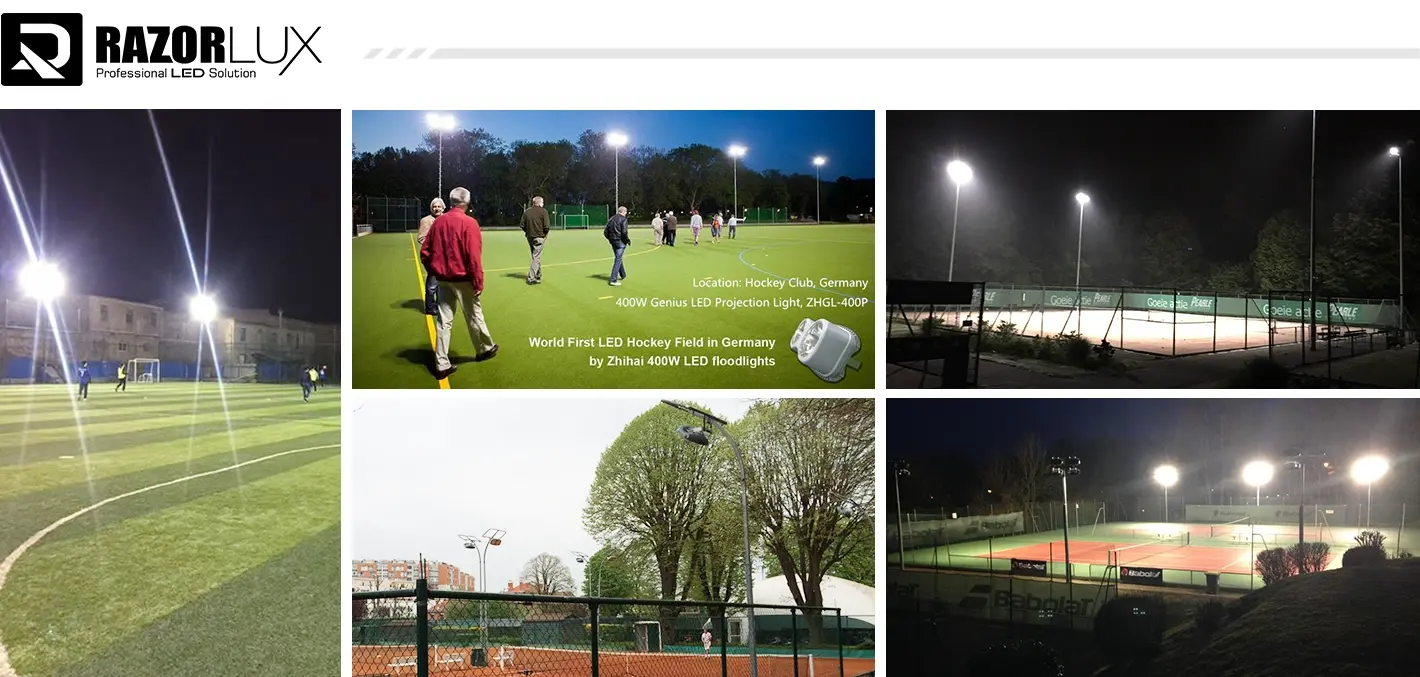

Outdoor/Beach Volleyball: Beating the Elements
What Makes It Work
Sealed Optics
· Gorilla glass lens (9H hardness)
· Double silicone gasket
· Pressure equalization valve
Corrosion Resistance
· 316 stainless steel hardware
· Marine-grade powder coating
· C5M certified (highest corrosion category)

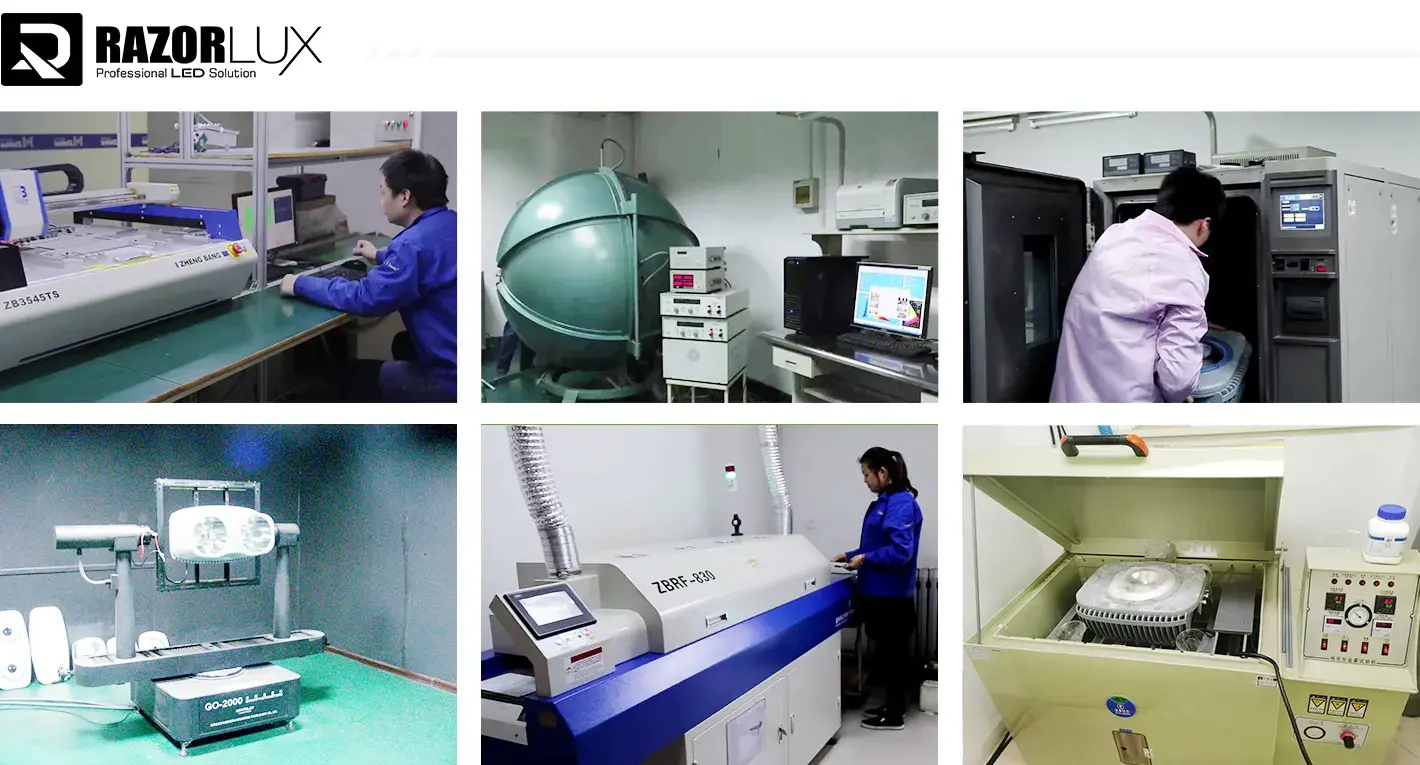

Our Company (The Honest Version)
What We're Good At
· LED sports lighting (since 1998 - we were early)
· Custom optics for specific court sizes
· International projects (we handle shipping/customs)
What We're NOT
· The cheapest option (but best 10-year value)
· A rebrand/reseller (we manufacture in Xi'an, China)
· Offering instant quotes (we need your court details first)
Common Questions (Real Ones)
"Will this work with solar power?"
Yes, if your system outputs DC 127V or higher. We've done 12 solar installations. The DC input bypasses the AC driver for better efficiency.
Tip:Size your battery bank for 6-8 hours runtime (allow 800W for 4 lights).
"Can I use these for pickleball too?"
Absolutely. Most facilities use the same lights for both. Just adjust beam angles:
· Volleyball: 60° spread
· Pickleball: Rotate to 40° (tighter pattern)
"Do I need an electrician?"
Yes, for:
· Main power connection
· Mounting on poles >15 feet
· Any hardwired installation
You can DIY:
· Bracket adjustment
· Aiming the lights
· Plug-in portable setups
