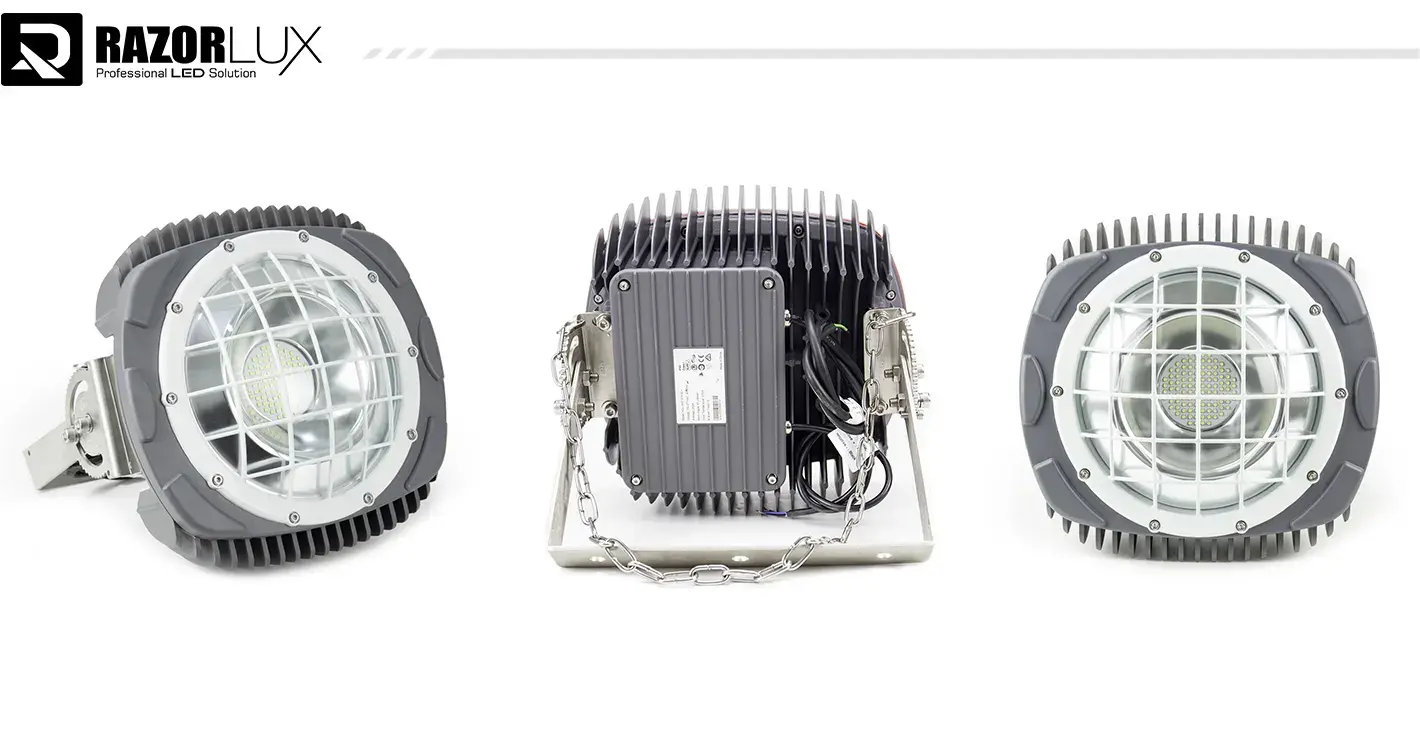

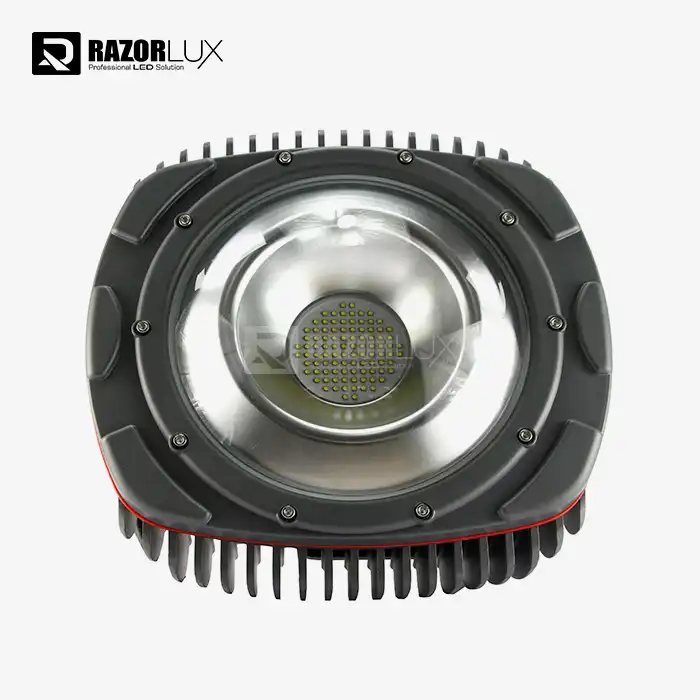

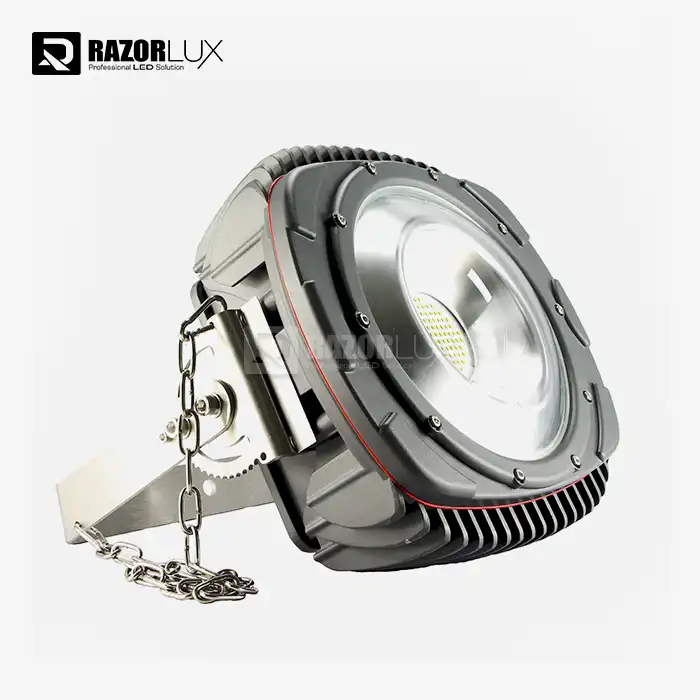

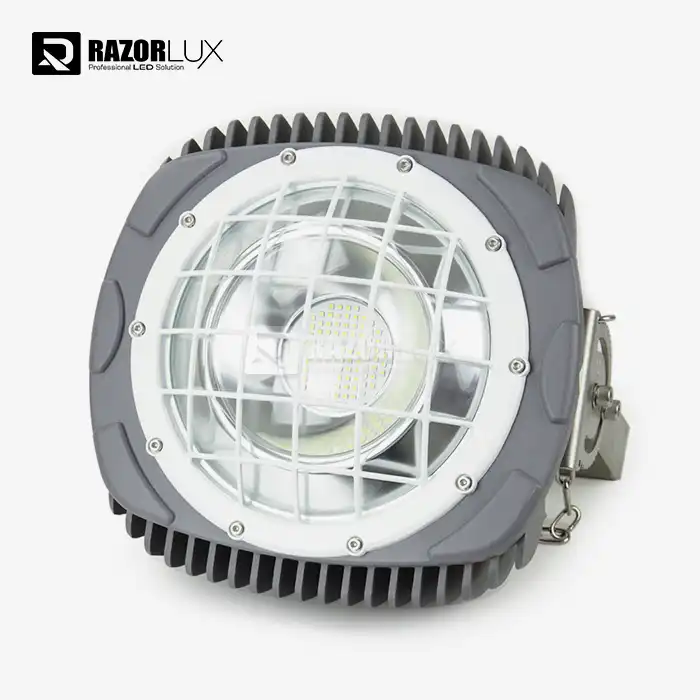

270W Single Head Flood Light - Industrial LED Solution

Engineered for Demanding Industrial Environments

Our 270W Single Head Flood Light is 130LM/W efficient and can be used in factories, around security perimeters, and in architecture projects. It can work with a wide range of voltages (AC90-305V, DC127-431V), so it can be used in a lot of different situations. The IP67 security and stainless steel design make sure that it will work reliably in temperatures ranging from -40°C to +50°C.

Single Head Flood Light Specifications

Key Features

Advanced Thermal Management

Single-head design isolates heat dissipation paths, preventing LED degradation during continuous operation. Maintains stable output in extreme temperatures.

Universal Voltage Compatibility

Auto-sensing driver works with residential 90V circuits through industrial 431V DC systems. No voltage converters needed.

Precision Beam Control

Choose from seven beam angles for targeted illumination:

· Narrow (15°-30°): Flagpoles, signage, long-distance projection

· Medium (40°-60°): Security spotlighting, architectural accents

· Wide (120°-140°x60°): General area coverage, perimeter lighting

Marine-Grade Durability

C5M-certified stainless steel construction resists corrosion in coastal and chemical environments. Pressure equalization vents prevent condensation buildup.

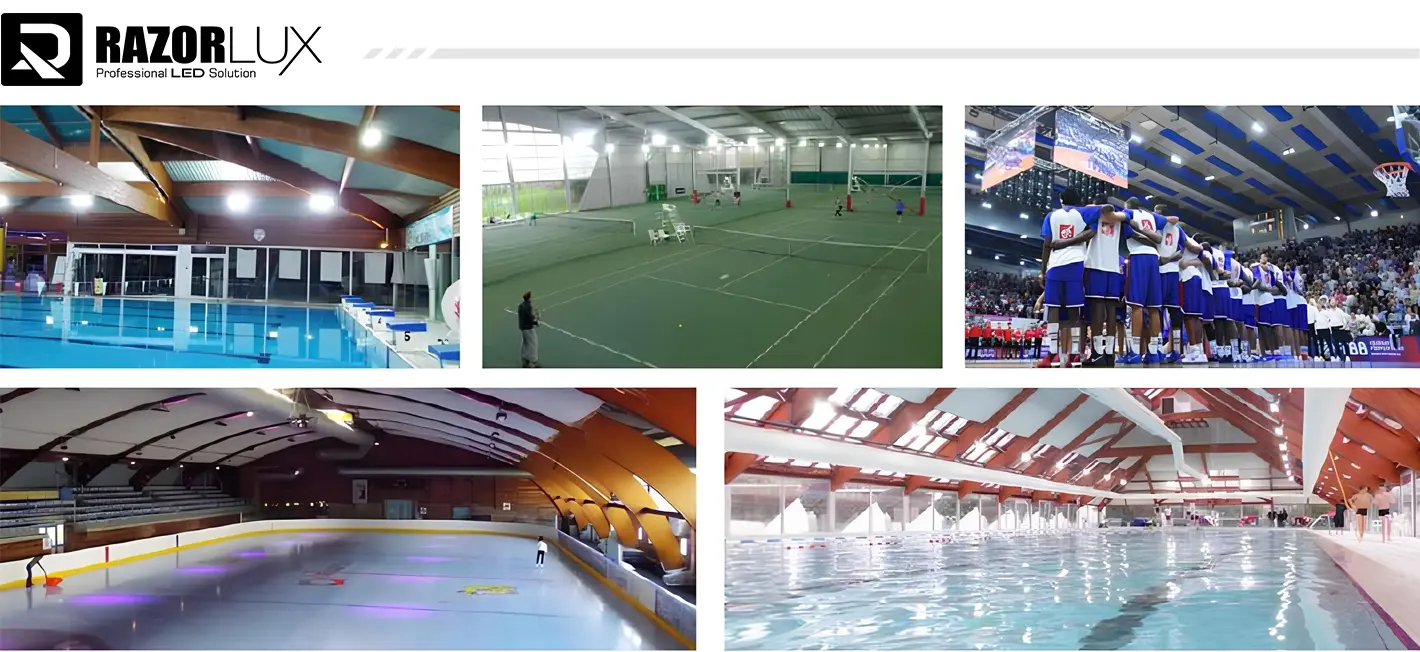

Application Scenarios

The single-head flood light is suitable for the following scenarios:

Industrial Security

Light up the sides of buildings, loading docks, and the edges of warehouses. Focused beams make CCTV coverage better without making camera pictures look fuzzy.

4-6 pieces are usually put in around a 5,000⿡ radius.

Architectural Lighting

For business buildings and landmarks, wall cleaning and pattern brushing are two options. Uplights can be placed invisibly because the angles can be changed.

Mining & Heavy Industry

DC voltage range of 127V to 431V works with non-standard electrical systems. Can handle shaking and collision in tough conditions.

Port & Maritime

The C5M grade and IP67 seals make sure that seaside operations are stable. Plus 500 hours of testing with salt spray.

Quality Assurance

Manufacturing Standards

ISO:9001 certified facility since 2001. Each unit undergoes:

· Thermal equilibrium testing

· Surge protection validation (4kV-10kV)

· Goniophotometer beam accuracy verification

· 500-hour salt spray corrosion testing

Testing Lab

Our Xi'an LED Engineering Laboratory (authorized by China's National Development and Reform Commission) conducts comprehensive photometric testing with IES file generation.

About Xi'an Razorlux

Xi'an Razorlux Optoelectronic Technology Co., Ltd. specializes in industrial LED solutions with patented multi-function designs. Our ISO:9001 facility ensures consistent quality control, backed by comprehensive international certifications.

FAQ

What makes this fixture suitable for extreme environments?

Wide voltage tolerance, IP67 protection, and isolated thermal management enable operation from arctic to desert conditions. Stainless steel resists corrosion.

Can I replace components if they fail?

Yes. Field-replaceable drivers extend service life beyond standard MTBF ratings.

How do I select the correct beam angle?

· General area lighting: 90°-120°

· Security/architectural accent: 15°-60°

· Long-throw applications: 15°-30° (higher candlepower)

Is dimming supported?

Yes. 0-10V dimming compatible with PIR or microwave motion sensors for automated energy savings.

How is condensation prevented?

Pressure equalization vents allow thermal expansion without moisture ingress past gaskets.

What is the actual lifespan?

L70 rating exceeds 50,000 hours based on LM-80 data and TM-21 projections under rated conditions.
