Marine LED Spot Flood Lights – Heavy-Duty Lighting for Professional Vessels

Our 180W marine LED spot flood lights are designed for commercial vessels operating in harsh saltwater environments. With dual voltage capability (AC90-305V / DC127-431V), IP67 waterproof rating, and multiple beam angle options, these lights deliver reliable performance where traditional fixtures fail.

Marine LED Spot Flood Lights Specifications

​​​​​​​​​​​​​​

Designed for Marine Challenges

Salt Corrosion Resistance

Marine-grade aluminum housing with specialized coating withstands continuous saltwater exposure. C5M corrosion rating ensures 50,000+ hours of operation in offshore conditions.

Wide Voltage Tolerance

Handles voltage fluctuations common in vessel electrical systems. Protects against generator surges up to 4kV without performance degradation.

EMC-Filtered Drivers

Meets IEC 60533 standards to prevent interference with VHF radios, GPS, and radar systems.

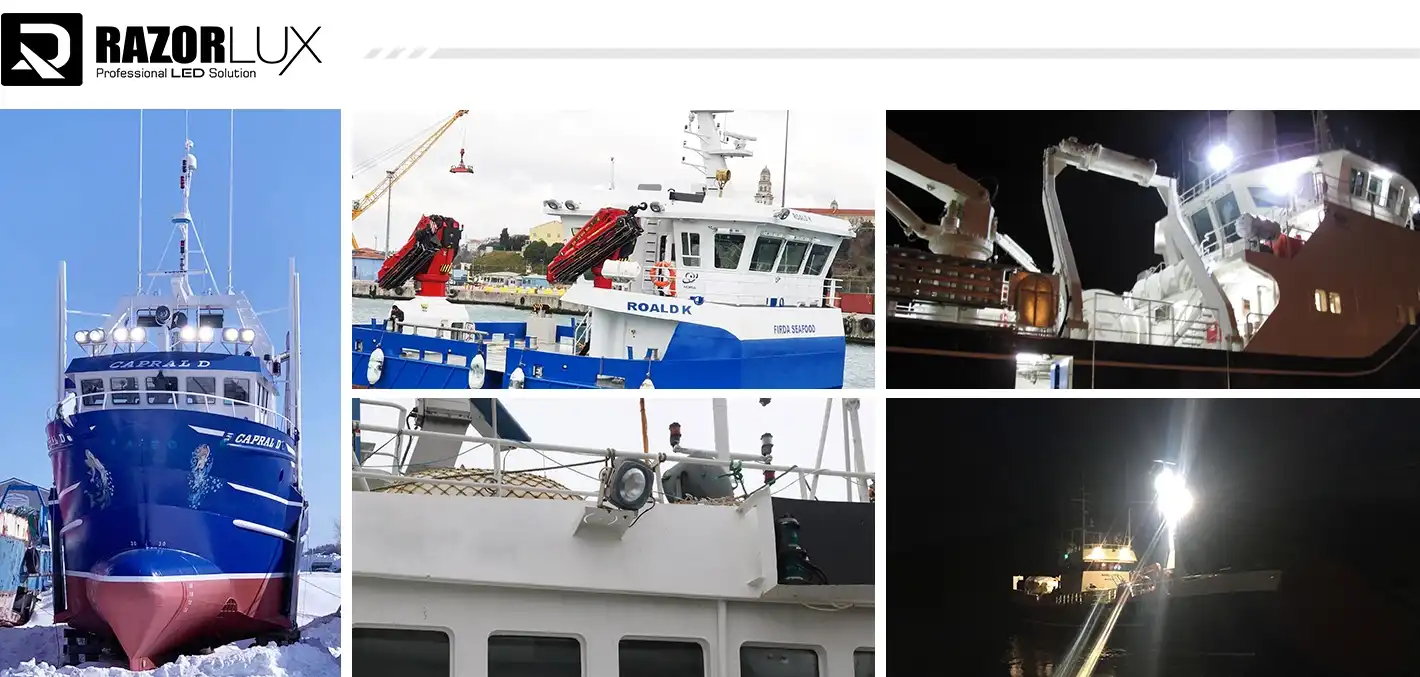

Application Examples

Fishing Vessels

Illuminate sorting decks and winch areas during night operations. High CRI (Ra>75) reveals true colors for catch inspection.

Offshore Platforms

Helipad and equipment maintenance zones require explosion-proof fixtures. Our Marine Led Spot Flood Lights reduce power consumption by 70% versus HID systems while meeting offshore safety standards.

Port Facilities

Provide wide-area coverage for loading docks and crane operations. Supports 24/7 cargo handling with reduced energy costs.

Patrol Craft

Configure spot patterns for search and rescue operations. Quick beam angle adjustment for different mission requirements.

Passenger Ships

Evenly distributed illumination for boarding areas and walkways. Adjustable color temperature (2700K-6500K) creates comfortable ambiance while maintaining safety compliance.

About Xi'an Razorlux

Since 1998, we've manufactured LED lighting solutions for commercial and industrial applications. Our Xi'an facility holds authorization from China's National Development and Reform Commission as an LED Lighting Engineering Laboratory.

Our capabilities:

· 200+ patents in LED chip Packaging, power control, and thermal management

· ISO 9001 certified for 22 consecutive years

· Complete testing facilities for marine environment simulation

· Custom lighting layout design for specific vessel configurations

We've supplied lighting systems to infrastructure projects across Asia, including installations for China Mobile and Guodian Group.

Common Questions

Q: How long do these lights last in saltwater environments?

A: L70 performance (70% lumen output) exceeds 50,000 hours under corrosive conditions. Thermal management design prevents LED chip degradation.

Q: Will these work with our vessel's electrical system?

A: Yes. The wide input range (AC90-305V, DC127-431V) with active power factor correction handles voltage fluctuations from diesel generators.

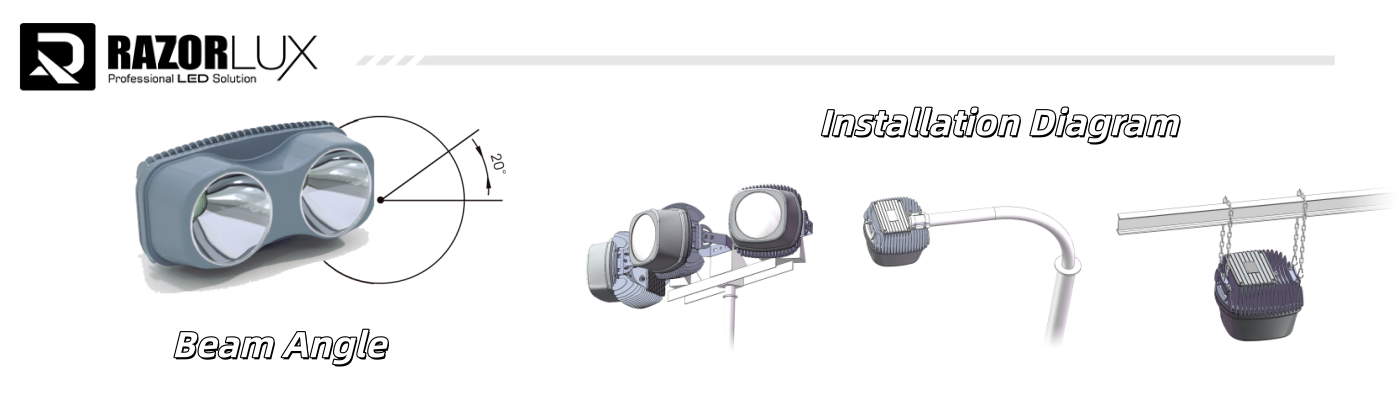

Q: Which beam angle should I choose?

A: For navigation and long-range visibility, choose 15°-30° spot beams. For deck work, select 60°-120° flood patterns. The 140°×60° option works well for perimeter lighting.

Q: Are these lights truly waterproof?

A: IP67 rating with multi-layer gasket sealing. Each unit survives 1-meter submersion and resists high-pressure washdowns up to 80°C.

Q: Do these interfere with navigation equipment?

A: No. EMC-filtered drivers eliminate radio frequency interference with VHF, GPS, and radar systems.
