Outdoor Flood Light Fixtures Waterproof

Outdoor Flood Light Fixtures Waterproof for Industrial & Marine ApplicationsProfessional 210W Outdoor Lighting Solution with IP67 Protection

Outdoor Flood Light Fixtures Waterproof systems must be reliable for the harsh circumstances of industrial settings. Designed with rugged construction for maritime, transportation and infrastructure applications, the 210W waterproof flood light fixture offers energy efficiency at 130LM/W and resistance to extreme weather, corrosion and mechanical damage.

Outdoor Flood Light Fixtures Waterproof Specifications

Engineering Features

Corrosion-Resistant Construction

The housing is made from ADC12 aluminium alloy and finished with a specialised marine-grade powder coating that has passed 500-hour salt spray testing (ASTM B117). C5M Rated corrosion protection, makes this fixture ideal for:

· Exposure to high salinity air at coastal facilities

· Chemical processing plants in corrosive environments

· Offshore platforms and shipyards

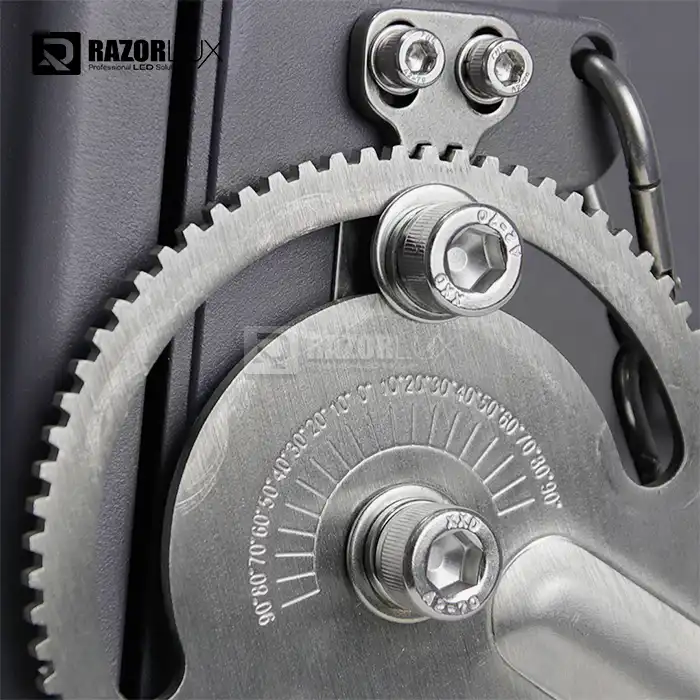

Mounting brackets are made from 316 stainless steel which is far more corrosion resistant than common 304 grade hardware.

Advanced Thermal Management

Integrated heat sink design keeps LED junction temperature under 85°C during prolonged operation. This thermal management prolongs the life of the components and maintains the light output over time.

Temperature monitoring during our 48-hour burn-in testing verifies consistent performance across the complete working range (-40°C to +50°C).

Optical System Design

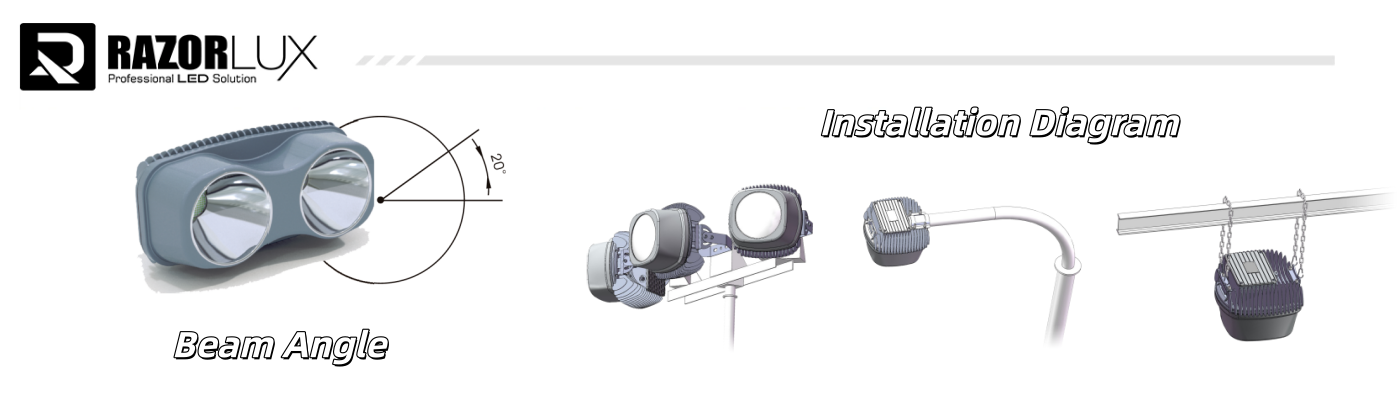

7 beam angle combinations for accurate light distribution:

· Narrow beams (15°-30°): long-range light for perimeter security

· Medium beams (40°-60°): General area lighting for yards and parking lots

· Wide beams (120°-140°): Architectural façade illumination and close-range applications

Tempered glass lens with anti-UV coating to provide optical clarity without yellowing. IK08-IK10 impact rating protects against mechanical damage from debris and unintended contact .

Waterproof Integrity

IP67 protected, temporary immersion to 1 metre depth. Integrated breather valves equalise internal pressure during temperature cycling and prevent water entry.

Silicone gasket sealing compression test for long term waterproof performance verification. Cable entry with double gland sealing and strain relief.

Industry Applications

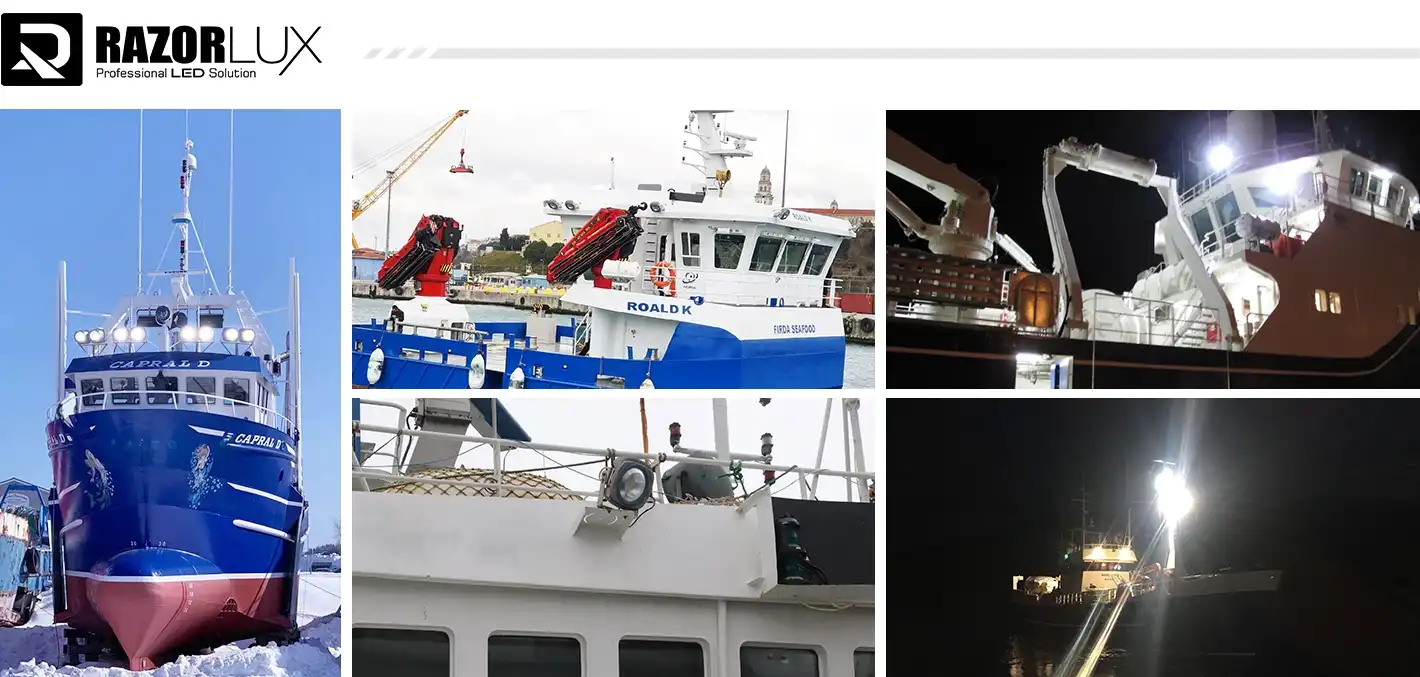

Ports & Maritime Logistics

Container terminals need illumination that works 24/7 through every weather extreme. Our Outdoor Flood Light Fixtures Waterproof fittings:

· Cargo handling areas

· Berth points on the quayside

· Yardage – intermodal

· Cargo loading procedures.

C5M Corrosion grade indicates performance in salt spray and high humidity situations.

Transportation Infrastructure

Safe lighting is essential for highways, tunnels and trains. Wide voltage range (AC 90-305V) to compensate power supply variances in distant places.

Built-in surge protection (4KV-10KV SPD) protects against lightning strikes and grid fluctuations typical of outdoor installations exposed to the elements.

Commercial & Industrial Facilities

Manufacturing plants, warehouses, and distribution centers benefit from:

· Low maintenance requirements (>50,000 hour lifespan)

· Energy efficiency reducing operational costs

· Flexible beam angles adapting to different ceiling heights

​​​​​​​

Outdoor Sports Venues

Stadium and recreational facility lighting demands consistent performance during evening events. Our fixtures maintain color temperature stability and prevent flicker at standard power frequencies (50/60Hz).

Quality Assurance

Testing Protocols

Every production batch undergoes verification testing:

Manufacturing Standards

Xi'an Razorlux maintains ISO:9001 certification since 2001, ensuring consistent quality management across all production stages. Our facility operates under:

· Incoming material inspection with supplier audits

· In-process quality checkpoints at assembly stages

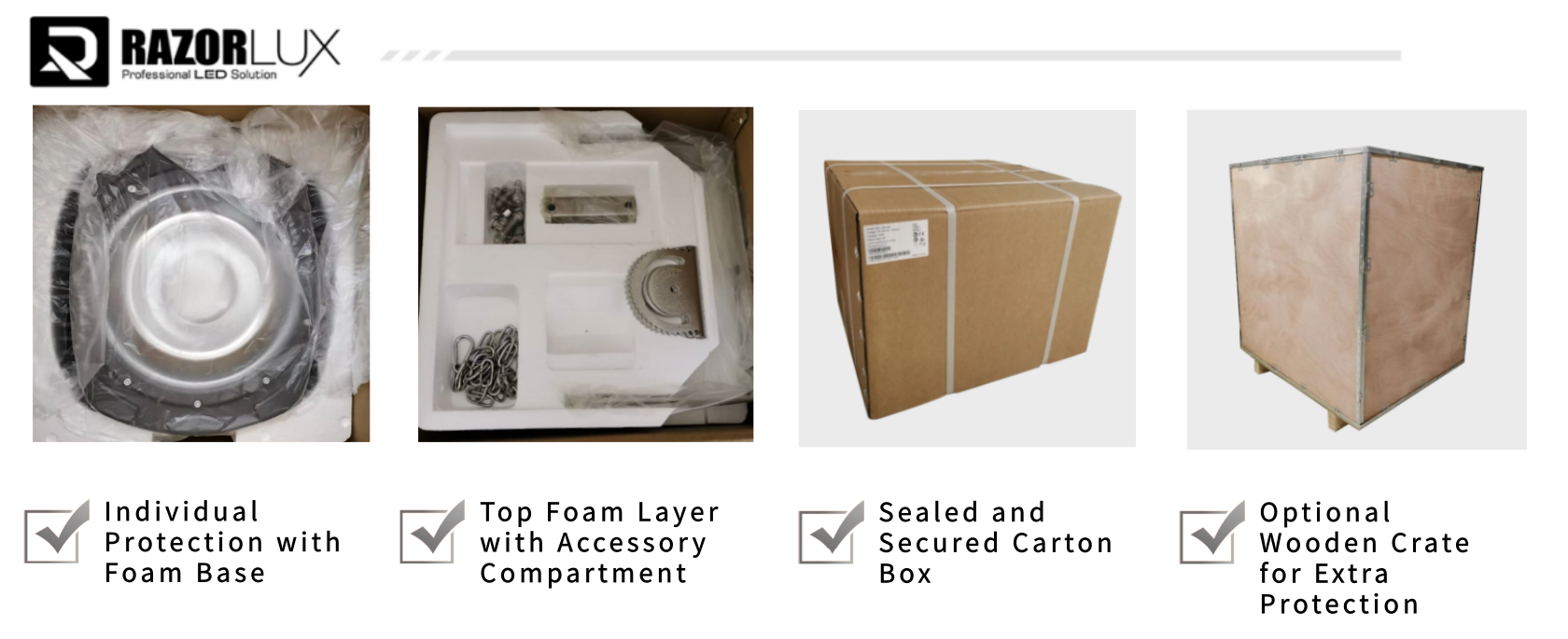

· Final inspection before Packaging and shipment

· Traceability systems linking products to material batches

The company's LED Lighting Engineering Laboratory (authorized by China's National Development and Reform Commission) conducts independent validation testing.

Frequently Asked Questions

How can I determine the correct beam angle for my application?

Narrow beams (15°-30°) are best for mounting heights above 10 meters or to illuminate specific targets. Wide beams (120°-140°) are best suited for modest installation heights (4-6 meters) when a wide coverage is required. 60° is a good distribution for most parking lots and open spaces.

What is the difference between IP65 and IP67 ratings?

IP65 protection against water jets from all directions, excellent for rain and washdown conditions. IP67 provides temporary immersion protection (up to 1m for 30 minutes) and is recommended for areas that are subject to flooding or heavy pooling water.

Are these fittings OK for very cold weather?

Right. The operational temperature range is to -40 °C. Industrial grade capacitors with low-temperature performance are used as driver components. No external heating apparatus is needed.

Is dimming control available?

Standard units operate at fixed output. Optional 0-10V dimming or DALI interfaces can be specified during ordering for projects requiring lighting control integration.

How does the built-in surge protection work?

The SPD (Surge Protective Device) module diverts transient voltage spikes to ground, protecting the LED driver circuit. Rated for 4KV-10KV, it handles typical lightning-induced surges and power grid switching events. For areas with extreme lightning activity, additional external surge protection at the electrical panel is recommended.

What maintenance is required?

Quarterly inspection: Check mounting hardware tightness and lens cleanliness. Annual maintenance: Clean lens with mild detergent and inspect gasket seals for degradation. No lamp replacement is needed during the 50,000+ hour lifespan.

About Xi'an Razorlux

With 22 years of specialized LED lighting manufacturing, Xi'an Razorlux holds over 200 patents in thermal management, optical design, and marine lighting systems. Our research facility collaborates with the Shaanxi LED Lighting Technology Research Center (licensed by China's Ministry of Science and Technology) to advance industrial lighting solutions.

Production capacity exceeds 500,000 units annually, serving clients in maritime shipping, oil & gas, transportation infrastructure, and commercial development sectors across 60+ countries.

Contact Us

For project consultation, technical specifications, or quotation requests:

Email our Outdoor Flood Light Fixtures Waterproof's team: sam@razorlux.com
