Die Casting Aluminum 1000W Housing Led Stadium Lights Outdoor Housing 130000lm

Die Casting Aluminum 1000W Housing Led Stadium Lights Outdoor Housing 130000lm

  • Die Casting Aluminum 1000W Housing Led Stadium Lights Outdoor Housing 130000lm
  • Die Casting Aluminum 1000W Housing Led Stadium Lights Outdoor Housing 130000lm
Die Casting Aluminum 1000W Housing Led Stadium Lights Outdoor Housing 130000lm
Product Details:
Place of Origin: Shaanxi, China
Brand Name: Razorlux
Certification: ce, LVD, RoHS, Saa, UL
Model Number: RGL2-1000A
Payment & Shipping Terms:
Price: $1,612.00/Pieces
Packaging Details: 1.EPS Foam+carton(ONE UNIT PER CARTON) <br>2.Carton Size(mm):550*450*415mm<br>3.One 20'' Container can accept 250 Units
Contact Now
Detailed Product Description
Color Temperature(CCT): 5000K (Daylight), Cool White Lamp Luminous Efficiency(lm/w): 130, 130
Color Rendering Index(Ra): 80 Lighting Solutions Service: DIALux Evo Layout, Agi32 Layout, Auto CAD Layout
Working Time (hours): 50000 Product Weight(kg): 30
Input Voltage(V): 80~315Vac, (347Vac Available On Request) Beam Angle(°): 40° 60° 120° 140°
Lamp Body Material: Aluminum Alloy IP Rating: IP67
Application: Sports Stadiums Light Source: LED
Lamp Luminous Flux(lm): 130000, 130000lm Working Temperature(℃): -40 To 60, -40 - 60
Warranty(Year): 5-Year Product Name: 1000W Stadium Flood Light
Working Life: 50000 IP Class: IP 65 (Upgradeable To IP 67)
Color Temperature: 2700-6500K
High Light:

1000W Housing Led Stadium Lights

,

130000lm Die Casting Led Stadium Lights

,

130000lm outdoor stadium lighting

Die Casting Aluminum Housing 1000W Stadium Flood Light

Main Features



1. 80% lumen maintenance over 50,000hours
2. Wide Power range: 1000W
3. 110-480Vac input voltage without additional adapter
4. Patent Built-in Serge Protection.
5. TOP chips high efficacy 130lm/w±7% with meanwell driver
6. IP67 waterproof, IK10 impact proof
7. Neutral Salt Spray Resistance
8. Anti-Corression power coating surface treatment
9. Stainless steel brackets material.(Upgradable to SS316)
10. 0-10VDC, DALI and wireless control available
11. DLC, TUV CE RoHS, CB, SAA, LM79 listed
12. High uniformity & color rendering index

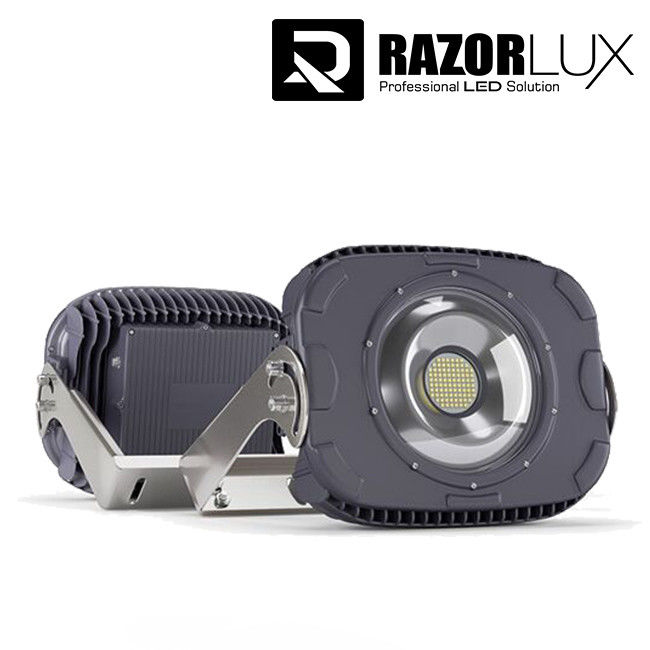

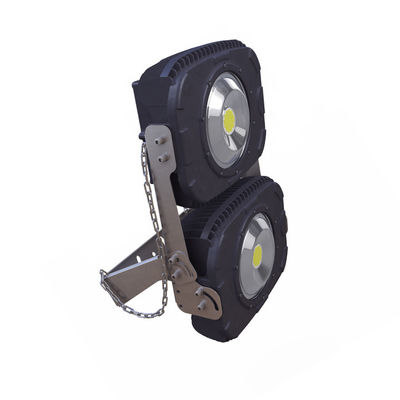

Photos of 1000W Stadium Flood Light:

Die Casting Aluminum 1000W Housing Led Stadium Lights Outdoor Housing 130000lm 0

Die Casting Aluminum 1000W Housing Led Stadium Lights Outdoor Housing 130000lm 2




ameter of Razorlux 1000W Stadium Flood Light:



Model RGL2-1000A
Beam Angle 40° 60° 120° 140°

Stable Flux

(5700K after 1 hour)

130000lm
Dimension (mm) 474*388*982
  LEDs 900W
Power  Driver 100W
Consumption  Total 1000W
Replace HID Lamp 2200~2500W
Net Weight 30kg (66lbs)
Color Temperature 2700-6500K
Color Rendering ≥Ra75 (≥Ra80, ≥Ra90 available on request)
Working Life ≥50000Hrs
Housing Material Aluminum & Powder coating
Power Supply Meanwell
IP Class

IP 65 (Upgradeable to IP 67)

IK Class

IK 10

Insulation Class Class I
Working Temperature -40C ~ 60C / -40F ~ 140F
Working Humidity 10% ~ 95%
AC Input 110-480Vac input voltage without additional adapter
DC Input 100 ~ 400Vdc, 500Vdc ~ 800Vdc
THD <10%
Power Factor ≥0.98
Warranty LED Module 5 years
Driver 5 years
Housing 10 years





Application Projects



Application of Razorlux 1000W Stadium Flood Light:





Die Casting Aluminum 1000W Housing Led Stadium Lights Outdoor Housing 130000lm 4



FAQ:

1. Are you a factory or trading company:

We are a factory located in Xi'an China, established in 2006.



2. What is your product range?

Our wide product range includes floodlight, street light, pendant light, and power from 60W to 1200W.



3. How many days of production will the order take?

Normally 7-15 days, depending on the order quanity.



4. How do you ship goods abroad?

For sample, trial order, or small quantities we will suggest shipping by air, for large quantity and bulk order we recommend shipping by sea.



5. Does your product support smart control like sensor, dimming, DALI, etc.

They support all of these features, please tell our sales during your negotiation when you need such features.



6. How do you deal with failed lights?

During the warranty period, we will send customer free part or lamp after checking the evidence. After warranty, we only charge the component fees, no extra charge for our customer.
