Place of Origin: | Shaanxi, China |
Brand Name: | Razorlux |
Certification: | ce, LVD, RoHS, Saa, UL |
Model Number: | RGL2-1000A |
Price: | $1,612.00/Pieces |
---|---|
Packaging Details: | 1.EPS Foam+carton(ONE UNIT PER CARTON) <br>2.Carton Size(mm):550*450*415mm<br>3.One 20'' Container can accept 250 Units |
Color Temperature(CCT): | 6000K (Daylight Alert), Cool White | Lamp Luminous Efficiency(lm/w): | 120, 130 |
---|---|---|---|
Color Rendering Index(Ra): | 80 | Support Dimmer: | Yes |
Lighting Solutions Service: | DIALux Evo Layout, Agi32 Layout, Auto CAD Layout | Lifespan (hours): | 50000 |
Working Time (hours): | 50000 | Product Weight(kg): | 30 |
Input Voltage(V): | 80~315Vac, (347Vac Available On Request) | CRI (Ra>): | 75 |
Beam Angle(°): | 40° 60° 120° 140° | Working Lifetime(Hour): | 50000 |
Lamp Body Material: | Aluminum Alloy | IP Rating: | IP67 |
Application: | Sports Stadiums | Light Source: | LED |
Lamp Luminous Flux(lm): | 120000, 130000lm | Working Temperature(℃): | -40 To 60, -40 - 60 |
Warranty(Year): | 5-Year | Product Name: | Stadium Light 1000W |
Warranty: | 5Years | Housiong Material: | Aluminum |
Working Life: | 50000 | IP Class: | IP 65 (Upgradeable To IP 67) |
Color Temperature: | 2700-6500K | ||
High Light: | 2700-6500K led sports lights,75 CRI Baseball led sports lights,UL stadium flood light |
1. 80% lumen maintenance over 50,000hours |
2. Wide Power range: 1000W |
3. 110-480Vac input voltage without additional adapter |
4. Patent Built-in Serge Protection. |
5. TOP chips high efficacy 130lm/w±7% with meanwell driver |
6. IP67 waterproof, IK10 impact proof |
7. Neutral Salt Spray Resistance |
8. Anti-Corression power coating surface treatment |
9. Stainless steel brackets material.(Upgradable to SS316) |
10. 0-10VDC, DALI and wireless control available |
11. DLC, TUV CE RoHS, CB, SAA, LM79 listed |
12. High uniformity & color rendering index |

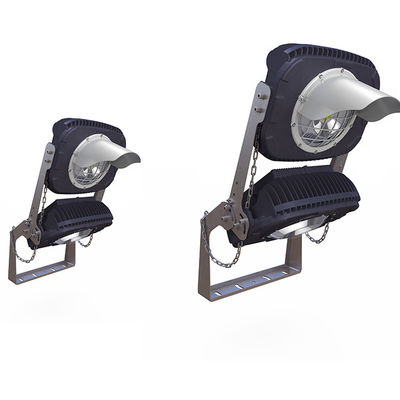

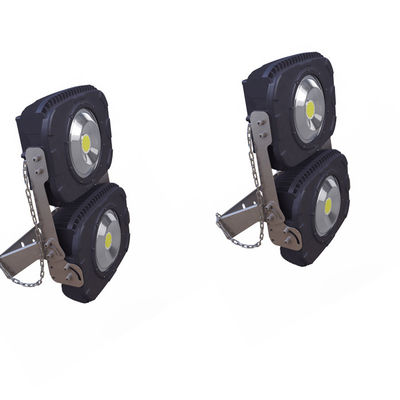

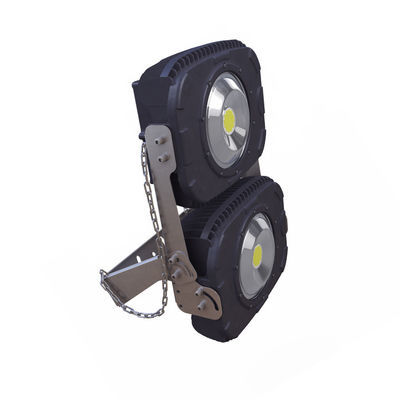

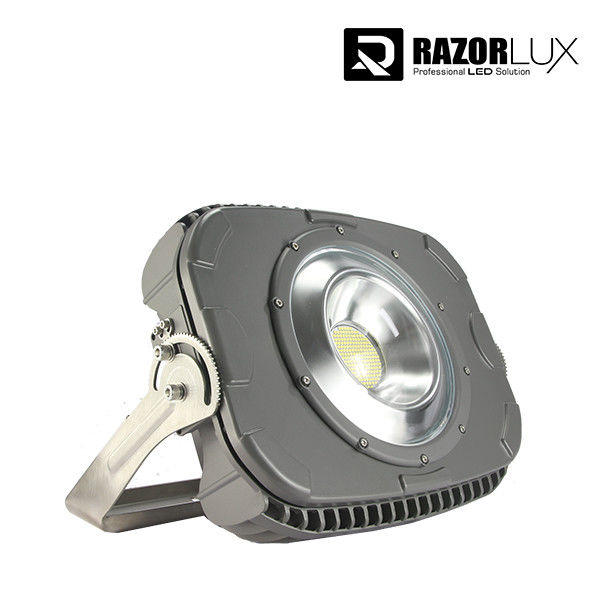

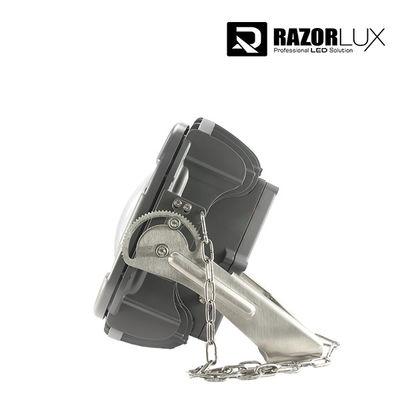

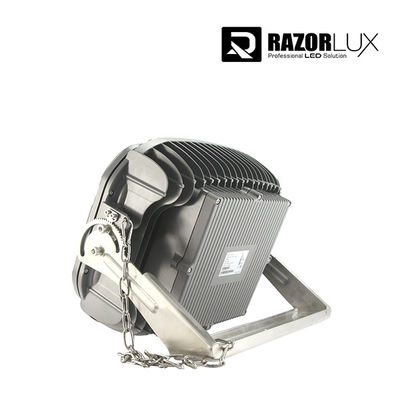

Photos of 1000W Stadium Light: |
Parameter of Razorlux 1000W Stadium Light: |
Model | RGL2-1000A | |
Beam Angle | 40° 60° 120° 140° | |
Stable Flux (5700K after 1 hour) |
130000lm | |
Dimension (mm) | 474*388*982 | |
LEDs | 900W | |
Power | Driver | 100W |
Consumption | Total | 1000W |
Replace HID Lamp | 2200~2500W | |
Net Weight | 30kg (66lbs) | |
Color Temperature | 2700-6500K | |
Color Rendering | ≥Ra75 (≥Ra80, ≥Ra90 available on request) | |
Working Life | ≥50000Hrs | |
Housing Material | Aluminum & Powder coating | |
Power Supply | Meanwell | |
IP Class |
IP 65 (Upgradeable to IP 67) |
|
IK Class |
IK 10 |
|
Insulation Class | Class I | |
Working Temperature | -40C ~ 60C / -40F ~ 140F | |
Working Humidity | 10% ~ 95% | |
AC Input | 110-480Vac input voltage without additional adapter | |
DC Input | 100 ~ 400Vdc, 500Vdc ~ 800Vdc | |
THD | <10% | |
Power Factor | ≥0.98 | |
Warranty | LED Module | 5 years |
Driver | 5 years | |
Housing | 10 years |
Lighting Distribution of 1000W Stadium Light: |
For Different application requirement, Razorlux Genius Series have different types of beam angles options.
at the moment we have 40° 60° 120° 140° beam angle available.
Certificates of Razorlux 1000W Stadium Light: |
Model |
G.W |
Genius II 1000W A Series |
30KGS |
Razorlux has very strict Quality Control System, from checking and evaluation of incoming materials to
the delivery of products, each item will be checked and tested for several times.
Quality Control - Testing Equipments: |
For every piece of Razorlux 1000 Watt LED Flood Light are tested in different procedures. |
No. 1: Extreme temperature testing to make sure the lamps work stably and standardly under extreme temperature environment. (-40 to 60 degree) |
No. 2: Anti-Corrosion and IP67 Waterproof Testing, to make sure the products are working well even undern corrosive and Wetting environment. |
No. 3 & 4: Dark Room for testing IES files and other Photometric datas. |
Quality Control - Aging Department: |
For every piece of Razorlux Genius™ LED Lights, they will be aged for at least 72 hours before shipment
to make sure of their long term and stable performances within lifetime.
Razorlux Service: |
1. Before and after sales in time service 7/24
2. Professional Lighting solution, DIALux simulation available
3. Payment terms: Paypal, TT, LC, DP etc
4. Shipment terms: FOB, CIF, CFR
5. Lead time: 5-7 working days
6. NO MOQ required, sample testing welcome
Razorlux at Lighting Fairs: |
Hong Kong International Lighting Fair (Spring Edition) 2016/2017/2018 |
Hong Kong International Lighting Fair (Autumn Edition) 2016/2017/2018 |
2015 LED Expo in Den Bosch, Netherland |
2016 Strategies in Light in Las Vegas, U.S.A |
2016 IIDEX in Toronto, Canada |
FAQ:
1. Are you a factory or trading company:
We are a factory located in Xi'an China, established in 2006.
2. What is your product range?
Our wide product range includes floodlight, street light, pendant light, and power from 60W to 1200W.
3. How many days of production will the order take?
Normally 7-15 days, depending on the order quanity.
4. How do you ship goods abroad?
For sample, trial order, or small quantities we will suggest shipping by air, for large quantity and bulk order we recommend shipping by sea.
5. Does your product support smart control like sensor, dimming, DALI, etc.
They support all of these features, please tell our sales during your negotiation when you need such features.
6. How do you deal with failed lights?
During the warranty period, we will send customer free part or lamp after checking the evidence. After warranty, we only charge the component fees, no extra charge for our customer.
