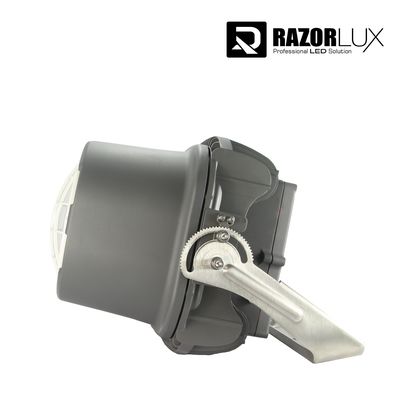

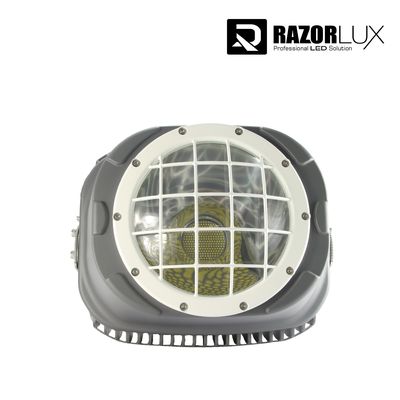

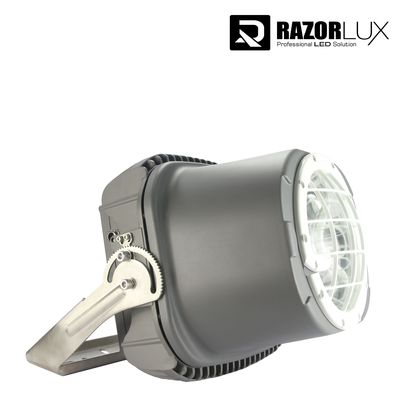

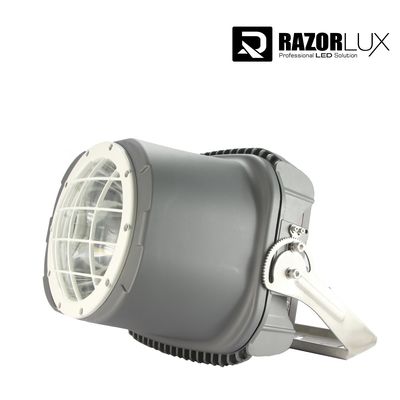

15/30 Beam Marine Led Flood Light 24000lm Led Waterproof Lights For Boats

15/30 Beam Marine Led Flood Light 24000lm Led Waterproof Lights For Boats

  • 15/30 Beam Marine Led Flood Light 24000lm Led Waterproof Lights For Boats
  • 15/30 Beam Marine Led Flood Light 24000lm Led Waterproof Lights For Boats
  • 15/30 Beam Marine Led Flood Light 24000lm Led Waterproof Lights For Boats
  • 15/30 Beam Marine Led Flood Light 24000lm Led Waterproof Lights For Boats
15/30 Beam Marine Led Flood Light 24000lm Led Waterproof Lights For Boats
Product Details:
Place of Origin: Shaanxi, China
Brand Name: Razorlux
Certification: ce, EMC, LVD, RoHS, Saa, UL
Model Number: RGL2-200P
Payment & Shipping Terms:
Minimum Order Quantity: 2 Pieces
Price: $506.00/Pieces
Packaging Details: 1.EPS Foam+carton(ONE UNIT PER CARTON) <br>2.Carton Size(mm):550*450*560mm<br>3.One 20'' Container can accept 250 Units
Contact Now
Detailed Product Description
Color Temperature(CCT): 6000K (Daylight Alert), Cool White Color Rendering Index(Ra): 80
Support Dimmer: YES Lighting Solutions Service: Lighting And Circuitry Design, DIALux Evo Layout, Agi32 Layout
CRI (Ra>): 75 Beam Angle(°): 15° 20° 30°
Working Lifetime(Hour): 50000 Lamp Body Material: Aluminum Alloy
Lamp Luminous Flux(lm): 24000lm Product Name: 200W LED Light Flood
Housiong Material: Aluminum LED Driver: Meanwell
High Light:

15/30 beam Marine Led Flood Light

,

25000 lumen Marine Led Flood Light

,

24000lm led waterproof lights for boats

15/20/30 beam Angle 200w led flood light 25000 lumen for boat lights



Features:

  • We use Top grade Osram / Cree /lumileds chip
  • Meanwell driver
  • Stainless steel bracket
  • Powder coating for lamp body,corrosion resistance is better
  • Patented built-in driver and fin type radiator.(Very good heat dissipation)
  • Built-in surge protection, Built-in thermal protection.
  • Uni-body and Multi-function designed. (Suitable for all projects)
  • Universal input 80~305Vac without additional adapter.
  • 110-130 lm/w lamp efficiency.
  • All our product are IP65/67 waterproof.
  • All our product has 3/5 years warranty.



1. 80% lumen maintenance over 50,000hours
2. Wide Power range: 200W
3. 110-480Vac input voltage without additional adapter
4. Patent Built-in Serge Protection.
5. TOP chips high efficacy 120lm/w with meanwell driver
6. IP67 waterproof, IK10 impact proof
7. Neutral Salt Spray Resistance
8. Anti-Corression power coating surface treatment
9. Stainless steel brackets material.(Upgradable to SS316)
10. 0-10VDC, DALI and wireless control available
11. UL cUL DLC, TUV CE RoHS, CB, SAA, LM79 listed
12. High uniformity & color rendering index



  Marine searchlights, floodlights and spotlights have become more affordable and much more efficient with the recent vast improvements in LED technology, and we offer hundreds of items in this category to satisfy your boat lighting requirements. Select from incandescent, halogen or LED bulbs to provide the exact type and intensity of light you need. We have LED marine flood lights, rechargeable marine spotlights, and both remote control marine spotlights and one of the best marine handheld spotlights on the market.






Model RGL2-200P
Beam Angle 15° 20° 30°

Stable Flux

(5700K after 1 hour)

24000lm
Dimension (mm) 466*388*487
  LEDs 180W
Power  Driver 20W
Consumption  Total 200W
Replace HID Lamp 400~600W
Net Weight 19kg with stainless steel floodlight bracket
Color Temperature 2700-6500K
Color Rendering ≥Ra75 (≥Ra80, ≥Ra90 available on request)
Working Life ≥50000Hrs
Housing Material Aluminum & Powder coating
Power Supply Meanwell
IP Class

IP 65 (Upgradeable to IP 67)

IK Class

IK 10

Insulation Class Class I
Working Temperature -40C ~ 60C / -40F ~ 140F
Working Humidity 10% ~ 95%
AC Input 110-480Vac input voltage without additional adapter
DC Input 100 ~ 400Vdc, 500Vdc ~ 800Vdc
THD <10%
Power Factor ≥0.98
Warranty LED Module 5 year
Driver 5 year
Housing 10 year



Advantage:



1. Service:We also provide our client with lighting layout design and brightness calculation of projects ,Razorlux would be your first choice of professional Led lighting supplies.



2. Universival input without additional.



3. Meanwell driver,heat resistant for our power supply. It can working well on temperature at 55°C

4. Multi-function designed, flexible,you always find a combination fitting your projects perfectly.



5. Unique and elegant appearance,and patented heat dissipation technology.

6.Have cooperated with a lot of importers in EU markets more than 10 years.

7. Experienced in doing business with big customers.



9. Own designing team for new products development ,our products were developed by ourselves and we hold 125 patents.



10. We have passed the testing and got the ISO9001,TUV,LVD,SAA,CE,UL,DLC,CUL,Rohs certificates.



11. Different lens,reflectors ,and accessories,they can be varied beam angle mounting bracket,control system and etc.





Application:



Commercial Vessels. Suitable for use on tugboats, towboats, passenger ferries, fishing vessels, trawlers and barges.


Marine applications: Walkways, doorways and stairwells on the deck and interior of vessels, as well as perimeter deck lighting



Mining applications: Perimeter and walkway lighting on large mining equipment like shovels and draglines, machine, electrical and engine rooms, as well as any dusty or dirty location.



Industrial: Parking garages, carwashes, transportation centers, subways, swimming pools, locker rooms, automotive repair facilities as well as food processing facilities, including walk-in freezers, and industrial kitchens
